Sick MLG20N-3140U10501

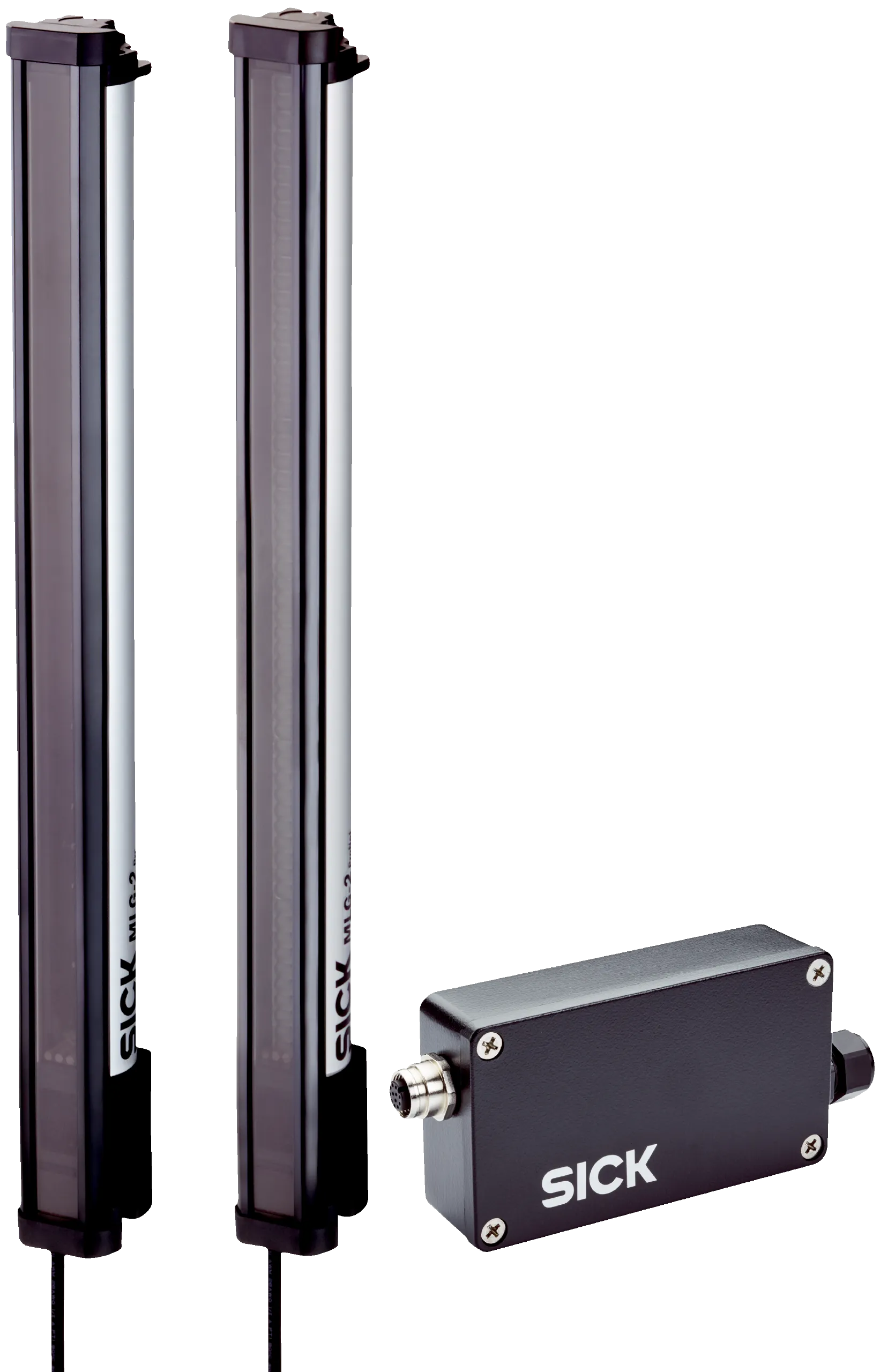

Automation light grids | MLG-2 | MLG20N-3140U10501 | Device version: ProNet – Replacement product (for MLG-1 with terminals) | Inputs/outputs: RS-485 + 6 x Q + 2 x I/O | Option: None | Beam separation…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Automation light grids | MLG-2 | MLG20N-3140U10501 | Device version: ProNet – Replacement product (for MLG-1 with terminals) | Inputs/outputs: RS-485 + 6 x Q + 2 x I/O | Option: None | Beam separation: 20 mm | Operating range: 5 m | Detection height: 3,140 mm | Length of cable: 0.22 m, 0.21 m | Response time: 13.5 ms | Software feature (default setting – see technical data/features): 01
Specification
Features
| Device version | ProNet - Replacement product (for MLG-1 with terminals) |
|---|---|
| Sensor principle | Sender/receiver |
| Minimum detectable object (MDO) | 20 mm 1)24 mm 2) 3) |
| Beam separation | 20Â mm |
| Type of synchronization | Cable |
| Number of beams | 158 |
| Detection height | 3,140Â mm |
| Interface RS-485 | Beam status |
| Baud rate RS-485 | 9.6Â kbit/s |
| Q1 | Presence detection |
| Q2 | Presence detection inverted |
| Q3 | Contamination warning |
| Q4 | Presence detection |
| Q5 | off |
| Q6 | off |
| In1 | Teach input |
| In2 | off |
| Standard | â |
| Transparent | â |
| Dust- and sunlight-resistant | â |
| Cross beam | â |
| Beam blanking | â |
| High-speed scan | â |
| High measurement accuracy | â |
| Switching output | Object detection/object widthObject recognitionHeight classificationHole detection/hole sizeOutside/inside dimensionObject positionHole positionZone definition |
| Data interface | Object detectionHole detectionObject height measurementMeasurement of the outside dimensionMeasurement of the inside dimensionMeasurement of the object positionMeasurement of the hole position |
| Included with delivery | 1Â Ã sender1Â Ã receiver1Â x Fieldbus module4/6Â x QuickFix brackets (6Â x QuickFix brackets for monitoring heights above 2Â m)1Â Ã Quick Start Guide |
Mechanics/electronics
| Light source | LED, Infrared light |
|---|---|
| Wave length | 850Â nm |
| Supply voltage Vs | DC 19.2Â VÂ ... 28.8Â VÂ 1) |
| Power consumption sender | 62.9Â mAÂ 2) |
| Power consumption receiver | 151.6Â mAÂ 2) |
| Fieldbus module current consumption | 115Â mA |
| Ripple | <Â 5Â Vpp |
| Output current Imax. | 100Â mA |
| Output load, capacitive | 100Â nF |
| Output load, Inductive | 1Â H |
| Initialization time | <Â 1Â s |
| Switching output | Push-pull: PNP/NPN |
| Connection type | Plug, M12, 5-pin, 0.22Â mConnector M12, 12-pin, 0.21Â m |
| Housing material | Aluminum |
| Display | LED |
| Enclosure rating | IP65, IP67Â 3) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Protection class | III |
| Weight | 6.549Â kg |
| Front screen | PMMA |
| Option | None |
Performance
| Maximum range | 7 m 1) |
|---|---|
| Minimum range | ⥠0 m |
| Operating range | 5Â m |
| Response time | 13.5 ms 2) |
Interfaces
| Serial | â , RS-485 |
|---|---|
| Data transmission rate | 1.2 kbit/s â¦921.6 kbit/s |
| Inputs/outputs | RS-485 + 6Â x Q + 2Â x I/O |
| Digital output | Q1Â ... Q6 |
| Number | 6 |
| Digital input | In1, In2 |
| Number | 2 |
Ambient data
| Shock resistance | Continuous shocks 10Â g, 16Â ms, 1000Â shocksSingle shocks 15Â g, 11Â ms 3Â per axle |
|---|---|
| Vibration resistance | Sinusoidal oscillation 10-150 Hz 5Â g |
| EMC | ENÂ 60947-5-2 |
| Ambient light immunity | Direct: 150,000 lx 1)Indirect: 200,000 lx 2) |
| Ambient operating temperature | â30 °C ... +55 °C |
| Ambient temperature, storage | â40 °C ... +70 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Photobiological safety (IEC EN 62471) | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270910 |
|---|---|
| ECLASS 5.1.4 | 27270910 |
| ECLASS 6.0 | 27270910 |
| ECLASS 6.2 | 27270910 |
| ECLASS 7.0 | 27270910 |
| ECLASS 8.0 | 27270910 |
| ECLASS 8.1 | 27270910 |
| ECLASS 9.0 | 27270910 |
| ECLASS 10.0 | 27270910 |
| ECLASS 11.0 | 27270910 |
| ECLASS 12.0 | 27270910 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 39121528 |
