Description

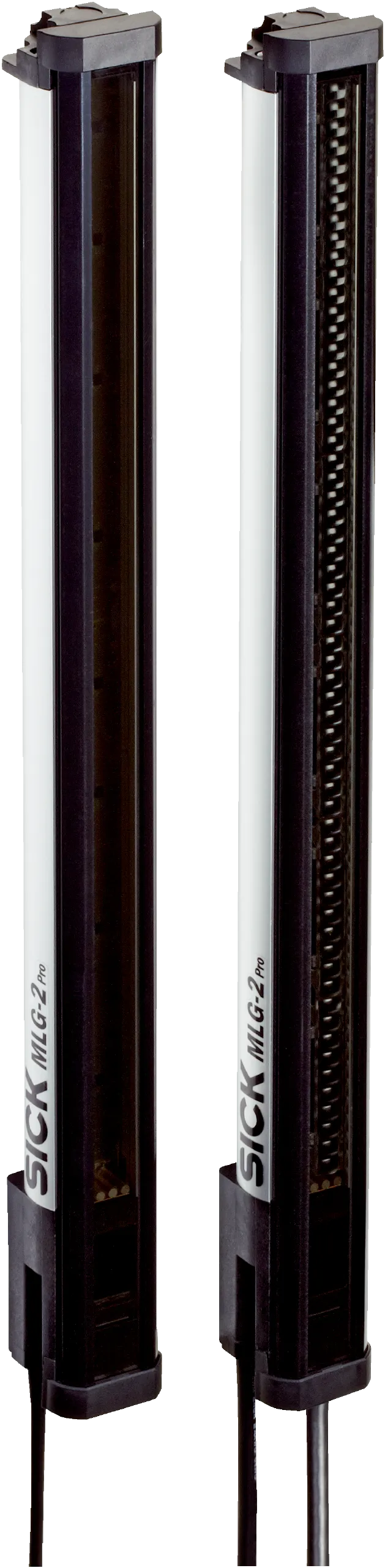

Automation light grids | MLG-2 WebChecker | MLG05W-0B42R12501 | Device version: Web guiding | Inputs/outputs: 4 x Q (IO-Link) | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 2,545 mm | Measuring field width detail (connection side/medium range/head side): 1,645 mm / 605 mm / 295 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 78.1 ms | Software feature (default setting – see technical data/features): 01
Specification
Features
| Device version | Web guiding |
|---|---|
| Sensor principle | Sender/receiver |
| Minimum object length | 4 mm 1) |
| Beam separation | 5Â mm |
| Resolution | 0.1Â mm |
| Cycle time | 32 µs per beam |
| Repeatability | 6 µm 2) |
| Accuracy | ± 0.3 mm 3) |
| Type of synchronization | Cable |
| Number of beams | 390 |
| Total measuring field width | 2,545Â mm |
| Measuring field width (connection side) | 1,645Â mm |
| Blind zone (medium range) | 605Â mm |
| Measuring field width (head side) | 295Â mm |
| Q1/C | Alarm, general |
| Q2 | Standard teach-in |
| Q3 | Edge position 1 |
| Q4 | Edge position 10 |
| Application | Standard mode |
| Included with delivery | 1Â Ã sender1Â Ã receiver4/6Â x QuickFix brackets (6Â x QuickFix brackets for monitoring heights above 2Â m)1Â Ã Quick Start Guide |
Mechanics/electronics
| Light source | LED, Infrared light |
|---|---|
| Wave length | 850Â nm |
| Supply voltage Vs | DC 19.2Â VÂ ... 28.8Â VÂ 1) |
| Power consumption sender | 74.5Â mAÂ 2) |
| Power consumption receiver | 198Â mAÂ 2) |
| Ripple | <Â 5Â Vpp |
| Output current Imax. | 100Â mA |
| Output load, capacitive | 100Â nF |
| Output load, Inductive | 1Â H |
| Initialization time | <Â 1Â s |
| Switching output | Push-pull: PNP/NPN |
| Dimensions (W x H x D) | 34 mm x 2,629.4 mm x 30.6 mm |
| Connection type | Plug, M12, 5-pin, 0.22Â mMale connector M12, 8-pin, 0.27Â mM12 female connector, 4-pin, D-coded, 0.19Â m |
| Housing material | Aluminum |
| Display | LED |
| Enclosure rating | IP65, IP67Â 3) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Protection class | III |
| Weight | 5.359Â kg |
| Front screen | PMMA |
| Option | None |
| UL File No. | NRKH.E181493 |
Performance
| Maximum range | 3.5 m 1) |
|---|---|
| Minimum range | ⥠0.2 m |
| Operating range | 2.5Â m |
| Response time | 78.1 ms 2) |
Interfaces
| IO-Link | â , IO-Link V1.1 |
|---|---|
| Data transmission rate | 230,4Â kbit/s (COM3) |
| Maximum cable length | 20Â m |
| Cycle time | 3Â ms |
| VendorID | 26 |
| DeviceID HEX | 80022F |
| DeviceID DEC | 8389167 |
| Process data length | 32Â Byte (TYPE_2_V)Â 1) |
| Inputs/outputs | 4Â x Q (IO-Link) |
| Digital output | Q1Â ... Q4 |
| Number | 4 |
| Digital input | Q2, Q3, Q4 |
| Number | 3 |
Ambient data
| Shock resistance | Continuous shocks 10Â g, 16Â ms, 1000Â shocksSingle shocks 15Â g, 11Â ms 3Â per axle |
|---|---|
| Vibration resistance | Sinusoidal oscillation 10-150 Hz 5Â g |
| Ambient light immunity | 100,000Â lx |
| Ambient operating temperature | â30 °C ... +55 °C |
| Ambient temperature, storage | â40 °C ... +70 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| IO-Link certificate | â |
| Photobiological safety (IEC EN 62471) | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270910 |
|---|---|
| ECLASS 5.1.4 | 27270910 |
| ECLASS 6.0 | 27270910 |
| ECLASS 6.2 | 27270910 |
| ECLASS 7.0 | 27270910 |
| ECLASS 8.0 | 27270910 |
| ECLASS 8.1 | 27270910 |
| ECLASS 9.0 | 27270910 |
| ECLASS 10.0 | 27270910 |
| ECLASS 11.0 | 27270910 |
| ECLASS 12.0 | 27270910 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 39121528 |
