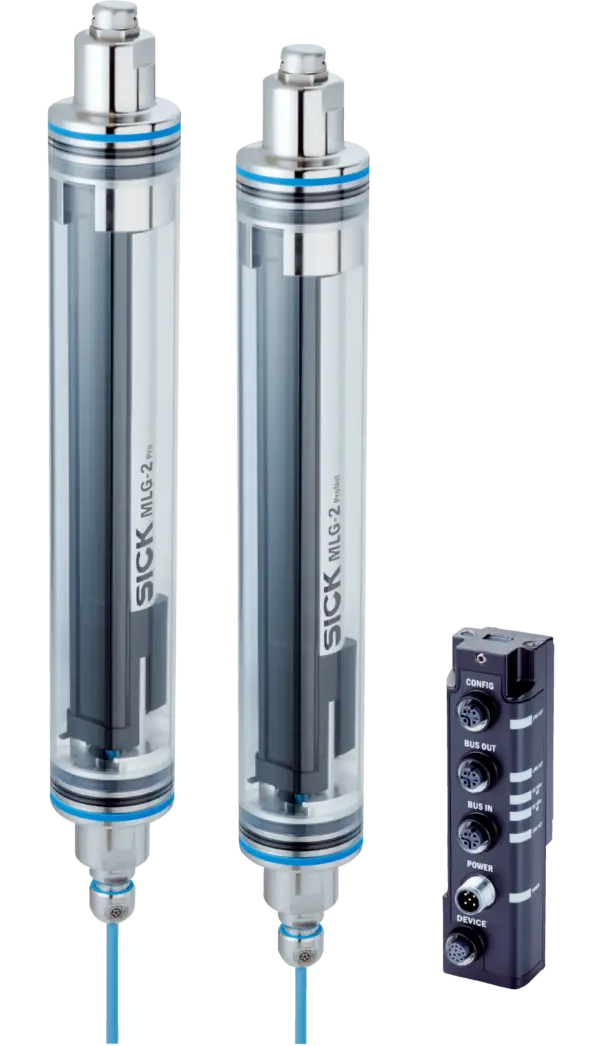

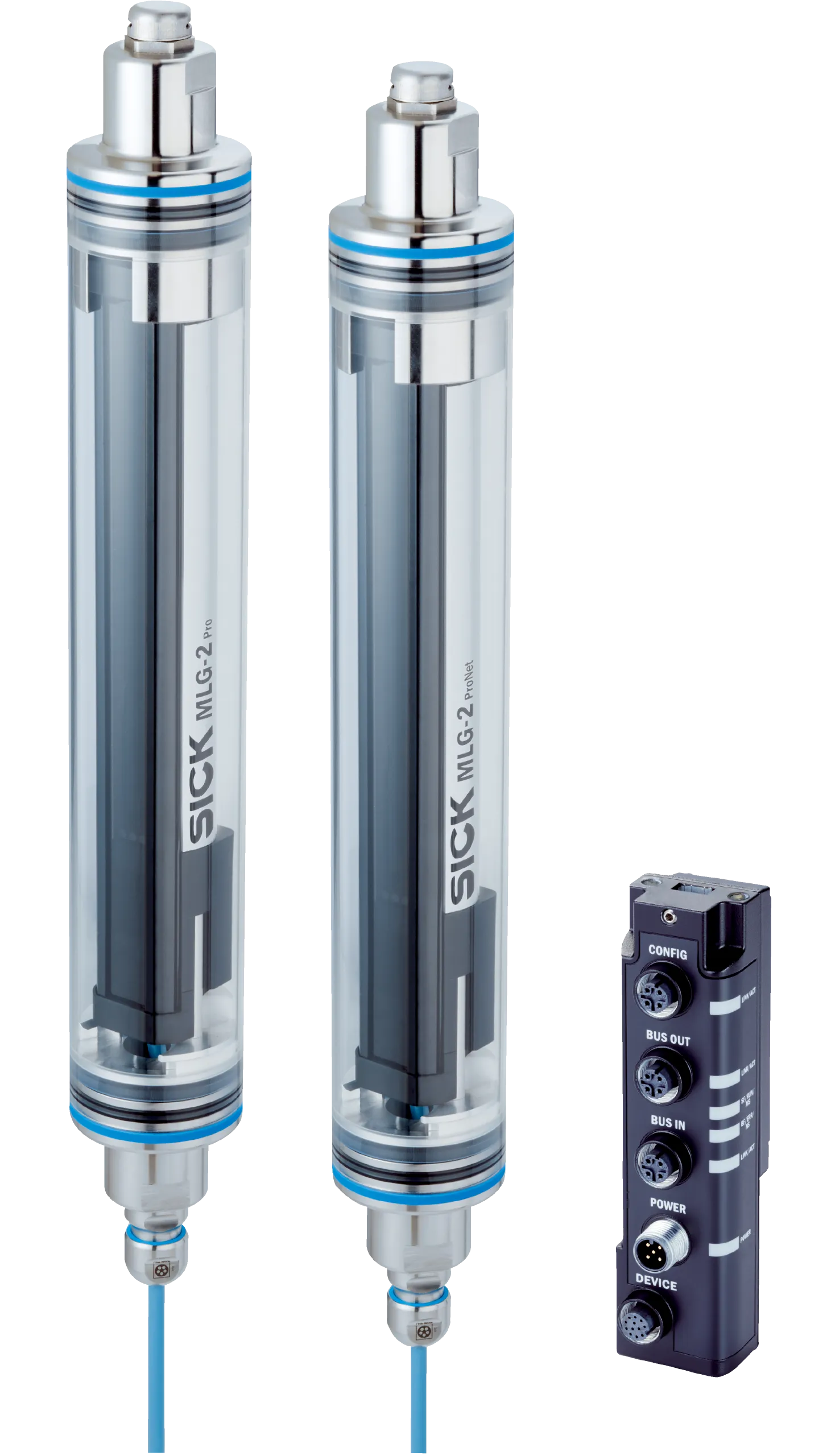

Automation light grids | MLG-2 WebChecker | MLG05W-0236H52501 | Device version: Web guiding | Option: Protective housing IP69K | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Automation light grids | MLG-2 WebChecker | MLG05W-0236H52501 | Device version: Web guiding | Option: Protective housing IP69K | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 1,645 mm | Measuring field width detail (connection side/medium range/head side): 295 mm / 455 mm / 895 mm | Length of cable: 1.4 m, 1.4 m | Response time: 48.5 ms | Software feature (default setting – see technical data/features): 01
Specification
Features
| Device version | Web guiding |
|---|---|
| Sensor principle | Sender/receiver |
| Minimum object length | 4 mm 1) |
| Beam separation | 5Â mm |
| Resolution | 0.1Â mm |
| Cycle time | 32 µs per beam |
| Repeatability | 6 µm 2) |
| Accuracy | ± 0.3 mm 3) |
| Type of synchronization | Cable |
| Number of beams | 240 |
| Total measuring field width | 1,645Â mm |
| Measuring field width (connection side) | 295Â mm |
| Blind zone (medium range) | 455Â mm |
| Measuring field width (head side) | 895Â mm |
| Q1 | Alarm, general |
| Application | Standard mode |
| Included with delivery | 1 × sender (in IP69K protective pipes)1 × receiver (in IP69K protective pipes)1 x Fieldbus module1 x IP69K mounting instructions1 × Quick Start Guide |
Mechanics/electronics
| Light source | LED, Infrared light |
|---|---|
| Wave length | 850Â nm |
| Supply voltage Vs | DC 19.2Â VÂ ... 28.8Â VÂ 1) |
| Power consumption sender | 67Â mAÂ 2) |
| Power consumption receiver | 168Â mAÂ 2) |
| Fieldbus module current consumption | 115Â mA |
| Ripple | <Â 5Â Vpp |
| Output current Imax. | 100Â mA |
| Output load, capacitive | 100Â nF |
| Output load, Inductive | 1Â H |
| Initialization time | <Â 1Â s |
| Switching output | Push-pull: PNP/NPN |
| Dimensions (W x H x D) | 50 mm x 1,880.1 mm x 50 mm |
| Connection type | Plug, M12, 5-pin, 1.4Â mConnector M12, 12-pin, 1.4Â m |
| Housing material | Aluminum (light grid)PMMA Plexiglas XT Food Contact DoC (protective pipe)Polypropylene, stainless steel 1.4404Â (cable)VA 1.4305Â (pressure compensation element)Stainless steel 1.4404Â (end caps)Stainless steel V4A 1.4404Â DINÂ ENÂ 1672-2 (cable gland) |
| Display | LED |
| Enclosure rating | IP69KÂ 3) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Protection class | III |
| Weight | 3.559Â kg |
| Option | Protective housing IP69K |
| UL File No. | NRKH.E181493 |
Performance
| Maximum range | 3.5 m 1) |
|---|---|
| Minimum range | ≥ 0.2 m |
| Operating range | 2.5Â m |
| Response time | 48.5 ms 2) |
Interfaces
| EtherNet/IP™ | ✔ |
|---|---|
| Digital output | Q1 |
| Number | 1 |
Ambient data
| Shock resistance | Continuous shocks 10Â g, 16Â ms, 1000Â shocksSingle shocks 15Â g, 11Â ms 3Â per axle |
|---|---|
| Vibration resistance | Sinusoidal oscillation 10-150 Hz 5Â g |
| Ambient light immunity | 100,000Â lx |
| Ambient operating temperature | –20 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27270910 |
|---|---|
| ECLASS 5.1.4 | 27270910 |
| ECLASS 6.0 | 27270910 |
| ECLASS 6.2 | 27270910 |
| ECLASS 7.0 | 27270910 |
| ECLASS 8.0 | 27270910 |
| ECLASS 8.1 | 27270910 |
| ECLASS 9.0 | 27270910 |
| ECLASS 10.0 | 27270910 |
| ECLASS 11.0 | 27270910 |
| ECLASS 12.0 | 27270910 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 39121528 |
