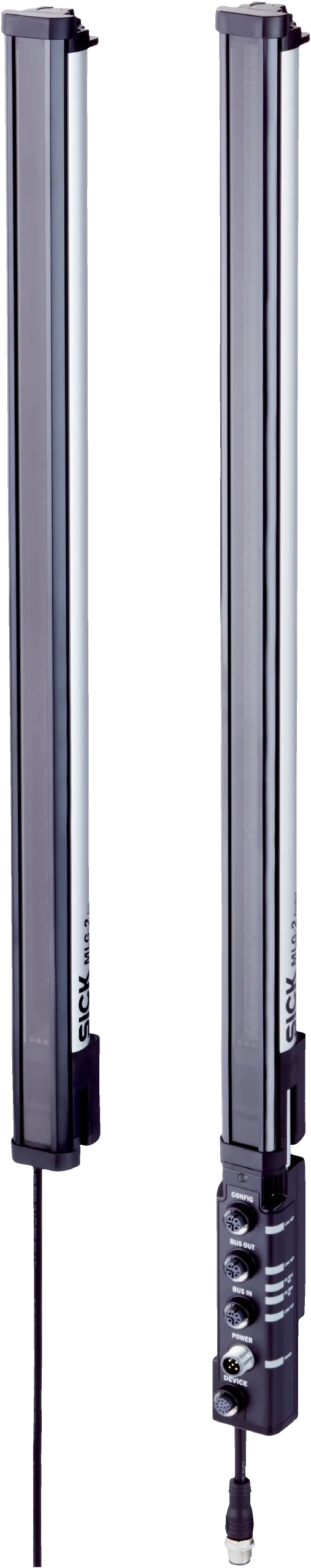

Sick MLG05W-0111E12501
Automation light grids | MLG-2 WebChecker | MLG05W-0111E12501 | Device version: Web guiding | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 445 mm | Meas…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Automation light grids | MLG-2 WebChecker | MLG05W-0111E12501 | Device version: Web guiding | Option: None | Beam separation: 5 mm | Operating range: 2.5 m | Total measuring field width: 445 mm | Measuring field width detail (connection side/medium range/head side): 145 mm / 155 mm / 145 mm | Length of cable: 0.22 m, 0.27 m | Response time: 13.1 ms | Software feature (default setting – see technical data/features): 01
Specification
Features
| Device version | Web guiding |
|---|---|
| Sensor principle | Sender/receiver |
| Minimum object length | 4 mm 1) |
| Beam separation | 5Â mm |
| Resolution | 0.1Â mm |
| Cycle time | 32 µs per beam |
| Repeatability | 6 µm 2) |
| Accuracy | ± 0.3 mm 3) |
| Type of synchronization | Cable |
| Number of beams | 60 |
| Total measuring field width | 445Â mm |
| Measuring field width (connection side) | 145Â mm |
| Blind zone (medium range) | 155Â mm |
| Measuring field width (head side) | 145Â mm |
| Q1 | Alarm, general |
| Application | Standard mode |
| Included with delivery | 1 × sender1 × receiver1 x Fieldbus module4/6 x QuickFix brackets (6 x QuickFix brackets for monitoring heights above 2 m)1 × Quick Start Guide |
Mechanics/electronics
| Light source | LED, Infrared light |
|---|---|
| Wave length | 850Â nm |
| Supply voltage Vs | DC 19.2Â VÂ ... 28.8Â VÂ 1) |
| Power consumption sender | 58Â mAÂ 2) |
| Power consumption receiver | 132Â mAÂ 2) |
| Fieldbus module current consumption | 115Â mA |
| Ripple | <Â 5Â Vpp |
| Output current Imax. | 100Â mA |
| Output load, capacitive | 100Â nF |
| Output load, Inductive | 1Â H |
| Initialization time | <Â 1Â s |
| Switching output | Push-pull: PNP/NPN |
| Dimensions (W x H x D) | 34 mm x 529.4 mm x 30.6 mm |
| Connection type | Plug, M12, 5-pin, 0.22Â mConnector M12, 12-pin, 0.27Â m |
| Housing material | Aluminum |
| Display | LED |
| Enclosure rating | IP65, IP67Â 3) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Protection class | III |
| Weight | 1.159Â kg |
| Front screen | PMMA |
| Option | None |
| UL File No. | NRKH.E181493 |
Performance
| Maximum range | 3.5 m 1) |
|---|---|
| Minimum range | ≥ 0.2 m |
| Operating range | 2.5Â m |
| Response time | 13.1 ms 2) |
Interfaces
| EtherCAT® | ✔ |
|---|---|
| Digital output | Q1 |
| Number | 1 |
Ambient data
| Shock resistance | Continuous shocks 10Â g, 16Â ms, 1000Â shocksSingle shocks 15Â g, 11Â ms 3Â per axle |
|---|---|
| Vibration resistance | Sinusoidal oscillation 10-150 Hz 5Â g |
| Ambient light immunity | 100,000Â lx |
| Ambient operating temperature | –30 °C ... +55 °C |
| Ambient temperature, storage | –40 °C ... +70 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27270910 |
|---|---|
| ECLASS 5.1.4 | 27270910 |
| ECLASS 6.0 | 27270910 |
| ECLASS 6.2 | 27270910 |
| ECLASS 7.0 | 27270910 |
| ECLASS 8.0 | 27270910 |
| ECLASS 8.1 | 27270910 |
| ECLASS 9.0 | 27270910 |
| ECLASS 10.0 | 27270910 |
| ECLASS 11.0 | 27270910 |
| ECLASS 12.0 | 27270910 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 39121528 |
