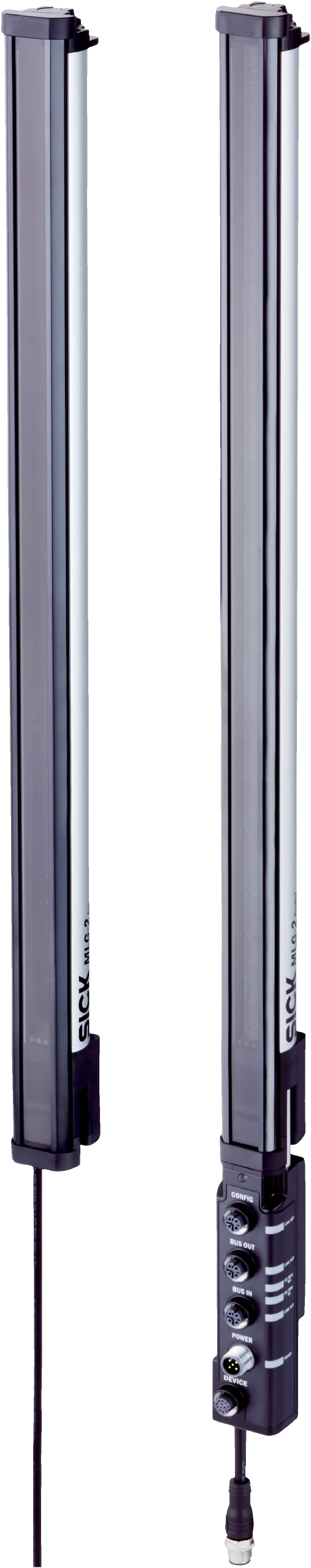

Sick MLG05N-0295N10801
Automation light grids | MLG-2 | MLG05N-0295N10801 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 5 mm | Operating range: 8.5 m | Detection heig…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Automation light grids | MLG-2 | MLG05N-0295N10801 | Device version: ProNet – extended functionality including fieldbus | Option: None | Beam separation: 5 mm | Operating range: 8.5 m | Detection height: 295 mm | Length of cable: 0.22 m, 0.21 m | Response time: 5.9 ms | Software feature (default setting – see technical data/features): 01
Specification
Features
| Device version | ProNet â extended functionality including fieldbus |
|---|---|
| Sensor principle | Sender/receiver |
| Minimum detectable object (MDO) | 5 mm 1)9 mm 2) 3) |
| Beam separation | 5Â mm |
| Type of synchronization | Cable |
| Number of beams | 60 |
| Detection height | 295Â mm |
| Q1 | Presence detection |
| Standard | â |
| Transparent | â |
| Dust- and sunlight-resistant | â |
| Cross beam | â |
| Beam blanking | â |
| High-speed scan | â |
| High measurement accuracy | â |
| Switching output | Object detection/object widthObject recognitionHeight classificationHole detection/hole sizeOutside/inside dimensionObject positionHole positionZone definition |
| Data interface | Object detectionHole detectionObject height measurementMeasurement of the outside dimensionMeasurement of the inside dimensionMeasurement of the object positionMeasurement of the hole position |
| Included with delivery | 1Â Ã sender1Â Ã receiver1Â x Fieldbus module4/6Â x QuickFix brackets (6Â x QuickFix brackets for monitoring heights above 2Â m)1Â Ã Quick Start Guide |
Mechanics/electronics
| Light source | LED, Infrared light |
|---|---|
| Wave length | 850Â nm |
| Supply voltage Vs | DC 19.2Â VÂ ... 28.8Â VÂ 1) |
| Power consumption sender | 58Â mAÂ 2) |
| Power consumption receiver | 132Â mAÂ 2) |
| Fieldbus module current consumption | 115Â mA |
| Ripple | <Â 5Â Vpp |
| Output current Imax. | 100Â mA |
| Output load, capacitive | 100Â nF |
| Output load, Inductive | 1Â H |
| Initialization time | <Â 1Â s |
| Switching output | Push-pull: PNP/NPN |
| Connection type | Plug, M12, 5-pin, 0.22Â mConnector M12, 12-pin, 0.21Â m |
| Housing material | Aluminum |
| Display | LED |
| Enclosure rating | IP65, IP67Â 3) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Protection class | III |
| Weight | 0.849Â kg |
| Front screen | PMMA |
| Option | None |
| UL File No. | NRKH.E181493 |
Performance
| Maximum range | 12 m 1) |
|---|---|
| Minimum range | ⥠0 m |
| Operating range | 8.5Â m |
| Response time | 5.9 ms 2) |
Interfaces
| PROFINET | â |
|---|---|
| Digital output | Q1 |
| Number | 1 |
Ambient data
| Shock resistance | Continuous shocks 10Â g, 16Â ms, 1000Â shocksSingle shocks 15Â g, 11Â ms 3Â per axle |
|---|---|
| Vibration resistance | Sinusoidal oscillation 10-150 Hz 5Â g |
| EMC | ENÂ 60947-5-2 |
| Ambient light immunity | Direct: 150,000 lx 1)Indirect: 200,000 lx 2) |
| Ambient operating temperature | â30 °C ... +55 °C |
| Ambient temperature, storage | â40 °C ... +70 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Photobiological safety (IEC EN 62471) | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
