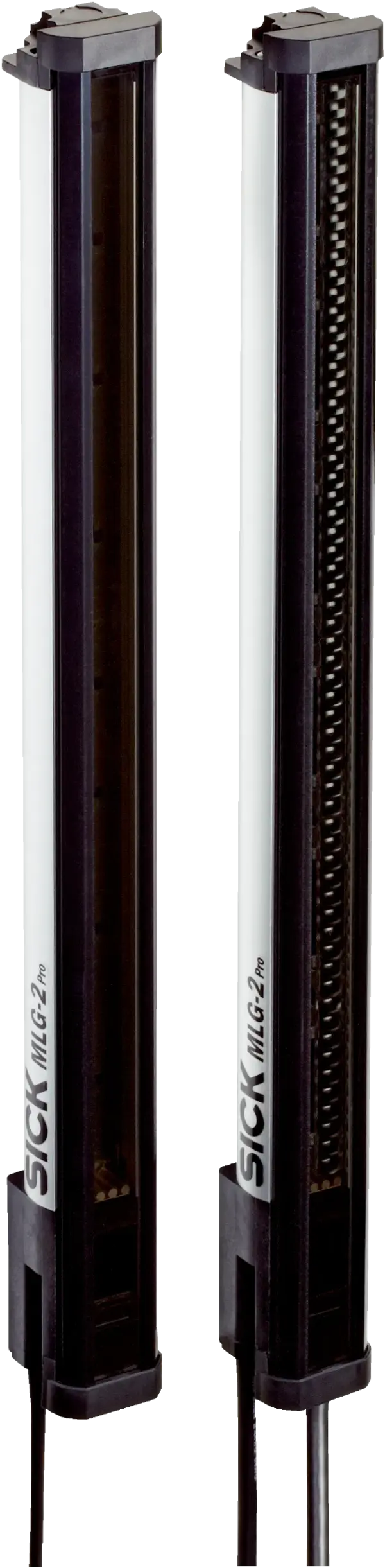

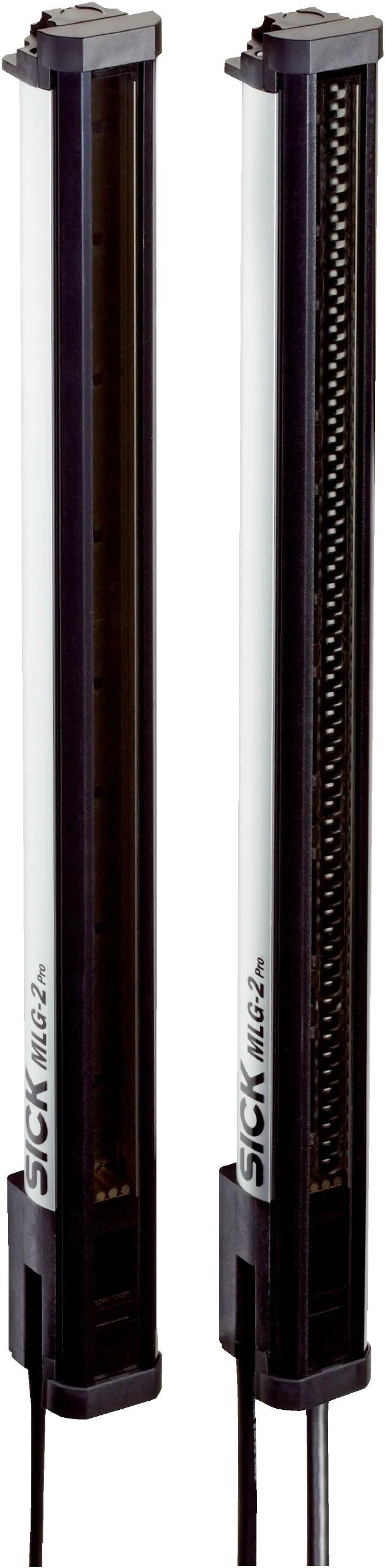

Automation light grids | MLG-2 | MLG05A-0295I10801 | Device version: Pro – Extended functionality | Inputs/outputs: RS-485 + 2 x Q (IO-Link) | Option: None | Beam separation: 5 mm | Operating range: 8…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Automation light grids | MLG-2 | MLG05A-0295I10801 | Device version: Pro – Extended functionality | Inputs/outputs: RS-485 + 2 x Q (IO-Link) | Option: None | Beam separation: 5 mm | Operating range: 8.5 m | Detection height: 295 mm | Length of cable: 0.22 m, 0.27 m, 0.19 m | Response time: 5.9 ms | Software feature (default setting – see technical data/features): 01
Specification
Features
| Device version | Pro - Extended functionality |
|---|---|
| Sensor principle | Sender/receiver |
| Minimum detectable object (MDO) | 5 mm 1)9 mm 2) 3) |
| Beam separation | 5Â mm |
| Type of synchronization | Cable |
| Number of beams | 60 |
| Detection height | 295Â mm |
| Interface RS-485 | System status, virtual outputs, number of broken beams, height control (last beam)/LBB, height control (first beam)/FBB, oudside dimension, inside dimension |
| Baud rate RS-485 | 9.6Â kbit/s |
| Q1 | Presence detection |
| Q2 / IN | Teach input |
| Teach | Standard mode |
| Standard | â |
| Transparent | â |
| Dust- and sunlight-resistant | â |
| Cross beam | â |
| Beam blanking | â |
| High-speed scan | â |
| High measurement accuracy | â |
| Switching output | Object detection/object widthObject recognitionHeight classificationHole detection/hole sizeOutside/inside dimensionObject positionHole positionZone definition |
| Data interface | Object detectionHole detectionObject height measurementMeasurement of the outside dimensionMeasurement of the inside dimensionMeasurement of the object positionMeasurement of the hole position |
| Included with delivery | 1Â Ã sender1Â Ã receiver4/6Â x QuickFix brackets (6Â x QuickFix brackets for monitoring heights above 2Â m)1Â Ã Quick Start Guide |
Mechanics/electronics
| Light source | LED, Infrared light |
|---|---|
| Wave length | 850Â nm |
| Supply voltage Vs | DC 19.2Â VÂ ... 28.8Â VÂ 1) |
| Power consumption sender | 58Â mAÂ 2) |
| Power consumption receiver | 132Â mAÂ 2) |
| Ripple | <Â 5Â Vpp |
| Output current Imax. | 100Â mA |
| Output load, capacitive | 100Â nF |
| Output load, Inductive | 1Â H |
| Initialization time | <Â 1Â s |
| Switching output | Push-pull: PNP/NPN |
| Connection type | Plug, M12, 5-pin, 0.22Â mMale connector M12, 8-pin, 0.27Â mM12 female connector, 4-pin, D-coded, 0.19Â m |
| Housing material | Aluminum |
| Display | LED |
| Enclosure rating | IP65, IP67Â 3) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Protection class | III |
| Weight | 0.849Â kg |
| Front screen | PMMA |
| Option | None |
| UL File No. | NRKH.E181493 |
Performance
| Maximum range | 12 m 1) |
|---|---|
| Minimum range | ⥠0 m |
| Operating range | 8.5Â m |
| Response time | 5.9 ms 2) |
Interfaces
| IO-Link | â , IO-Link V1.1 |
|---|---|
| Data transmission rate | 230,4Â kbit/s (COM3) |
| Maximum cable length | 20Â m |
| Cycle time | 2.3Â ms |
| VendorID | 26 |
| DeviceID HEX | 800068 |
| DeviceID DEC | 8388712 |
| Process data length | 32Â Byte (TYPE_2_V)Â 1) |
| Serial | â , RS-485 |
| Data transmission rate | 1.2 kbit/s â¦921.6 kbit/s |
| Inputs/outputs | RS-485 + 2Â x Q (IO-Link) |
| Digital output | Q1, Q2 |
| Number | 2 |
| Digital input | In1 |
| Number | 1 |
Ambient data
| Shock resistance | Continuous shocks 10Â g, 16Â ms, 1000Â shocksSingle shocks 15Â g, 11Â ms 3Â per axle |
|---|---|
| Vibration resistance | Sinusoidal oscillation 10-150 Hz 5Â g |
| EMC | ENÂ 60947-5-2 |
| Ambient light immunity | Direct: 150,000 lx 1)Indirect: 200,000 lx 2) |
| Ambient operating temperature | â30 °C ... +55 °C |
| Ambient temperature, storage | â40 °C ... +70 °C |
Smart Task
| Smart Task name | Base logics |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| IO-Link certificate | â |
| Photobiological safety (IEC EN 62471) | â |
Classifications
| ECLASS 5.0 | 27270910 |
|---|---|
| ECLASS 5.1.4 | 27270910 |
| ECLASS 6.0 | 27270910 |
| ECLASS 6.2 | 27270910 |
| ECLASS 7.0 | 27270910 |
| ECLASS 8.0 | 27270910 |
| ECLASS 8.1 | 27270910 |
| ECLASS 9.0 | 27270910 |
| ECLASS 10.0 | 27270910 |
| ECLASS 11.0 | 27270910 |
| ECLASS 12.0 | 27270910 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 39121528 |
