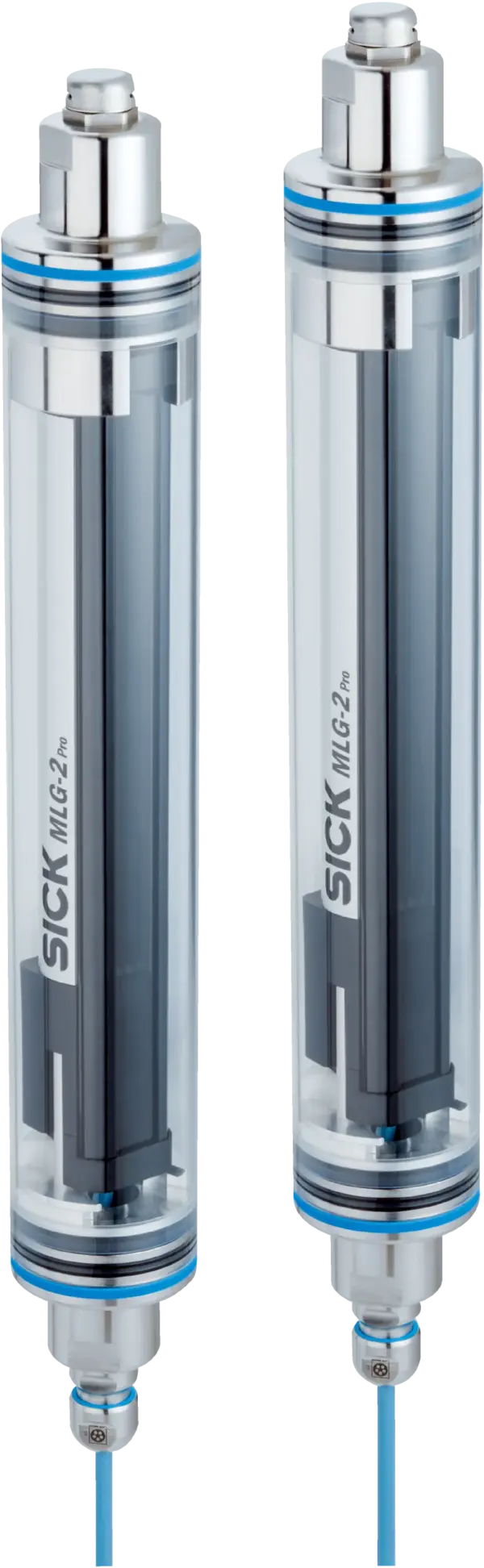

Automation light grids | MLG-2 | MLG02A-0145B53201 | Device version: Pro – Extended functionality | Inputs/outputs: 2 x analog + 2 x Q (IO-Link) | Option: Protective housing IP69K | Beam separation: 2…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Automation light grids | MLG-2 | MLG02A-0145B53201 | Device version: Pro – Extended functionality | Inputs/outputs: 2 x analog + 2 x Q (IO-Link) | Option: Protective housing IP69K | Beam separation: 2.5 mm | Operating range: 1.5 m | Detection height: 145 mm | Length of cable: 0.39 m, 0.39 m | Response time: 5.9 ms | Software feature (default setting – see technical data/features): 01
Specification
Features
| Device version | Pro - Extended functionality |
|---|---|
| Sensor principle | Sender/receiver |
| Minimum detectable object (MDO) | 2.5 mm 1)4.5 mm 2) 3) |
| Beam separation | 2.5Â mm |
| Type of synchronization | Cable |
| Number of beams | 59 |
| Detection height | 145Â mm |
| QA1 | Number of broken beams/NBB |
| QA2 | Height measurement (last beam)/LBB |
| Q1 | Presence detection |
| Q2 / IN | Teach input |
| Teach | Standard mode |
| Standard | â |
| Transparent | â |
| Dust- and sunlight-resistant | â |
| Cross beam | â |
| Beam blanking | â |
| High measurement accuracy | â |
| Switching output | Object detection/object widthObject recognitionHeight classificationHole detection/hole sizeOutside/inside dimensionObject positionHole positionZone definition |
| Data interface | Object detectionHole detectionObject height measurementMeasurement of the outside dimensionMeasurement of the inside dimensionMeasurement of the object positionMeasurement of the hole position |
| Included with delivery | 1Â Ã sender (in IP69K protective pipes)1Â Ã receiver (in IP69K protective pipes)1Â x IP69K mounting instructions1Â Ã Quick Start Guide |
Mechanics/electronics
| Light source | LED, Infrared light |
|---|---|
| Wave length | 850Â nm |
| Supply voltage Vs | DC 19.2Â VÂ ... 28.8Â VÂ 1) |
| Power consumption sender | 57.95Â mAÂ 2) |
| Power consumption receiver | 131.8Â mAÂ 2) |
| Ripple | <Â 5Â Vpp |
| Output current Imax. | 100Â mA |
| Output load, capacitive | 100Â nF |
| Output load, Inductive | 1Â H |
| Initialization time | <Â 1Â s |
| Switching output | Push-pull: PNP/NPN |
| Connection type | Plug, M12, 5-pin, 0.39Â mMale connector M12, 8-pin, 0.39Â m |
| Housing material | Aluminum (light grid)PMMA Plexiglas XT Food Contact DoC (protective pipe)Polypropylene, stainless steel 1.4404Â (cable)VA 1.4305Â (pressure compensation element)Stainless steel 1.4404Â (end caps)Stainless steel V4A 1.4404Â DINÂ ENÂ 1672-2 (cable gland) |
| Display | LED |
| Enclosure rating | IP69KÂ 3) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Protection class | III |
| Weight | 0.86Â kg |
| Option | Protective housing IP69K |
| UL File No. | NRKH.E181493 |
Performance
| Maximum range | 2.1 m 1) |
|---|---|
| Minimum range | ⥠0 m |
| Operating range | 1.5Â m |
| Response time | 5.9 ms 2) |
Interfaces
| IO-Link | â , IO-Link V1.1 |
|---|---|
| Data transmission rate | 230,4Â kbit/s (COM3) |
| Maximum cable length | 20Â m |
| Cycle time | 2.3Â ms |
| VendorID | 26 |
| DeviceID HEX | 800068 |
| DeviceID DEC | 8388712 |
| Process data length | 32Â Byte (TYPE_2_V)Â 1) |
| Analog | â , Current |
| Inputs/outputs | 2Â x analog + 2Â x Q (IO-Link) |
| Analog output (current) | 4Â mAÂ ... 20Â mA |
| Analog output | QA1, QA2 |
| Number | 2 |
| Type | Current output |
| Current | 4Â mAÂ ... 20Â mA |
| Digital output | Q1, Q2 |
| Number | 2 |
| Digital input | In1 |
| Number | 1 |
Ambient data
| Shock resistance | Continuous shocks 10Â g, 16Â ms, 1000Â shocksSingle shocks 15Â g, 11Â ms 3Â per axle |
|---|---|
| Vibration resistance | Sinusoidal oscillation 10-150 Hz 5Â g |
| EMC | ENÂ 60947-5-2 |
| Ambient light immunity | Direct: 150,000 lx 1)Indirect: 200,000 lx 2) |
| Ambient operating temperature | â20 °C ... +55 °C |
| Ambient temperature, storage | â40 °C ... +70 °C |
Smart Task
| Smart Task name | Base logics |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| IO-Link certificate | â |
| Photobiological safety (IEC EN 62471) | â |
Classifications
| ECLASS 5.0 | 27270910 |
|---|---|
| ECLASS 5.1.4 | 27270910 |
| ECLASS 6.0 | 27270910 |
| ECLASS 6.2 | 27270910 |
| ECLASS 7.0 | 27270910 |
| ECLASS 8.0 | 27270910 |
| ECLASS 8.1 | 27270910 |
| ECLASS 9.0 | 27270910 |
| ECLASS 10.0 | 27270910 |
| ECLASS 11.0 | 27270910 |
| ECLASS 12.0 | 27270910 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 39121528 |
