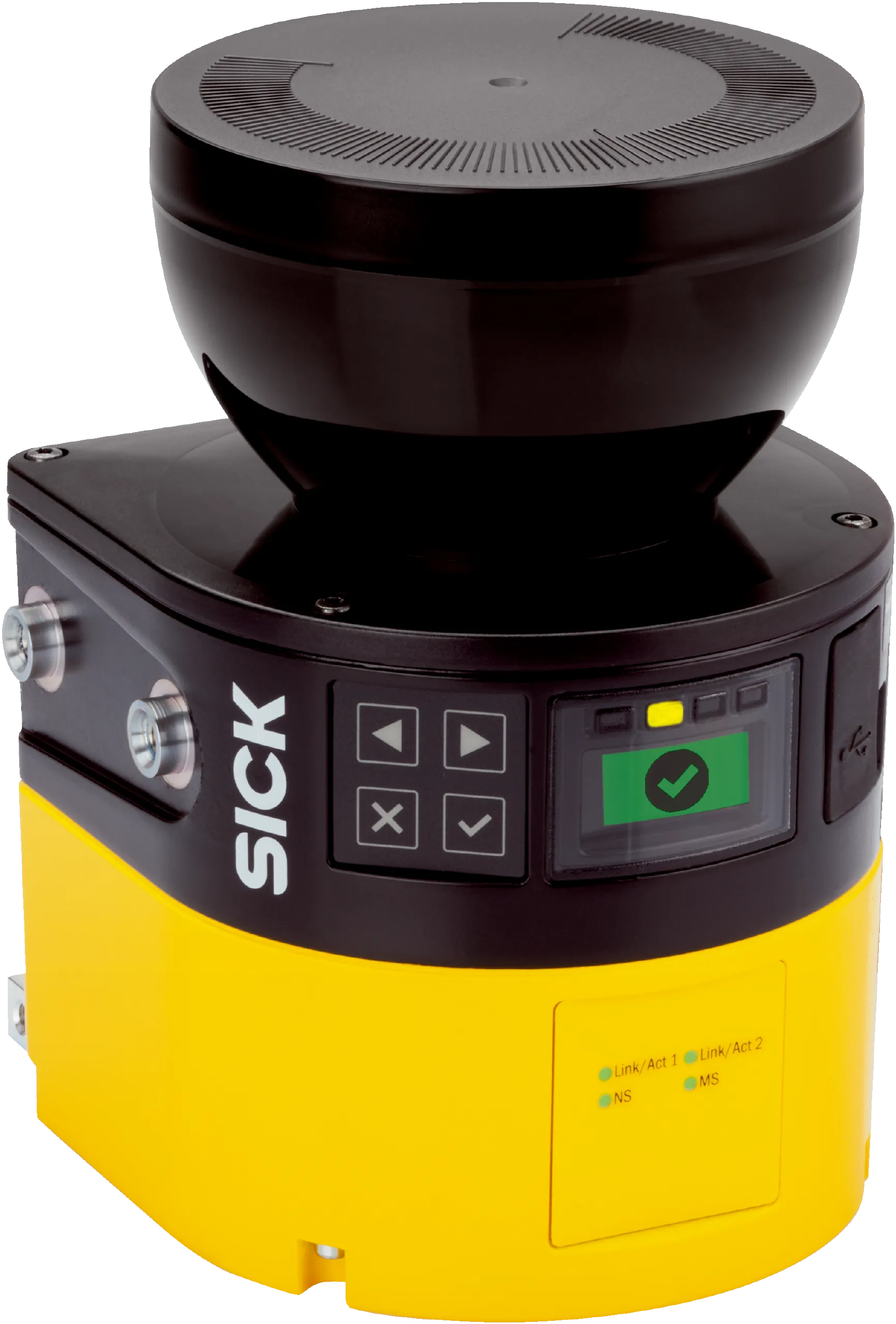

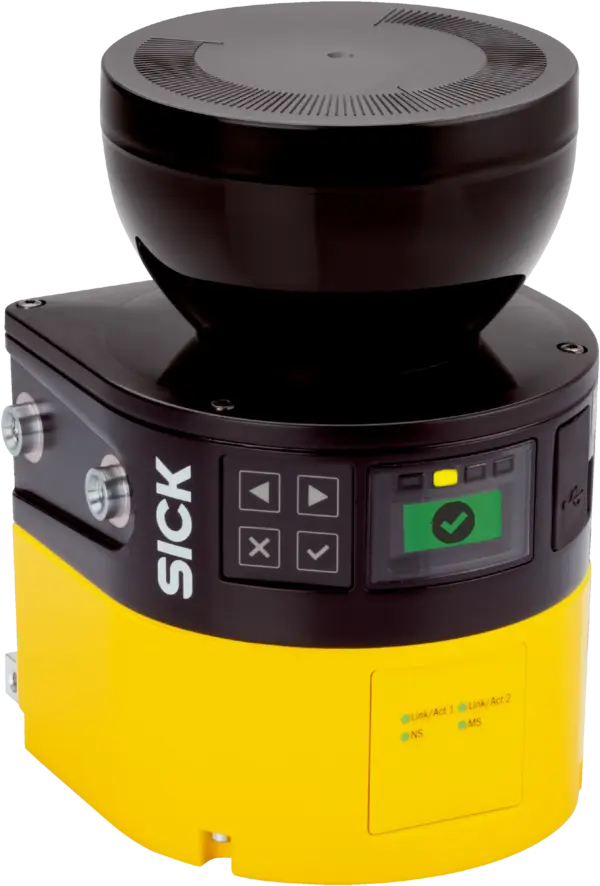

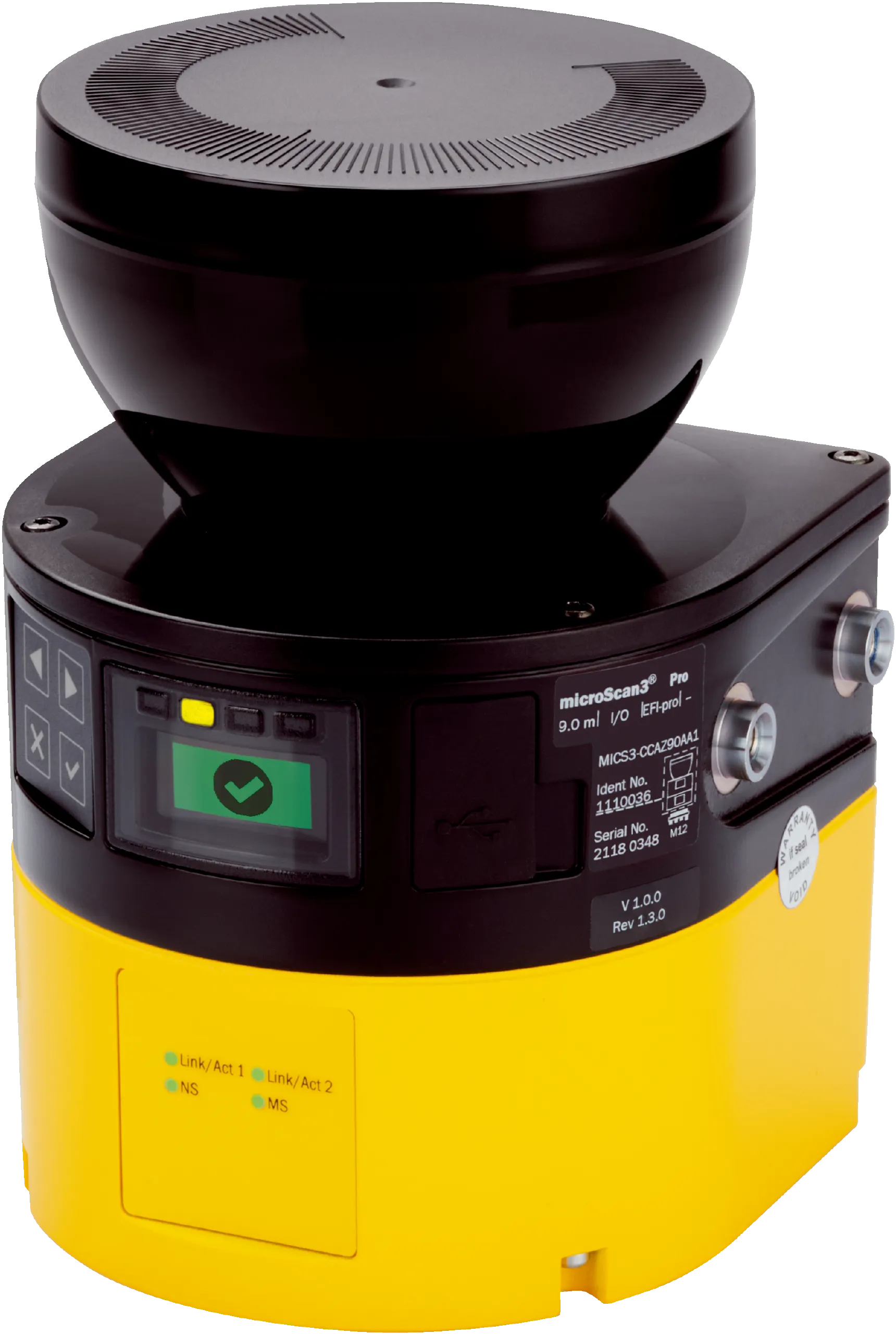

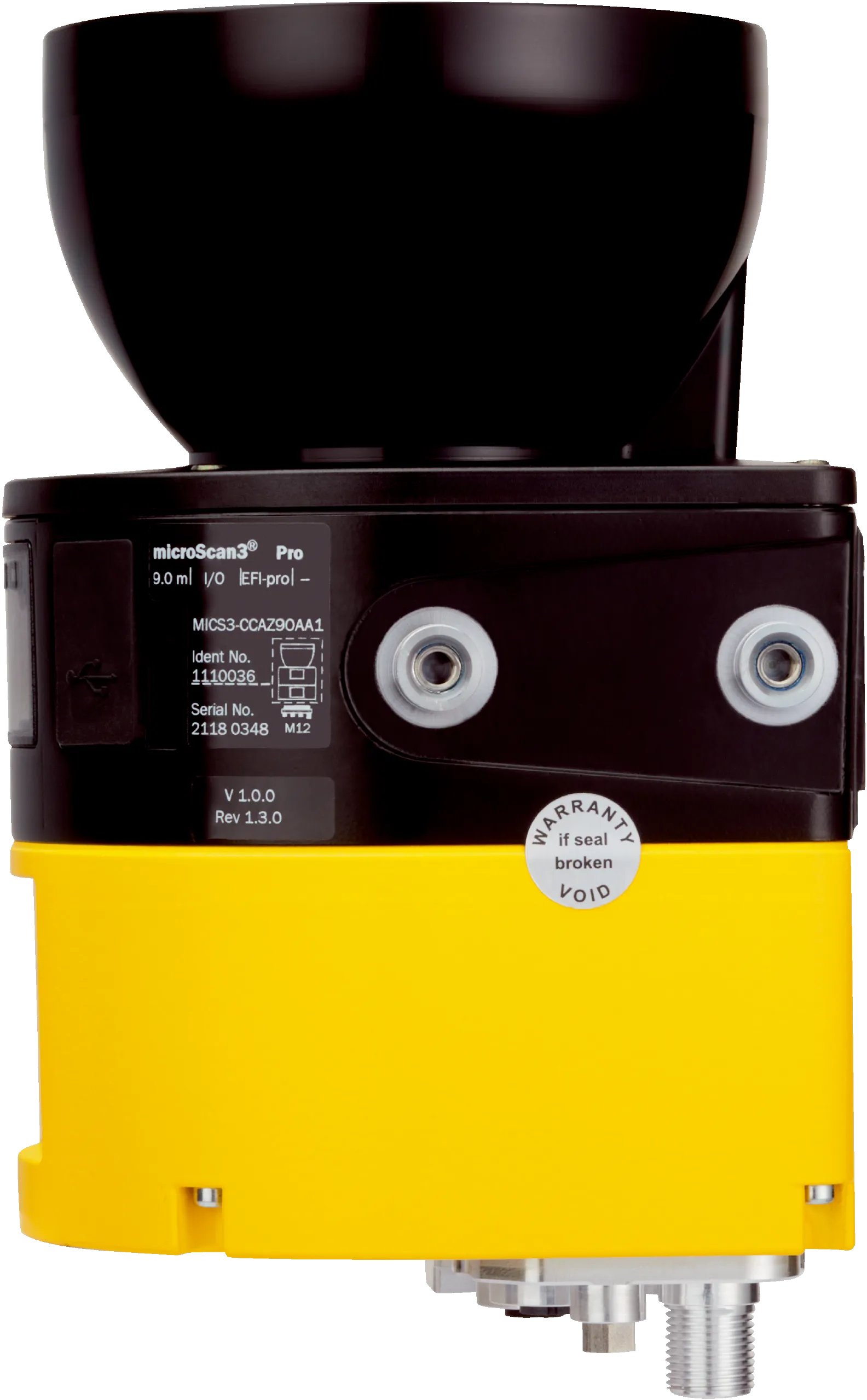

Safety laser scanners | microScan3 | MICS3-CCAZ55AN1P01 | Product version: microScan3 Pro I/O | Model: Sensor including system plug (pre-mounted on the underside) | Integration in the control system: Local inputs and outputs (I/O) | Protective field range: 5.5 m | Scanning angle: 275° | Number of fields: 128 | Connection type: M12
Specification
Features
| Product version | microScan3 Pro I/O |
|---|---|
| Model | Sensor including system plug (pre-mounted on the underside) |
| Application | Indoor |
| Protective field range | 5.5Â m |
| Warning field range | 40Â m |
| Number of simultaneously monitored fields | ≤ 8 1) |
| Number of fields | 128 |
| Number of monitoring cases | 128 |
| Scanning angle | 275° |
| Resolution (can be configured) | 30Â mm40Â mm50Â mm70Â mm150Â mm200Â mm |
| Angular resolution | 0.39° |
| Response time | 70Â ms |
| Protective field supplement | 65Â mm |
Safety-related parameters
| Type | Type 3Â (IECÂ 61496) |
|---|---|
| Safety integrity level | SIL 2Â (IECÂ 61508) |
| Category | Category 3Â (ENÂ ISOÂ 13849) |
| Performance level | PL d (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 8.0 x 10-8 |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Restart interlock | ✔ |
|---|---|
| External device monitoring (EDM) | ✔ |
| Multiple sampling | ✔ |
| Monitoring case switching | ✔ |
| Simultaneous monitoring | ✔ |
| Static protective field switching | ✔ |
| Safe contour detection | ✔ |
| Contour as a reference | ✔ |
| Integrated configuration memory | ✔ |
| Measured data output | Via Ethernet |
Interfaces

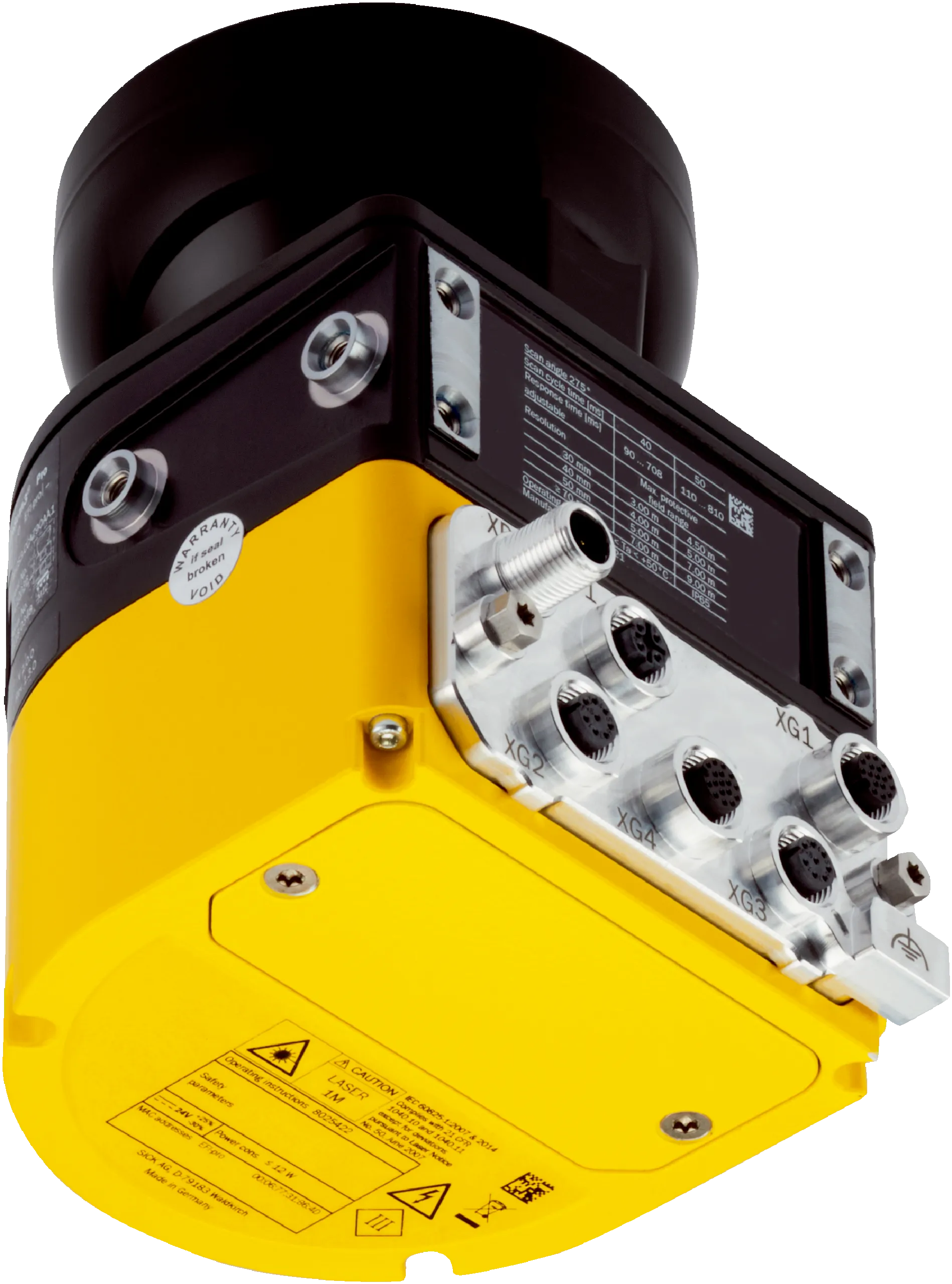

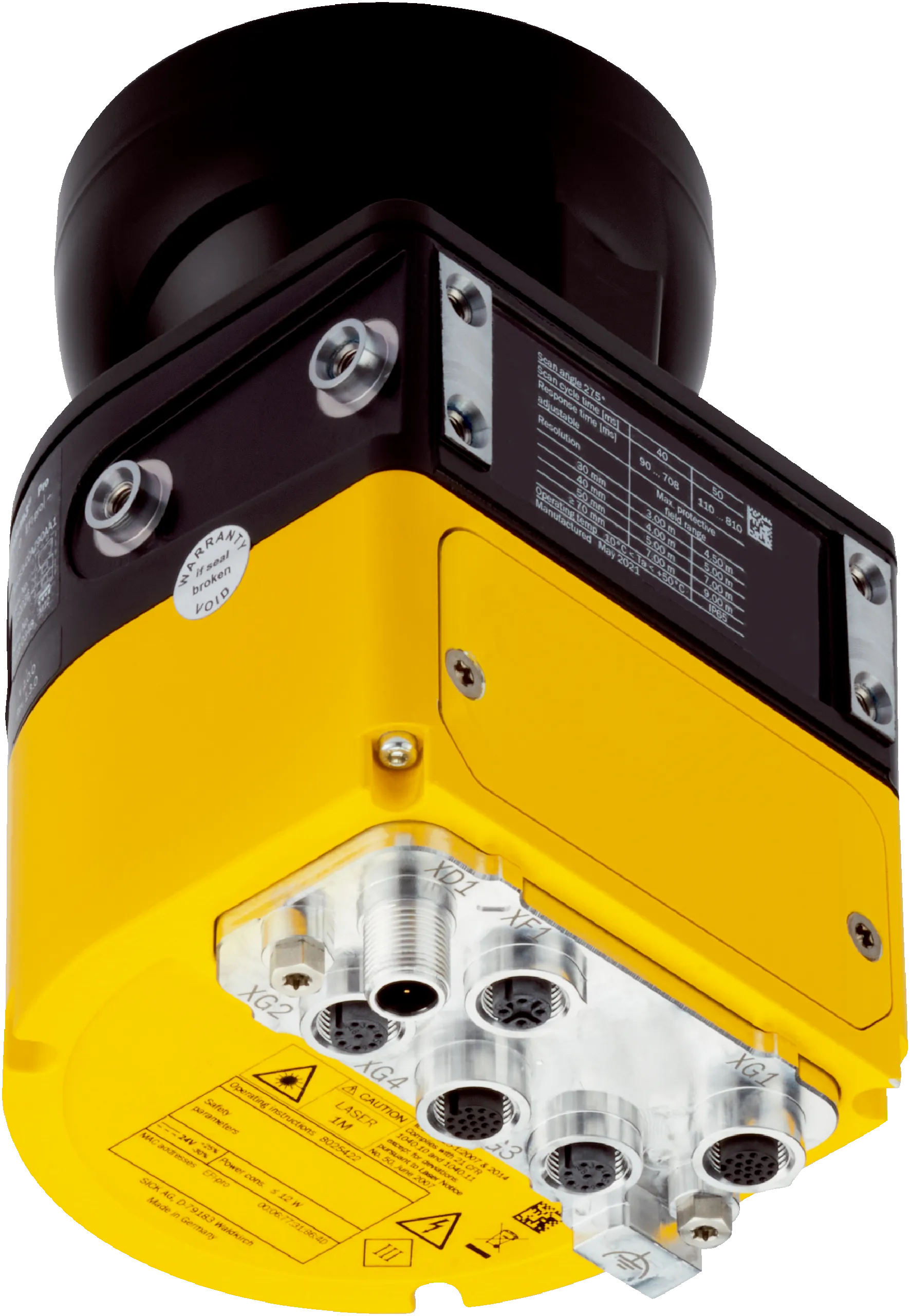

| Voltage supply | 1Â x male connector, M12, 4-pin, A-coded |
|---|---|
| Local inputs and outputs (I/O) | 2Â x female connector, M12, 17-pin, A-coded |
| Dynamic switching signals | 2Â x female connector, M12, 8-pin, A-coded |
| Fieldbus, industrial network | 1 x M12 female connectors, 4-pin, D-coded |
| OSSD pairs | 4 |
| Universal outputs | 4Â 1) |
| Universal inputs | 16Â 1) |
| Dynamic switching signals | 2 |
| Static control inputs | 8 |
| Configuration method | PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | USB 2.0, Mini-USB, Ethernet |
| Type of data interface | Ethernet |
| Port properties | 100Base-TX |
| Services | Configuration and diagnostics using Safety Designer |
| Display elements | Graphic color display, LEDs |
Electronics
| Protection class | III (ENÂ 61140) |
|---|---|
| Supply voltage Vs | 24Â VÂ DC (16.8Â VÂ DCÂ ... 30Â VÂ DC) |
| Power consumption typical | 6Â W (without output load) |
Mechanics

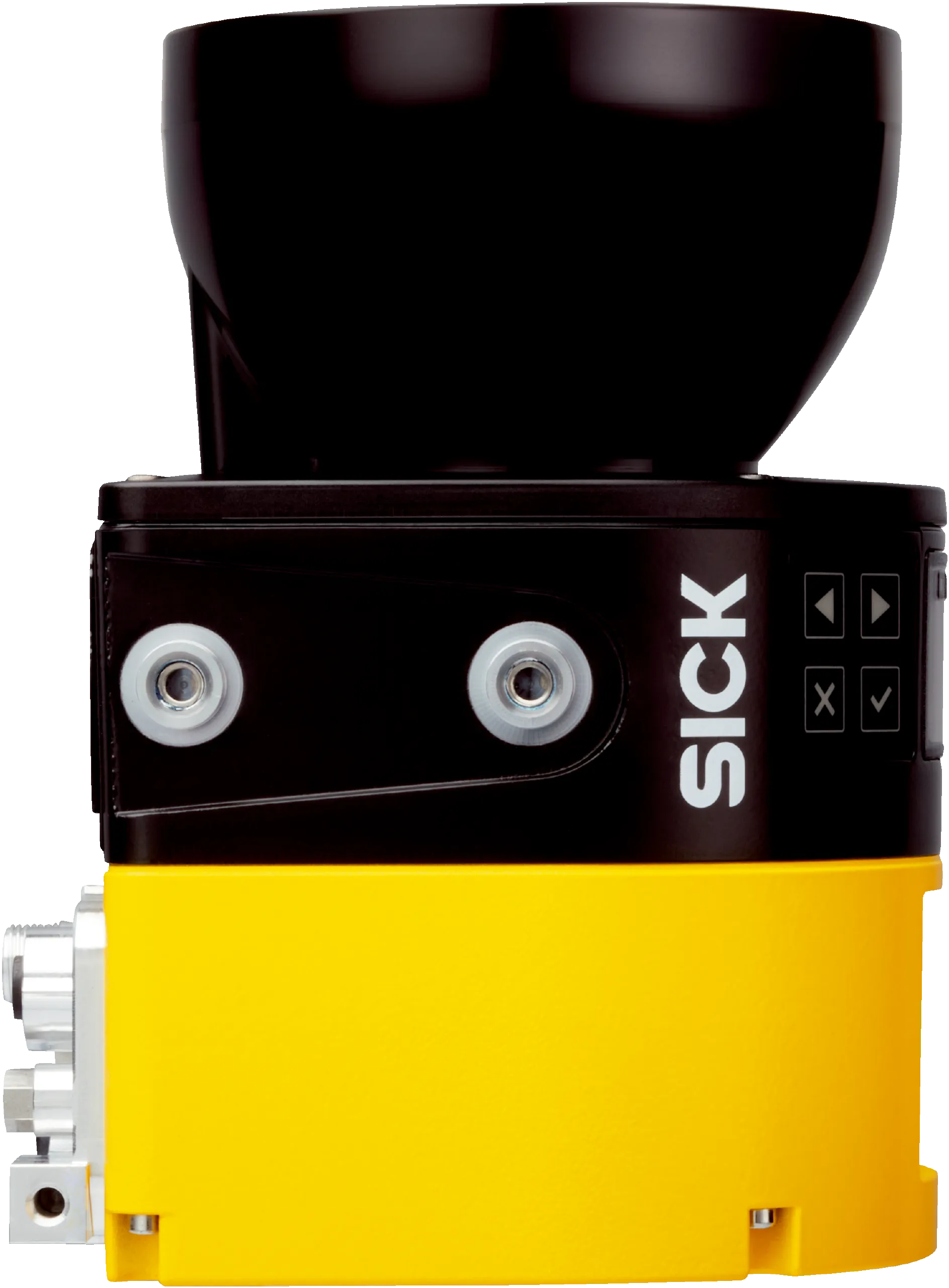

| Dimensions (W x H x D) | 112 mm x 163 mm x 111.1 mm |
|---|---|
| Weight | 1.6Â kg |
| Housing material | Aluminum |
| Housing color | RAL 1021Â (yellow), RAL 9005Â (black) |
| Optics cover material | Polycarbonate |
| Optics cover surface finish | Outside with scratch-resistant coating |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529) |
|---|---|
| Ambient light immunity | ≤ 40 klx (IEC 61496-3) 1) |
| Ambient operating temperature | –10 °C ... +50 °C |
| Storage temperature | –25 °C ... +70 °C |
| Vibration resistance | IECÂ 60068-2-6, IECÂ 60068-2-64, IECÂ 60721-3-5, IECÂ TR 60721-4-3, IECÂ 61496-1, IECÂ 61496-3 |
| Class | 5M1 (IECÂ 60721-3-5) |
| Shock resistance | IECÂ 60068-2-27, IECÂ 60721-3-5, IECÂ TR 60721-4-3, IECÂ 61496-1, IECÂ 61496-3 |
| Class | 5M1 (IECÂ 60721-3-5) |
| Continuous shock | 100 m/s², 16 ms |
| EMC | IECÂ 61496-1, IECÂ 61000-6-2, IECÂ 61000-6-4 |
Other information
| Type of light | Pulsed laser diode |
|---|---|
| Wave length | 845Â nm |
| Detectable remission factor | 1.8% to several 1000% |
| Laser class | 1Â (21Â CFR 1040.10Â and 1040.11, IECÂ 60825-1) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| China GB certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
