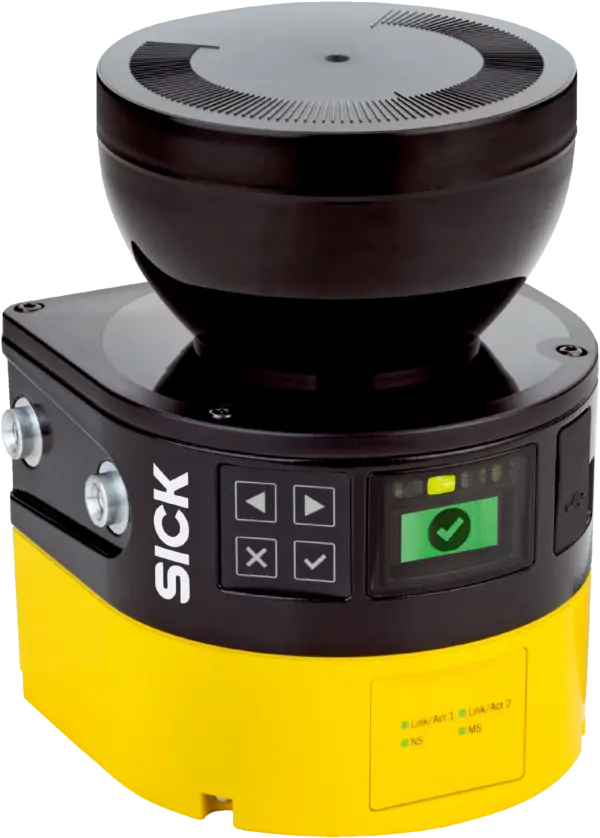

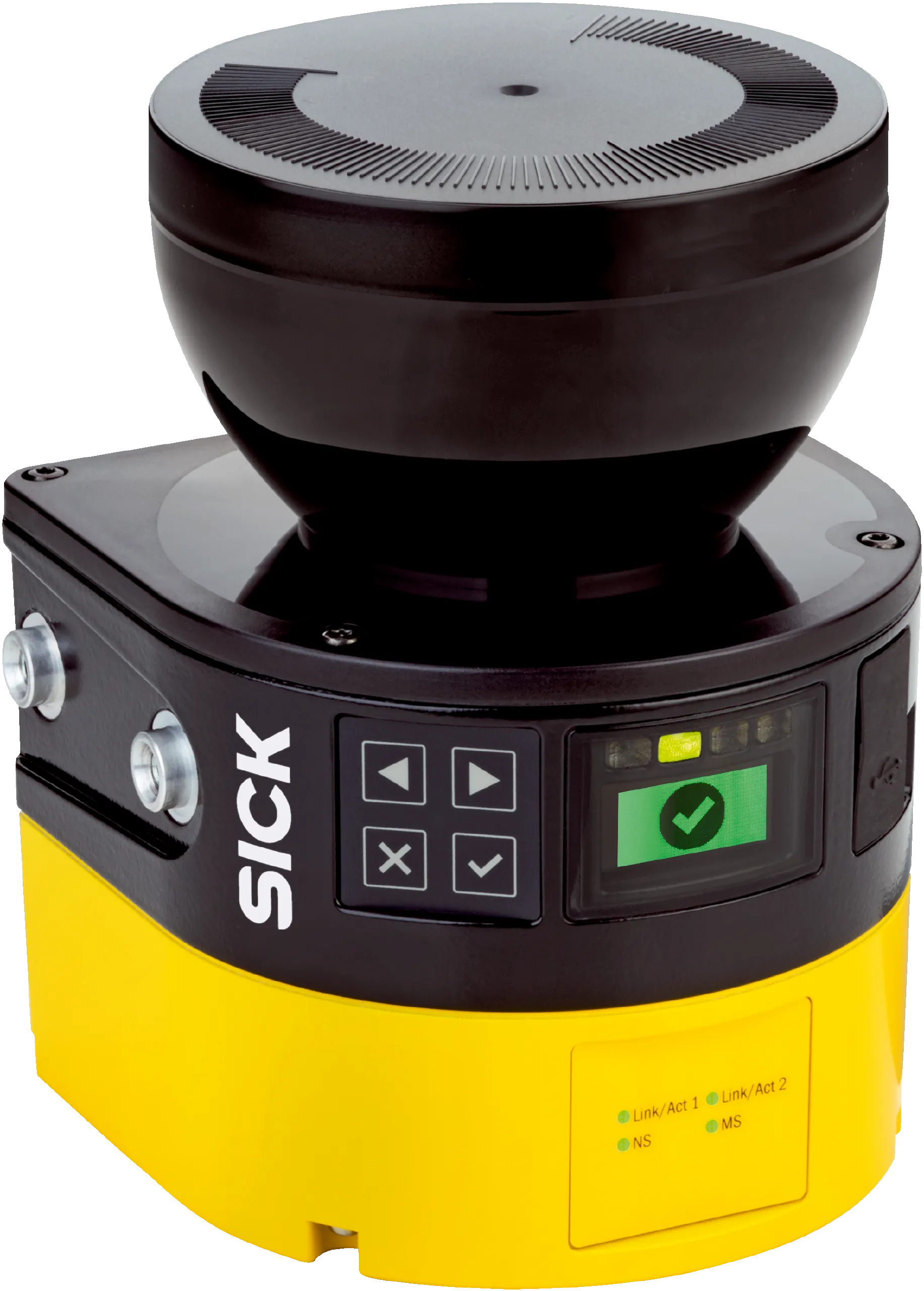

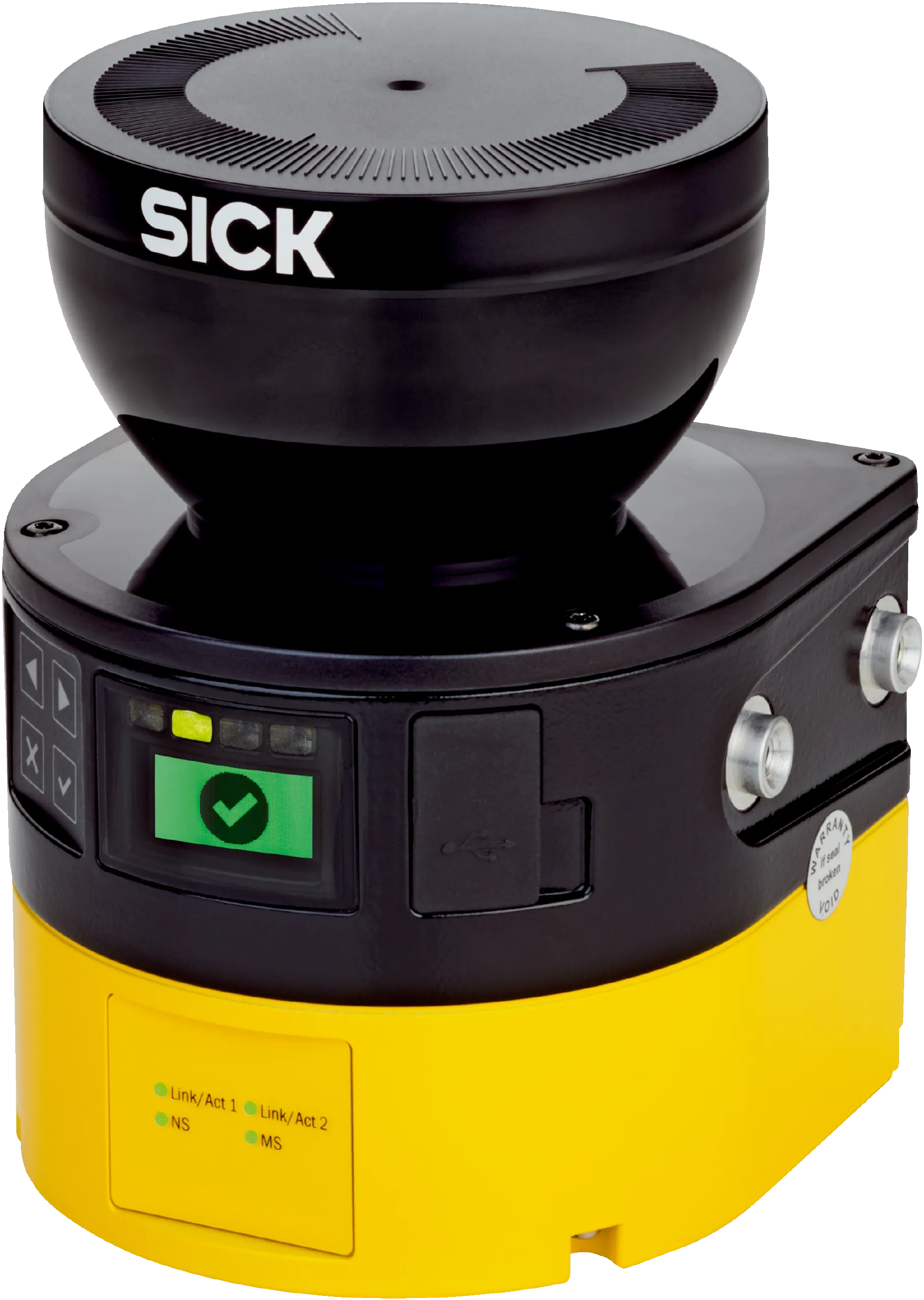

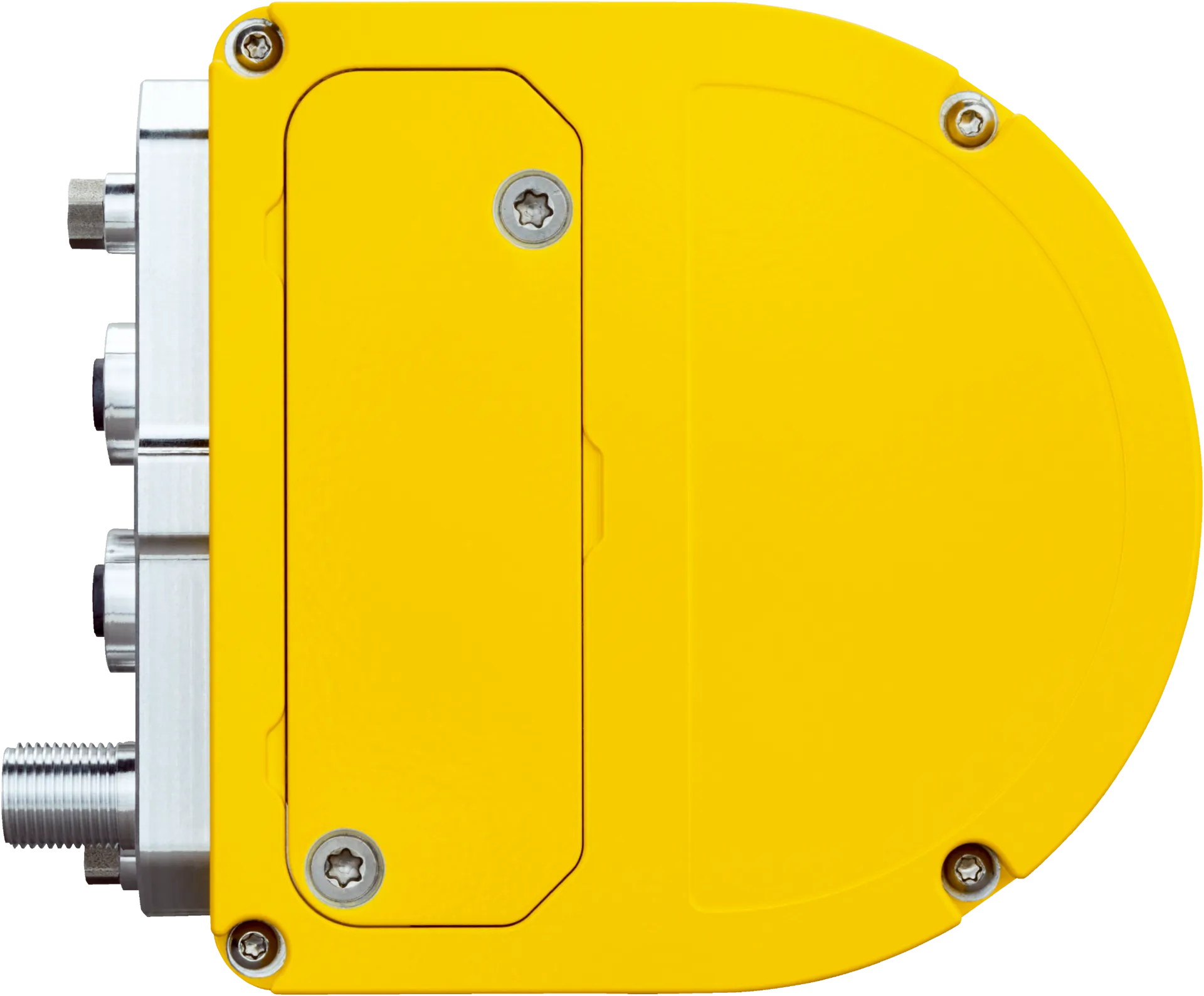

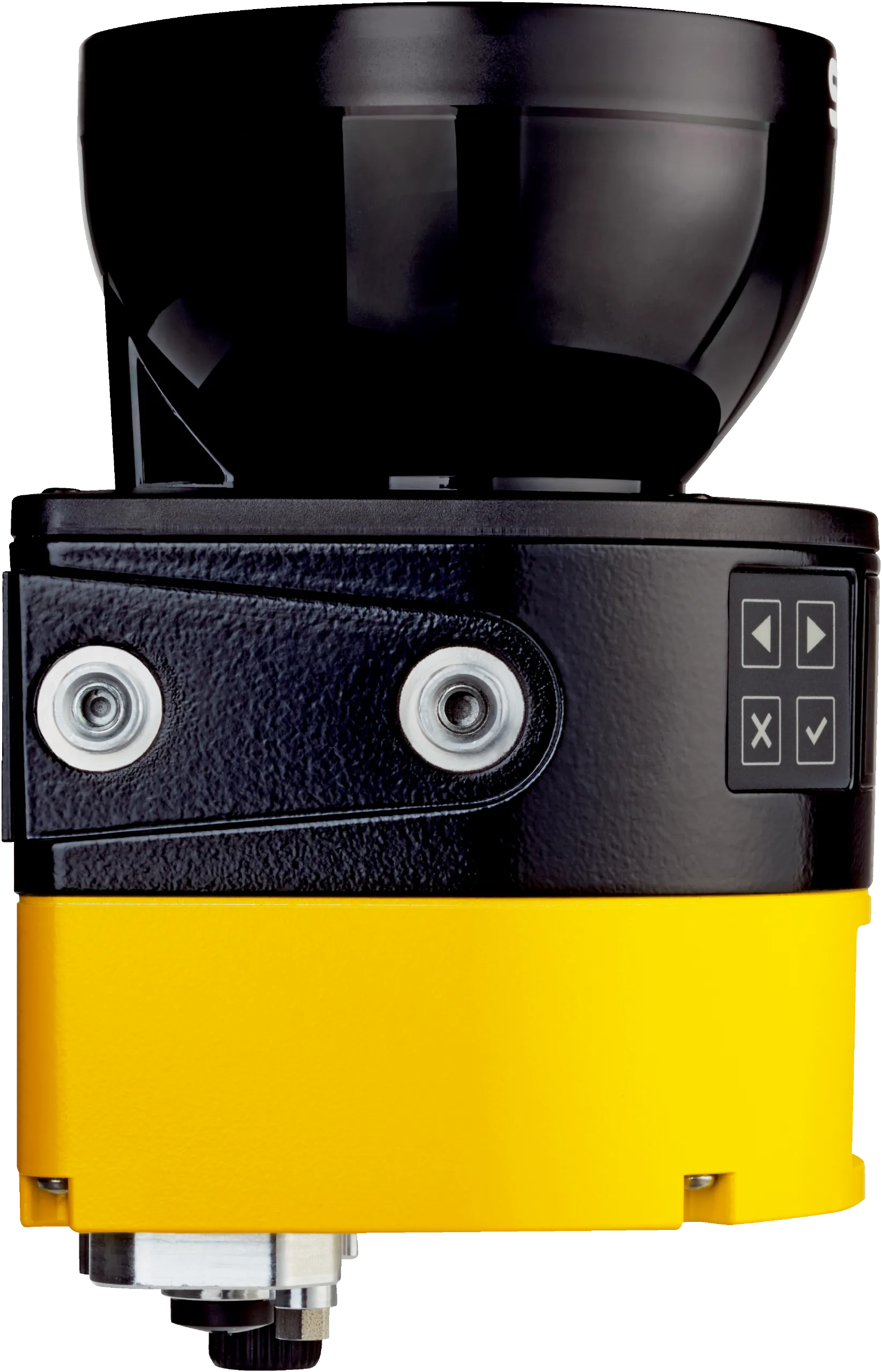

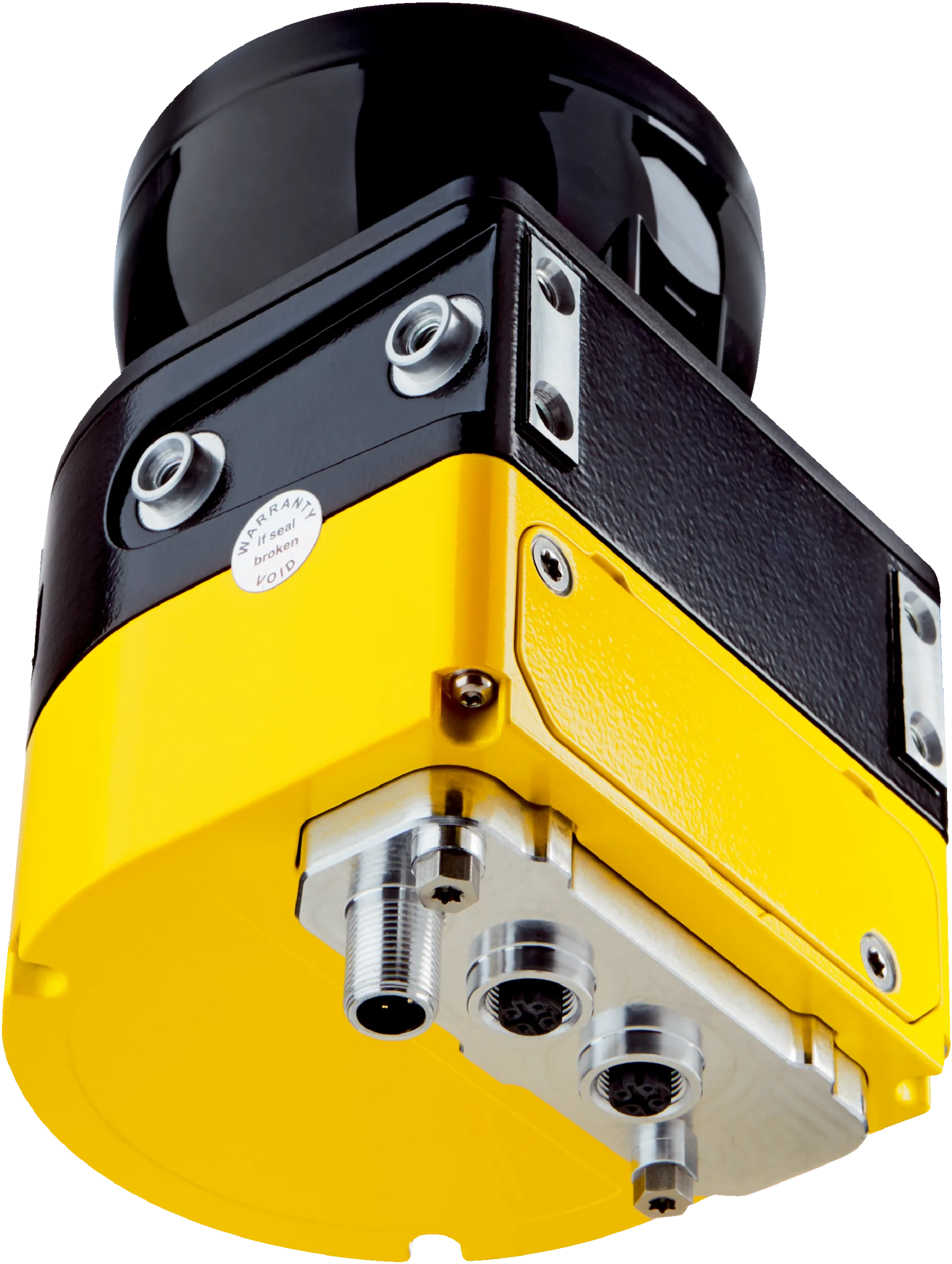

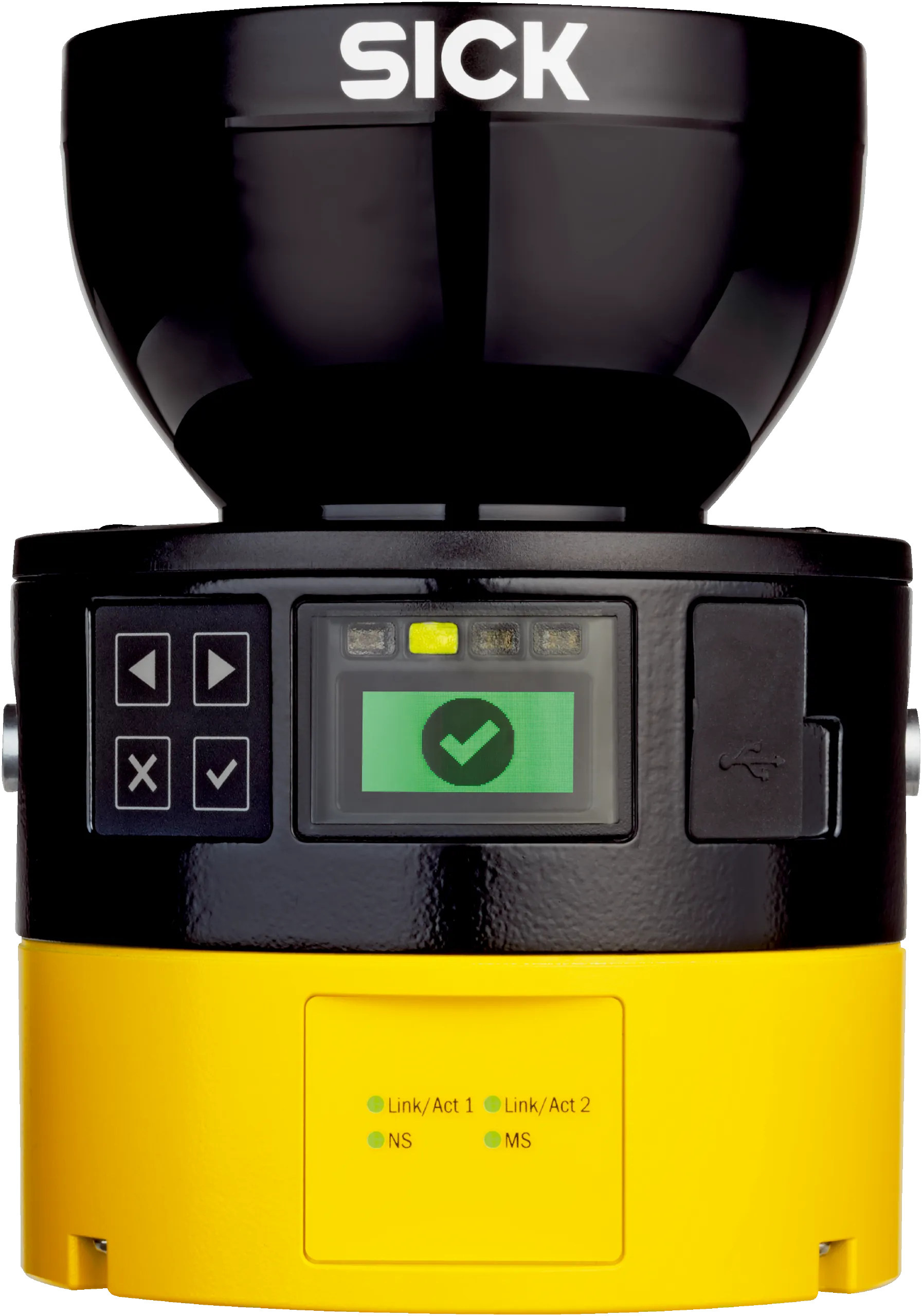

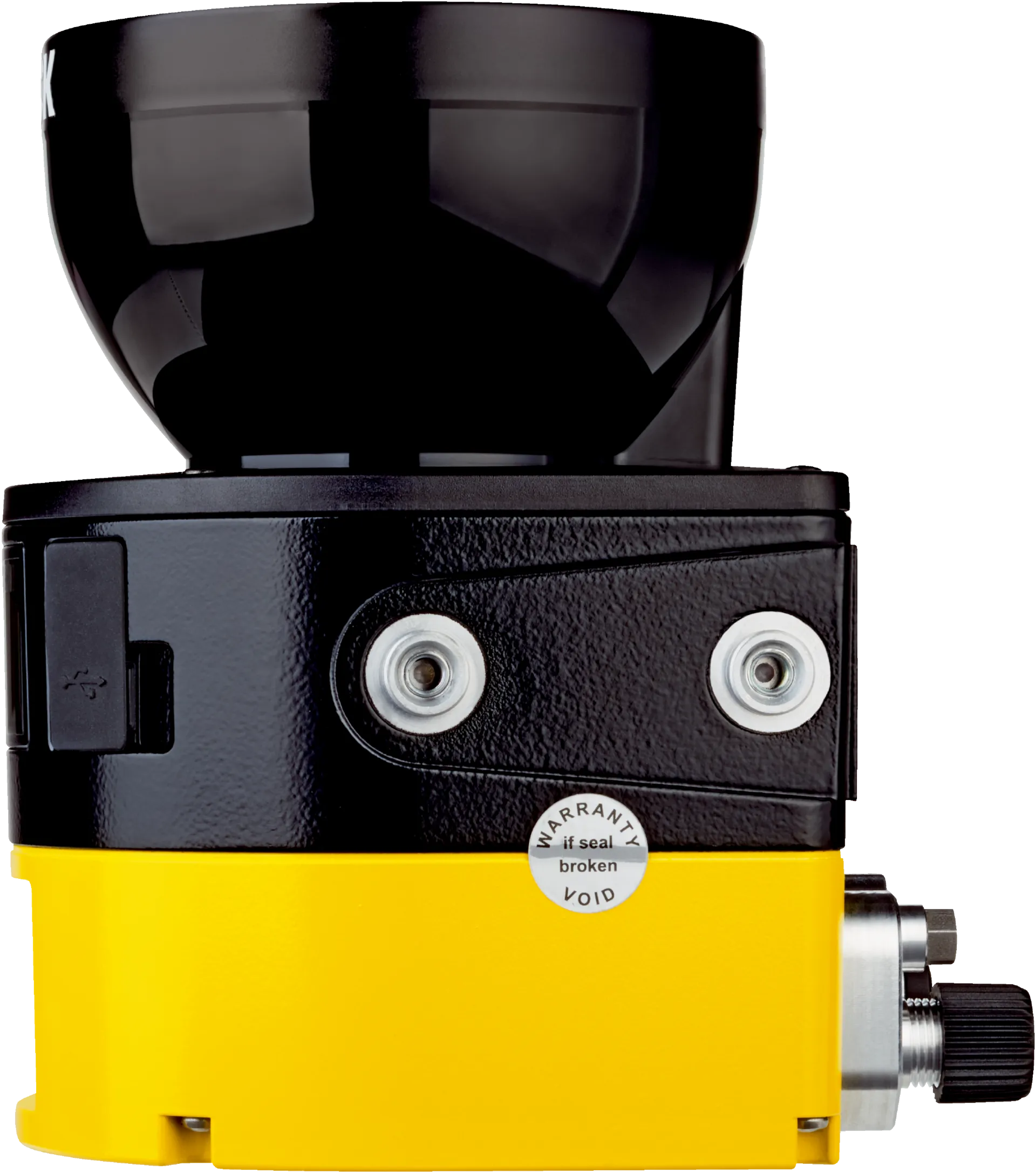

Sick MICS3-CBAZ55PZ1P01
Safety laser scanners | microScan3 | MICS3-CBAZ55PZ1P01 | Product version: microScan3 Pro – PROFINET | Model: Sensor including system plug (pre-mounted on the underside) | Integration in the control s…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety laser scanners | microScan3 | MICS3-CBAZ55PZ1P01 | Product version: microScan3 Pro – PROFINET | Model: Sensor including system plug (pre-mounted on the underside) | Integration in the control system: PROFINET PROFIsafe | Protective field range: 5.5 m | Scanning angle: 275° | Number of fields: 128 | Connection type: M12
Specification
Features
| Product version | microScan3 Pro - PROFINET |
|---|---|

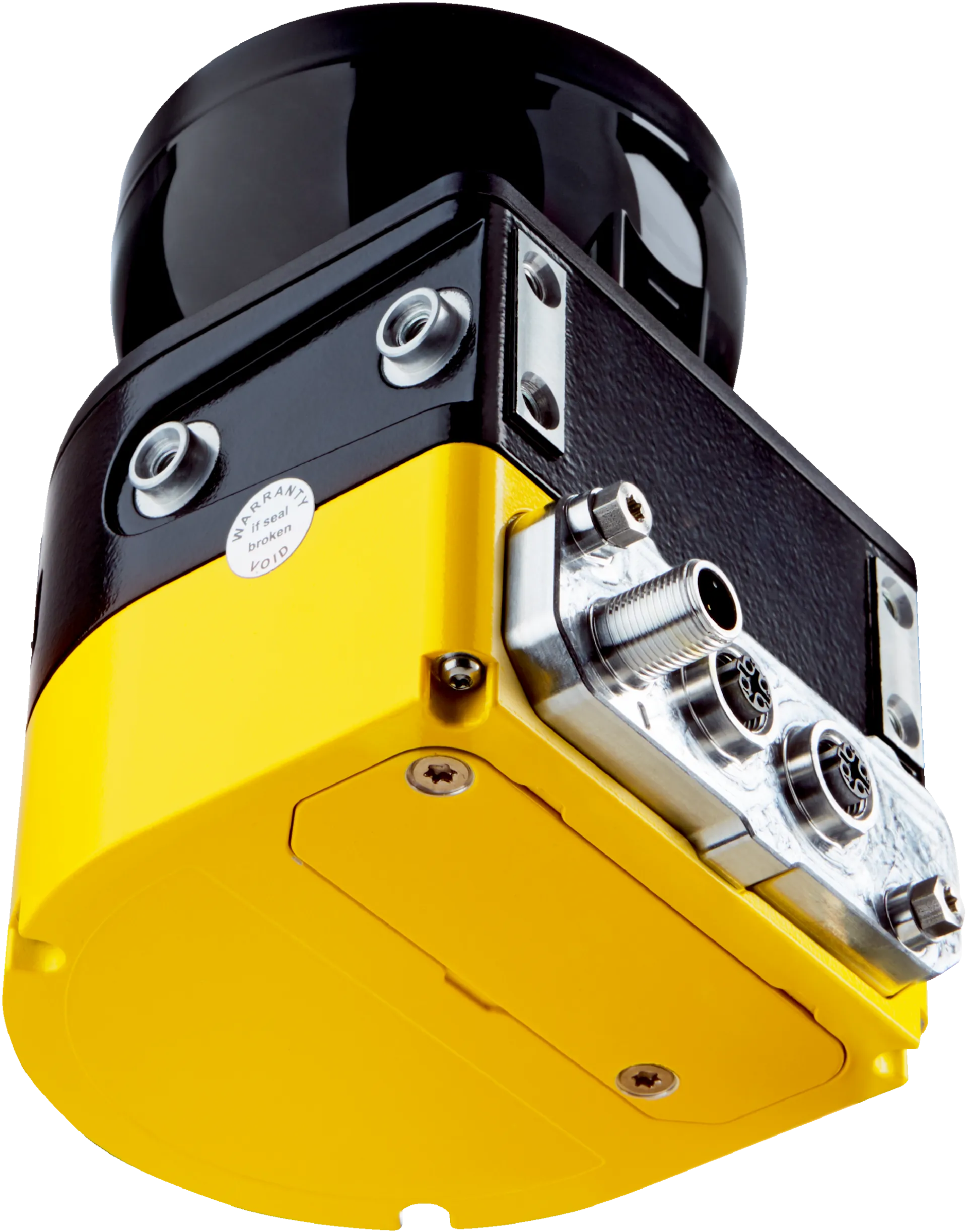

| Model | Sensor including system plug (pre-mounted on the underside) |
| Application | Indoor |
| Protective field range | 5.5Â m |
| Warning field range | 40Â m |
| Number of simultaneously monitored fields | ≤ 8 1) |
| Number of fields | 128 |
| Number of monitoring cases | 128 |
| Scanning angle | 275° |
| Resolution (can be configured) | 30Â mm40Â mm50Â mm70Â mm150Â mm200Â mm |
| Angular resolution | 0.39° |
| Response time | 95Â ms |
| Protective field supplement | 65Â mm |
Safety-related parameters
| Type | Type 3Â (IECÂ 61496) |
|---|---|
| Safety integrity level | SIL 2Â (IECÂ 61508) |
| Category | Category 3Â (ENÂ ISOÂ 13849) |
| Performance level | PL d (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 8.0 x 10-8 |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Safe state in the event of a fault | The safety outputs via the network are logic 0. |
Functions
| Restart interlock | ✔ |
|---|---|
| Multiple sampling | ✔ |
| Monitoring case switching | ✔ |
| Simultaneous monitoring | ✔ |
| Static protective field switching | ✔ |
| Safe contour detection | ✔ |
| Contour as a reference | ✔ |
| Integrated configuration memory | ✔ |
| Measured data output | Via Ethernet |

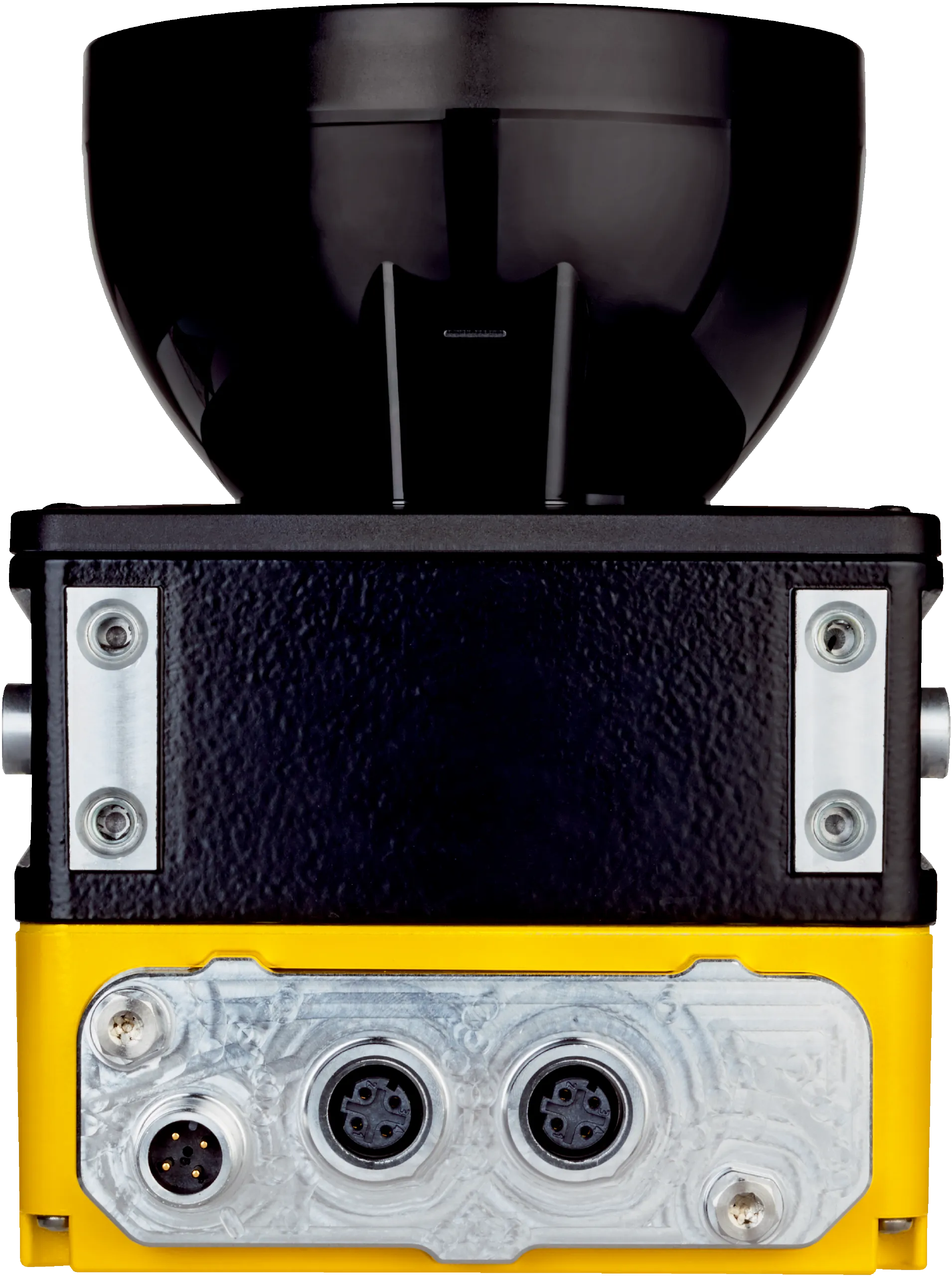

Interfaces
| Voltage supply | 1Â x male connector, M12, 4-pin, A-coded |
|---|---|
| Fieldbus, industrial network | 2 x M12 female connectors, 4-pin, D-coded |
| OSSD pairs | 0 |
| Safety outputs via network | 8 |
| Configuration method | PC with Safety Designer (Configuration and Diagnostic Software) |
| Configuration and diagnostics interface | USB 2.0, Mini-USB, Ethernet |
| Fieldbus, industrial network | PROFINET |
| Protocol | PROFIsafe |
| Supported protocol versions | PROFINET specification V2.3 |
| GSDML | According to GSDML specification V2.33 |
| Cycle time | 1 ms, 2 ms, 4 ms, 8 ms, 16 ms … |
| Conformance | Conformance Class C |
| Network management | SNMP |
| Net load | Net load class III in accordance with security level 1Â test |
| Switch properties | 2Â port real-time switch compliant with IEEE 802 |
| Port properties | 100Base-TX |
| Diagnostics | I&M data sets 0 … 5 |
| Additional services | PROFIenergy |
| Additional interfaces | TCP/IPÂ communication via port 9000 |
| Display elements | Graphic color display, LEDs |
Electronics
| Protection class | III (ENÂ 61140) |
|---|---|
| Supply voltage Vs | 24Â VÂ DC (16.8Â VÂ DCÂ ... 30Â VÂ DC) |
| Power consumption typical | 7.2Â W |
Mechanics
| Dimensions (W x H x D) | 112 mm x 150.7 mm x 111.1 mm (without system plug) |
|---|---|
| Weight | 1.45Â kg |
| Housing material | Aluminum |
| Housing color | RAL 1021Â (yellow), RAL 9005Â (black) |
| Optics cover material | Polycarbonate |
| Optics cover surface finish | Outside with scratch-resistant coating |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529) |
|---|---|
| Ambient light immunity | ≤ 40 klx (IEC 61496-3) 1) |
| Ambient operating temperature | –10 °C ... +50 °C |
| Storage temperature | –25 °C ... +70 °C |
| Vibration resistance | IECÂ 60068-2-6, IECÂ 60068-2-64, IECÂ 60721-3-5, IECÂ TR 60721-4-3, IECÂ 61496-1, IECÂ 61496-3 |
| Class | 5M1 (IECÂ 60721-3-5) |
| Shock resistance | IECÂ 60068-2-27, IECÂ 60721-3-5, IECÂ TR 60721-4-3, IECÂ 61496-1, IECÂ 61496-3 |
| Class | 5M1 (IECÂ 60721-3-5) |
| Continuous shock | 100 m/s², 16 ms |
| EMC | IECÂ 61496-1, IECÂ 61000-6-2, IECÂ 61000-6-4 |
Other information
| Type of light | Pulsed laser diode |
|---|---|
| Wave length | 845Â nm |
| Detectable remission factor | 1.8% to several 1000% |
| Laser class | 1Â (21Â CFR 1040.10Â and 1040.11, IECÂ 60825-1) |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| S Mark certificate | ✔ |
| Profinet certificate | ✔ |
| PROFIsafe certificate | ✔ |
| EC-Type-Examination approval | ✔ |
| China GB certificate | ✔ |
| PROFIenergy certificate | ✔ |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | ✔ |
Classifications
| ECLASS 5.0 | 27272705 |
|---|---|
| ECLASS 5.1.4 | 27272705 |
| ECLASS 6.0 | 27272705 |
| ECLASS 6.2 | 27272705 |
| ECLASS 7.0 | 27272705 |
| ECLASS 8.0 | 27272705 |
| ECLASS 8.1 | 27272705 |
| ECLASS 9.0 | 27272705 |
| ECLASS 10.0 | 27272705 |
| ECLASS 11.0 | 27272705 |
| ECLASS 12.0 | 27272705 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 39121528 |
