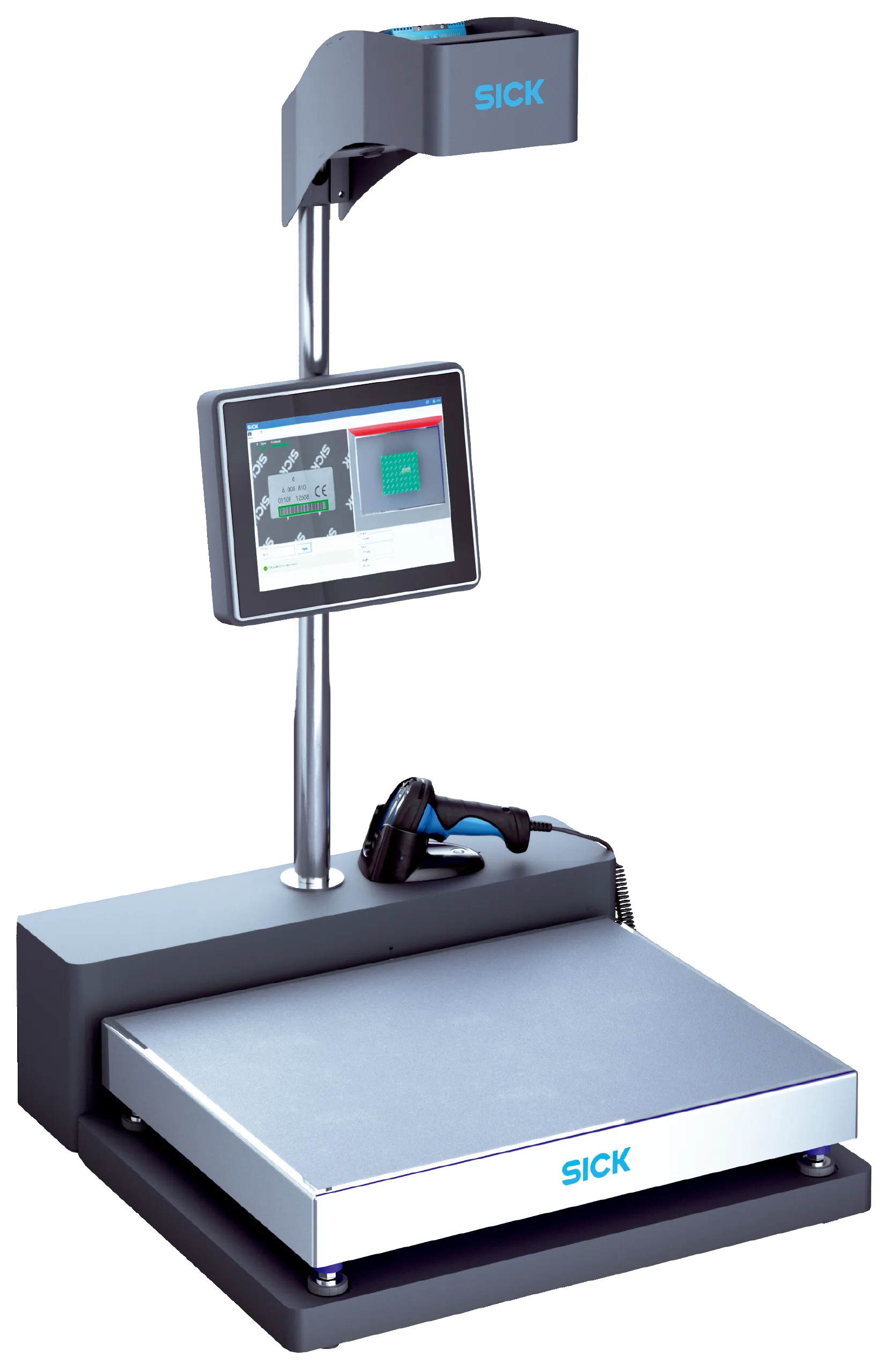

Sick MDAV-L632-HH
Track and trace systems | Master Data Analyzer Vision | MDAV-L632-HH | Handheld scanner: yes | Color image properties: Standard resolution (1 mpx) | Reading field size for code reading: Standard FOV |…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Track and trace systems | Master Data Analyzer Vision | MDAV-L632-HH | Handheld scanner: yes | Color image properties: Standard resolution (1 mpx) | Reading field size for code reading: Standard FOV | Code types for high reading speed (recommendation): 1D
Specification
Features
| Products by tasks | Measuring - Dimension, contour and volumeMeasuring - WeightIdentifying - 1D codeIdentifying - 2D code |
|---|---|
| Sensor resolution | 1Â Mpixel |
| Focus | Adjustable focus (manually) |
| Including image recording | â |
| Object infeed and outfeed | Manual |
| Handheld scanner | â |
| Reading field size for code reading | Standard FOV |
| Color image properties | Standard resolution (1Â mpx) |
| Legal-for-trade | NTEP (Dimensioning, Weighing), OIML (Weighing), CWM (Weighing) |
Mechanics/electronics
| Dimensions, system (L x W x H) | 690 mm x 700 mm x 1,330 mm |
|---|---|
| Enclosure rating | IP20 |
| Supply voltage | 24Â VÂ DCÂ 1) |
| Panel PC | 12â touch display (1024Â x 768Â RGB) |
| Trigger | Automatic when placing an object |
| Total weight | 70Â kg |
| External power supply | AC 100 V ... 240 V, 50 Hz ... 60 Hz |
Performance
| Code types | 1D2DStacked codePDF417Aztec4-stateMaxi-Code |
|---|---|
| Minimum object size | 40 mm x 40 mm x 10 mm |
| Maximum object size | 600 mm x 500 mm x 400 mm (up to)800 mm x 500 mm x 200 mm |
| Throughput | 1000Â pph |
| Accuracy of object coverage | Typ. ± 5 mm x ± 5 mm x ± 5 mm (known shapes)Irregular objects: accuracy depents on object shape |
| Accuracy of scale | d = 5 g (40 g ... 15 kg), d = 10 g (15 kg ... 30 kg), d = 20 g (30 kg ... 60 kg), LFT: e = 20 g (100 g ... 60 kg) |
| Certification | NTEP (Dimensioning, Weighing), OIML (Weighing), CWM (Weighing) |
| Code types for high reading speed (recommendation) | 1D |
Interfaces
| Ethernet | â , TCP/IP, FTP, SFTP |
|---|---|
| Output data | Maximum dimensions (length, width, height) of Minimum Bounding BoxVolume (the minimum bounding box)Code dataWeightCustom fields (up to 6)StatusImage output in .jpgData output in .txt, other formats like .csv, .xml etc. on request (customer-specific) |
Ambient data
| Ambient operating temperature | 0 °C ... +40 °C |
|---|---|
| Ambient temperature, storage | â20 °C ... +60 °C |
| Permissible relative humidity | â¤Â 90 %, Non-condensing |
General notes
| Items supplied | Power supply unitMDAV Basis including Visionary-SPlatform scaleHandheldscannerLector632 |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27281001 |
|---|---|
| ECLASS 5.1.4 | 27280190 |
| ECLASS 6.0 | 27280190 |
| ECLASS 6.2 | 27280190 |
| ECLASS 7.0 | 27280190 |
| ECLASS 8.0 | 27280190 |
| ECLASS 8.1 | 27280190 |
| ECLASS 9.0 | 27280190 |
| ECLASS 10.0 | 27280190 |
| ECLASS 11.0 | 27280190 |
| UNSPSC 16.0901 | 43211701 |
