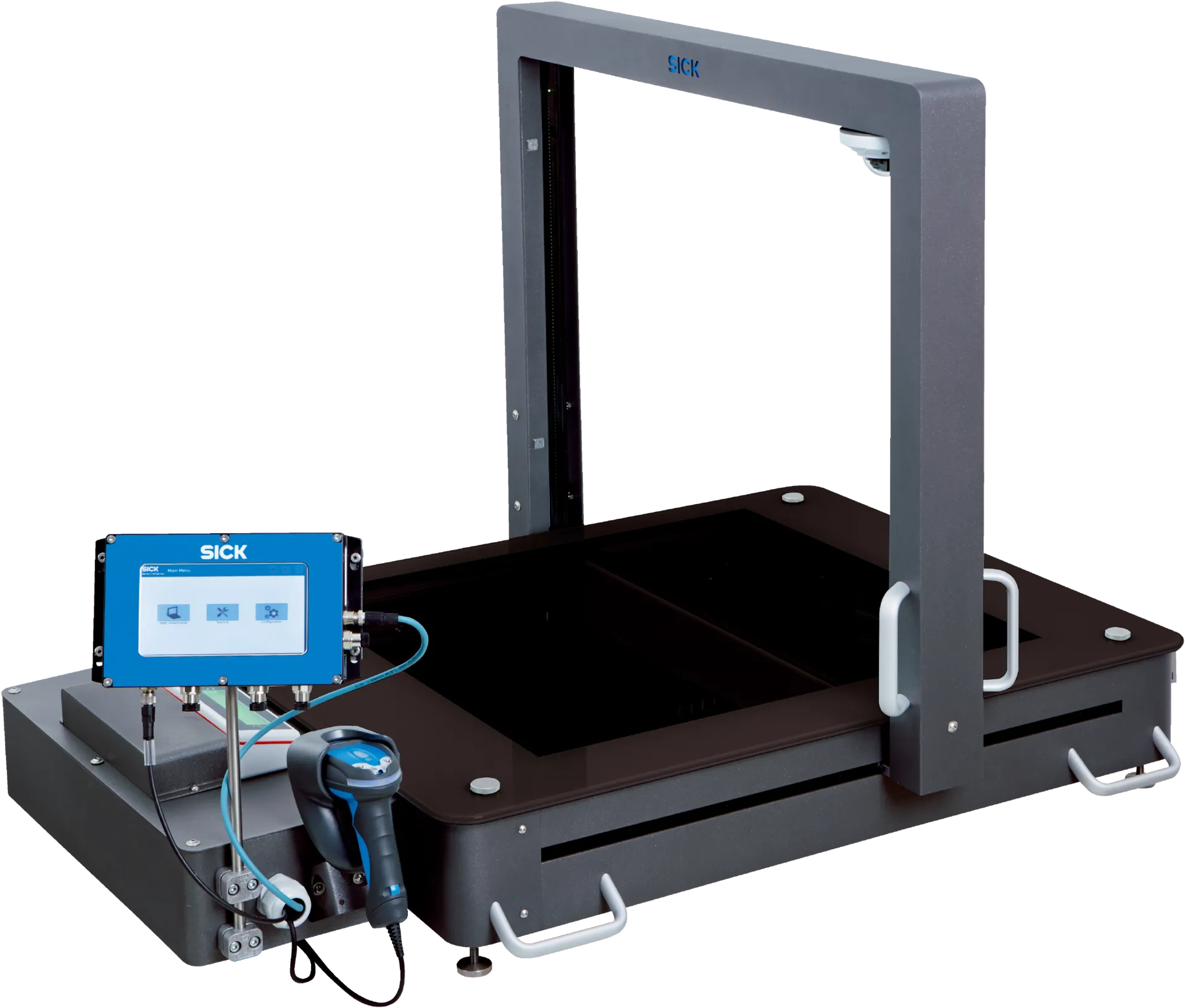

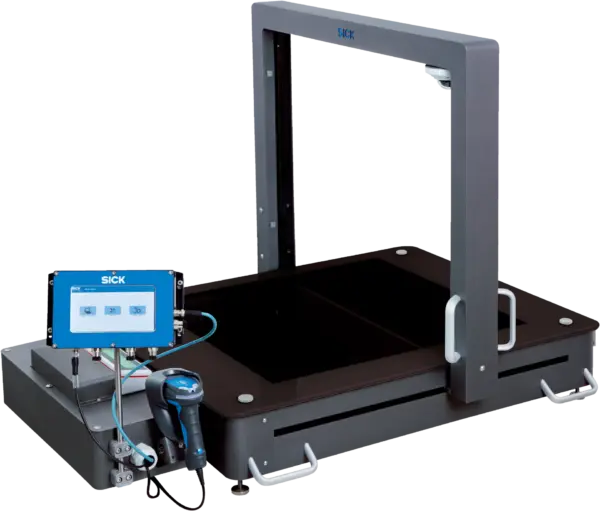

Sick MDA-800-5-Image
Track and trace systems | Master Data Analyzer | MDA-800-5-Image | Maximum object size: 790 mm x 590 mm x 590 mm | Accuracy of object coverage: Typ. ± 5 mm x 5 mm x 5 mm (L x W x H)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Track and trace systems | Master Data Analyzer | MDA-800-5-Image | Maximum object size: 790 mm x 590 mm x 590 mm | Accuracy of object coverage: Typ. ± 5 mm x 5 mm x 5 mm (L x W x H)
Specification
Features
| Products by tasks | Measuring - Dimension, contour and volumeMeasuring - WeightIdentifying - 1D codeIdentifying - 2D code |
|---|---|
| Sensor resolution | 1Â Mpixel |
| Including image recording | â |
| Object infeed and outfeed | Manual |
| Handheld scanner | â |
| Color image properties | Standard resolution (1080p UWW) |
| Legal-for-trade | No |
Mechanics/electronics
| Dimensions, system (L x W x H) | 1,360 mm x 900 mm x 900 mm |
|---|---|
| Enclosure rating | IP20 |
| Supply voltage | 24Â VÂ DCÂ 1) |
| Panel PC | 7" touch display (800Â x 600Â RGB) |
| Trigger | Manual for code scanning |
| Total weight | 100Â kg |
| External power supply | AC 100 V ... 240 V, 50 Hz ... 60 Hz |
Performance
| Code types | 1D2DStacked codePDF417Aztec4-stateMaxi-Code |
|---|---|
| Minimum object size | 10 mm x 10 mm x 5 mm |
| Maximum object size | 790 mm x 590 mm x 590 mm |
| Throughput | 900Â pph |
| Accuracy of object coverage | Typ. ± 5 mm x 5 mm x 5 mm (L x W x H) |
| Accuracy of scale | d = 5 g (40 g ... 15 kg), d = 10 g (15 kg ... 30 kg) |
Interfaces
| Ethernet | â , TCP/IP, FTP |
|---|---|
| Output data | Maximum dimensions (length, width, height) of Minimum Bounding BoxVolume (the minimum bounding box)Code dataWeightCustom fields (up to 3)StatusImage output in .jpgData output in .txt, other formats like .csv, .xml etc. on request (customer-specific) |
Ambient data
| Permissible relative humidity | â¤Â 90 %, Non-condensing |
|---|
General notes
| Items supplied | IPÂ cameraPower supply unitMDA-Basis inkl. MLG-2 Pro (2Â x)Integrated weighing cells (4Â x)Handheld scanner |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27281001 |
|---|---|
| ECLASS 5.1.4 | 27280190 |
| ECLASS 6.0 | 27280190 |
| ECLASS 6.2 | 27280190 |
| ECLASS 7.0 | 27280190 |
| ECLASS 8.0 | 27280190 |
| ECLASS 8.1 | 27280190 |
| ECLASS 9.0 | 27280190 |
| ECLASS 10.0 | 27280190 |
| ECLASS 11.0 | 27280190 |
| UNSPSC 16.0901 | 43211701 |
