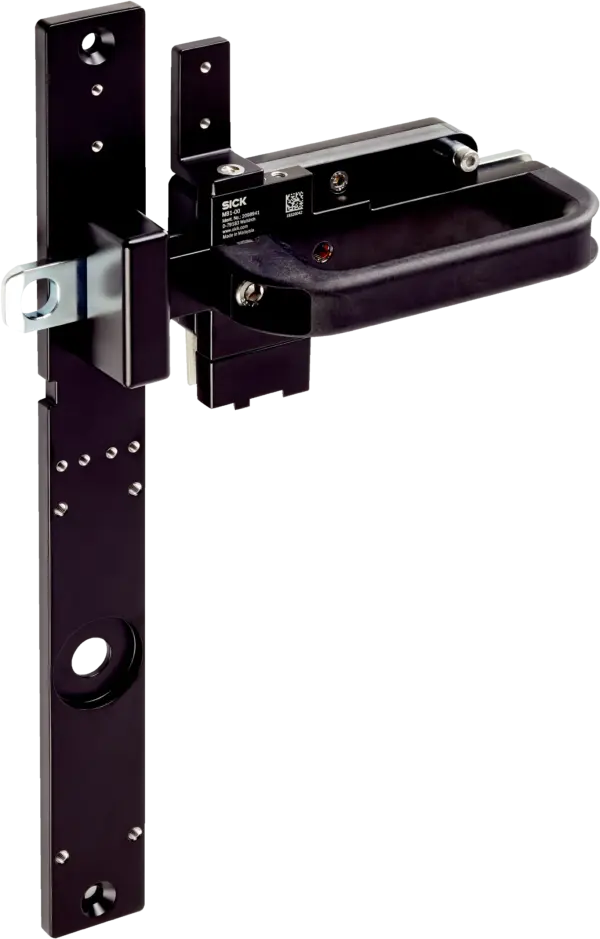

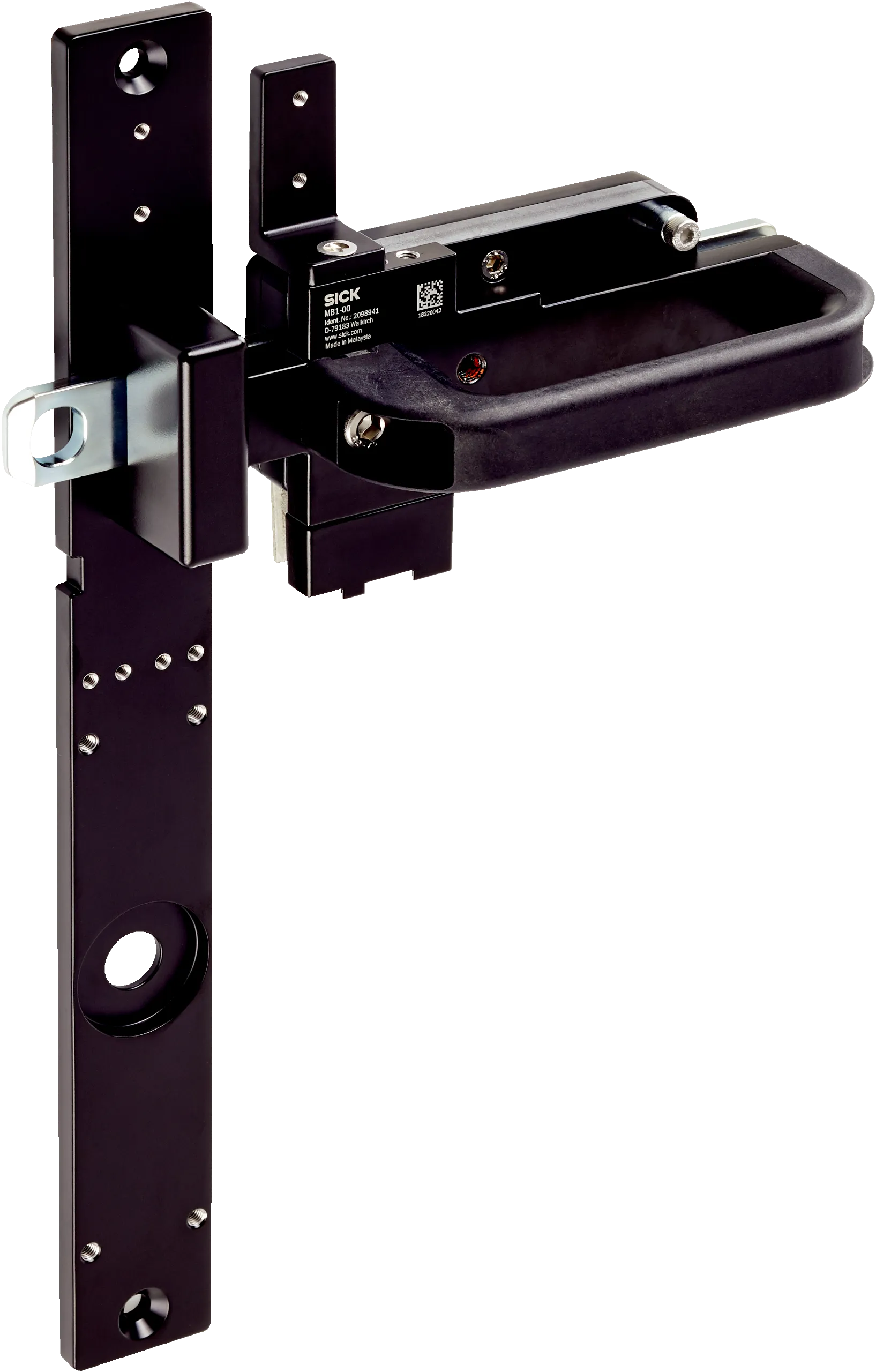

Sick MB1-BL00
Actuators and bolts | MB1, MB1-BL00 | Catch release button/ANSI-compliant locking mechanism: no | Escape release: no | Frame plate with latching function: no | Suitable for: i10 Lock safety switch wit…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Actuators and bolts | MB1, MB1-BL00 | Catch release button/ANSI-compliant locking mechanism: no | Escape release: no | Frame plate with latching function: no | Suitable for: i10 Lock safety switch with locking function (with iE10-S4 actuator), i110 Lock (with iE15-S1 actuator), TR110 Lock (with TR110-XAS actuator) | Items supplied: Bolt unit, long frame plate, adapters for actuator mounting (MB1-BRLK, MB1-BRNC), safety screws for installing provided adapters, Mounting instructions | Description: Complete set consisting of bolt unit with long frame plate and adapters for actuators
Specification
Features
| Description | Complete set consisting of bolt unit with long frame plate and adapters for actuators |
|---|---|
| Installation tolerance (horizontal) | 3 mm ... 30 mm |
| Catch release button/ANSI-compliant locking mechanism | â |
| Escape release | â |
| Frame plate with latching function | â |
| Suitable for | i10 Lock safety switch with locking function (with iE10-S4 actuator)i110 Lock (with iE15-S1 actuator)TR110 Lock (with TR110-XAS actuator) |
| Items supplied | Bolt unitLong frame plateAdapters for actuator mounting (MB1-BRLK, MB1-BRNC)Safety screws for installing provided adaptersMounting instructions |
Mechanics
| Weight | 1.583Â kg |
|---|---|
| Handle | VISTAL® |
| Bolt unit | Steel, zinc coated |
| Sliding carriage, base plate, frame plate | Aluminum (coated) |
Classifications
| ECLASS 5.0 | 27279202 |
|---|---|
| ECLASS 5.1.4 | 27279202 |
| ECLASS 6.0 | 27279202 |
| ECLASS 6.2 | 27279202 |
| ECLASS 7.0 | 27279202 |
| ECLASS 8.0 | 27279202 |
| ECLASS 8.1 | 27279202 |
| ECLASS 9.0 | 27273701 |
| ECLASS 10.0 | 27273701 |
| ECLASS 11.0 | 27273701 |
| ECLASS 12.0 | 27273701 |
| ETIM 5.0 | EC002594 |
| ETIM 6.0 | EC002594 |
| ETIM 7.0 | EC002594 |
| ETIM 8.0 | EC002594 |
| UNSPSC 16.0901 | 31161606 |
