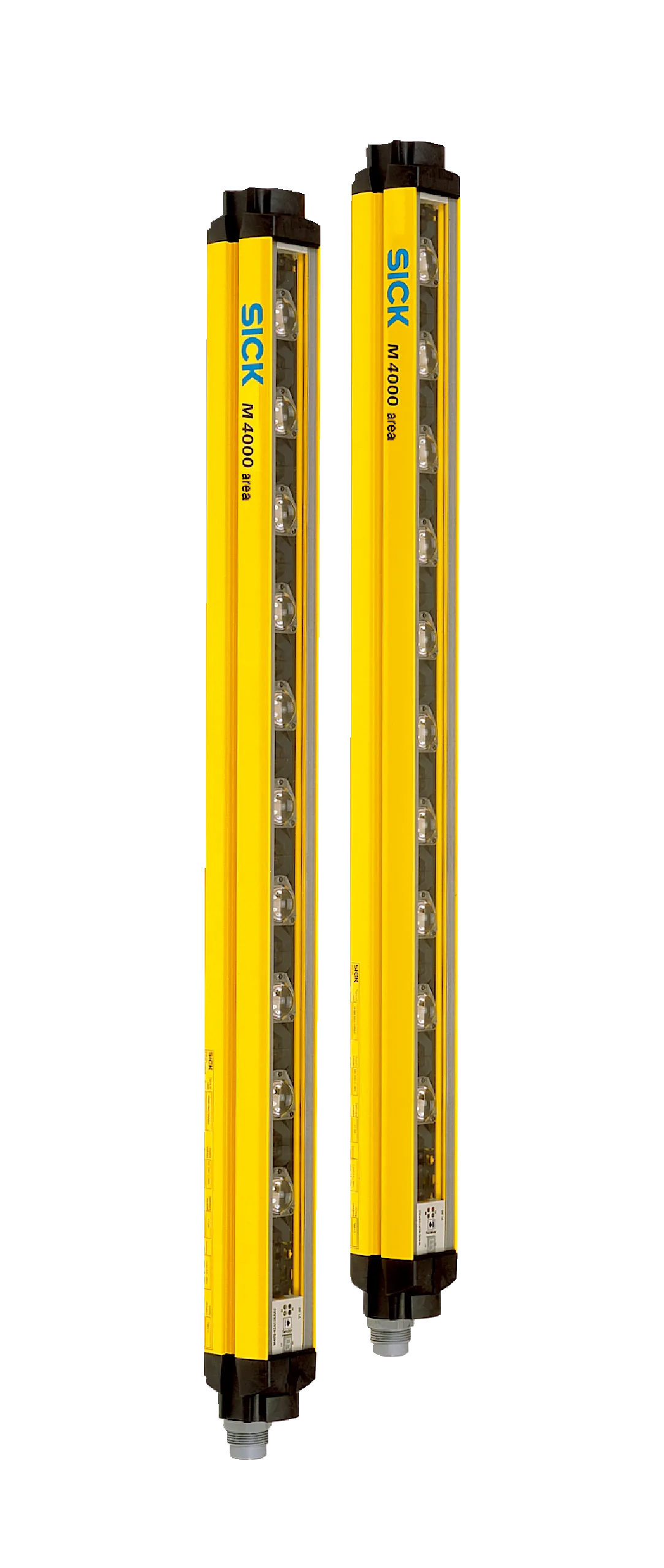

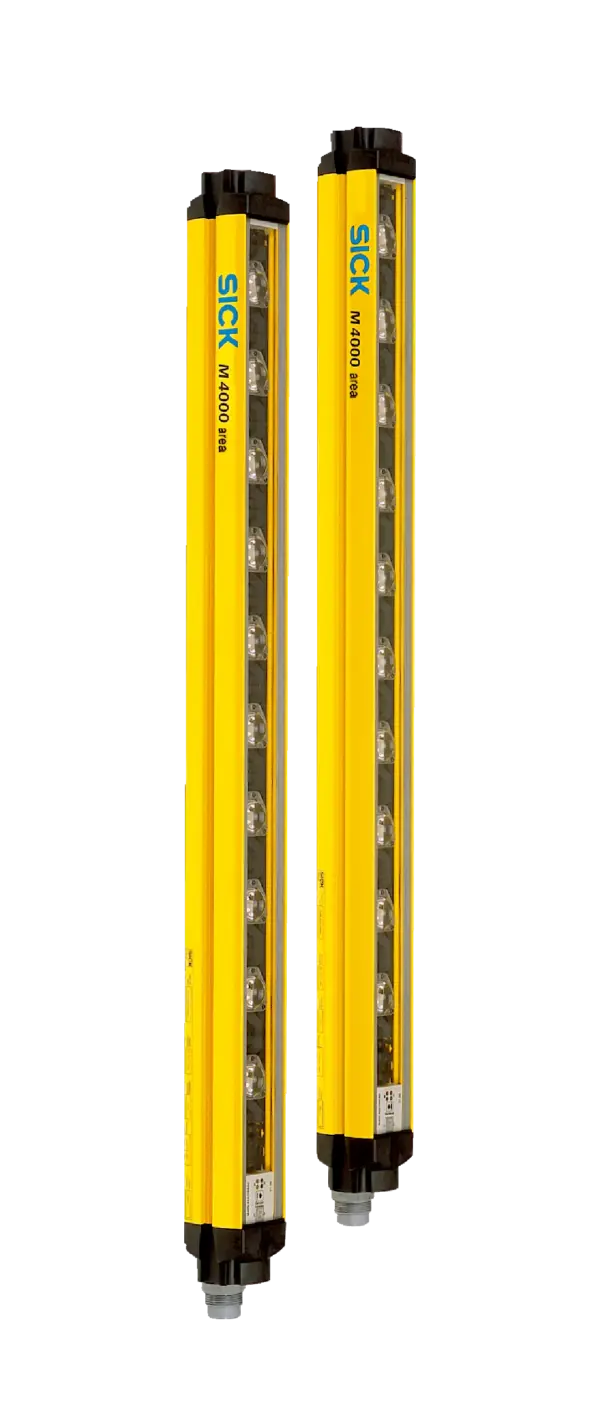

Sick M40S-70A105AA0, M40E-70A105RA0
Safety light curtains | M4000 Area | System part: Pair | Resolution: 80 mm | Scanning range: 90 m | Protective field height: 1,800 mm | Connection type: Hirschmann male connector M26, 12-pin
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light curtains | M4000 Area | System part: Pair | Resolution: 80 mm | Scanning range: 90 m | Protective field height: 1,800 mm | Connection type: Hirschmann male connector M26, 12-pin
Specification
Features
| Resolution | 80Â mm |
|---|---|
| Scanning range | 90Â m |
| Low scanning range | 0.5 m ... 20 m |
| Great scanning range | 9 m ... 90 m |
| Protective field height | 1,800Â mm |
| Length of the monitored area | 1,800Â mm |
| Response time | 17Â ms |
| Synchronization | Optical synchronisation |
Safety-related parameters
| Type | Type 4Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 3Â (IECÂ 61508) |
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Restart interlock | ✔ |
|---|---|
| External device monitoring (EDM) | ✔ |
| Beam coding | ✔ |
| Configurable status output (ADO) | ✔ |
| Sender test | ✔ |
| Configurable scanning range | ✔ |
| Safe SICK device communication via EFI | ✔ |
Interfaces
| Connection type | Hirschmann male connector M26, 12-pin |
|---|---|
| Configuration method | PC with CDS (Configuration and Diagnostic Software) |
| Configuration connection | Female connector M8, 4-pin |
| Display elements | 7-segment display, LEDs |
| Status display | LEDs |
Electrical data
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC) |
| Residual ripple | ≤ 10 % 1) |
| Power consumption | ≤ 0.6 A 2)≤ 0.2 A |
| Type of output | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 3) |
Mechanical data
| Housing cross-section | 52 mm x 55.5 mm |
|---|---|
| Housing material | Aluminum alloy ALMGSI 0.5 |
| Surface treatment | Powder coated |
| Front screen material | Polycarbonate, scratch-resistant coating |
Ambient data
| Enclosure rating | IP65 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –30 °C ... +55 °C |
| Storage temperature | –30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (IEC 60068-2-6) |
| Shock resistance | 10Â g, 16Â ms (ENÂ 60068-2-29) |
Other information
| Wave length | 850Â nm |
|---|
Classifications
| ECLASS 5.0 | 27272704 |
|---|---|
| ECLASS 5.1.4 | 27272704 |
| ECLASS 6.0 | 27272704 |
| ECLASS 6.2 | 27272704 |
| ECLASS 7.0 | 27272704 |
| ECLASS 8.0 | 27272704 |
| ECLASS 8.1 | 27272704 |
| ECLASS 9.0 | 27272704 |
| ECLASS 10.0 | 27272704 |
| ECLASS 11.0 | 27272704 |
| ECLASS 12.0 | 27272704 |
| ETIM 5.0 | EC002549 |
| ETIM 6.0 | EC002549 |
| ETIM 7.0 | EC002549 |
| ETIM 8.0 | EC002549 |
| UNSPSC 16.0901 | 46171620 |
