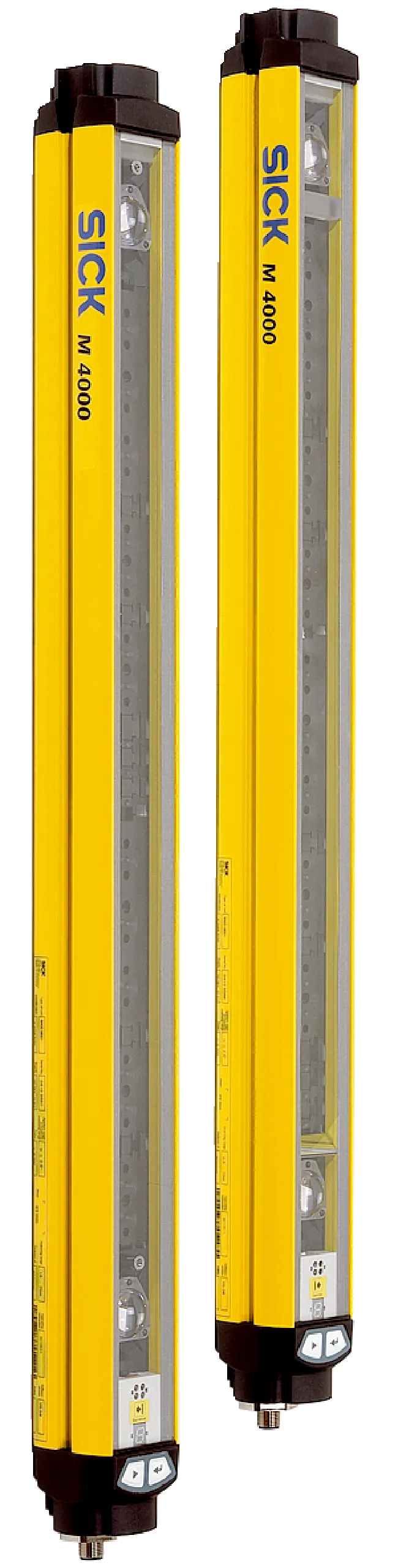

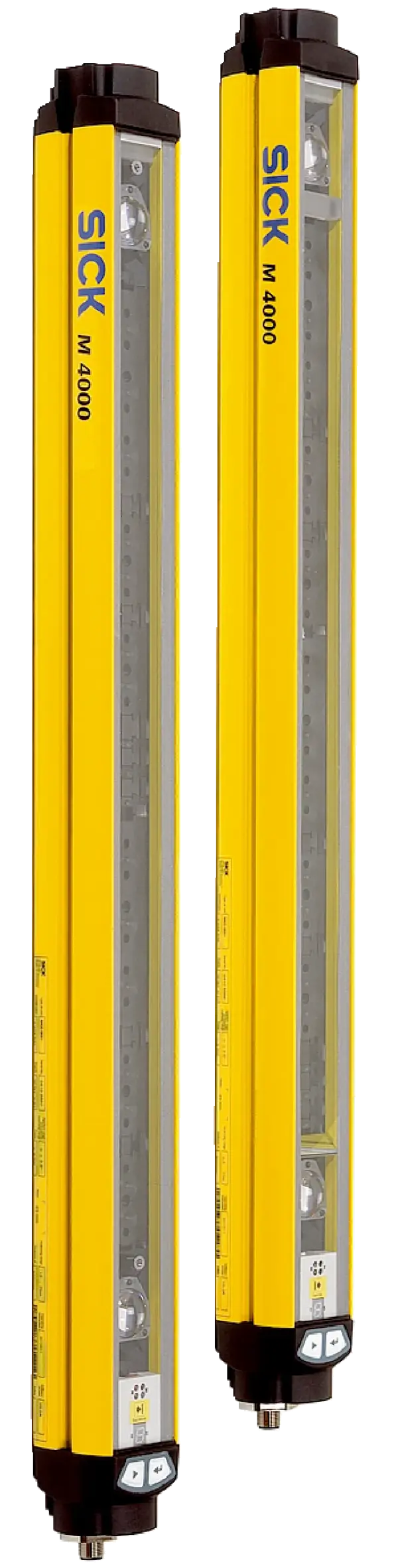

Sick M40S-034000AR0, M40E-034000AR0
Safety light-beam sensors | M4000 Standard | M40S-034000AR0, M40E-034000AR0 | System part: Pair | Scanning range: 70 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Male connector…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light-beam sensors | M4000 Standard | M40S-034000AR0, M40E-034000AR0 | System part: Pair | Scanning range: 70 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Male connector M12, 8-pin | Integrated laser alignment aid: no | End cap with integrated LED: no
Specification
Features
| Specialty | Without additional options |
|---|---|
| Functional principle | Sender/receiver |
| System part | Pair |
| Scanning range | 0.5 m ... 70 m, configurable |
| Low scanning range | 0.5 m ... 20 m |
| Great scanning range | 9 m ... 70 m |
| Number of beams | 3 |
| Beam separation | 400Â mm |
| Response time | 10Â ms |
| Synchronization | Optical synchronization |
Safety-related parameters
| Type | Type 4Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 3Â (IECÂ 61508) |
| Category | Category 4Â (ENÂ ISOÂ 13849) |
| Performance level | PL e (EN ISO 13849) |
| PFHD (mean probability of a dangerous failure per hour) | 6.6 x 10-9 (EN ISO 13849) |
| TM (mission time) | 20Â years (ENÂ ISOÂ 13849) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Functions
| Beam coding | ✔ |
|---|---|
| Restart interlock | ✔ |
| External device monitoring (EDM) | ✔ |
| Sender test | ✔ |
| Configurable scanning range | ✔ |
| Configurable application diagnostic output | ✔ |
Interfaces
| System connection | Male connector M12, 8-pin |
|---|---|
| Permitted cable length | 15 m 1) |
| Permitted cross-section | ≥ 0.25 mm² |
| Configuration method | Configuration buttons |
| Display elements | LEDs7-segment display |
Electronics
| Protection class | III (IECÂ 61140) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC)Â 1) |
| Residual ripple | ≤ 10 % 2) |
| Power consumption | ≤ 0.6 A 3)≤ 0.2 A |
| Output signal switching devices (OSSDs) | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 4) |
| ON state, switching voltage HIGH | 24 V DC (VS – 2.25 V DC ... VS) |
| OFF state, switching voltage LOW | ≤ 2 V DC |
| Current-carrying capacity per OSSD | ≤ 500 mA |
Mechanics
| Dimensions | See dimensional drawing |
|---|---|
| Housing cross-section | 52 mm x 55.5 mm |
| Housing | Aluminum alloy ALMGSI 0.5, powder coated |
| Front screen | Polycarbonate, scratch-resistant coating |
Ambient data
| Enclosure rating | IP65 (ENÂ 60529) |
|---|---|
| Ambient operating temperature | –30 °C ... +55 °C |
| Storage temperature | –30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 g, 10 Hz ... 55 Hz (EN 60068-2-6) |
| Shock resistance | 10Â g, 16Â ms (ENÂ 60068-2-27) |
Other information
| Wave length | 850Â nm |
|---|
Classifications
| ECLASS 5.0 | 27272703 |
|---|---|
| ECLASS 5.1.4 | 27272703 |
| ECLASS 6.0 | 27272703 |
| ECLASS 6.2 | 27272703 |
| ECLASS 7.0 | 27272703 |
| ECLASS 8.0 | 27272703 |
| ECLASS 8.1 | 27272703 |
| ECLASS 9.0 | 27272703 |
| ECLASS 10.0 | 27272703 |
| ECLASS 11.0 | 27272703 |
| ECLASS 12.0 | 27272703 |
| ETIM 5.0 | EC001832 |
| ETIM 6.0 | EC001832 |
| ETIM 7.0 | EC001832 |
| ETIM 8.0 | EC001832 |
| UNSPSC 16.0901 | 46171620 |
