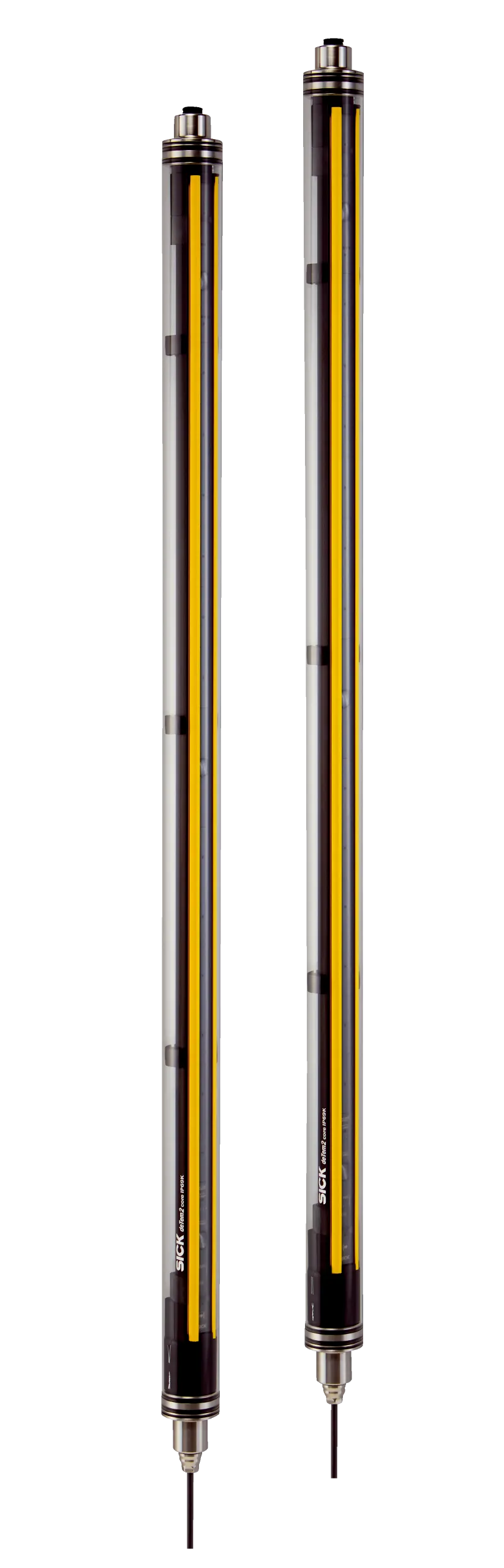

Sick M2C-SB0340LA10, M2C-EB03400A10
Safety light-beam sensors | deTem | M2C-SB0340LA10, M2C-EB03400A10 | Product version: deTem2 Core IP69K | Functional principle: Sender/receiver | System part: Pair | Application: Areas with special hy…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light-beam sensors | deTem | M2C-SB0340LA10, M2C-EB03400A10 | Product version: deTem2 Core IP69K | Functional principle: Sender/receiver | System part: Pair | Application: Areas with special hygiene requirements | Safety level: PL c, SIL 1, Type 2 | Functions: Protective operation | Scanning range: 15.5 m | Number of beams: 3 | Beam separation: 400 mm | Connection type: Connecting cable, 5-wire | Integrated laser alignment aid: no | Enclosure rating: IP65, IP66, IP67, IP69K | Items supplied: Sender in IP69K protective housing with connecting cable, 15Â m, receiver in IP69K protective housing with connecting cable, 15Â m, safety instruction, Mounting instructions, Operating instructions for download
Specification
Features
| Product version | deTem2 Core IP69K |
|---|---|
| Application | Areas with special hygiene requirements |
| Functional principle | Sender/receiver |
| System part | Pair |
| Scanning range category | Low scanning range |
| Scanning range | 15.5Â m |
| Minimum | 0.5 m ... 12.5 m |
| Typical | 0.5 m ... 15.5 m |
| Number of beams | 3 |
| Beam separation | 400Â mm |
| Response time | 20Â ms |
| Synchronization | Optical synchronization |
| Items supplied | Sender in IP69K protective housing with connecting cable, 15Â mReceiver in IP69K protective housing with connecting cable, 15Â mSafety instructionMounting instructionsOperating instructions for download |
Safety-related parameters
| Type | Type 2Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 1Â (IECÂ 61508) |
| Category | Category 2Â (ISOÂ 13849-1) |
| Performance level | PL c (ISOÂ 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 3Â x 10-9 |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Interfaces
| System connection | Connecting cable, 5-wire |
|---|---|
| Length of cable | 15Â m |
| Cable diameter | 5Â mm |
| Cable material | PUR, halogen-free |
| Conductor cross section | 0.34 mm² |
| Display elements | LEDs |
Electronics
| Protection class | III (IECÂ 61140)Â 1) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC)Â 2) |
| Residual ripple | ≤ 10 % 3) |
| Output signal switching devices (OSSDs) | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 4) |
| ON state, switching voltage HIGH | 24 V DC (VS – 2.25 V DC ... VS) |
| OFF state, switching voltage LOW | ≤ 2 V DC |
| Current-carrying capacity per OSSD | ≤ 300 mA |
Mechanics
| Dimensions | See dimensional drawing |
|---|---|
| Housing diameter | 50Â mm |
| Housing | PMMA |
| End caps | Stainless steel 1.4404 |
| Compensating element (membrane) | PA 6 |
| Cable glands | Stainless steel 1.4404Â including silicone seal |
| Weight | ± 50 g |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529)IP66 (IECÂ 60529)IP67 (IECÂ 60529)IP69K (ISOÂ 20653) |
|---|---|
| Ambient operating temperature | –30 °C ... +55 °C |
| Storage temperature | –30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 … 150 Hz, 3,5 mm / 1 g (EN 60068-2-6) |
| Shock resistance | 15Â g / 6Â ms (ENÂ 60068-2-27) |
| Class | 3M4 (IECÂ TR 60721-4-3) |
Other information
| Type of light | Near-infrared (NIR), invisible |
|---|
Classifications
| ECLASS 5.0 | 27272703 |
|---|---|
| ECLASS 5.1.4 | 27272703 |
| ECLASS 6.0 | 27272703 |
| ECLASS 6.2 | 27272703 |
| ECLASS 7.0 | 27272703 |
| ECLASS 8.0 | 27272703 |
| ECLASS 8.1 | 27272703 |
| ECLASS 9.0 | 27272703 |
| ECLASS 10.0 | 27272703 |
| ECLASS 11.0 | 27272703 |
| ECLASS 12.0 | 27272703 |
| ETIM 5.0 | EC001832 |
| ETIM 6.0 | EC001832 |
| ETIM 7.0 | EC001832 |
| ETIM 8.0 | EC001832 |
| UNSPSC 16.0901 | 46171620 |
