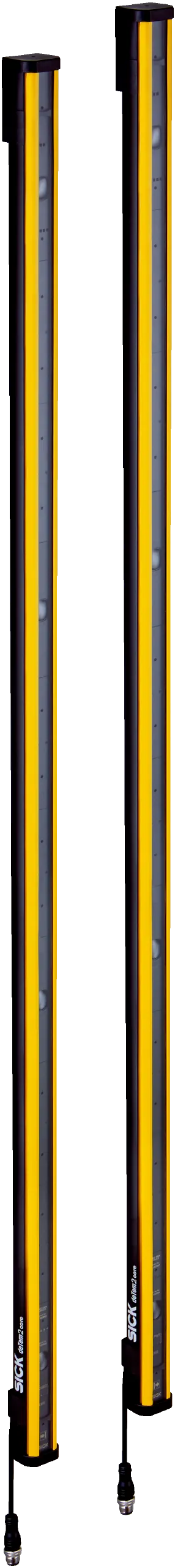

Sick M2C-SA0430HA10, M2C-EA04300A10
Safety light-beam sensors | deTem | M2C-SA0430HA10, M2C-EA04300A10 | Product version: deTem2 Core | Functional principle: Sender/receiver | System part: Pair | Application: Normal industrial environme…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Safety light-beam sensors | deTem | M2C-SA0430HA10, M2C-EA04300A10 | Product version: deTem2 Core | Functional principle: Sender/receiver | System part: Pair | Application: Normal industrial environment | Safety level: PL c, SIL 1, Type 2 | Functions: Protective operation | Scanning range: 90 m | Number of beams: 4 | Beam separation: 300 mm | Connection type: Plug, M12, 5-pin | Integrated laser alignment aid: no | Enclosure rating: IP65, IP67 | Items supplied: Sender, receiver, safety instruction, Mounting instructions, Operating instructions for download
Specification
Features
| Product version | deTem2 Core |
|---|---|
| Application | Normal industrial environment |
| Functional principle | Sender/receiver |
| System part | Pair |
| Scanning range | 90Â m |
| Minimum | 10 m ... 70 m |
| Typical | 10 m ... 90 m |
| Number of beams | 4 |
| Beam separation | 300Â mm |
| Response time | 20Â ms |
| Synchronization | Optical synchronization |
| Items supplied | SenderReceiverSafety instructionMounting instructionsOperating instructions for download |
Safety-related parameters
| Type | Type 2Â (IECÂ 61496-1) |
|---|---|
| Safety integrity level | SIL 1Â (IECÂ 61508) |
| Category | Category 2Â (ISOÂ 13849-1) |
| Performance level | PL c (ISOÂ 13849-1) |
| PFHD (mean probability of a dangerous failure per hour) | 3Â x 10-9 |
| TM (mission time) | 20Â years (ISOÂ 13849-1) |
| Safe state in the event of a fault | At least one OSSD is in the OFF state. |
Interfaces
| System connection | Plug, M12, 5-pin |
|---|---|
| Flexi Loop compatible M12 male connector | ✔ |
| Permitted cable length | 50Â m |
| Display elements | LEDs |
Electronics
| Protection class | III (IECÂ 61140)Â 1) |
|---|---|
| Supply voltage VS | 24Â VÂ DC (19.2Â VÂ DCÂ ... 28.8Â VÂ DC)Â 2) |
| Residual ripple | ≤ 10 % 3) |
| Output signal switching devices (OSSDs) | 2 PNP semiconductors, short-circuit protected, cross-circuit monitored 4) |
| ON state, switching voltage HIGH | 24 V DC (VS – 2.25 V DC ... VS) |
| OFF state, switching voltage LOW | ≤ 2 V DC |
| Current-carrying capacity per OSSD | ≤ 300 mA |
Mechanics
| Dimensions | See dimensional drawing |
|---|---|
| Housing cross-section | 31 mm x 34 mm |
| Housing | Aluminum extruded profile |
| Front screen | Polycarbonate, scratch-resistant coating |
| Weight | ± 50 g |
| Stationary position | > 12Â x cable diameter |
| Flexible use | > 15Â x cable diameter |
Ambient data
| Enclosure rating | IP65 (IECÂ 60529)IP67 (IECÂ 60529) |
|---|---|
| Ambient operating temperature | –30 °C ... +55 °C |
| Storage temperature | –30 °C ... +70 °C |
| Air humidity | 15Â %Â ... 95Â %, Non-condensing |
| Vibration resistance | 5 … 150 Hz, 3,5 mm / 1 g (EN 60068-2-6) |
| Shock resistance | 15Â g / 6Â ms (ENÂ 60068-2-27) |
| Class | 3M4 (IECÂ TR 60721-4-3) |
Other information
| Type of light | Near-infrared (NIR), invisible |
|---|
Classifications
| ECLASS 5.0 | 27272703 |
|---|---|
| ECLASS 5.1.4 | 27272703 |
| ECLASS 6.0 | 27272703 |
| ECLASS 6.2 | 27272703 |
| ECLASS 7.0 | 27272703 |
| ECLASS 8.0 | 27272703 |
| ECLASS 8.1 | 27272703 |
| ECLASS 9.0 | 27272703 |
| ECLASS 10.0 | 27272703 |
| ECLASS 11.0 | 27272703 |
| ECLASS 12.0 | 27272703 |
| ETIM 5.0 | EC001832 |
| ETIM 6.0 | EC001832 |
| ETIM 7.0 | EC001832 |
| ETIM 8.0 | EC001832 |
| UNSPSC 16.0901 | 46171620 |
