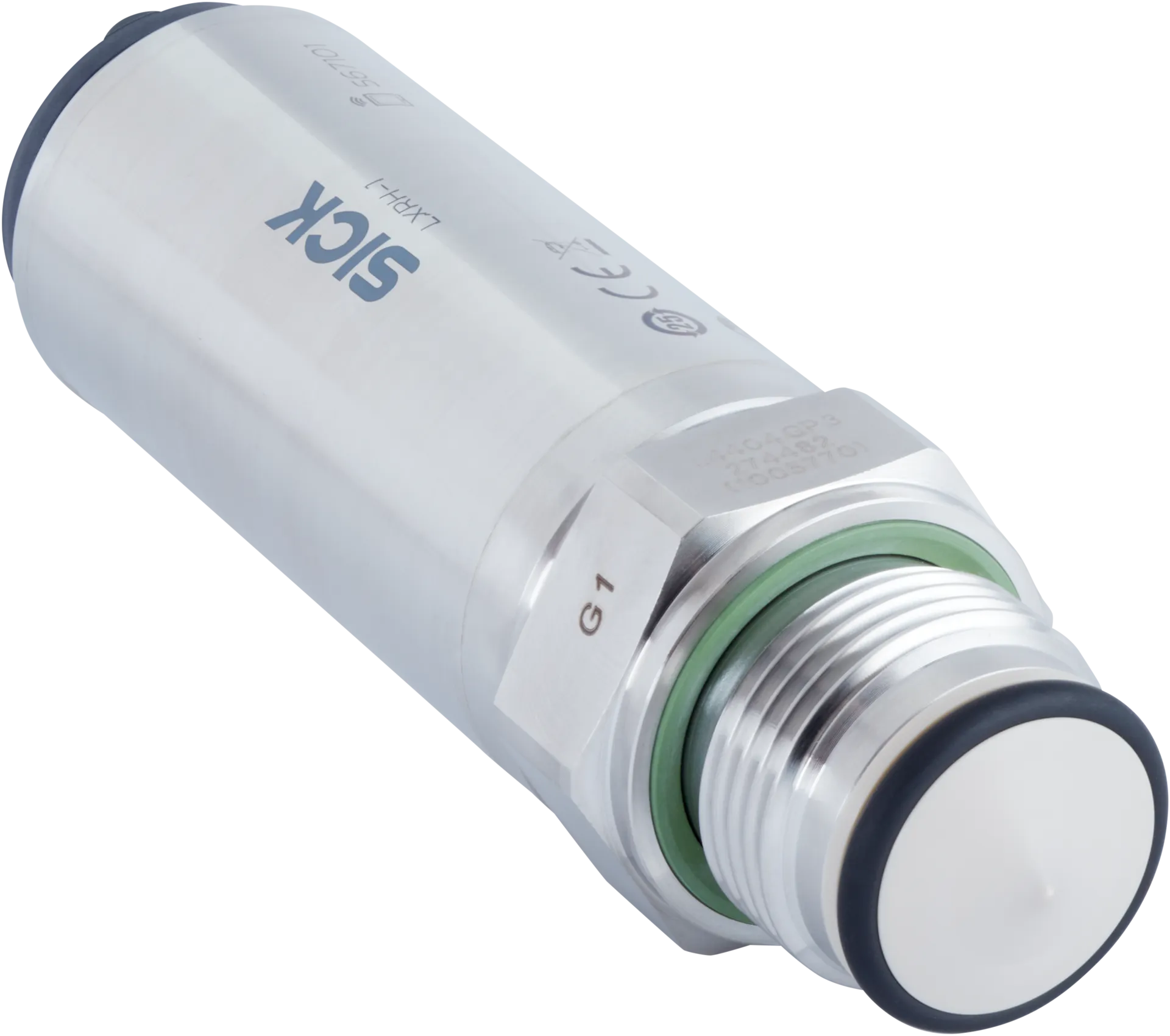

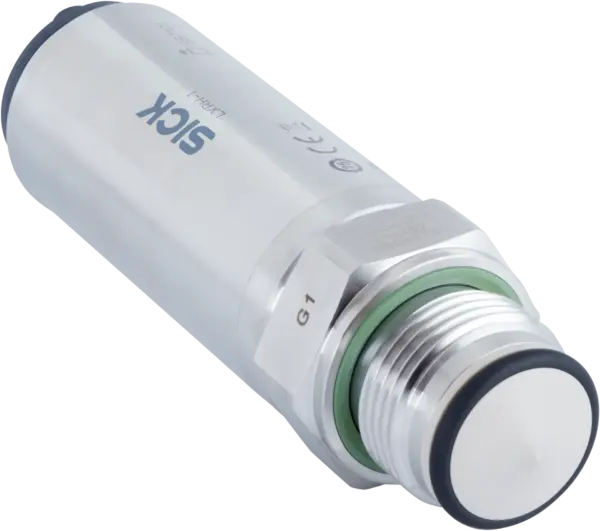

Sick LXRH-1XXXMXXA7MAAX
Level sensors | LXRH | LXRH-1XXXMXXA7MAAX | Communication interface: IO-Link | Process connection: G 1, PN16, ISO228-1 | Probe type: Thread with integrated horn antenna made from PEEK | Remote amplifi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Level sensors | LXRH | LXRH-1XXXMXXA7MAAX | Communication interface: IO-Link | Process connection: G 1, PN16, ISO228-1 | Probe type: Thread with integrated horn antenna made from PEEK | Remote amplifier: No | Output signal: 2 x PNP/NPN/PNP/NPN + 4 mA … 20 mA | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C … +130 °C | Process pressure: –1 bar … 16 bar | Wetted parts: Stainless steel 1.4404 / 316L, PEEK, EPDM | Housing material: Stainless steel 1.4404 / 316L, PBT/PC | Enclosure rating: IP66, IP67, IP69 | Display: no | PWIS-cleaned: no | Bluetooth: no
Specification
Features
| Medium | Fluids, bulk solids |
|---|---|
| Measurement | Continuous, switch |
| Probe type | Thread with integrated horn antenna made from PEEK |
| Frequency band | W-band (within 75 ⦠85 GHz) |
| Measuring range | 0 m ... 15 m |
| Angle of dispersion | 13° 1) |
| Process pressure | â1 bar ... 16 bar |
| Process temperature | â40 °C ... +130 °C |
| CIP and SIP capable | â 2) |
| 360° status indicator | â |
Performance
| Accuracy of sensor element | ± 2 mm 1) 2) |
|---|---|
| Reproducibility | â¤Â 1 mm |
| Resolution | <Â 1Â mm |
| Response time | 1,000Â ms |
Electronics
| Communication interface | IO-Link |
|---|---|
| Supply voltage | 12Â VÂ DCÂ ... 35Â VÂ DCÂ 1) |
| Initialization time | â¤Â 5 s |
| Protection class | III |
| Connection type | M12 round connector x 1, 4-pin |
| Output signal | 2Â x PNP/NPN/PNP/NPN + 4Â mAÂ ... 20Â mA |
| Power consumption | â¤Â 3.5 W 2) |
| Inductive load | â¤Â 0.5 H |
| Capacitive load | â¤Â 100 nF |
| Enclosure rating | IP66IP67IP69 |
| Lower signal level | 3.8Â mAÂ ... 4Â mA |
| Upper signal level | 20Â mAÂ ... 20.5Â mA |
Mechanics
| Wetted parts | Stainless steel 1.4404Â / 316LPEEKEPDM |
|---|---|
| Process connection | G 1, PN16, ISO228-1 |
| Housing material | Stainless steel 1.4404Â / 316L, PBT/PC |
| Male connector material | Plastic |
Ambient data
| Ambient operating temperature | â40 °C ... +70 °C |
|---|---|
| Ambient temperature, storage | â40 °C ... +80 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| China RoHS | â |
| FDA certificate | â |
| cULus certificate | â |
| FCC certificate | â |
| IO-Link certificate | â |
| Radio Approval certificate Australia | â |
| Radio Approval certificate Canada | â |
| Radio Approval certificate New Zealand | â |
| Food contact material manufacturer declaration | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27200505 |
|---|---|
| ECLASS 5.1.4 | 27200505 |
| ECLASS 6.0 | 27200505 |
| ECLASS 6.2 | 27200505 |
| ECLASS 7.0 | 27200505 |
| ECLASS 8.0 | 27200505 |
| ECLASS 8.1 | 27200505 |
| ECLASS 9.0 | 27200505 |
| ECLASS 10.0 | 27270807 |
| ECLASS 11.0 | 27270807 |
| ECLASS 12.0 | 27274501 |
| ETIM 5.0 | EC001447 |
| ETIM 6.0 | EC001447 |
| ETIM 7.0 | EC001447 |
| ETIM 8.0 | EC001447 |
| UNSPSC 16.0901 | 41111950 |
