Sick LVM5532
Profiling systems | Load Volume Measurement System | LVM5532 | Items supplied: LMS511 HD (3 x), Application Processing Unit (APU), LVM software | Installation position: Overhead or at the side
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Profiling systems | Load Volume Measurement System | LVM5532 | Items supplied: LMS511 HD (3 x), Application Processing Unit (APU), LVM software | Installation position: Overhead or at the side
Specification
Features
| Number of covered lanes | 1 |
|---|---|
| Vehicle data | Residual load volumeVehicle classesDriving directionLane assignmentConfidence level for all vehicle datas3D point cloudVehicle dimensions |
| Sensor | 2D LiDAR sensor |
| Recommended distance between max. vehicle height and sensor | ⥠1 m |
| Stop-and-go functionality | Yes |
| Max. range with 10Â % reflectivity | 40Â m |
| Aperture angle | 190°, per LMS511 SE |
| Laser class | 1, eye-safe (IECÂ 60825-1:2014) |
| Heating | â |
| Internal computer | Application Processing Unit (APU)â |
| Internal memory | 256Â GB SSD |
Mechanics/electronics

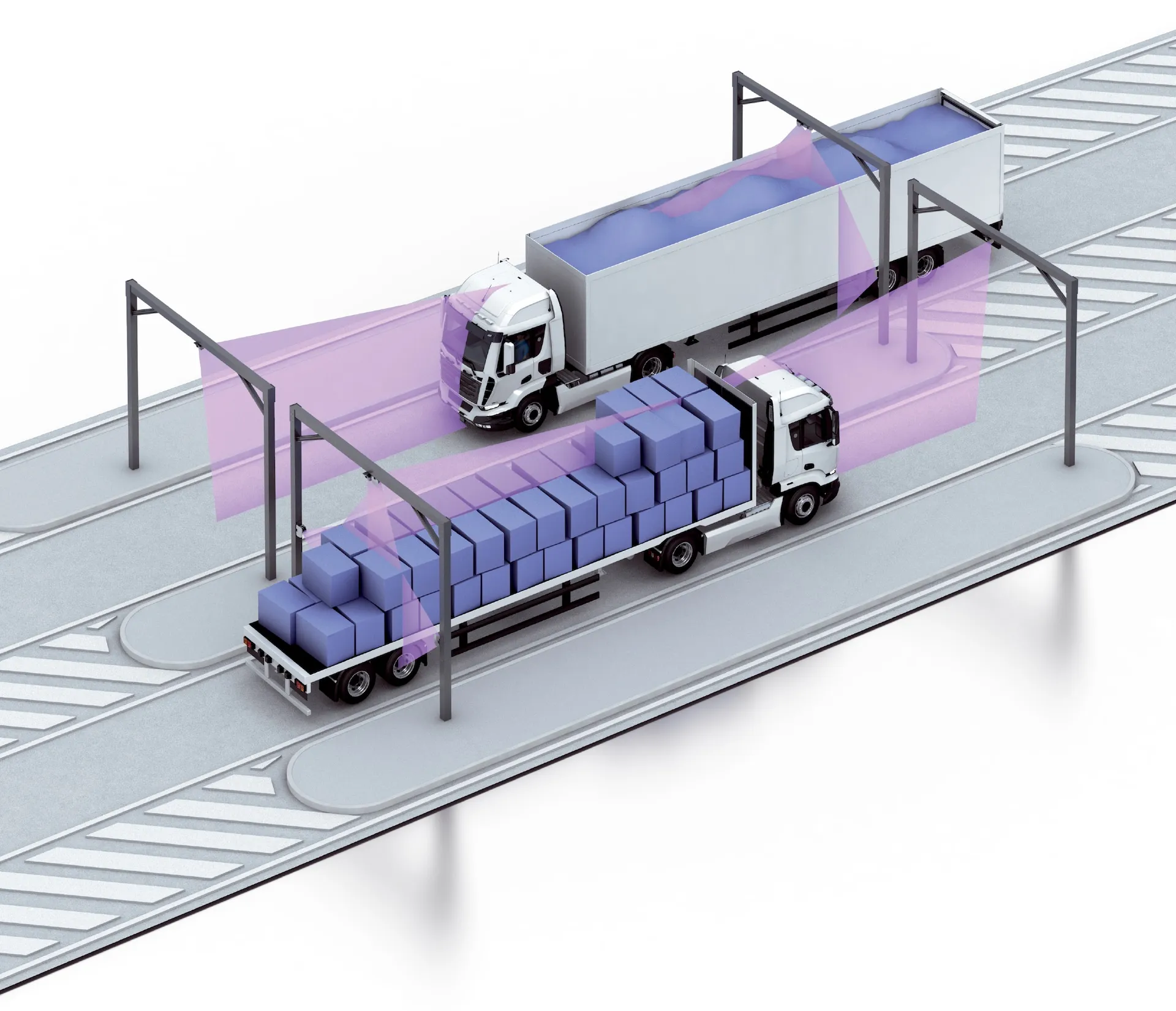

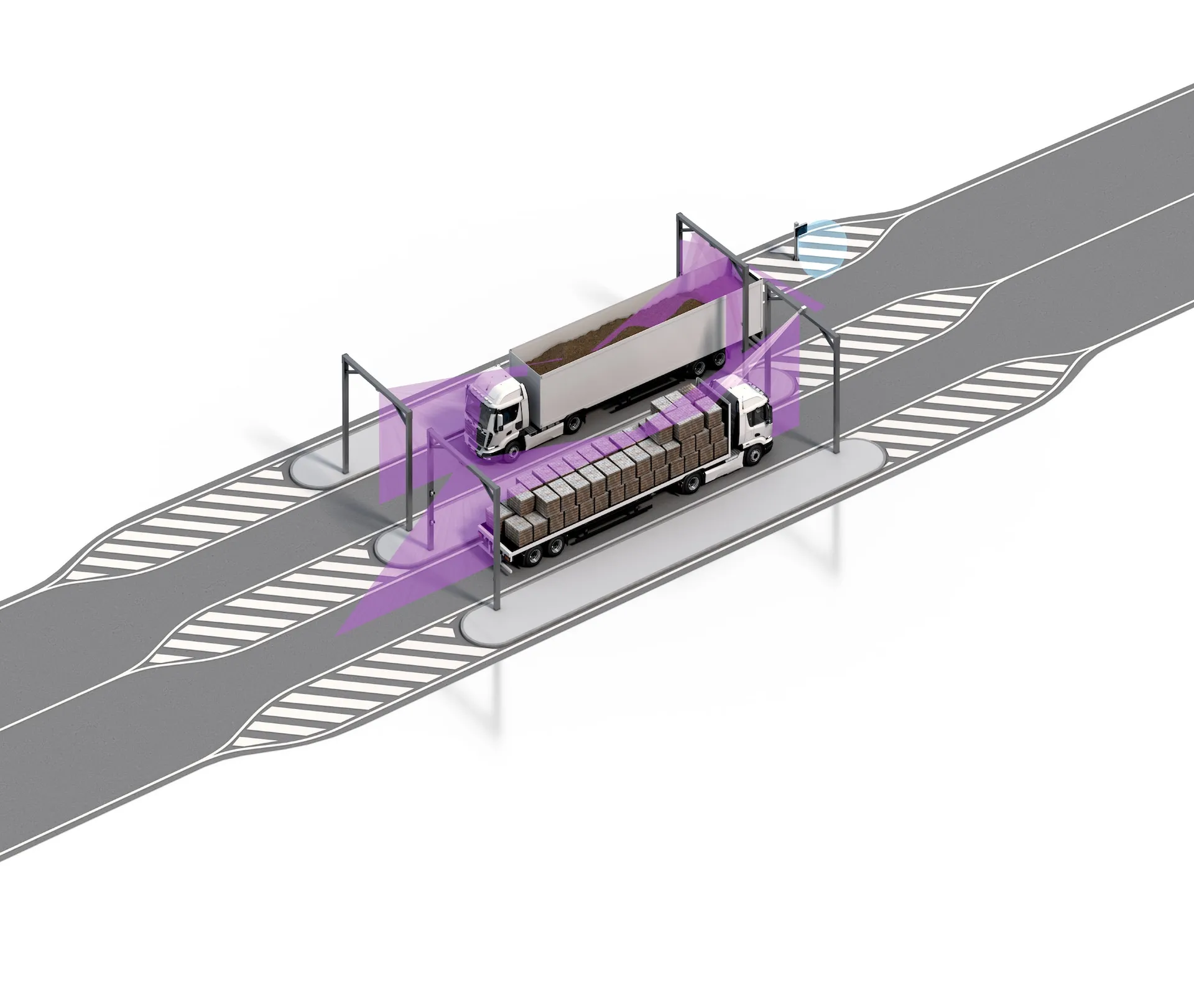

| Installation position | Overhead or at the side |
|---|---|
| Installation height | 5 m ... 8 mAt least 1 m higher than the maximum vehicle height |
Performance
| Minimum object size | 1 m x 0.6 m x 0.6 m (L x W x H) |
|---|---|
| Maximum object size | 32 m x 3.5 m x 5 m (L x W x H) |
| Minimum detectable object | 190 mm x 130 mm x 130 mm |
Interfaces
| Output data | Vehicle data incl. load volumes |
|---|
General notes

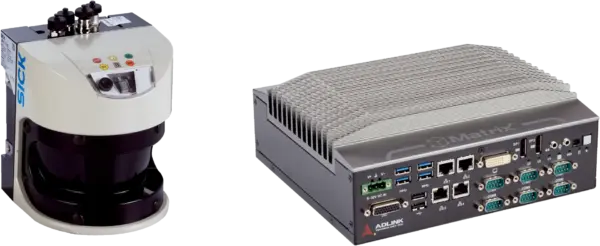

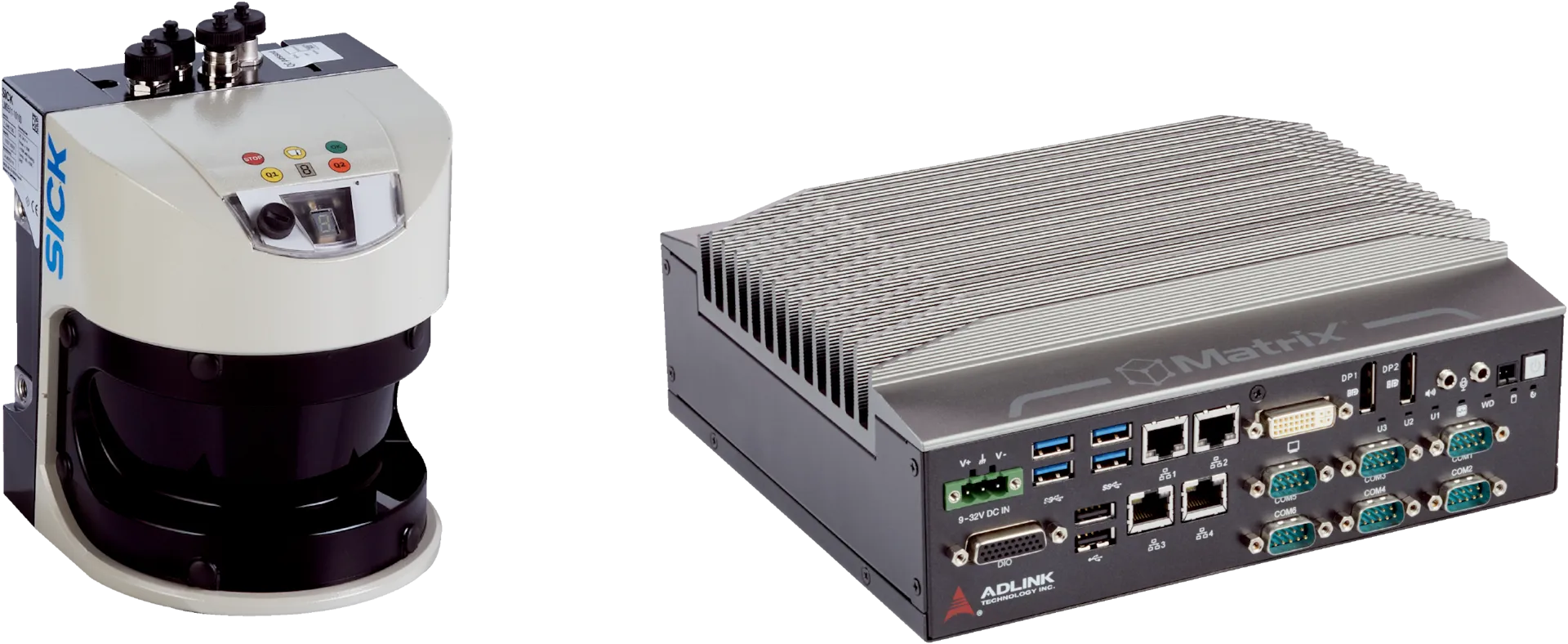

| Items supplied | LMS511 HD (3Â x)Application Processing Unit (APU)LVM software |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
Classifications
| ECLASS 5.0 | 27281001 |
|---|---|
| ECLASS 5.1.4 | 27280190 |
| ECLASS 6.0 | 27280190 |
| ECLASS 6.2 | 27280190 |
| ECLASS 7.0 | 27280190 |
| ECLASS 8.0 | 27280190 |
| ECLASS 8.1 | 27280190 |
| ECLASS 9.0 | 27280190 |
| ECLASS 10.0 | 27280190 |
| ECLASS 11.0 | 27280190 |
| ECLASS 12.0 | 27280190 |
| UNSPSC 16.0901 | 41111615 |
