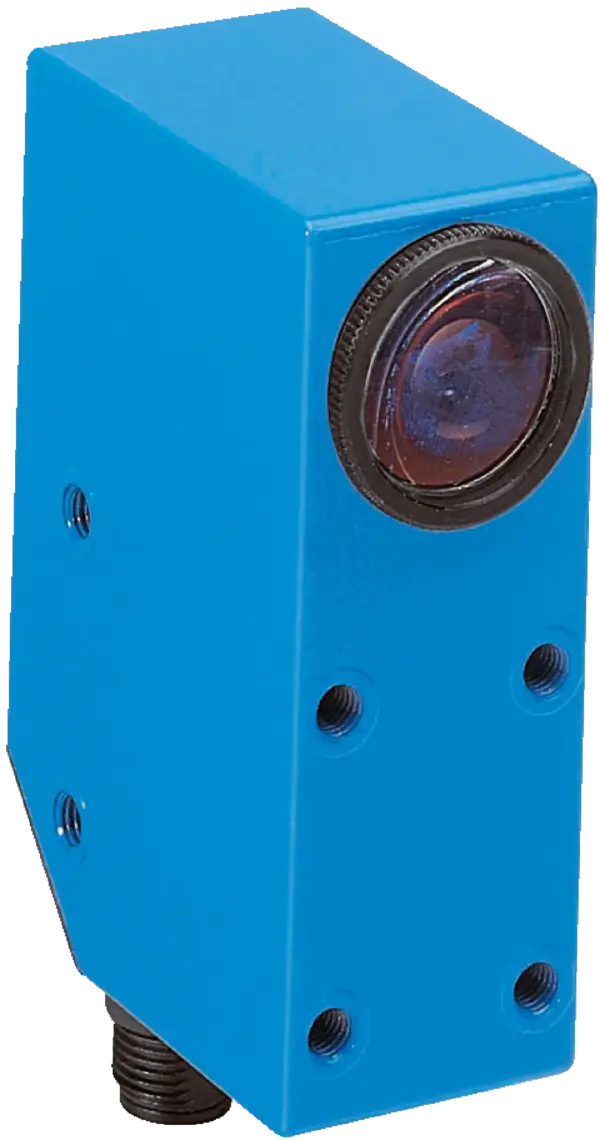

Sick LUT3-650
Luminescence sensors | LUT3 | LUT3-650 | Light source: LED, UV | Communication interface: – | Sensing distance: 50 mm | Switching output: PNP, NPN | Switching mode: Light switching | Light spot size:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Luminescence sensors | LUT3 | LUT3-650 | Light source: LED, UV | Communication interface: – | Sensing distance: 50 mm | Switching output: PNP, NPN | Switching mode: Light switching | Light spot size: 5 mm x 15 mm | Light spot direction: Vertical | Light emission: Long side | Connection type Detail: Male connector M12, 4-pin
Specification
Features
| Dimensions (W x H x D) | 30.4 mm x 53 mm x 80 mm |
|---|---|
| Sensing distance | ⤠50 mm 1) |
| Housing design | Large |
| Working range | 30 mm ... 60 mm |
| Light source | LED, UVÂ 2) |
| Wave length | 375Â nm |
| Light emission | Long side |
| Light spot size | 5 mm x 15 mm |
| Light spot direction | Vertical |
| Receiving filters | ⤠420 nm 3) |
| Receiving range | 450 nm ... 750 nm |
| Adjustment | Potentiometer |
| Output function | Light switching |
Mechanics/electronics
| Supply voltage | 12Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 2 Vpp 2) |
| Current consumption | <Â 60Â mAÂ 3) |
| Switching frequency | 1.5 kHz 4) |
| Response time | 350 µs 5) |
| Switching output | PNP, NPN |
| Switching output (voltage) | PNP: HIGH = VSâ â¤Â 3 V / LOW = approx. 0 VNPN: HIGH = approx. UV / LOW â¤Â 2 V |
| Switching mode | Light switching |
| Output current Imax. | 100Â mA |
| Connection type | Male connector M12, 4-pin |
| Protection class | IIÂ 6) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 400Â g |
| Housing material | Zinc diecast |
Ambient data
| Ambient operating temperature | â10 °C ... +55 °C |
|---|---|
| Ambient temperature, storage | â25 °C ... +75 °C |
| Shock load | According to IECÂ 60068 |
| UL File No. | NRKH.E181493 & NRKH7.E181493 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| Moroccan declaration of conformity | â |
| China RoHS | â |
| cULus certificate | â |
| Photobiological safety (IEC EN 62471) | â |
Classifications
| ECLASS 5.0 | 27270908 |
|---|---|
| ECLASS 5.1.4 | 27270908 |
| ECLASS 6.0 | 27270908 |
| ECLASS 6.2 | 27270908 |
| ECLASS 7.0 | 27270908 |
| ECLASS 8.0 | 27270908 |
| ECLASS 8.1 | 27270908 |
| ECLASS 9.0 | 27270908 |
| ECLASS 10.0 | 27270908 |
| ECLASS 11.0 | 27270908 |
| ECLASS 12.0 | 27270908 |
| ETIM 5.0 | EC001822 |
| ETIM 6.0 | EC001822 |
| ETIM 7.0 | EC001822 |
| ETIM 8.0 | EC001822 |
| UNSPSC 16.0901 | 39121528 |
