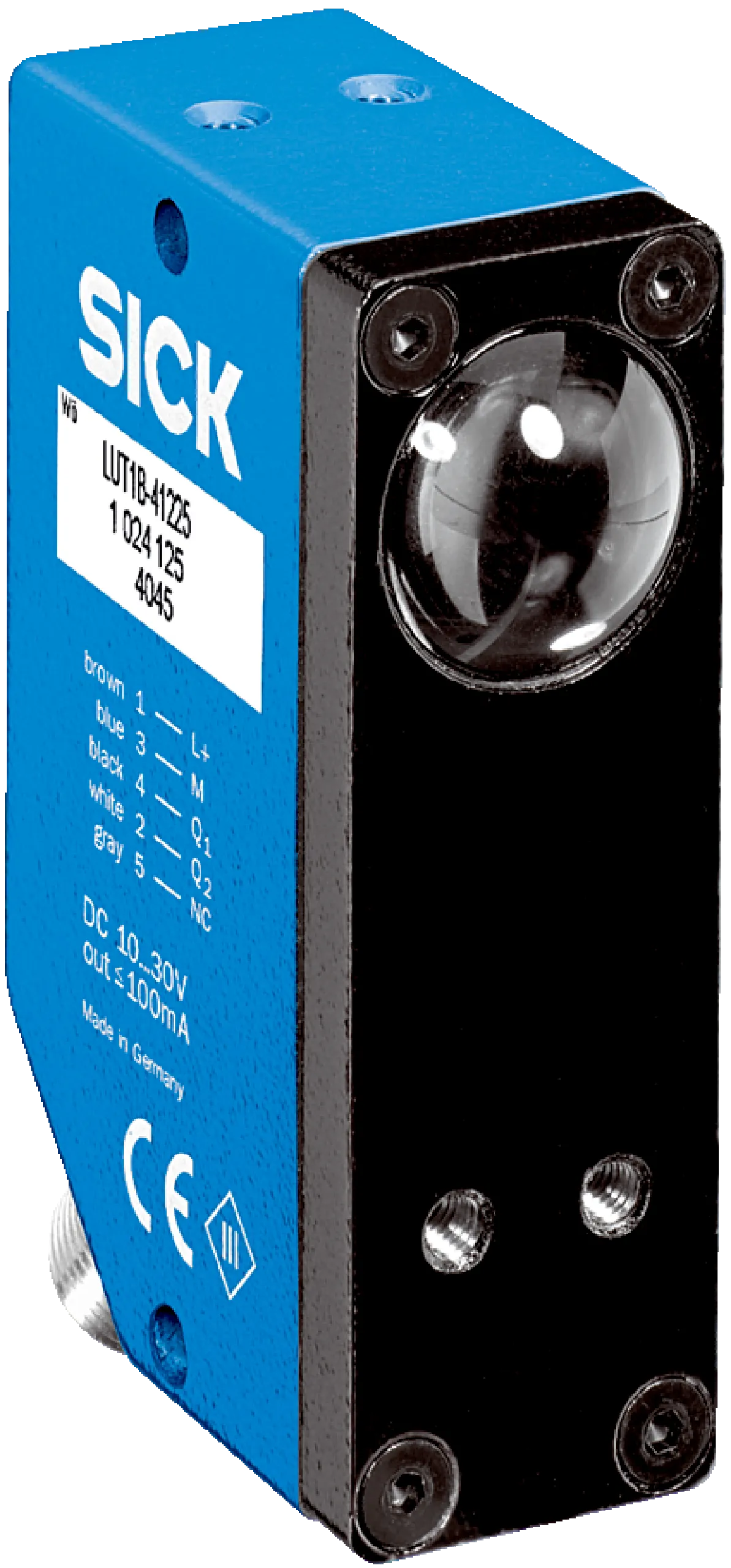

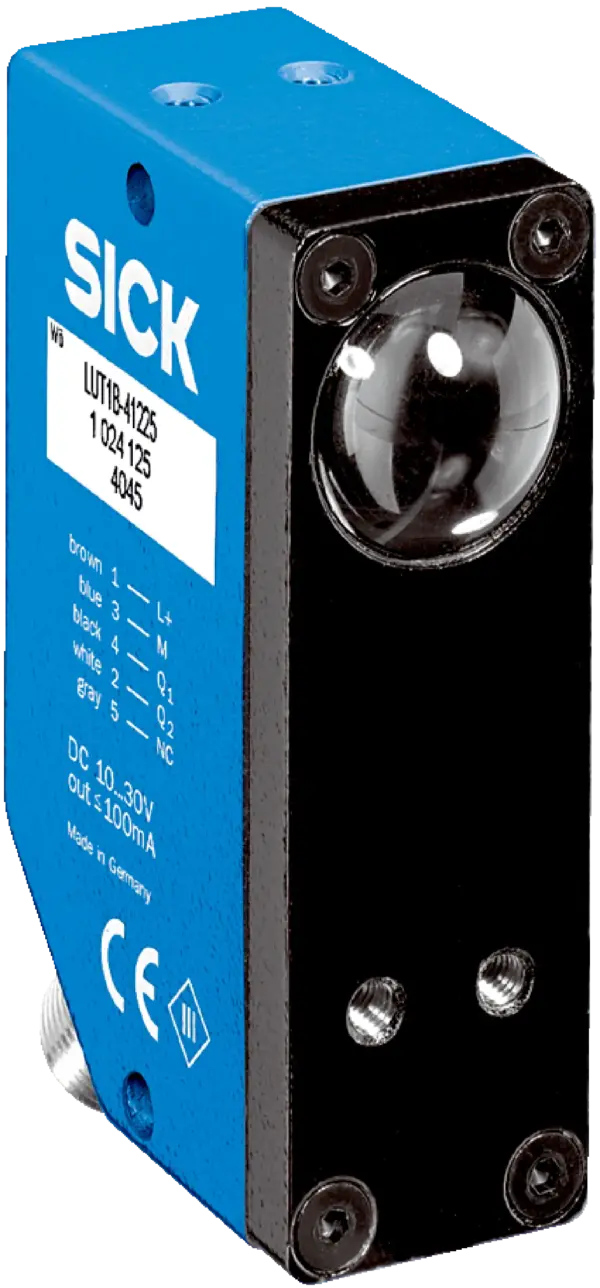

Sick LUT1B-12205
Luminescence sensors | LUT1 | LUT1B-12205 | Light source: LED, blue | Communication interface: – | Sensing distance: 80 mm | Switching output: PNP | Switching mode: Light switching | Light spot size:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Luminescence sensors | LUT1 | LUT1B-12205 | Light source: LED, blue | Communication interface: – | Sensing distance: 80 mm | Switching output: PNP | Switching mode: Light switching | Light spot size: 10 mm x 70 mm | Light emission: Long side | Connection type Detail: Male connector M12, 5-pin
Specification
Features
| Dimensions (W x H x D) | 23 mm x 70 mm x 47.5 mm |
|---|---|
| Sensing distance | 70 mm ... 80 mm 1) |
| Housing design | Middle |
| Working range | 60 mm ... 100 mm |
| Light source | LED, blue 2) |
| Wave length | 470Â nm |
| Light emission | Long side |
| Light spot size | 10 mm x 70 mm |
| Receiving filters | ≤ 590 nm 3) |
| Receiving range | 590 nm ... 750 nm |
| Adjustment | Double teach-in button |
| Output function | Light switching |
Mechanics/electronics
| Supply voltage | 10Â VÂ DCÂ ... 30Â VÂ DCÂ 1) |
|---|---|
| Ripple | < 5 Vpp 2) |
| Current consumption | <Â 40Â mAÂ 3) |
| Switching frequency | 600 Hz 4) |
| Response time | 850 µs 5) |
| Switching output | PNP |
| Switching output (voltage) | PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V |
| Switching mode | Light switching |
| Analog output | 0.5Â mAÂ ... 10Â mAÂ 6) |
| Output current Imax. | 200Â mA |
| Connection type | Male connector M12, 5-pin |
| Protection class | IIIÂ 7) |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
| Enclosure rating | IP67 |
| Weight | 240Â g |
| Housing material | Zinc diecast |
Ambient data
| Ambient operating temperature | –20 °C ... +60 °C |
|---|---|
| Ambient temperature, storage | –40 °C ... +70 °C |
| Shock load | According to IECÂ 60068 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
Classifications
| ECLASS 5.0 | 27270908 |
|---|---|
| ECLASS 5.1.4 | 27270908 |
| ECLASS 6.0 | 27270908 |
| ECLASS 6.2 | 27270908 |
| ECLASS 7.0 | 27270908 |
| ECLASS 8.0 | 27270908 |
| ECLASS 8.1 | 27270908 |
| ECLASS 9.0 | 27270908 |
| ECLASS 10.0 | 27270908 |
| ECLASS 11.0 | 27270908 |
| ECLASS 12.0 | 27270908 |
| ETIM 5.0 | EC001822 |
| ETIM 6.0 | EC001822 |
| ETIM 7.0 | EC001822 |
| ETIM 8.0 | EC001822 |
| UNSPSC 16.0901 | 39121528 |
