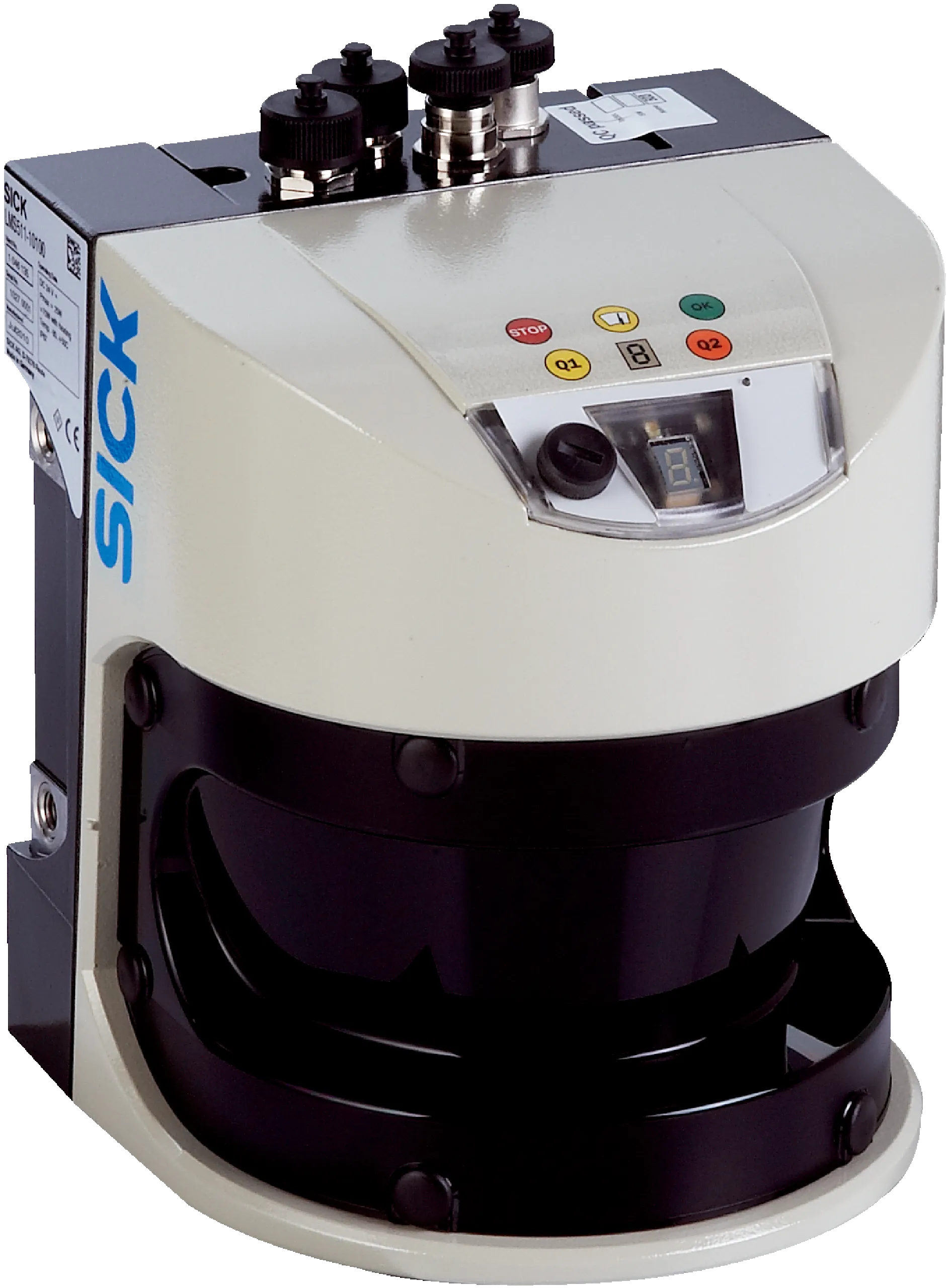

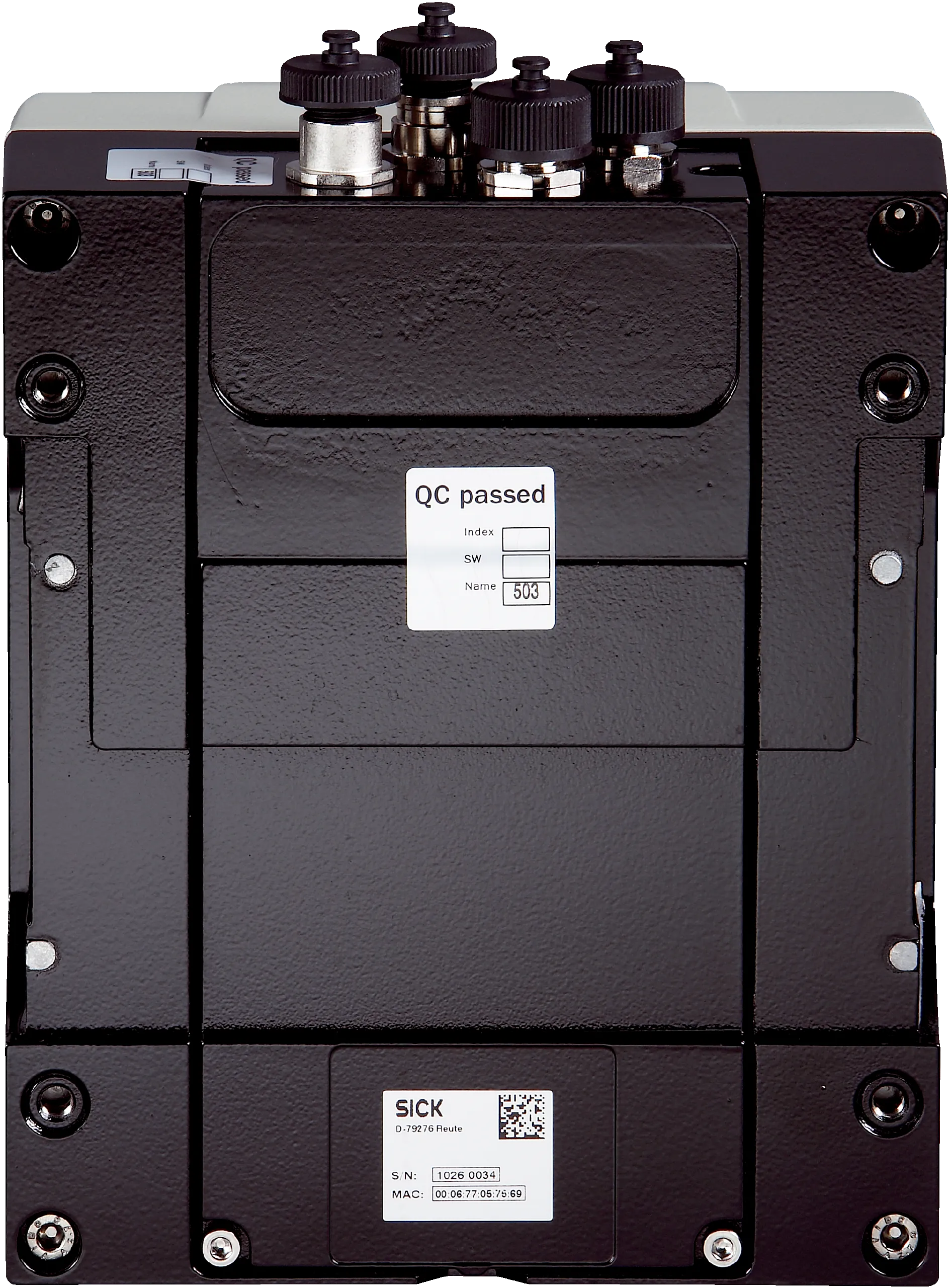

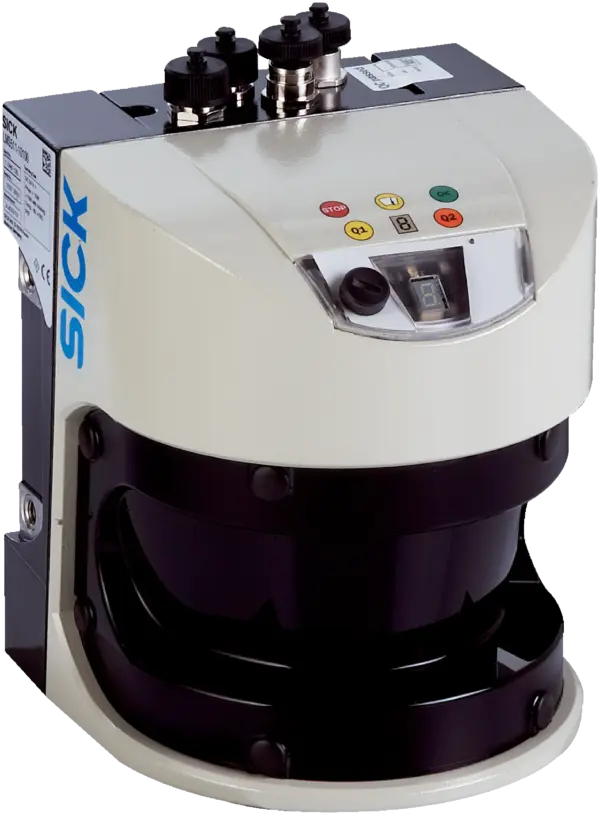

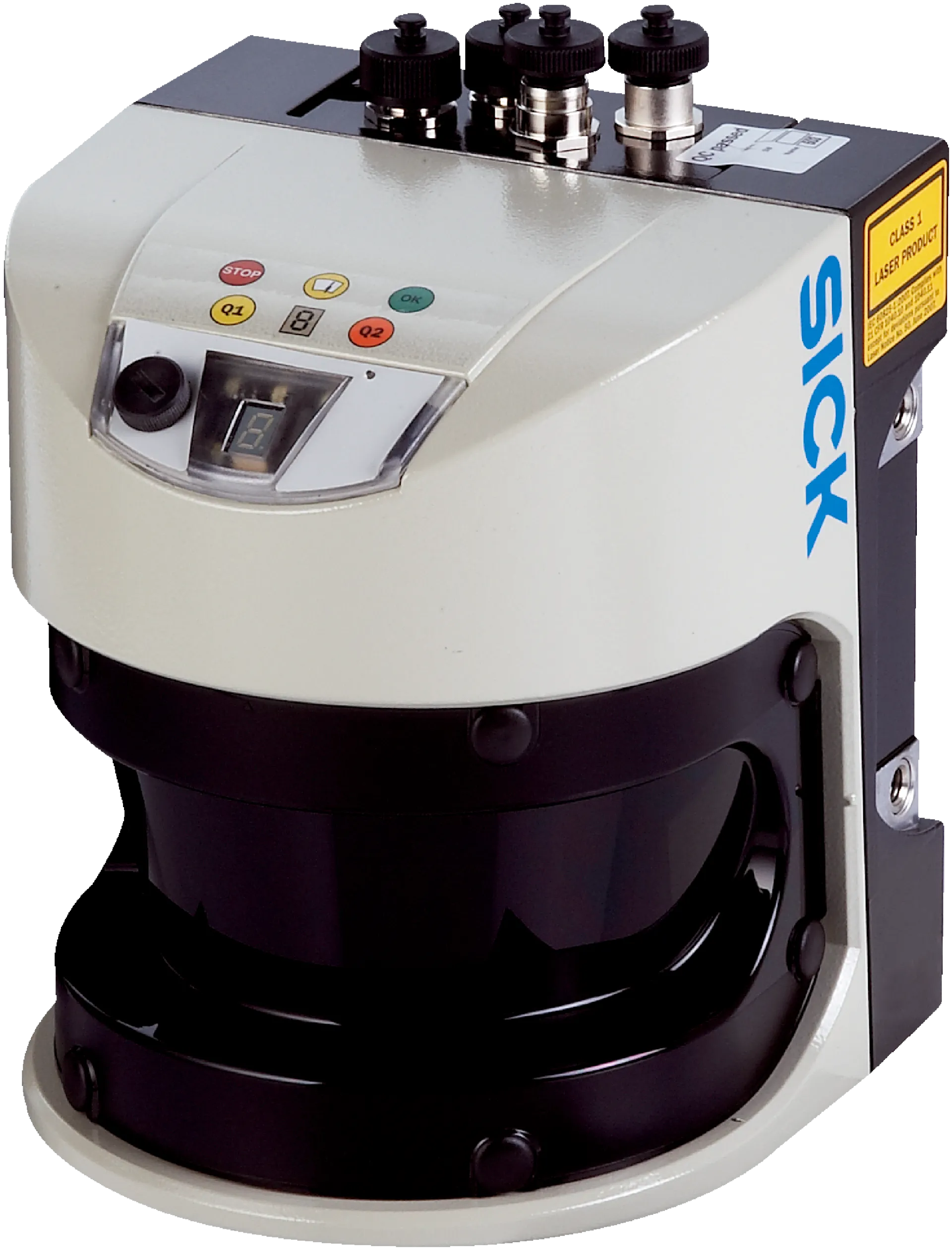

Sick LMS511-20190
Flow sensors | Bulkscan | LMS511-20190 | Output signal: Ethernet, Digital inputs and digital outputs, USB auxiliary interface, RS-232/RS-422 | Laser class: 1, eye-safe (IEC 60825-1:2014) | Working ran…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Flow sensors | Bulkscan | LMS511-20190 | Output signal: Ethernet, Digital inputs and digital outputs, USB auxiliary interface, RS-232/RS-422 | Laser class: 1, eye-safe (IEC 60825-1:2014) | Working range: 0.5 m … 20 m | Switching inputs: 2 (+ Encoder) | Switching outputs: 6 | Supply voltage scanner/heater: 19.2 V … 28.8 V | Enclosure rating: IP67
Specification
Features
| Measurement principle | Laser run time technology |
|---|---|
| Medium | Bulk solids |
| Communication interface | Serial, RS-232USB, RS-422 |
| Light source | Infrared (905Â nm) |
| Laser class | 1, eye-safe (IECÂ 60825-1:2014) |
| Aperture angle | 190° |
| Scanning frequency | 35Â Hz50Â Hz75Â Hz |
| Bandwidth | No limit |
| Heating | Yes |
| Working range | 0.5 m ... 20 m |
| Amount of evaluated echoes | 5 |
Performance
| Response time | 13Â ms, 20Â ms, 28Â ms |
|---|---|
| Average filter | 0 s ... 3,600 s |
| Max. conveyor speed | â¤Â 30 m/s |
Interfaces
| Number | 1, 1, 1 |
|---|---|
| Protocol | USB 2.0RS-232/RS-422TCP/IP |
| Data transmission rate | 500Â kBaud500Â kBaud 100Â Mbit/s |
| Switching inputs | 2Â + Encoder |
| Switching outputs | 6 |
| Analog signals | Available with separate accessory BAM100 |
| Optical indicators | 5Â LEDs Additional 7-segment display |
Electronics
| Supply voltage | 19.2Â VÂ ... 28.8Â V |
|---|---|
| Power consumption | 22Â W + 55Â W heating (typical) |
| Residual ripple | ± 5 % |
| Protection class | â |
| Connection type | M12 round connector |
| Output signal | EthernetDigital inputs and digital outputsUSB auxiliary interfaceRS-232/RS-422 |
| Enclosure rating | IP67 (IECÂ 60529) |
| MTTF | >Â 100Â years |
| Switch-on peak current | 2Â A |
| Operating current scanner | â¤Â 1.3 A |
| Switch-on time | ⤠60 s |
Mechanics
| Weight | 3.7Â kg |
|---|---|
| Housing color | Gray (RAL 7032) |
| Dimensions | 160 mm x 155 mm x 185 mm |
| Distance of the sensor to the bulk solid | â¥Â 0.5 m |
Ambient data
| Ambient operating temperature | â40 °C ... +60 °C |
|---|---|
| Electromagnetic compatibility (EMC) | IECÂ 61000-6-2:2016-08 / IECÂ 61000-6-3:2006-07Â / ENÂ 61000-6-2:2005 / ENÂ 61000-6-3 / A1 2011 |
| Ambient temperature, storage | â40 °C ... +70 °C |
| Ambient light immunity | 70,000Â lx |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| cTUVus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27200413 |
|---|---|
| ECLASS 5.1.4 | 27200413 |
| ECLASS 6.0 | 27200413 |
| ECLASS 6.2 | 27200413 |
| ECLASS 7.0 | 27200413 |
| ECLASS 8.0 | 27200413 |
| ECLASS 8.1 | 27200413 |
| ECLASS 9.0 | 27200413 |
| ECLASS 10.0 | 27200413 |
| ECLASS 11.0 | 27200413 |
| ECLASS 12.0 | 27200413 |
| ETIM 5.0 | EC002580 |
| ETIM 6.0 | EC002580 |
| ETIM 7.0 | EC002580 |
| ETIM 8.0 | EC002580 |
| UNSPSC 16.0901 | 41112501 |
