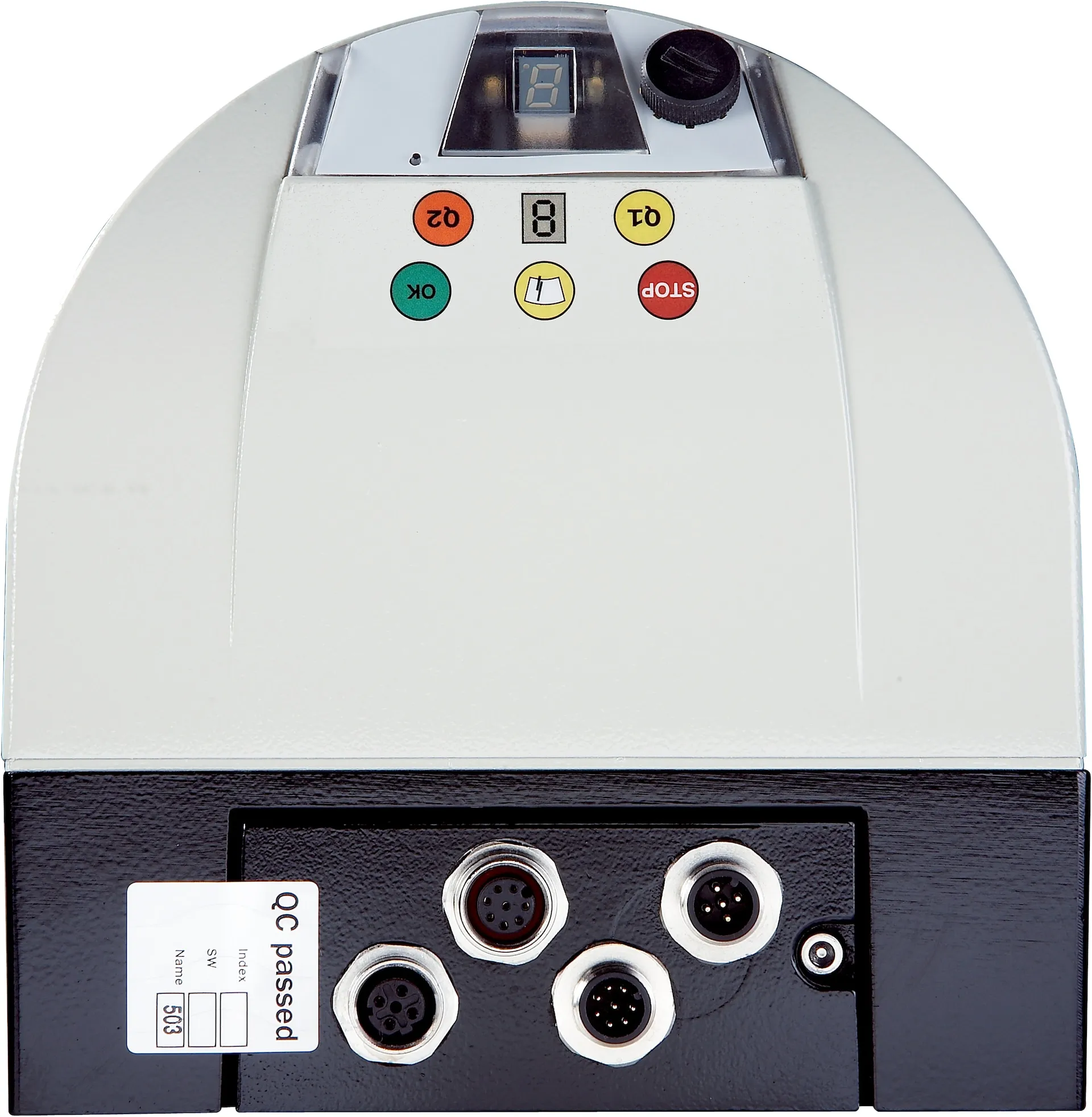

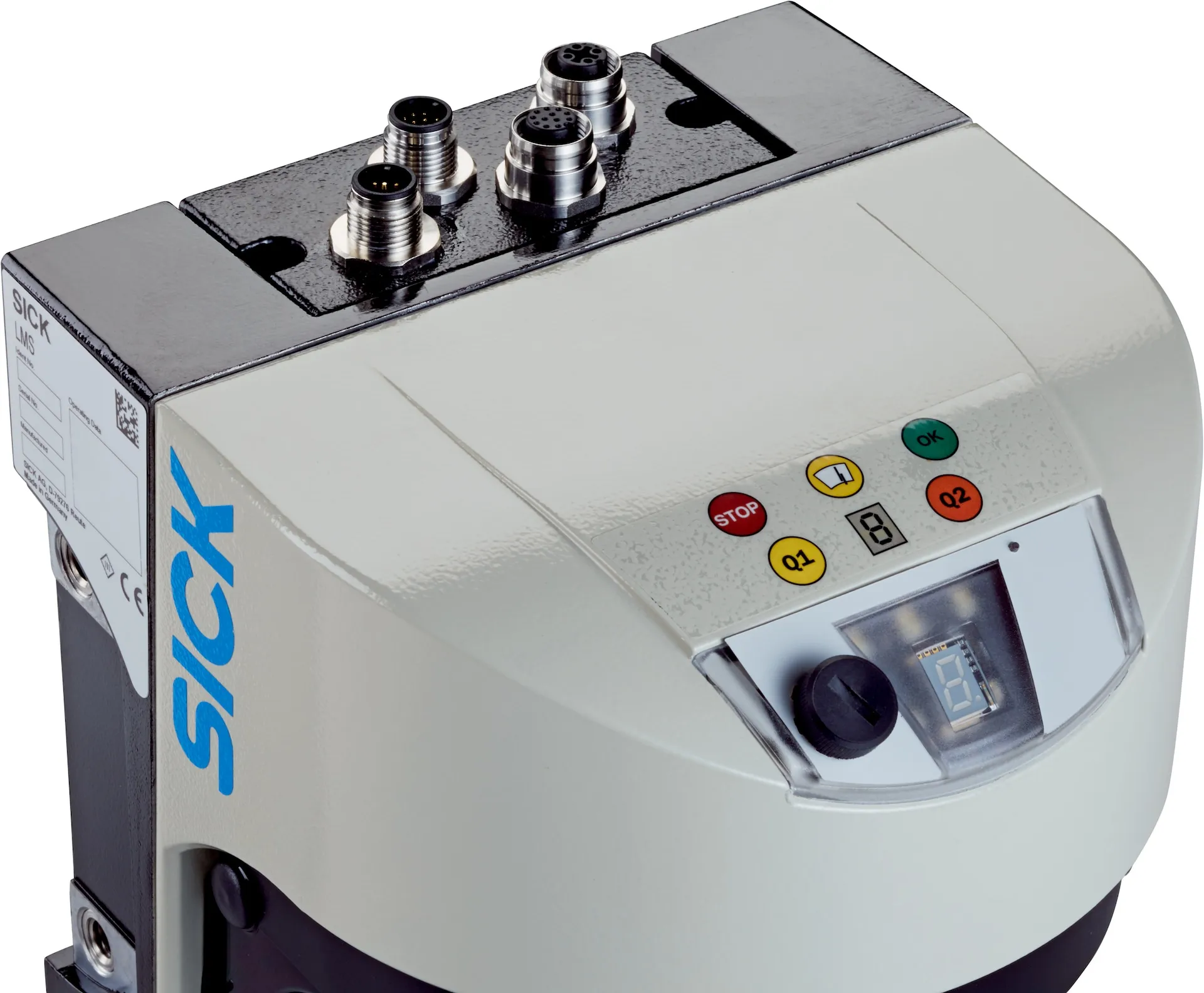

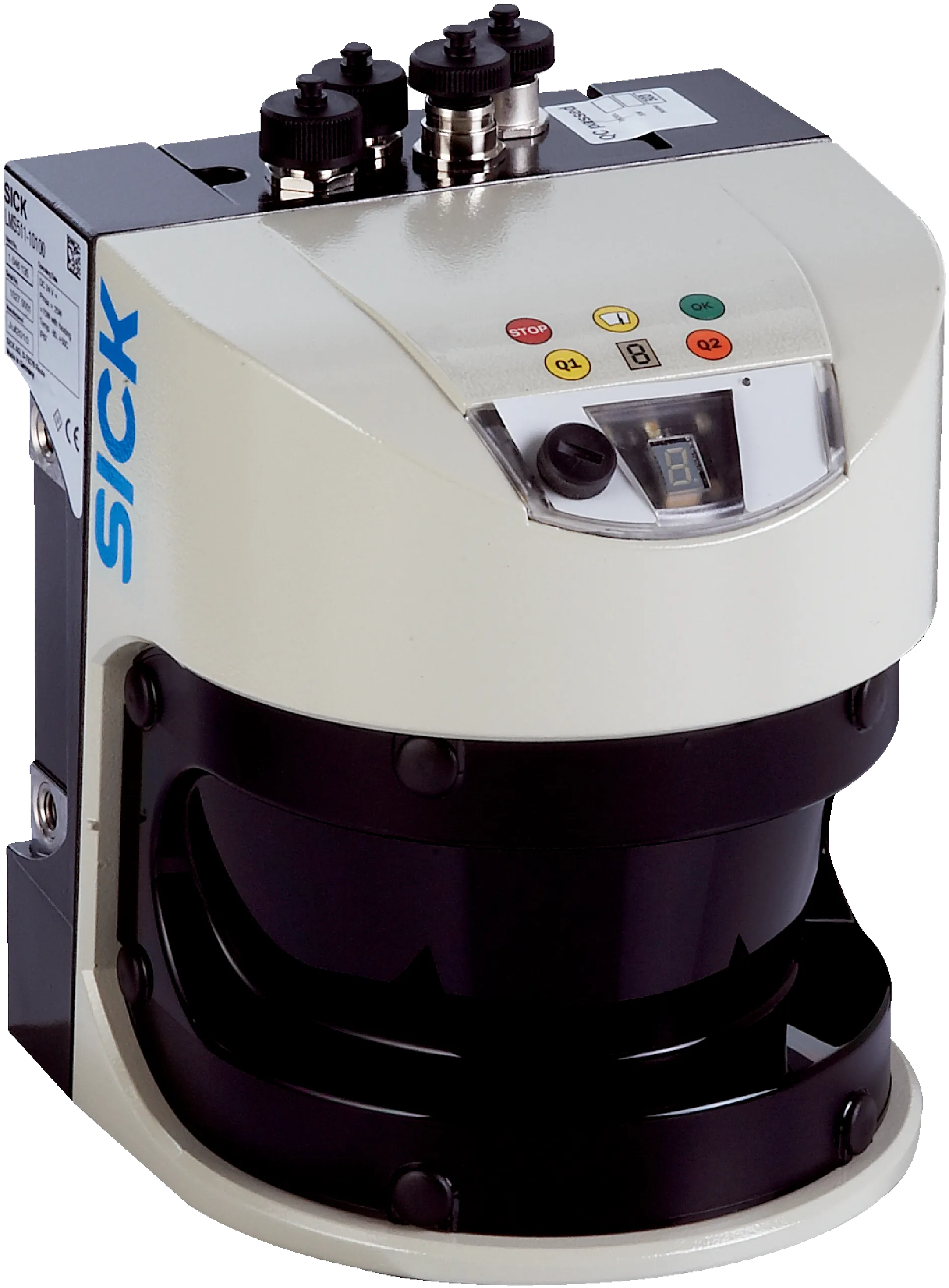

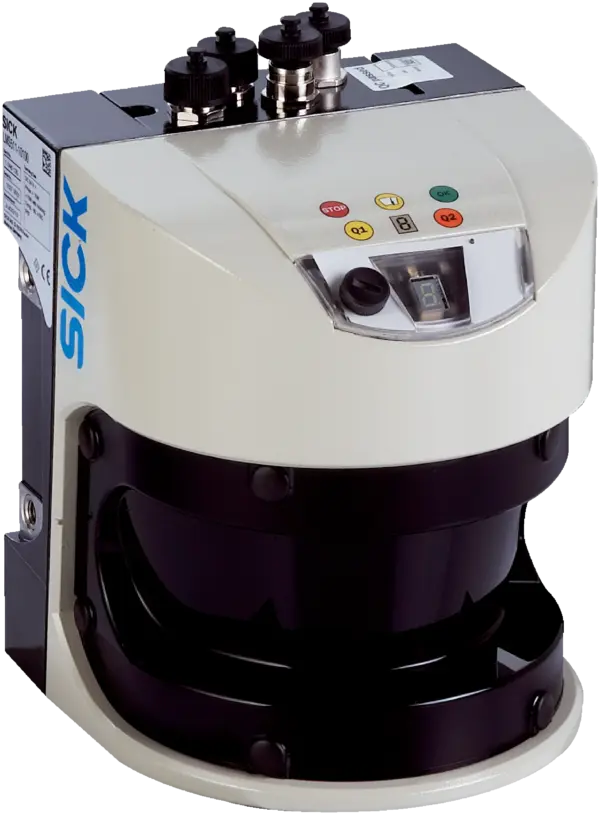

Sick LMS511-10100 PRO
LiDAR sensors | LMS5xx | LMS511-10100 PRO | Working range: 0.2 m … 80 m | Resolution power: Standard Resolution | Enclosure rating: IP65, IP67 | Color: Gray (RAL 7032) | Integrated application: Fiel…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
LiDAR sensors | LMS5xx | LMS511-10100 PRO | Working range: 0.2 m … 80 m | Resolution power: Standard Resolution | Enclosure rating: IP65, IP67 | Color: Gray (RAL 7032) | Integrated application: Field evaluation, output of measurement data | Connection type: 4 x M12 round connector | Scanning frequency: 25 Hz, 35 Hz, 50 Hz, 75 Hz, 100 Hz
Specification
Features
| Application | Outdoor, Indoor |
|---|---|
| Variant | PRO |
| Resolution power | Standard Resolution |
| Light source | Infrared (905 nm, ± 10 nm) |
| Laser class | 1Â (EN/IECÂ 60825-1:2014, ENÂ 60825-1:2014+A11:2021) |
| Horizontal | 190° |
| Scanning frequency | 25Â Hz35Â Hz50Â Hz75Â Hz100Â Hz |
| Horizontal | 0.042°, interlaced |
| Scan field flatness | Scan field flatness combined: ± 0.72°Typical conical error: 1 sigma value - 0.11° ± 0.1°Typical tilt: 1 sigma value + 0.15° ± 0.08° |
| Heating | Self-heating with additional integrated heating |
| Working range | 0.2 m ... 80 m |
| At 10% remission factor | 40Â m |
| Measurement accuracy | ± 24 mm |
| Spot size | Divergence: 11.9Â mradAt the viewing window: 13.5Â mmIn 26Â m: 322Â nmIn 40Â m: 489Â mm |
| Amount of evaluated echoes | 5 |
Mechanics/electronics
| Connection type | 4Â x M12 round connector |
|---|---|
| Supply voltage | 24 V DC, ± 20 % |
| Power consumption | 22Â W, + 55Â W heating (typical) |
| Housing material | AlSi12 |
| Housing color | Gray (RAL 7032) |
| Window material | Polycarbonate, scratch-resistant coating |
| Enclosure rating | IP65 (ENÂ 60529, Section 14.2.7)IP67 (ENÂ 60529, Section 14.2.7) |
| Protection class | III (IECÂ 61140:2016-11) |
| Weight | 3.7Â kg |
| Dimensions (L x W x H) | 160 mm x 155 mm x 185 mm |
| MTBF | >Â 100Â years |
Safety-related parameters
| MTTFD | >Â 100Â years |
|---|
Performance
| Response time | â¥Â 10 ms |
|---|---|
| Detectable object shape | Almost any |
| Systematic error | ± 25 mm (1 m ... 10 m)± 35 mm (10 m ... 20 m)± 50 mm (20 m ... 30 m) 1) |
| Statistical error | 6 mm (1 m ... 10 m)8 mm (10 m ... 20 m)14 mm (20 m ... 30 m) 1) |
| Integrated application | Field evaluationOutput of measurement data |
| Number of field sets | 10Â fields |
| Simultaneous evaluation cases | 10Â Â |
| Filter | Echo filterFog filterParticle filterAverage filterGlare filter |
Interfaces
| Ethernet | â , TCP/IP, UDP/IP |
|---|---|
| Function | Host and AUX, NTP |
| Data transmission rate | 10/100Â MBit/s |
| Serial | â , RS-232, RS-422 |
| Function | Host and AUX |
| Data transmission rate | 9.6 kBaud ... 500 kBaud |
| CAN | â |
| Function | Extension of outputs |
| Data transmission rate | 20Â kBit/s, 500Â kBit/s, 1Â MBit/s, Synchronization |
| USB | â |
| Remark | Mini-USB |
| Function | Service interface |
| Inputs | 4Â (Digital, encoder (HTL), synchronization) |
| Outputs | 6Â (digital) |
| Optical indicators | 5Â LEDs (Additional 7-segment display) |
Ambient data
| Object remission | 2Â %Â ... >Â 1,000Â % (reflectors) |
|---|---|
| Emitted radiation | Industrial environment (IECÂ 61000-6-3:2020 / ENÂ IECÂ 61000-6-3:2007+A1:2011) |
| Electromagnetic immunity | Industrial environment (IECÂ 61000-6-2:2016 / ENÂ IECÂ 61000-6-2:2019) |
| Sine test | 10 Hz ... 150 Hz, Amplitude 0.35 mm to 5 g, 20 cycles 1) |
| Shock resistance | 15 g, 11 ms, 6 single shocks/axis 2)10 g, 16 ms, 1,000 continuous shocks/axis 2) |
| Impact resistance | IK05, IK06, IK07 (DINÂ ENÂ 50102:09-1997) |
| Ambient operating temperature | â30 °C ... +50 °C |
| Storage temperature | â40 °C ... +70 °C |
| Ambient light immunity | 70,000Â lx |
General notes
| Note on use | The sensor does not constitute a safety component as defined by relevant legislation on machine safety. |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| KC Mark certificate | â |
| cTUVus certificate | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270990 |
|---|---|
| ECLASS 5.1.4 | 27270990 |
| ECLASS 6.0 | 27270913 |
| ECLASS 6.2 | 27270913 |
| ECLASS 7.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 8.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 10.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 41111615 |
