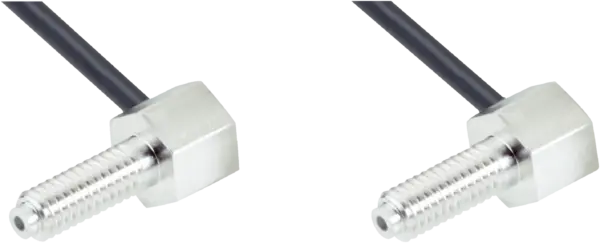

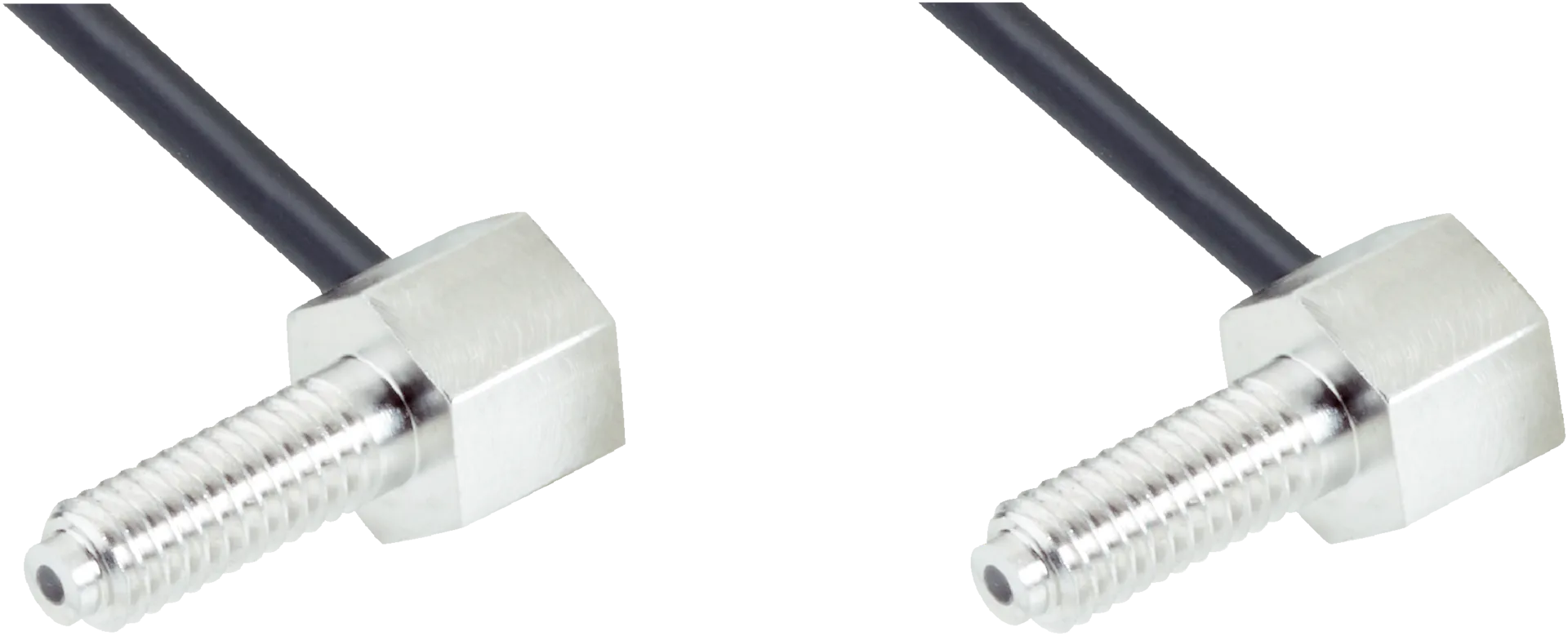

Sick LLSE-R1400111020C2
Fiber-optic sensors | Fiber-optic cables | LLSE-R1400111020C2 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve, 90Ā° deflection | FiberĀ length: 2,000 mm | Thread d…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From ā¬20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From ā¬40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LLSE-R1400111020C2 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve, 90Ā° deflection | FiberĀ length: 2,000 mm | Thread diameter (housing): M4 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Through-beam system, consisting of a sender and a receiver |
| Fiber-optic head design | Threaded sleeve, 90ĆĀ° deflection |
| Application | Standard |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex |
| Sensing range max. | Depending on the fiber optic amplifier used |
| Angle of dispersion | 60ĆĀ° |
| Integrated lens | No |
| Compatibility tip adapters | Yes |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | Ć¢ĀĀ |
| Adapter end sleeves required | No |

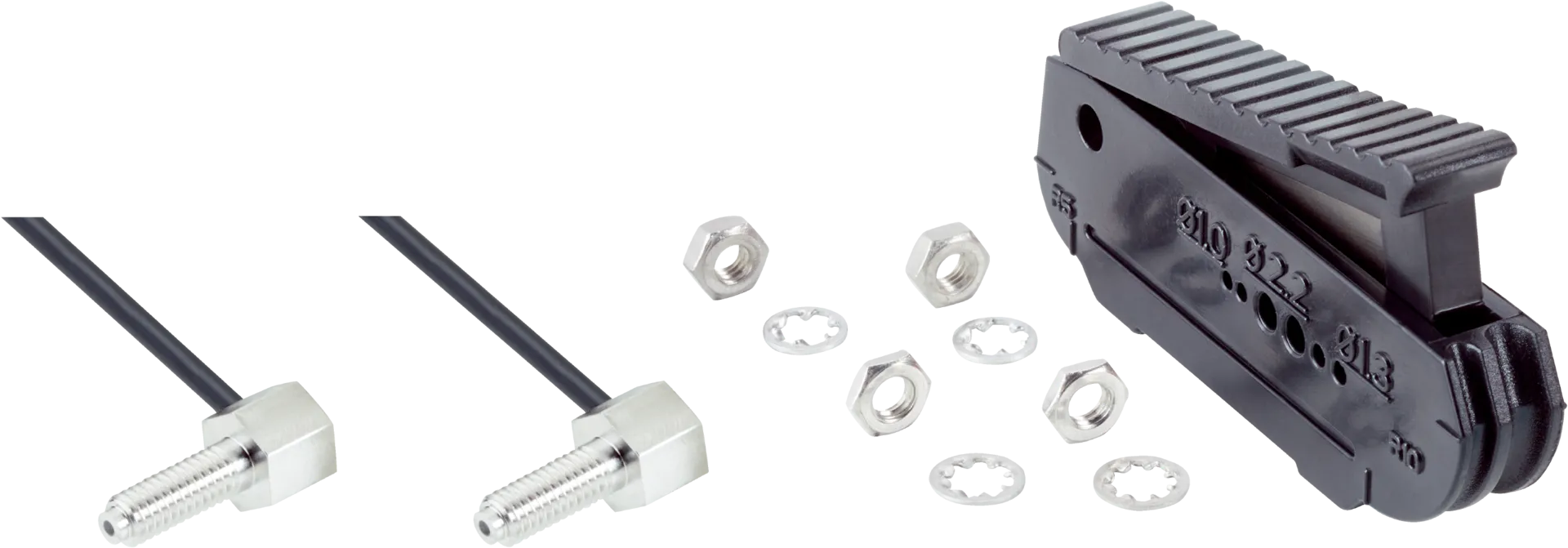

| Items supplied | 1Ć x fiber cutter (LLAC-FC), M4 mounting set (4Ć xĆ M4 nut + 4Ć xĆ M4 washer) |
Mechanics
| Light emission | Radial |
|---|---|
| Thread diameter (housing) | M4 |
| FiberĆ length | 2,000Ć mm |
| Bending radius | 2Ć mm |
| Dynamic flexibility (robotics) | No |
| Outside diameter, optical fiber cable connection | 2.2Ć mm |
| Fiber arrangement | Singlefiber |
| Core structure | ĆĀ 1,0Ć mm Singlefiber |
| Optical fiber head | Stainless steel |
| Sheath | Polyethylen (PE) |
| Fibers | PMMA |
| Weight | 37Ć g |
Ambient data
| Ambient operating temperature | Ć¢ĀĀ40Ć ĆĀ°CĆ ... +60Ć ĆĀ°C |
|---|
Sensing ranges with WLL180T
| Operating mode 16Ć ĆĀµs | 140Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 400Ć mm |
| Operating mode 250Ć ĆĀµs | 600Ć mm |
| Operating mode 2Ć ms | 1,400Ć mm |
| Operating mode 8Ć ms | 2,000Ć mm |
Sensing ranges with GLL170
| Operating mode 250Ć ĆĀµs | 240Ć mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50Ć ĆĀµs | 300Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 490Ć mm |
Certificates
| RoHS manufacturer declaration | Ć¢ĀĀ |
|---|
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
