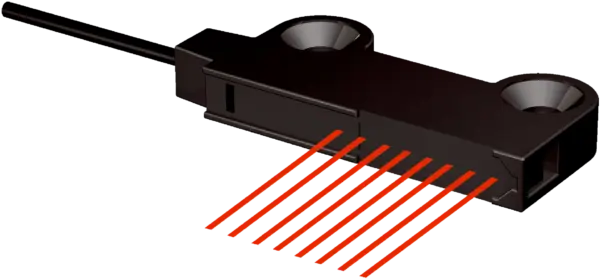

Sick LL3-TZ10

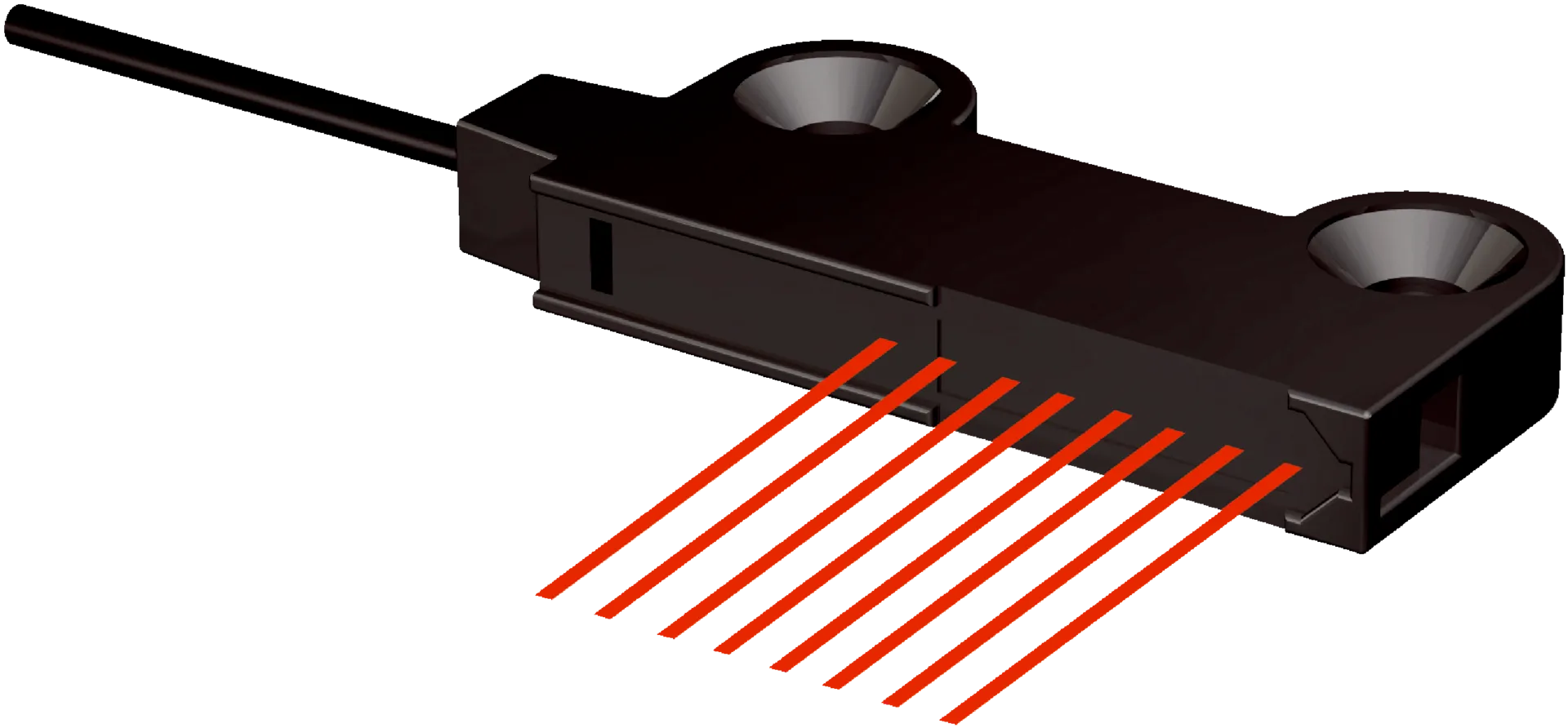

Fiber-optic sensors | Fiber-optic cables | LL3-TZ10 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90Ā° deflection, Array | FiberĀ length: 2,000 mm | Fiber-optic head…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From ā¬20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From ā¬40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LL3-TZ10 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90Ā° deflection, Array | FiberĀ length: 2,000 mm | Fiber-optic head array width: 11 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Brass | Included with delivery: Adapter sleeves, BF-WLL160-13 (1.3Ā mm) adapter sleeves, FC fiber cutter (5304141), 2Ā x 2Ā mask
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Through-beam system, consisting of a sender and a receiver |
| Fiber-optic head design | Flat type, 90ĆĀ° deflection, Array |
| Application | Area detection |
| Special features | Long fiber optic cable cell |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T) |
| Sensing range max. | 3,600Ć mm (Sensing range of WLL80 at 8Ć ms) |
| Minimal object diameter | 0.25Ć mmĆ 1) |
| Angle of dispersion | 14ĆĀ° |
| Integrated lens | Yes |
| Compatibility tip adapters | No |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | Ć¢ĀĀ |
| Adapter end sleeves required | Yes |
| Included with delivery | Adapter sleeves, BF-WLL160-13 (1.3Ć mm) adapter sleeves, FC fiber cutter (5304141), 2Ć x 2Ć mask |
Mechanics
| Light emission | Radial |
|---|---|
| Fiber-optic head array width | 11Ć mm |
| FiberĆ length | 2,000Ć mm |
| Bending radius | 10Ć mm |
| Dynamic flexibility (robotics) | No |
| Outside diameter, optical fiber cable connection | 1.3Ć mm |
| Fiber arrangement | Multi-fiber |
| Core structure | 16Ć x ĆĀ 0,265Ć mm Multi-fiber |
| Optical fiber head | Polyamid (PA) |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 42Ć g |
Ambient data
| Ambient operating temperature | Ć¢ĀĀ40Ć ĆĀ°CĆ ... +70Ć ĆĀ°C |
|---|
Sensing ranges with GLL70
| Operating mode 50Ć ĆĀµs | 3,450Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 3,600Ć mm |
| Operating mode 1Ć ms | 3,600Ć mm |
| Operating mode 4Ć ms | 3,600Ć mm |
Sensing ranges with WLL80
| Operating mode 16Ć ĆĀµs | 2,765Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 3,600Ć mm |
| Operating mode 250Ć ĆĀµs | 3,600Ć mm |
| Operating mode 500Ć ĆĀµs | 3,600Ć mm |
| Operating mode 1Ć ms | 3,600Ć mm |
| Operating mode 2Ć ms | 3,600Ć mm |
| Operating mode 8Ć ms | 3,600Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with WLL180T
| Operating mode 16Ć ĆĀµs | 1,700Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 2,500Ć mm |
| Operating mode 250Ć ĆĀµs | 3,000Ć mm |
| Operating mode 2Ć ms | 3,500Ć mm |
| Operating mode 8Ć ms | 4,000Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with GLL170
| Operating mode 250Ć ĆĀµs | 2,500Ć mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50Ć ĆĀµs | 2,000Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 2,500Ć mm |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
