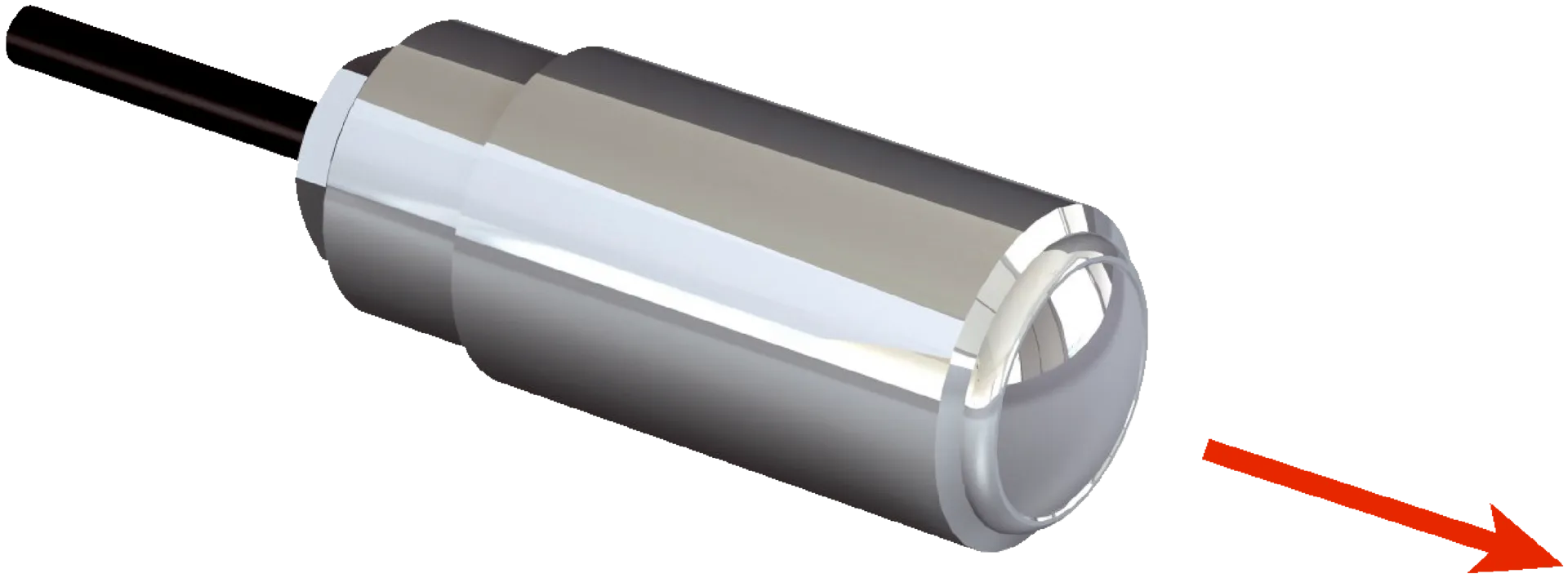

Sick LL3-TX0405
Fiber-optic sensors | Fiber-optic cables | LL3-TX0405 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | Thread diameter (housing): M12 | Jacket material: Plastic…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LL3-TX0405 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | Thread diameter (housing): M12 | Jacket material: Plastic | Included with delivery: Mounting, 4 x M12 hexagon nut, FC fiber cutter (5304141)
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Through-beam system, consisting of a sender and a receiver |
| Fiber-optic head design | Threaded sleeve |
| Sensing range max. | Depending on the fiber optic amplifier used |
| Angle of dispersion | 11° |
| Integrated lens | Yes |
| Compatibility tip adapters | No |
| Optical fiber cable can be shortened | ✔ |
| Adapter end sleeves required | No |
| Included with delivery | Mounting, 4 x M12 hexagon nut, FC fiber cutter (5304141) |
Mechanics
| Thread diameter (housing) | M12 |
|---|---|
| Outside diameter, optical fiber cable connection | 2.2Â mm |
| Fiber arrangement | Singlefiber |
| Core structure | Singlefiber |
| Weight | 37Â g |
Sensing ranges with GLL170
| Operating mode 250 µs | 8,800 mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50 µs | 9,300 mm |
|---|---|
| Operating mode 250 µs | 9,600 mm |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
