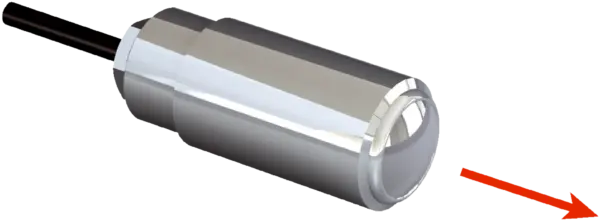

Sick LL3-TX02

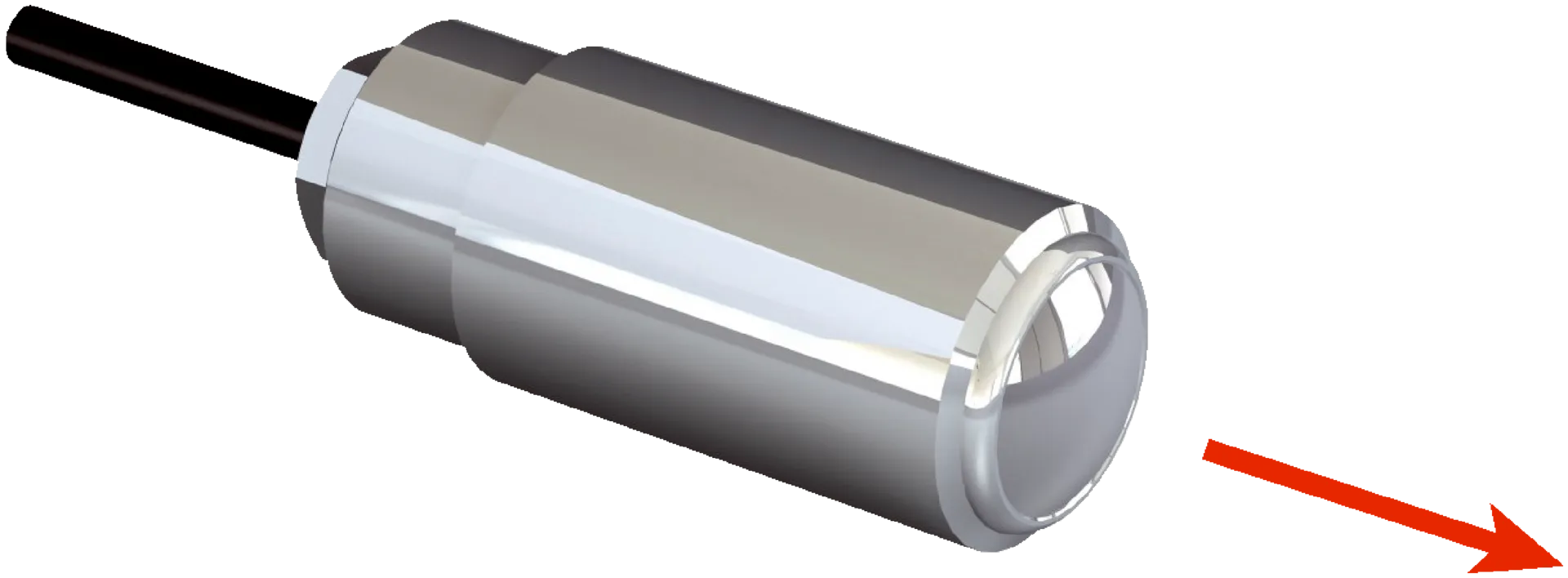

Fiber-optic sensors | Fiber-optic cables | LL3-TX02 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | FiberĀ length: 20,000 mm | Thread diameter (housing): M12 |…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From ā¬20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From ā¬40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LL3-TX02 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | FiberĀ length: 20,000 mm | Thread diameter (housing): M12 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 4Ā xĀ M12Ā hexagon nut, FC fiber cutter (5304141), protective cladding for fiber head
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Through-beam system, consisting of a sender and a receiver |
| Fiber-optic head design | Threaded sleeve |
| Application | Standard |
| Special features | Bracket material, fiber head and mounting material made of stainless steel V4A (1.4404, 316L) |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex |
| Sensing range max. | 38,000Ć mm (Sensing range of WLL80 at 8Ć ms) |
| Minimal object diameter | 0.5Ć mmĆ 1) |
| Angle of dispersion | 12ĆĀ° |
| Integrated lens | Yes |
| Compatibility tip adapters | No |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | Ć¢ĀĀ |
| Adapter end sleeves required | No |
| Included with delivery | Mounting, 4Ć xĆ M12Ć hexagon nut, FC fiber cutter (5304141), protective cladding for fiber head |
Mechanics
| Light emission | Axial |
|---|---|
| Thread diameter (housing) | M12 |
| FiberĆ length | 20,000Ć mm |
| Bending radius | 25Ć mm |
| Dynamic flexibility (robotics) | No |
| Outside diameter, optical fiber cable connection | 2.2Ć mm |
| Fiber arrangement | Singlefiber |
| Core structure | ĆĀ 1.5Ć mm Singlefiber |
| Optical fiber head | Stainless steelĆ 1) |
| Sheath | Polyethylen (PE) / Polyvinylchlorid (PVC) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 118Ć g |
Ambient data
| Ambient operating temperature | Ć¢ĀĀ40Ć ĆĀ°CĆ ... +60Ć ĆĀ°C |
|---|
Sensing ranges with GLL70
| Operating mode 50Ć ĆĀµs | 9,000Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 28,000Ć mm |
| Operating mode 1Ć ms | 38,000Ć mm |
| Operating mode 4Ć ms | 38,000Ć mm |
Sensing ranges with WLL80
| Operating mode 16Ć ĆĀµs | 6,900Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 23,000Ć mm |
| Operating mode 250Ć ĆĀµs | 32,630Ć mm |
| Operating mode 500Ć ĆĀµs | 38,000Ć mm |
| Operating mode 1Ć ms | 38,000Ć mm |
| Operating mode 2Ć ms | 38,000Ć mm |
| Operating mode 8Ć ms | 38,000Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with WLL180T
| Operating mode 16Ć ĆĀµs | 1,800Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 7,000Ć mm |
| Operating mode 250Ć ĆĀµs | 12,000Ć mm |
| Operating mode 2Ć ms | 25,000Ć mm |
| Operating mode 8Ć ms | 38,000Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with GLL170
| Operating mode 250Ć ĆĀµs | 2,700Ć mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50Ć ĆĀµs | 6,890Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 10,810Ć mm |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
