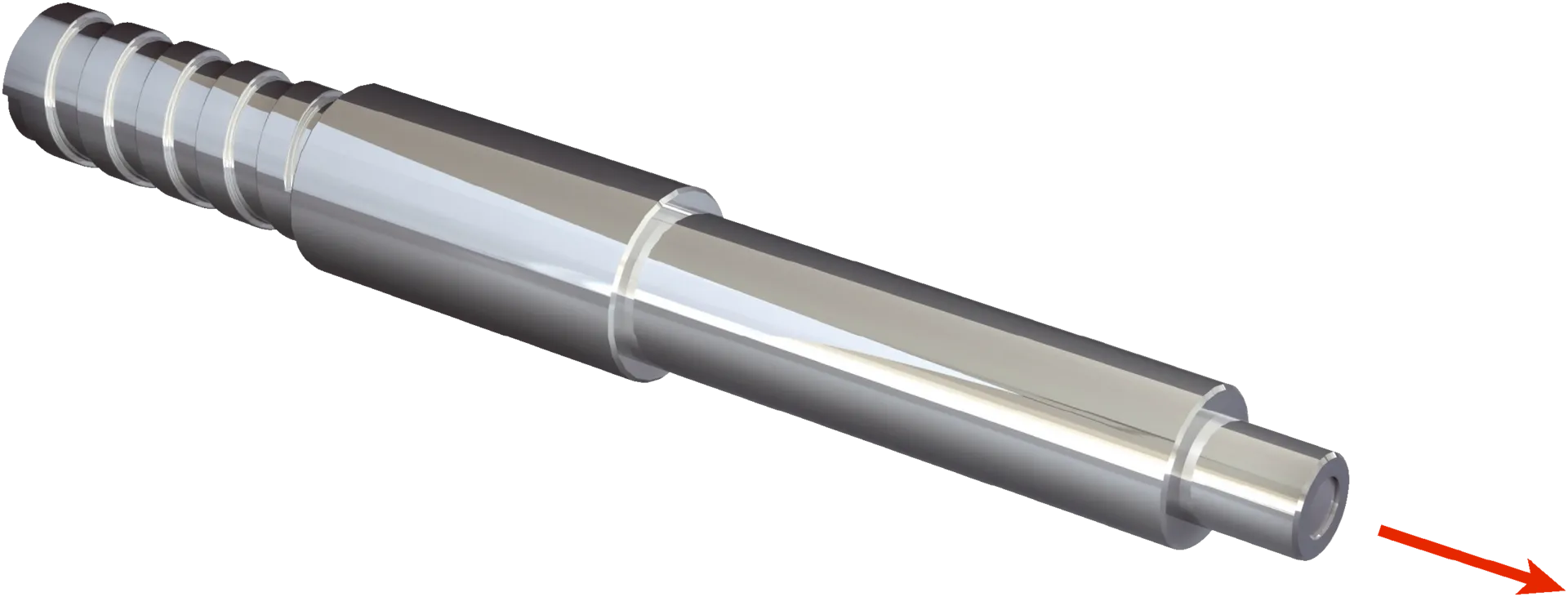

Sick LL3-TW01-2
Fiber-optic sensors | Fiber-optic cables | LL3-TW01-2 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | FiberĀ length: 2,000 mm | Thread diameter (housing): M4 |…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From ā¬20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From ā¬40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LL3-TW01-2 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | FiberĀ length: 2,000 mm | Thread diameter (housing): M4 | Fiber material: Glass | Jacket material: Stainless steel | Fiber head material: Stainless steel | Included with delivery: Mounting, 4Ā xĀ M4Ā hexagon nut, 2Ā x washer
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Through-beam system, consisting of a sender and a receiver |
| Fiber-optic head design | Threaded sleeve |
| Application | Heat-resistant (Ć¢ĀĀ„100ĆĀ°C) |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T) |
| Sensing range max. | Depending on the fiber optic amplifier used |
| Minimal object diameter | 0.4Ć mmĆ 1) |
| Angle of dispersion | 60ĆĀ° |
| Integrated lens | No |
| Compatibility tip adapters | Yes |
| Compatibility with infrared light | YesĆ 2) |
| Adapter end sleeves required | No |
| Included with delivery | Mounting, 4Ć xĆ M4Ć hexagon nut, 2Ć x washer |
Mechanics
| Light emission | Axial |
|---|---|
| Thread diameter (housing) | M4 |
| Optical fiber taper diameter | Ć¢ĀĀ„Ć 2.6Ć mm |
| Optical fiber taper length after 2Ć mm | Ć¢ĀĀ„Ć 3Ć mm |
| FiberĆ length | 2,000Ć mm |
| Bending radius | 25Ć mm |
| Dynamic flexibility (robotics) | No |
| Outside diameter, optical fiber cable connection | 2.2Ć mm |
| Fiber arrangement | Multi-fiber |
| Core structure | ĆĀ 1.5Ć mm (multi-fiber) Multi-fiber |
| Optical fiber head | Stainless steel |
| Sheath | Stainless steel |
| Fibers | Glass |
| Weight | 13Ć g |
Ambient data
| Ambient operating temperature | Ć¢ĀĀ60Ć ĆĀ°CĆ ... +210Ć ĆĀ°C |
|---|
Sensing ranges with WLL180T
| Operating mode 16Ć ĆĀµs | 80Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 230Ć mm |
| Operating mode 250Ć ĆĀµs | 350Ć mm |
| Operating mode 2Ć ms | 560Ć mm |
| Operating mode 8Ć ms | 980Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with GLL170
| Operating mode 250Ć ĆĀµs | 534Ć mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50Ć ĆĀµs | 821Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 1,393Ć mm |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
