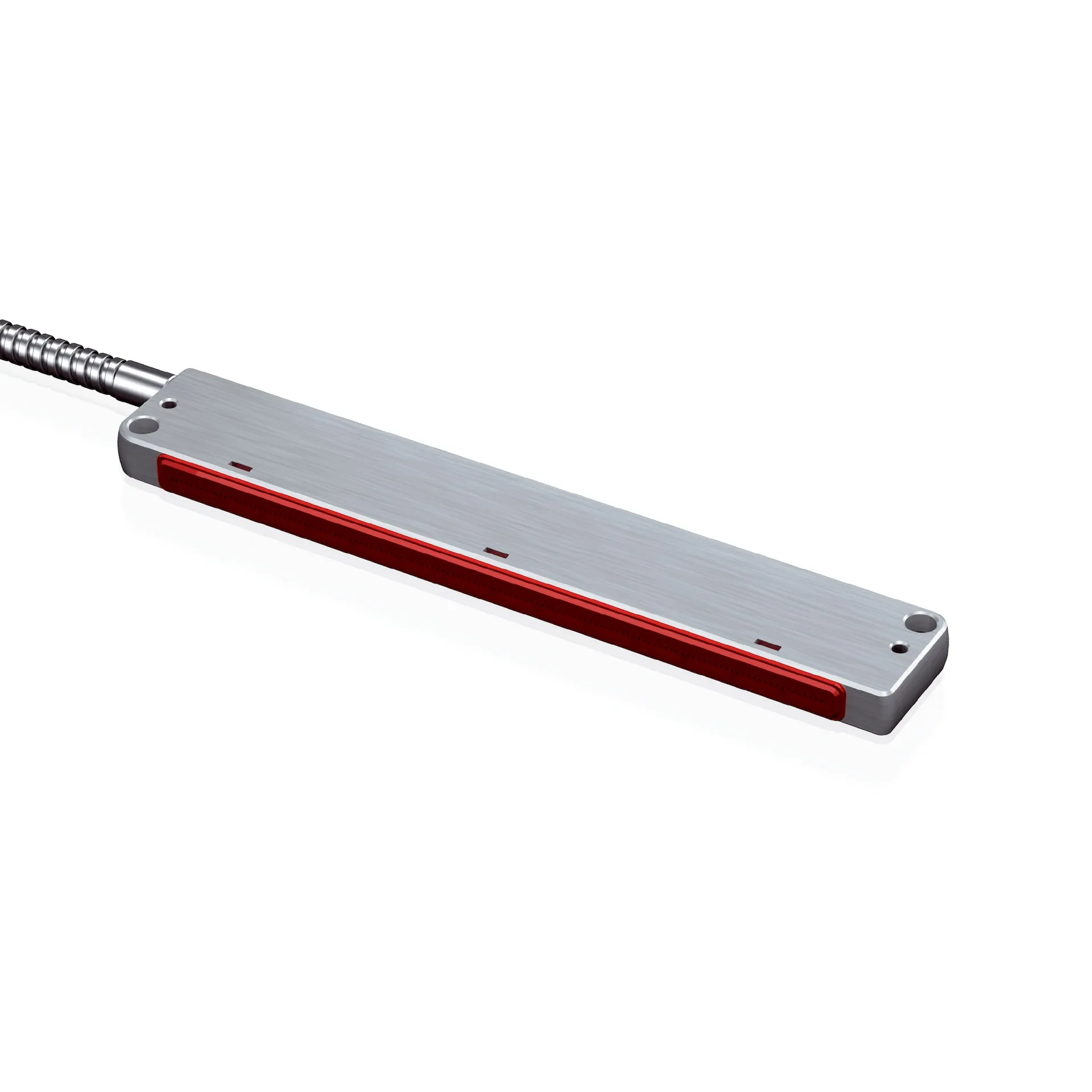

Sick LL3-TS115000
Fiber-optic sensors | Fiber-optic cables | LL3-TS115000 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90Ā° deflection, Array | FiberĀ length: 5,000 mm | Fiber-optic h…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From ā¬20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From ā¬40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LL3-TS115000 | Functional principle: Through-beam system | Fiber-optic head design: Flat type, 90Ā° deflection, Array | FiberĀ length: 5,000 mm | Fiber-optic head array width: 100 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Brass | Included with delivery: FC fiber cutter (5304141)
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Through-beam system, consisting of a sender and a receiver |
| Fiber-optic head design | Flat type, 90ĆĀ° deflection, Array |
| Application | Area detection |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex |
| Sensing range max. | Depending on the fiber optic amplifier used |
| Minimal object diameter | 0.45Ć mmĆ 1) |
| Angle of dispersion | 60ĆĀ° |
| Integrated lens | No |
| Compatibility tip adapters | No |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | Ć¢ĀĀ |
| Adapter end sleeves required | No |
| Included with delivery | FC fiber cutter (5304141) |
Mechanics
| Light emission | Radial |
|---|---|
| Fiber-optic head array width | 100Ć mm |
| FiberĆ length | 5,000Ć mm |
| Bending radius | 40Ć mm |
| Dynamic flexibility (robotics) | No |
| Outside diameter, optical fiber cable connection | 2.2Ć mm |
| Fiber arrangement | Multi-fiber |
| Core structure | 125Ć x ĆĀ 0,25Ć mmĆ 1) Multi-fiber |
| Optical fiber head | Zinc alloy |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 17Ć g |
Ambient data
| Ambient operating temperature | Ć¢ĀĀ55Ć ĆĀ°CĆ ... +70Ć ĆĀ°C |
|---|
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
