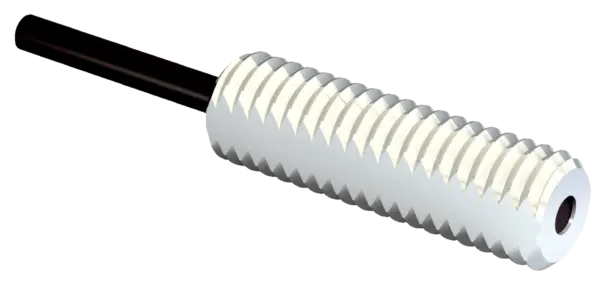

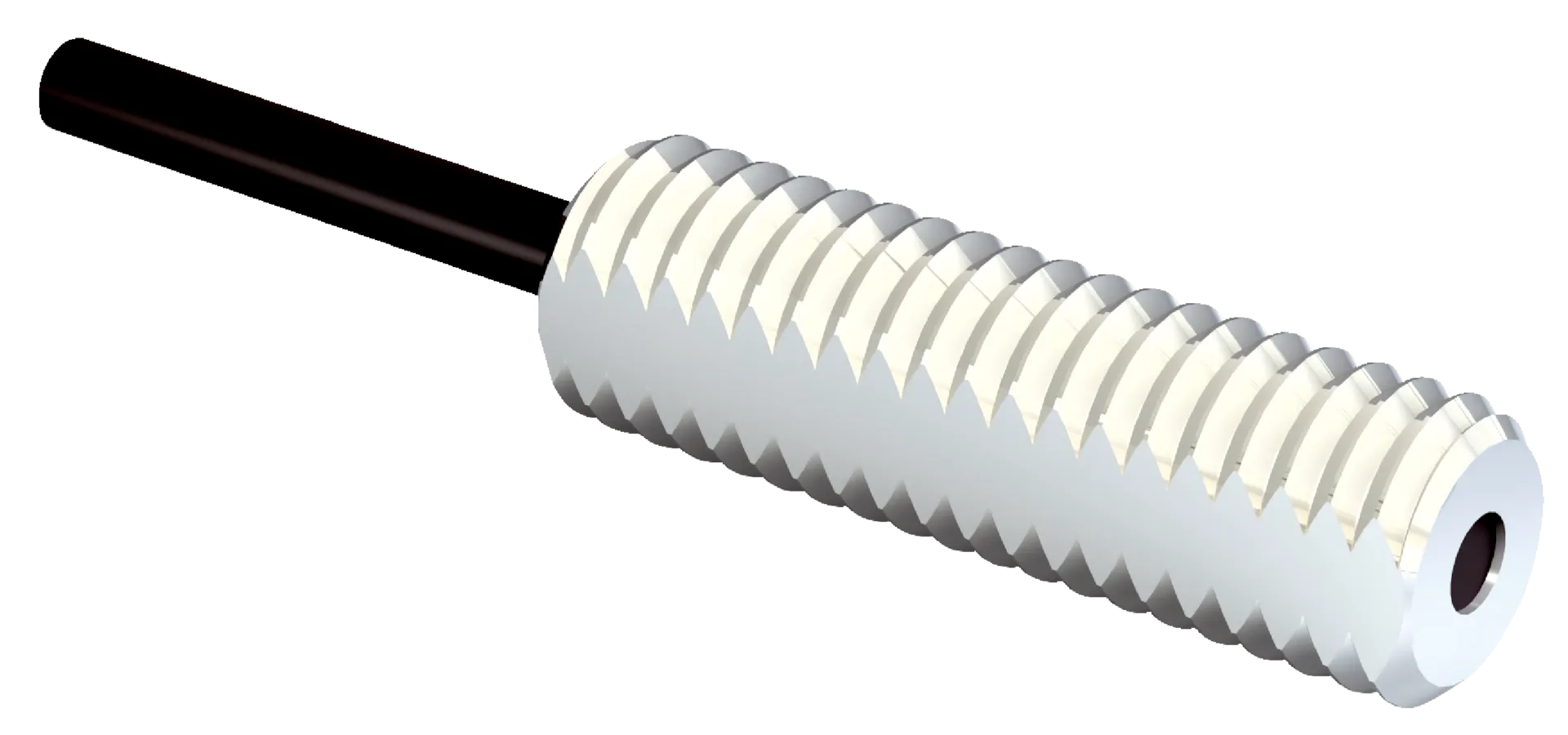

Sick LL3-TR02
Fiber-optic sensors | Fiber-optic cables | LL3-TR02 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | FiberĀ length: 2,000 mm | Thread diameter (housing): M3 | Fi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From ā¬20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From ā¬40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LL3-TR02 | Functional principle: Through-beam system | Fiber-optic head design: Threaded sleeve | FiberĀ length: 2,000 mm | Thread diameter (housing): M3 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 4Ā xĀ M3Ā hexagon nut, 4Ā x washer, adapter sleeves, BF-WLL160-10 (1.0Ā mm) adapter sleeves, FC fiber cutter (5304141)
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Through-beam system, consisting of a sender and a receiver |
| Fiber-optic head design | Threaded sleeve |
| Application | High flexible (static), Robotics (dynamic flexible) |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T) |
| Sensing range max. | 1,310Ć mm (Sensing range of WLL80 at 8Ć ms) |
| Minimal object diameter | 0.1Ć mmĆ 1) |
| Angle of dispersion | 60ĆĀ° |
| Integrated lens | No |
| Compatibility tip adapters | No |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | Ć¢ĀĀ |
| Adapter end sleeves required | Yes |
| Included with delivery | Mounting, 4Ć xĆ M3Ć hexagon nut, 4Ć x washer, adapter sleeves, BF-WLL160-10 (1.0Ć mm) adapter sleeves, FC fiber cutter (5304141) |
Mechanics
| Light emission | Axial |
|---|---|
| Thread diameter (housing) | M3 |
| FiberĆ length | 2,000Ć mm |
| Bending radius | 4Ć mm |
| Dynamic flexibility (robotics) | Yes |
| Outside diameter, optical fiber cable connection | 1Ć mm |
| Fiber arrangement | Multi-fiber |
| Core structure | 4Ć x ĆĀ 0.25Ć mm Multi-fiber |
| Optical fiber head | Stainless steel |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 20Ć g |
Ambient data
| Ambient operating temperature | Ć¢ĀĀ40Ć ĆĀ°CĆ ... +70Ć ĆĀ°C |
|---|
Sensing ranges with GLL70
| Operating mode 50Ć ĆĀµs | 135Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 385Ć mm |
| Operating mode 1Ć ms | 530Ć mm |
| Operating mode 4Ć ms | 970Ć mm |
Sensing ranges with WLL80
| Operating mode 16Ć ĆĀµs | 85Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 265Ć mm |
| Operating mode 250Ć ĆĀµs | 420Ć mm |
| Operating mode 500Ć ĆĀµs | 525Ć mm |
| Operating mode 1Ć ms | 595Ć mm |
| Operating mode 2Ć ms | 865Ć mm |
| Operating mode 8Ć ms | 1,310Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with WLL180T
| Operating mode 16Ć ĆĀµs | 60Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 175Ć mm |
| Operating mode 250Ć ĆĀµs | 330Ć mm |
| Operating mode 2Ć ms | 750Ć mm |
| Operating mode 8Ć ms | 1,100Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with GLL170
| Operating mode 250Ć ĆĀµs | 130Ć mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50Ć ĆĀµs | 100Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 180Ć mm |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
Reviews
Clear filtersThere are no reviews yet.
