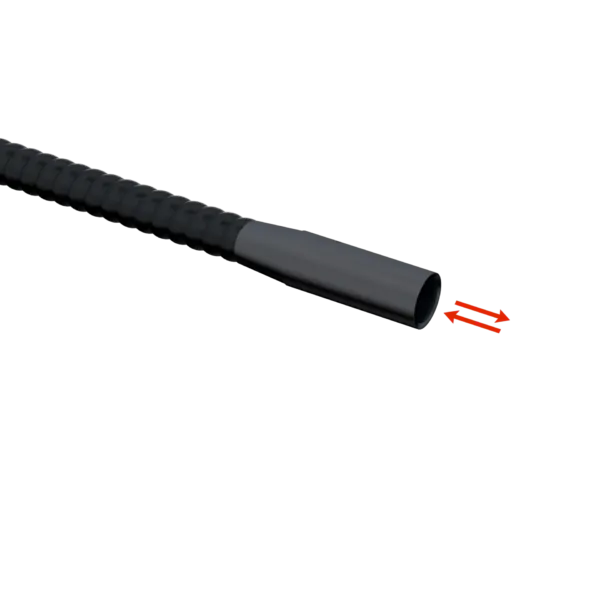

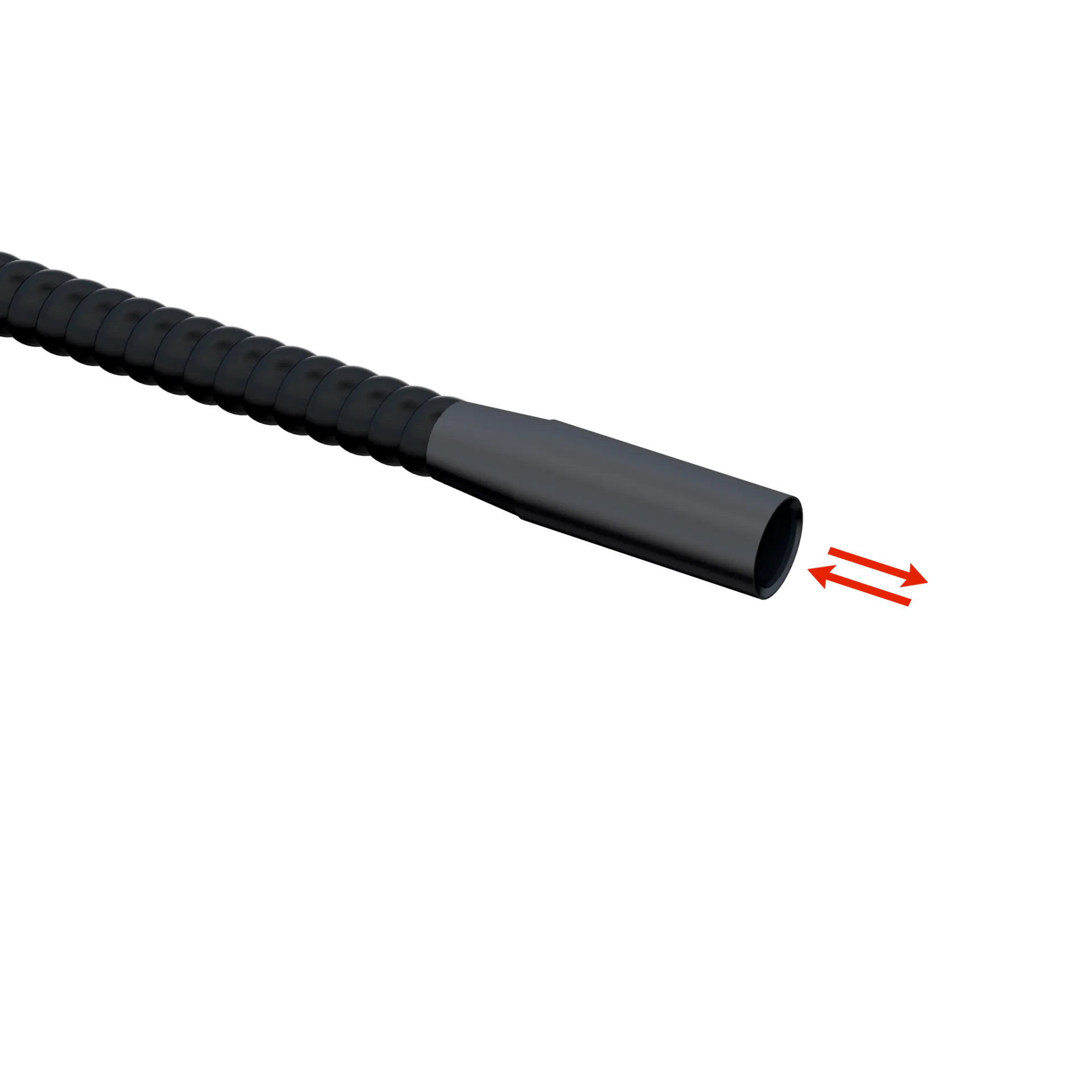

Sick LL3-LM401000
Fiber-optic sensors | Fiber-optic cables | LL3-LM401000 | Functional principle: Proximity system | Fiber-optic head design: Smooth sleeve | FiberĀ length: 1,000 mm | Smooth sleeve diameter: 7 mm | Fibe…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From ā¬20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From ā¬40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LL3-LM401000 | Functional principle: Proximity system | Fiber-optic head design: Smooth sleeve | FiberĀ length: 1,000 mm | Smooth sleeve diameter: 7 mm | Fiber material: Glass | Jacket material: Plastic | Fiber head material: Aluminum
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Proximity system |
| Fiber-optic head design | Smooth sleeve |
| Application | Standard |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T) |
| Sensing range max. | Depending on the fiber optic amplifier used |
| Minimal object diameter | 0.5Ć mm |
| Angle of dispersion | 54ĆĀ° |
| Integrated lens | Yes |
| Compatibility tip adapters | No |
| Compatibility with infrared light | YesĆ 1) |
| Adapter end sleeves required | No |
Mechanics
| Light emission | Axial |
|---|---|
| Smooth sleeve diameter | 7Ć mm |
| FiberĆ length | 1,000Ć mm |
| Bending radius | 20Ć mm |
| Dynamic flexibility (robotics) | No |
| Outside diameter, optical fiber cable connection | 2.2Ć mm |
| Fiber arrangement | Multi-fiber |
| Core structure | Multi-fiber |
| Optical fiber head | Stainless steel |
| Sheath | Chrome-plated helical metal spring with PVC sheathing |
| Fibers | Glass |
| Weight | 62Ć g |
Ambient data
| Ambient operating temperature | Ć¢ĀĀ10Ć ĆĀ°CĆ ... +60Ć ĆĀ°C |
|---|
Sensing ranges with WLL180T
| Operating mode 16Ć ĆĀµs | 40Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 40Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with GLL170
| Operating mode 250Ć ĆĀµs | 12Ć mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50Ć ĆĀµs | 16Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 20Ć mm |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
