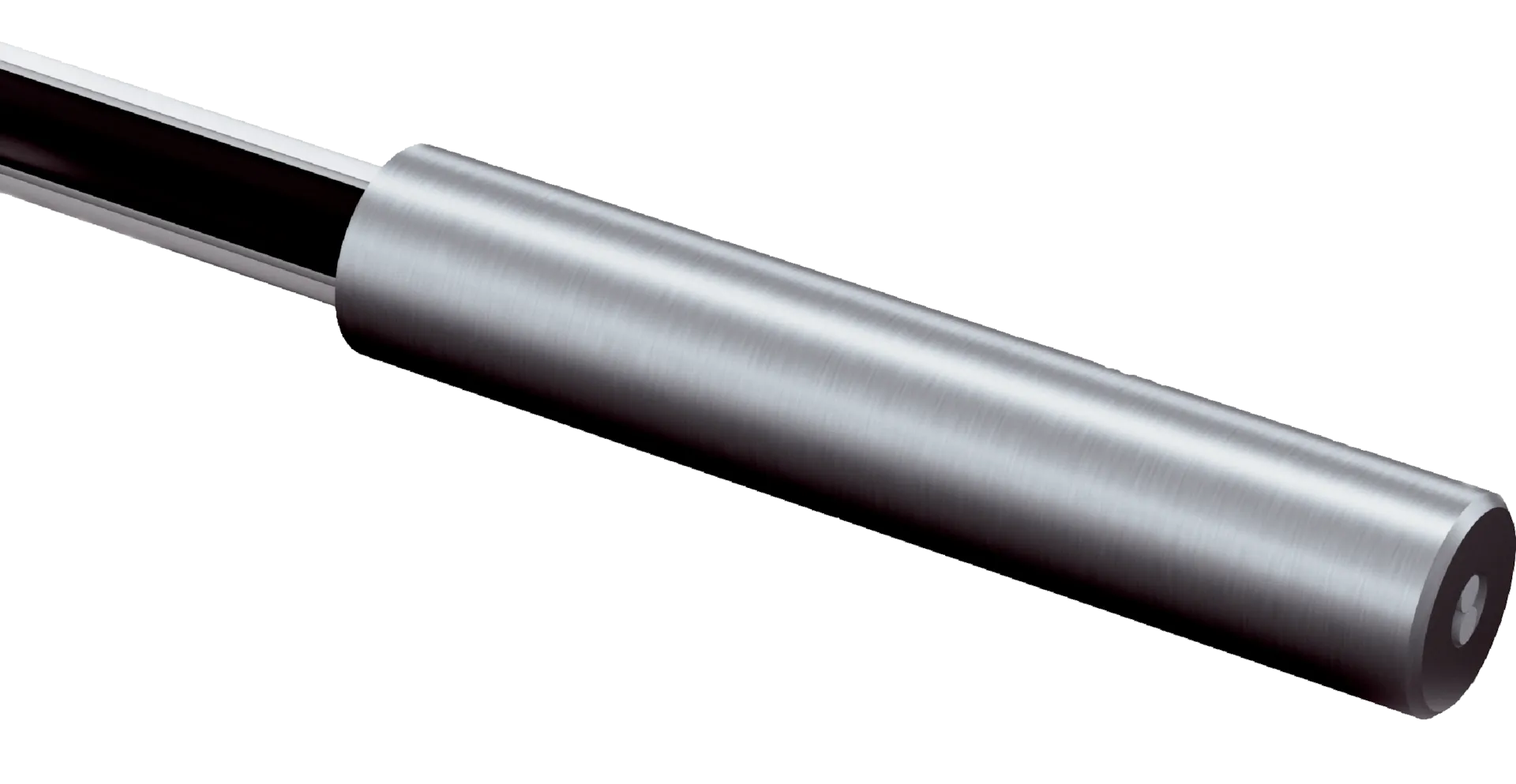

Sick LL3-KD01500
Fiber-optic sensors | Fiber-optic cables | LL3-KD01500 | Functional principle: Proximity system | Fiber-optic head design: Smooth sleeve, Ø 6 mm, length 32 mm | Fiber length: 500 mm | Smooth sleeve di…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LL3-KD01500 | Functional principle: Proximity system | Fiber-optic head design: Smooth sleeve, Ø 6 mm, length 32 mm | Fiber length: 500 mm | Smooth sleeve diameter: 6 mm | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Proximity system |
| Fiber-optic head design | Smooth sleeve, Ã 6Â mm, length 32Â mm |
| Application | Standard |
| Special features | Can be connected to LL3-KX01 |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T) |
| Sensing range max. | Depending on the fiber optic amplifier used |
| Angle of dispersion | 60° |
| Integrated lens | No |
| Compatibility tip adapters | No |
| Compatibility with infrared light | No |
| Adapter end sleeves required | No |
Mechanics
| Light emission | Axial |
|---|---|
| Smooth sleeve diameter | 6Â mm |
| Fiber length | 500 mm |
| Bending radius | 25Â mm |
| Dynamic flexibility (robotics) | No |
| Fiber arrangement | Singlefiber |
| Core structure | 2 x à 1,0 mm 1) Singlefiber |
| Optical fiber head | Stainless steel |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 26Â g |
Ambient data
| Ambient operating temperature | â40 °C ... +70 °C |
|---|
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
