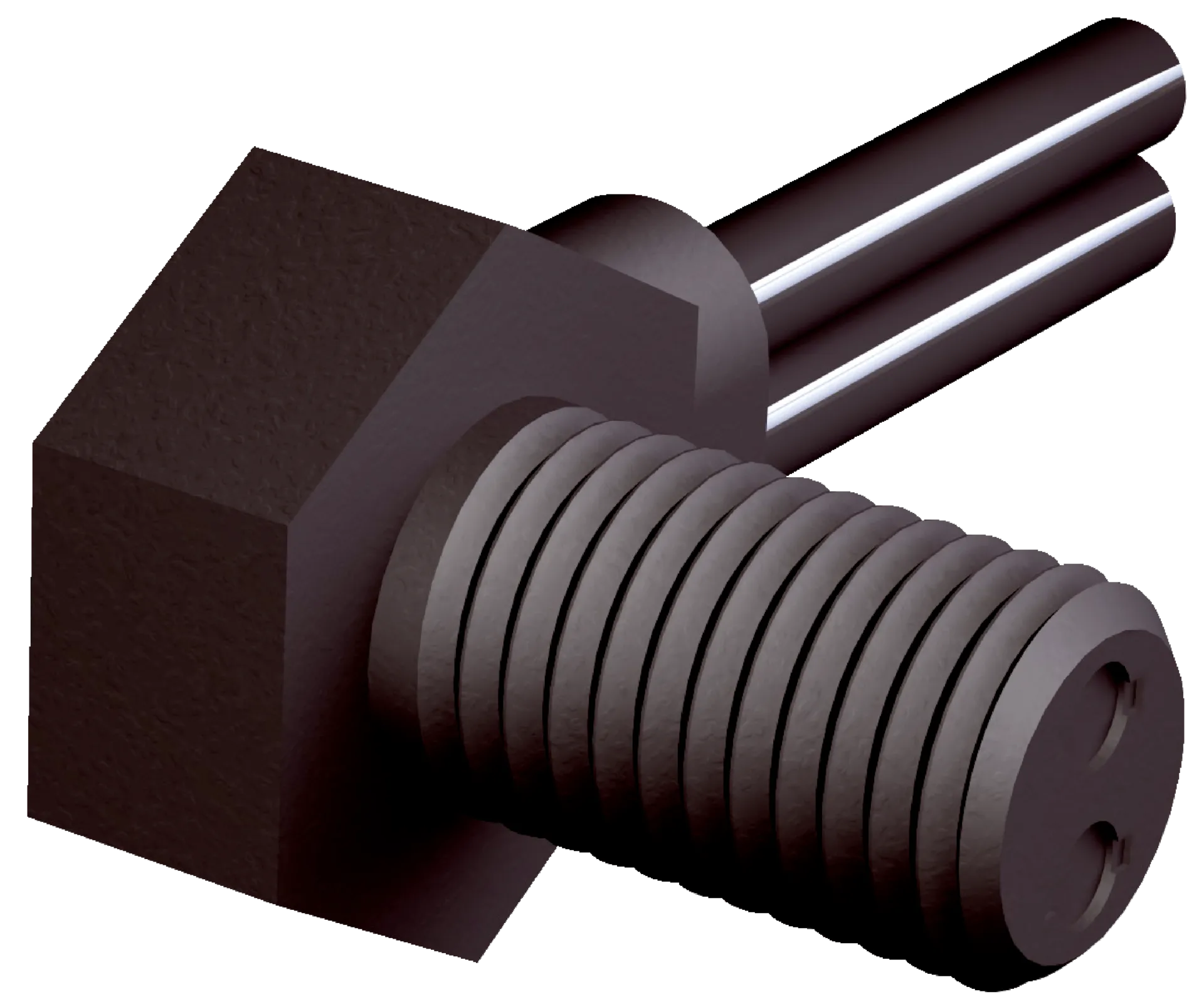

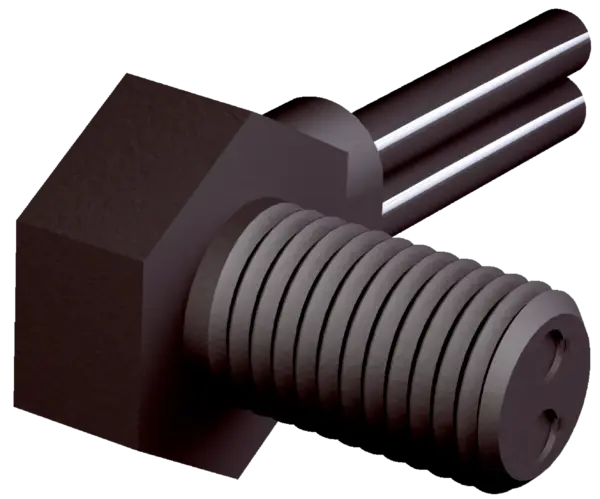

Sick LL3-DV05
Fiber-optic sensors | Fiber-optic cables | LL3-DV05 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve, 90Ā° deflection | FiberĀ length: 2,000 mm | Thread diameter (hous…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From ā¬20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From ā¬40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LL3-DV05 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve, 90Ā° deflection | FiberĀ length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Plastic | Included with delivery: Mounting, 1Ā xĀ M6Ā hexagon nut, FC fiber cutter (5304141)
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Proximity system |
| Fiber-optic head design | Threaded sleeve, 90ĆĀ° deflection |
| Application | Standard |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex |
| Sensing range max. | 700Ć mm (Sensing range of WLL80 at 8Ć ms) |
| Minimal object diameter | 0.015Ć mmĆ 1) |
| Angle of dispersion | 16ĆĀ° |
| Integrated lens | Yes |
| Compatibility tip adapters | No |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | Ć¢ĀĀ |
| Adapter end sleeves required | No |
| Included with delivery | Mounting, 1Ć xĆ M6Ć hexagon nut, FC fiber cutter (5304141) |
Mechanics
| Light emission | Radial |
|---|---|
| Thread diameter (housing) | M6 |
| FiberĆ length | 2,000Ć mm |
| Bending radius | 25Ć mm |
| Dynamic flexibility (robotics) | No |
| Outside diameter, optical fiber cable connection | 2.2Ć mm |
| Fiber arrangement | Singlefiber |
| Core structure | Singlefiber |
| Optical fiber head | Polyamid (PA) |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 29Ć g |
Ambient data
| Ambient operating temperature | Ć¢ĀĀ40Ć ĆĀ°CĆ ... +70Ć ĆĀ°C |
|---|
Sensing ranges with GLL70
| Operating mode 50Ć ĆĀµs | 65Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 200Ć mm |
| Operating mode 1Ć ms | 285Ć mm |
| Operating mode 4Ć ms | 590Ć mm |
Sensing ranges with WLL80
| Operating mode 16Ć ĆĀµs | 40Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 135Ć mm |
| Operating mode 250Ć ĆĀµs | 220Ć mm |
| Operating mode 500Ć ĆĀµs | 270Ć mm |
| Operating mode 1Ć ms | 305Ć mm |
| Operating mode 2Ć ms | 435Ć mm |
| Operating mode 8Ć ms | 700Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with WLL180T
| Operating mode 16Ć ĆĀµs | 25Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 110Ć mm |
| Operating mode 250Ć ĆĀµs | 185Ć mm |
| Operating mode 2Ć ms | 400Ć mm |
| Operating mode 8Ć ms | 650Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with GLL170
| Operating mode 250Ć ĆĀµs | 50Ć mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50Ć ĆĀµs | 60Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 100Ć mm |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
