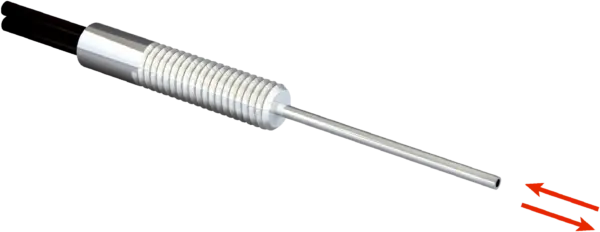

Fiber-optic sensors | Fiber-optic cables | LL3-DT04 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve, Long end sleeve | FiberĀ length: 500 mm | Thread diameter (housing): M3 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2Ā xĀ M3Ā hexagon nut, 2Ā x washer
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Proximity system |
| Fiber-optic head design | Threaded sleeve, Long end sleeve |
| Application | High flexible (static), Robotics (dynamic flexible) |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T) |
| Sensing range max. | 300Ć mm (Sensing range of WLL80 at 8Ć ms) |
| Minimal object diameter | 0.015Ć mmĆ 1) |
| Angle of dispersion | 60ĆĀ° |
| Integrated lens | No |
| Compatibility tip adapters | No |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | Ć¢ĀĀ |
| Adapter end sleeves required | No |
| Included with delivery | Mounting, 2Ć xĆ M3Ć hexagon nut, 2Ć x washer |
Mechanics
| Light emission | Axial |
|---|---|
| Thread diameter (housing) | M3 |
| Optical fiber taper diameter | Ć¢ĀĀ„Ć 0.8Ć mm |
| Optical fiber taper length after 2Ć mm | Ć¢ĀĀ„Ć 15Ć mm |
| FiberĆ length | 500Ć mm |
| Bending radius | 4Ć mm |
| Dynamic flexibility (robotics) | Yes |
| Outside diameter, optical fiber cable connection | 1.3Ć mm |
| Fiber arrangement | Coaxial |
| Core structure | S: ĆĀ 0,25Ć mm, R: 9Ć x ĆĀ 0,125Ć mmĆ 1) Coaxial |
| Optical fiber head | Stainless steel |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 9Ć g |
Ambient data
| Ambient operating temperature | Ć¢ĀĀ40Ć ĆĀ°CĆ ... +70Ć ĆĀ°C |
|---|
Sensing ranges with GLL70
| Operating mode 50Ć ĆĀµs | 25Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 80Ć mm |
| Operating mode 1Ć ms | 130Ć mm |
| Operating mode 4Ć ms | 280Ć mm |
Sensing ranges with WLL80
| Operating mode 16Ć ĆĀµs | 20Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 55Ć mm |
| Operating mode 250Ć ĆĀµs | 90Ć mm |
| Operating mode 500Ć ĆĀµs | 110Ć mm |
| Operating mode 1Ć ms | 130Ć mm |
| Operating mode 2Ć ms | 205Ć mm |
| Operating mode 8Ć ms | 300Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with WLL180T
| Operating mode 16Ć ĆĀµs | 13Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 45Ć mm |
| Operating mode 250Ć ĆĀµs | 80Ć mm |
| Operating mode 2Ć ms | 140Ć mm |
| Operating mode 8Ć ms | 280Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with GLL170
| Operating mode 250Ć ĆĀµs | 20Ć mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50Ć ĆĀµs | 20Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 40Ć mm |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
