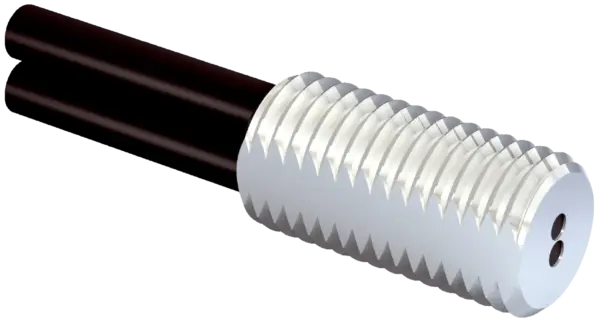

Sick LL3-DR01

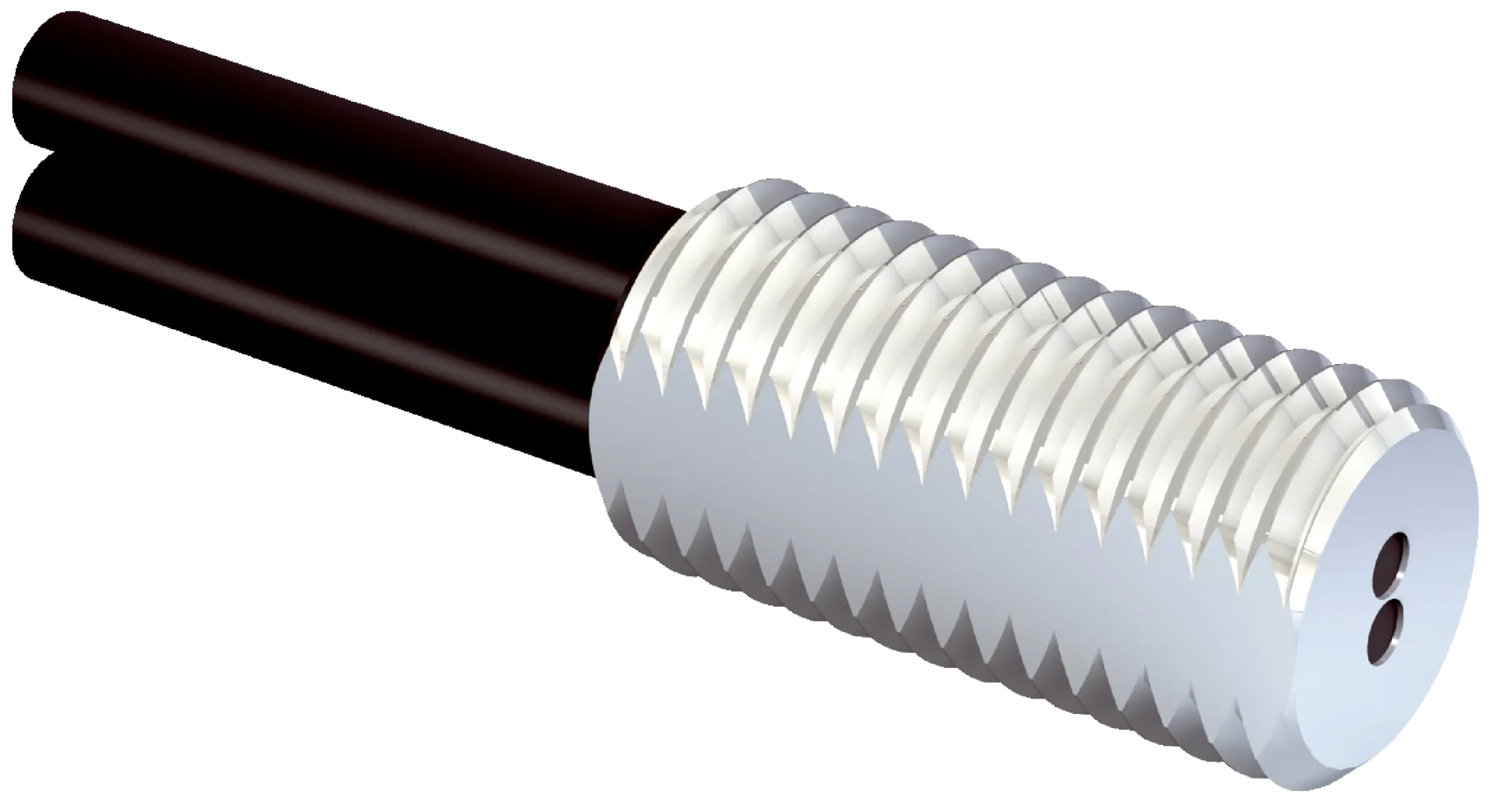

Fiber-optic sensors | Fiber-optic cables | LL3-DR01 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | FiberĀ length: 2,000 mm | Thread diameter (housing): M6 | Fiber…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From ā¬20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From ā¬40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LL3-DR01 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | FiberĀ length: 2,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Brass | Included with delivery: FC fiber cutter (5304141)
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Proximity system |
| Fiber-optic head design | Threaded sleeve |
| Application | High flexible (static), Robotics (dynamic flexible) |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex |
| Sensing range max. | 1,250Ć mm (Sensing range of WLL80 at 8Ć ms) |
| Minimal object diameter | 0.015Ć mmĆ 1) |
| Angle of dispersion | 60ĆĀ° |
| Integrated lens | No |
| Compatibility tip adapters | No |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | Ć¢ĀĀ |
| Adapter end sleeves required | No |
| Included with delivery | FC fiber cutter (5304141) |
Mechanics
| Light emission | Axial |
|---|---|
| Thread diameter (housing) | M6 |
| FiberĆ length | 2,000Ć mm |
| Bending radius | 4Ć mm |
| Dynamic flexibility (robotics) | Yes |
| Outside diameter, optical fiber cable connection | 2.2Ć mm |
| Fiber arrangement | Multi-fiber |
| Core structure | S: 16Ć x ĆĀ 0,26Ć mm R: 16Ć x ĆĀ 0,26Ć mmĆ 1) Multi-fiber |
| Optical fiber head | Copper-zinc alloy (CuZn) |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 32Ć g |
Ambient data
| Ambient operating temperature | Ć¢ĀĀ40Ć ĆĀ°CĆ ... +60Ć ĆĀ°C |
|---|
Sensing ranges with GLL70
| Operating mode 50Ć ĆĀµs | 165Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 500Ć mm |
| Operating mode 1Ć ms | 655Ć mm |
| Operating mode 4Ć ms | 1,010Ć mm |
Sensing ranges with WLL80
| Operating mode 16Ć ĆĀµs | 120Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 300Ć mm |
| Operating mode 250Ć ĆĀµs | 500Ć mm |
| Operating mode 500Ć ĆĀµs | 600Ć mm |
| Operating mode 1Ć ms | 700Ć mm |
| Operating mode 2Ć ms | 800Ć mm |
| Operating mode 8Ć ms | 1,250Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with WLL180T
| Operating mode 16Ć ĆĀµs | 90Ć mm |
|---|---|
| Operating mode 70Ć ĆĀµs | 280Ć mm |
| Operating mode 250Ć ĆĀµs | 450Ć mm |
| Operating mode 2Ć ms | 880Ć mm |
| Operating mode 8Ć ms | 1,350Ć mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with GLL170
| Operating mode 250Ć ĆĀµs | 140Ć mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50Ć ĆĀµs | 140Ć mm |
|---|---|
| Operating mode 250Ć ĆĀµs | 260Ć mm |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
