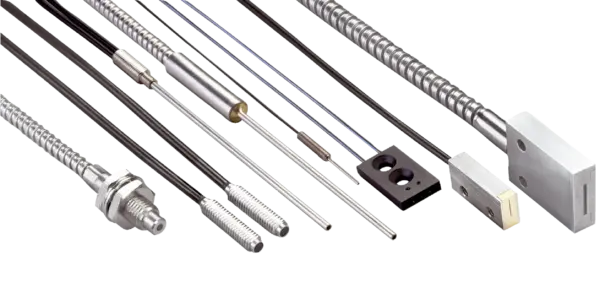

Sick LL3-DL04
Fiber-optic sensors | Fiber-optic cables | LL3-DL04 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Thread diameter (housing): M4 | Jacket material: Stainless ste…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Fiber-optic sensors | Fiber-optic cables | LL3-DL04 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Thread diameter (housing): M4 | Jacket material: Stainless steel
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Proximity system |
| Fiber-optic head design | Threaded sleeve |
| Sensing range max. | Depending on the fiber optic amplifier used |
| Angle of dispersion | 60° |
| Integrated lens | No |
| Compatibility tip adapters | No |
| Adapter end sleeves required | No |
Mechanics
| Thread diameter (housing) | M4 |
|---|---|
| Outside diameter, optical fiber cable connection | 2.2Â mm |
| Fiber arrangement | Multi-fiber |
| Core structure | Multi-fiber |
| Weight | 14Â g |
Sensing ranges with GLL170
| Operating mode 250 µs | 45 mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50 µs | 31 mm |
|---|---|
| Operating mode 250 µs | 58 mm |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
