Sick LL3-DB01-3
Fiber-optic sensors | Fiber-optic cables | LL3-DB01-3 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 3,000 mm | Thread diameter (housing): M6 | Fib…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

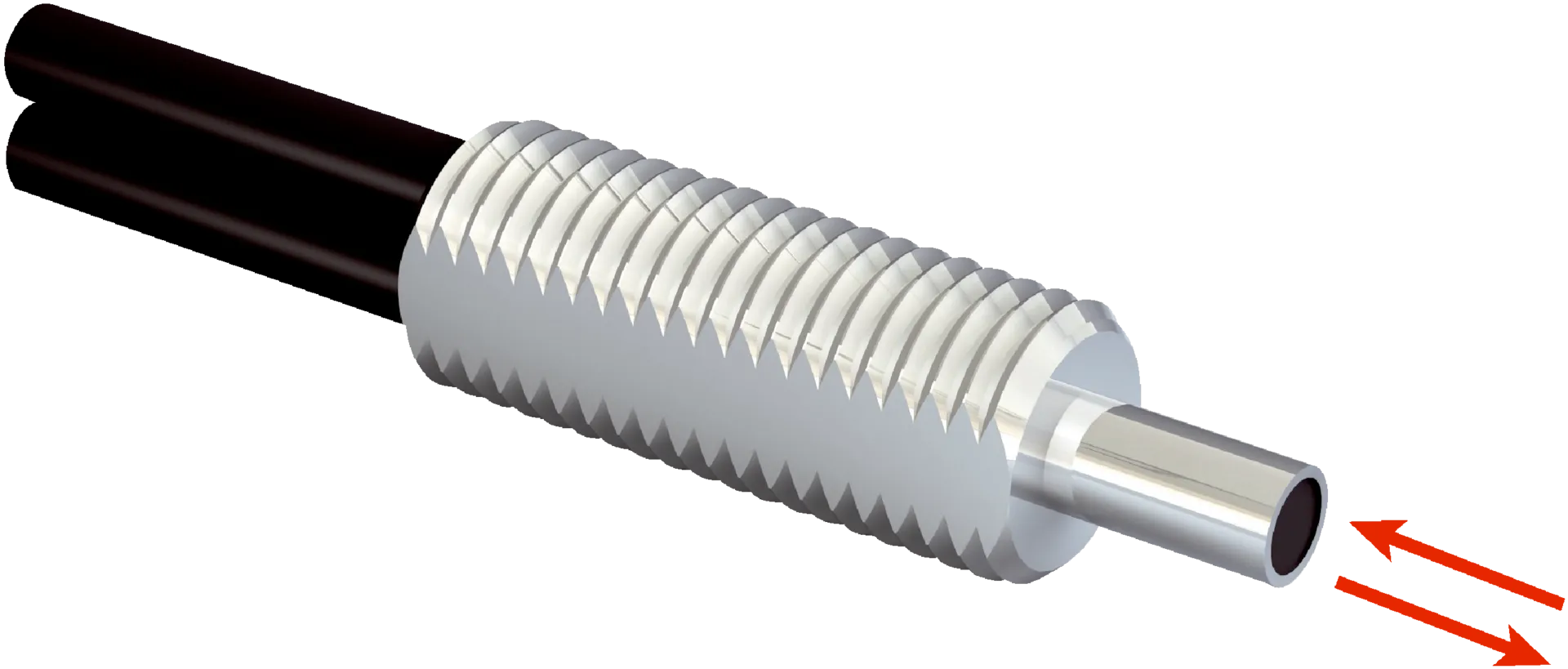

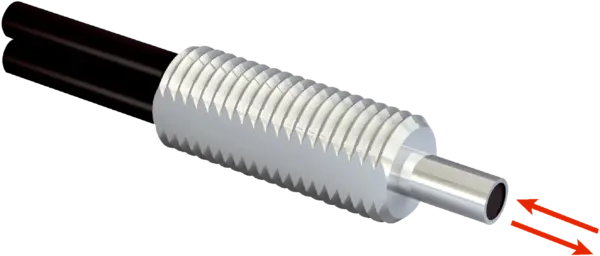

Fiber-optic sensors | Fiber-optic cables | LL3-DB01-3 | Functional principle: Proximity system | Fiber-optic head design: Threaded sleeve | Fiber length: 3,000 mm | Thread diameter (housing): M6 | Fiber material: Plastic | Jacket material: Plastic | Fiber head material: Stainless steel | Included with delivery: Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)
Specification
Features
| Device type | Fiber-optic cables |
|---|---|
| Functional principle | Proximity system |
| Fiber-optic head design | Threaded sleeve |
| Application | Standard |
| Compatible fiber-optic amplifiers | GLL70, WLL80, WLL180, GLL170(T), WLL24 Ex, KTL180 |
| Sensing range max. | Depending on the fiber optic amplifier used |
| Minimal object diameter | 0.015 mm 1) |
| Angle of dispersion | 60° |
| Integrated lens | No |
| Compatibility tip adapters | No |
| Compatibility with infrared light | No |
| Optical fiber cable can be shortened | â |
| Adapter end sleeves required | No |
| Included with delivery | Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141) |
Mechanics
| Light emission | Axial |
|---|---|
| Thread diameter (housing) | M6 |
| Optical fiber taper diameter | â¥Â 2.8 mm |
| Optical fiber taper length after 2 mm | â¥Â 5 mm |
| Fiber length | 3,000 mm |
| Bending radius | 25Â mm |
| Dynamic flexibility (robotics) | No |
| Outside diameter, optical fiber cable connection | 2.2Â mm |
| Fiber arrangement | Coaxial |
| Core structure | S: à 1 mm, R: 16 x à 0,25 mm Coaxial |
| Optical fiber head | Stainless steel |
| Sheath | Polyethylen (PE) |
| Fibers | Polymethylmethacrylat (PMMA) |
| Weight | 39Â g |
Ambient data
| Ambient operating temperature | â40 °C ... +70 °C |
|---|
Sensing ranges with WLL180T
| Operating mode 16 µs | 90 mm |
|---|---|
| Operating mode 70 µs | 280 mm |
| Operating mode 250 µs | 500 mm |
| Operating mode 2Â ms | 900Â mm |
| Operating mode 8Â ms | 1,350Â mm |
| Note | Sensing ranges related to fiber-optic sensors with type of light: visible red light |
Sensing ranges with GLL170
| Operating mode 250 µs | 120 mm |
|---|
Sensing ranges with GLL170T
| Operating mode 50 µs | 90 mm |
|---|---|
| Operating mode 250 µs | 170 mm |
Classifications
| ECLASS 5.0 | 27270905 |
|---|---|
| ECLASS 5.1.4 | 27270905 |
| ECLASS 6.0 | 27270905 |
| ECLASS 6.2 | 27270905 |
| ECLASS 7.0 | 27270905 |
| ECLASS 8.0 | 27270905 |
| ECLASS 8.1 | 27270905 |
| ECLASS 9.0 | 27270905 |
| ECLASS 10.0 | 27270905 |
| ECLASS 11.0 | 27270905 |
| ECLASS 12.0 | 27270905 |
| ETIM 5.0 | EC002651 |
| ETIM 6.0 | EC002651 |
| ETIM 7.0 | EC002651 |
| ETIM 8.0 | EC002651 |
| UNSPSC 16.0901 | 39121528 |
