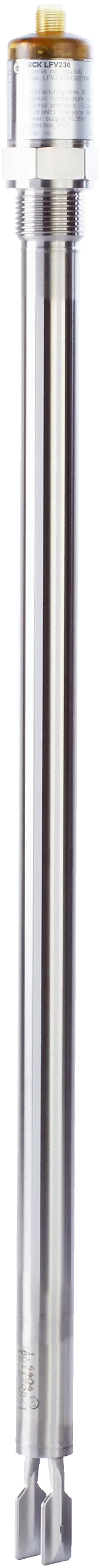

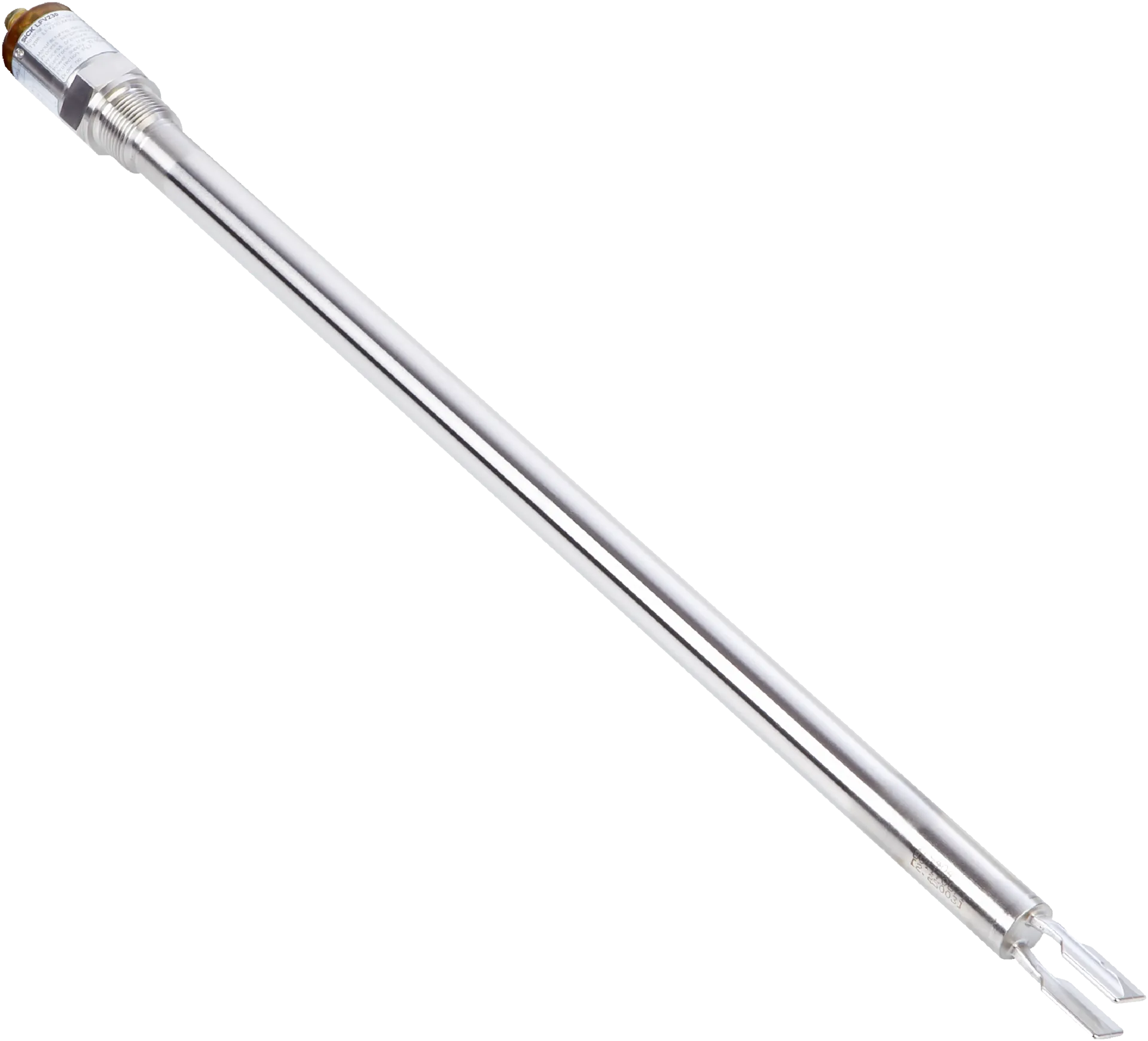

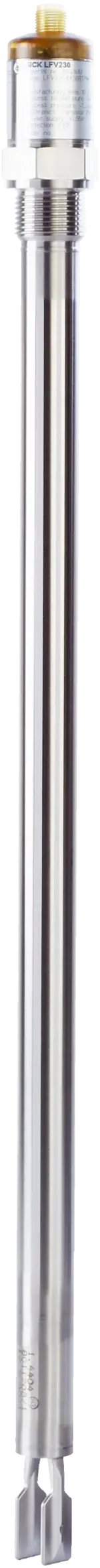

Sick LFV230-XASGBTPV0200
Level sensors | LFV200 | LFV230-XASGBTPV0200 | Communication interface: – | Process connection: G ¾ A PN 64 | Probe length: 200 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Tra…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Level sensors | LFV200 | LFV230-XASGBTPV0200 | Communication interface: – | Process connection: G ¾ A PN 64 | Probe length: 200 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: Valve plug DIN 43650 | Process temperature: –40 °C … +100 °C | Process pressure: –1 bar … 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Enclosure rating: IP65 | Display: no | PWIS-cleaned: no | Bluetooth: no
Specification
Features
| Medium | Fluids |
|---|---|
| Measurement | Switch |
| Probe type | Tuning fork |
| Probe length | 200Â mm |
| Process pressure | â1 bar ... 64 bar |
| Process temperature | â40 °C ... +100 °C |
| Fill material density | 0.7 g/cm³ ... 2.5 g/cm³ |
Performance
| Accuracy of sensor element | ± 2 mm |
|---|---|
| Reproducibility | â¤Â 1 mm |
| Viscosity | 0.1 mPas ... 10,000 mPas |
| Resolution | â¤Â 1 mm |
| Response time | 500Â ms |
| MTBF | 1,25*10^7 h |
Electronics
| Communication interface | - |
|---|---|
| Supply voltage | 9.6Â VÂ DCÂ ... 35Â VÂ DC |
| Residual ripple | â¤Â 5 Vpp |
| Power consumption | â¤Â 10 mA |
| Initialization time | <Â 2Â s |
| Connection type | Valve plug DINÂ 43650 |
| Output signal | Transistor output PNP |
| Hysteresis | 2Â mm |
| Output current | <Â 250Â mA |
| Inductive load | â¤Â 1 H |
| Capacitive load | 100Â nF |
| Enclosure rating | IP65 |
| Temperature drift | 0.03Â mm/K |
Mechanics
| Wetted parts | Stainless steel 1.4404Â / 316L |
|---|---|
| Process connection | G ¾ A PN 64 |
Ambient data
| Ambient operating temperature | â40 °C ... +70 °C |
|---|---|
| Ambient temperature, storage | â40 °C ... +80 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| WHG approval | â |
Classifications
| ECLASS 5.0 | 27273202 |
|---|---|
| ECLASS 5.1.4 | 27273202 |
| ECLASS 6.0 | 27273202 |
| ECLASS 6.2 | 27273202 |
| ECLASS 7.0 | 27273202 |
| ECLASS 8.0 | 27273202 |
| ECLASS 8.1 | 27273202 |
| ECLASS 9.0 | 27273202 |
| ECLASS 10.0 | 27273202 |
| ECLASS 11.0 | 27273202 |
| ECLASS 12.0 | 27273106 |
| ETIM 5.0 | EC002654 |
| ETIM 6.0 | EC002654 |
| ETIM 7.0 | EC002654 |
| ETIM 8.0 | EC002654 |
| UNSPSC 16.0901 | 41111938 |
