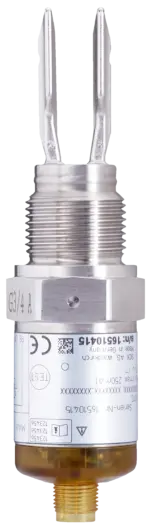

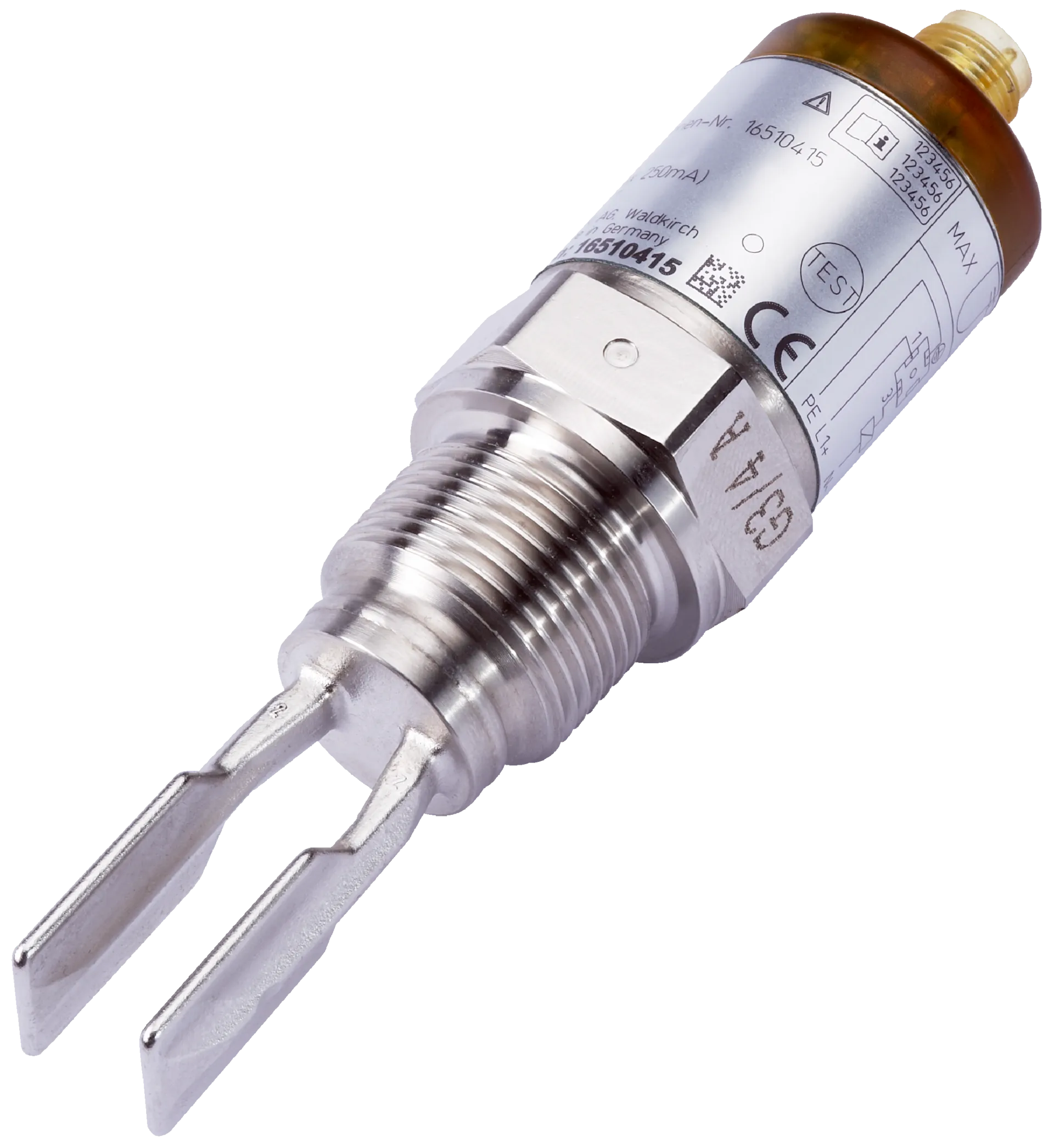

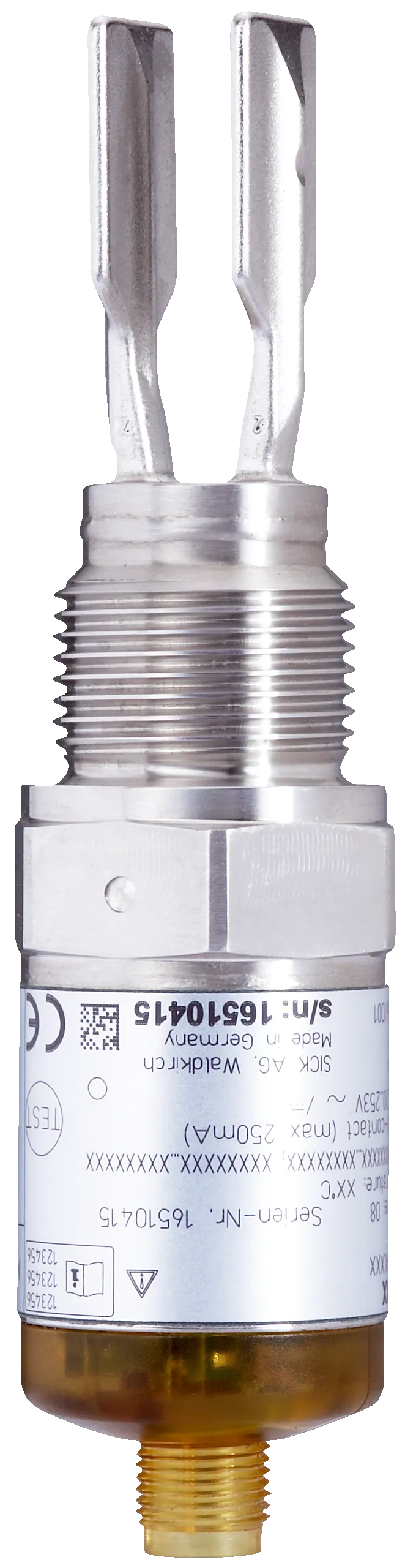

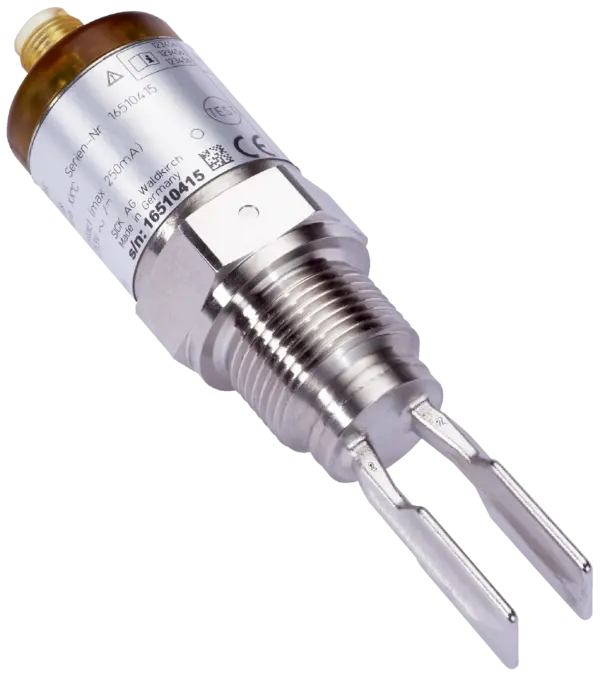

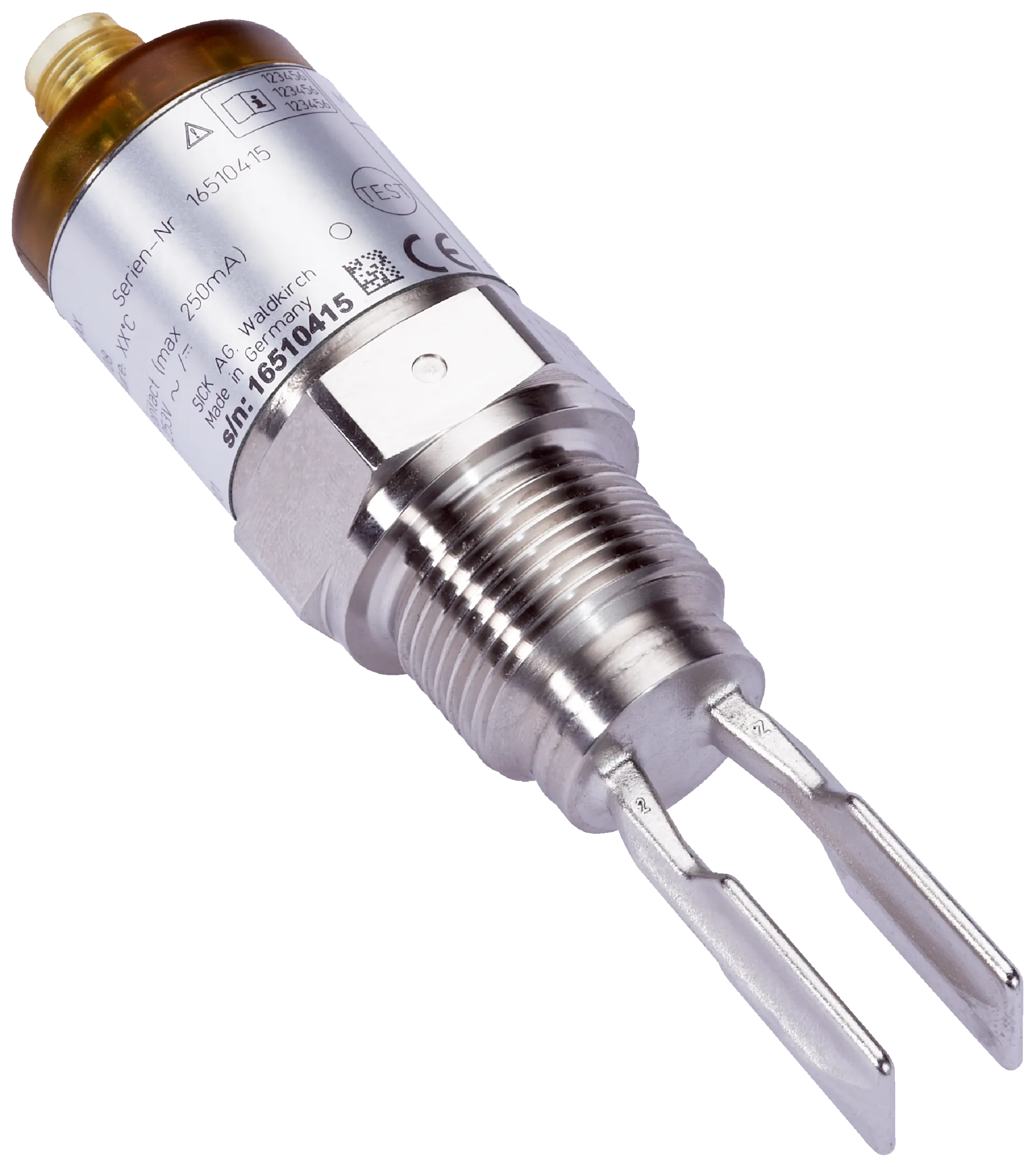

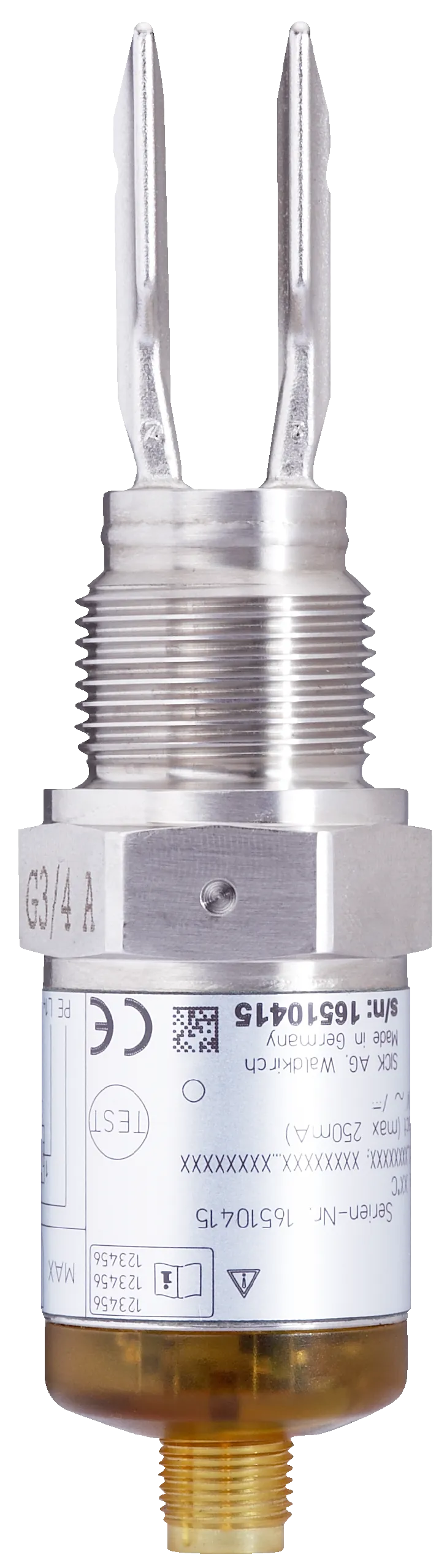

Sick LFV200-XASNATPML
Level sensors | LFV200 | LFV200-XASNATPML | Communication interface: – | Process connection: 1″ NPT PN 64 | Probe length: 115 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Trans…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Level sensors | LFV200 | LFV200-XASNATPML | Communication interface: – | Process connection: 1″ NPT PN 64 | Probe length: 115 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: Transistor output PNP | Connection type: M12 round connector x 1, 4-pin | Process temperature: –40 °C … +100 °C | Process pressure: –1 bar … 64 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Stainless steel 1.4404 / 316L, PEI | Enclosure rating: IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
Specification
Features
| Medium | Fluids |
|---|---|
| Measurement | Switch |
| Probe type | Tuning fork |
| Probe length | 115Â mm |
| Process pressure | –1 bar ... 64 bar |
| Process temperature | –40 °C ... +100 °C |
| Fill material density | 0.7 g/cm³ ... 2.5 g/cm³ |
Performance
| Accuracy of sensor element | ± 2 mm |
|---|---|
| Reproducibility | ≤ 1 mm |
| Viscosity | 0.1 mPas ... 10,000 mPas |
| Resolution | ≤ 1 mm |
| Response time | 500Â ms |
| MTBF | 1,25*10^7 h |
Electronics
| Communication interface | - |
|---|---|
| Supply voltage | 9.6Â VÂ DCÂ ... 35Â VÂ DC |
| Residual ripple | ≤ 5 Vpp |
| Power consumption | ≤ 10 mA |
| Initialization time | <Â 2Â s |
| VDE protection class 2 | ✔ |
| Connection type | M12 round connector x 1, 4-pin |
| Output signal | Transistor output PNP |
| Hysteresis | 2Â mm |
| Output current | <Â 250Â mA |
| Inductive load | ≤ 1 H |
| Capacitive load | 100Â nF |
| Enclosure rating | IP67 |
| Temperature drift | 0.03Â mm/K |
Mechanics
| Wetted parts | Stainless steel 1.4404Â / 316L |
|---|---|
| Process connection | 1" NPT PN 64 |
| Housing material | Stainless steel 1.4404Â / 316L, PEI |
Ambient data
| Ambient operating temperature | –40 °C ... +70 °C |
|---|---|
| Ambient temperature, storage | –40 °C ... +80 °C |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| China RoHS | ✔ |
| cCSAus certificate | ✔ |
| WHG approval | ✔ |
| Food contact material manufacturer declaration | ✔ |
Classifications
| ECLASS 5.0 | 27273202 |
|---|---|
| ECLASS 5.1.4 | 27273202 |
| ECLASS 6.0 | 27273202 |
| ECLASS 6.2 | 27273202 |
| ECLASS 7.0 | 27273202 |
| ECLASS 8.0 | 27273202 |
| ECLASS 8.1 | 27273202 |
| ECLASS 9.0 | 27273202 |
| ECLASS 10.0 | 27273202 |
| ECLASS 11.0 | 27273202 |
| ECLASS 12.0 | 27273106 |
| ETIM 5.0 | EC002654 |
| ETIM 6.0 | EC002654 |
| ETIM 7.0 | EC002654 |
| ETIM 8.0 | EC002654 |
| UNSPSC 16.0901 | 41111938 |
