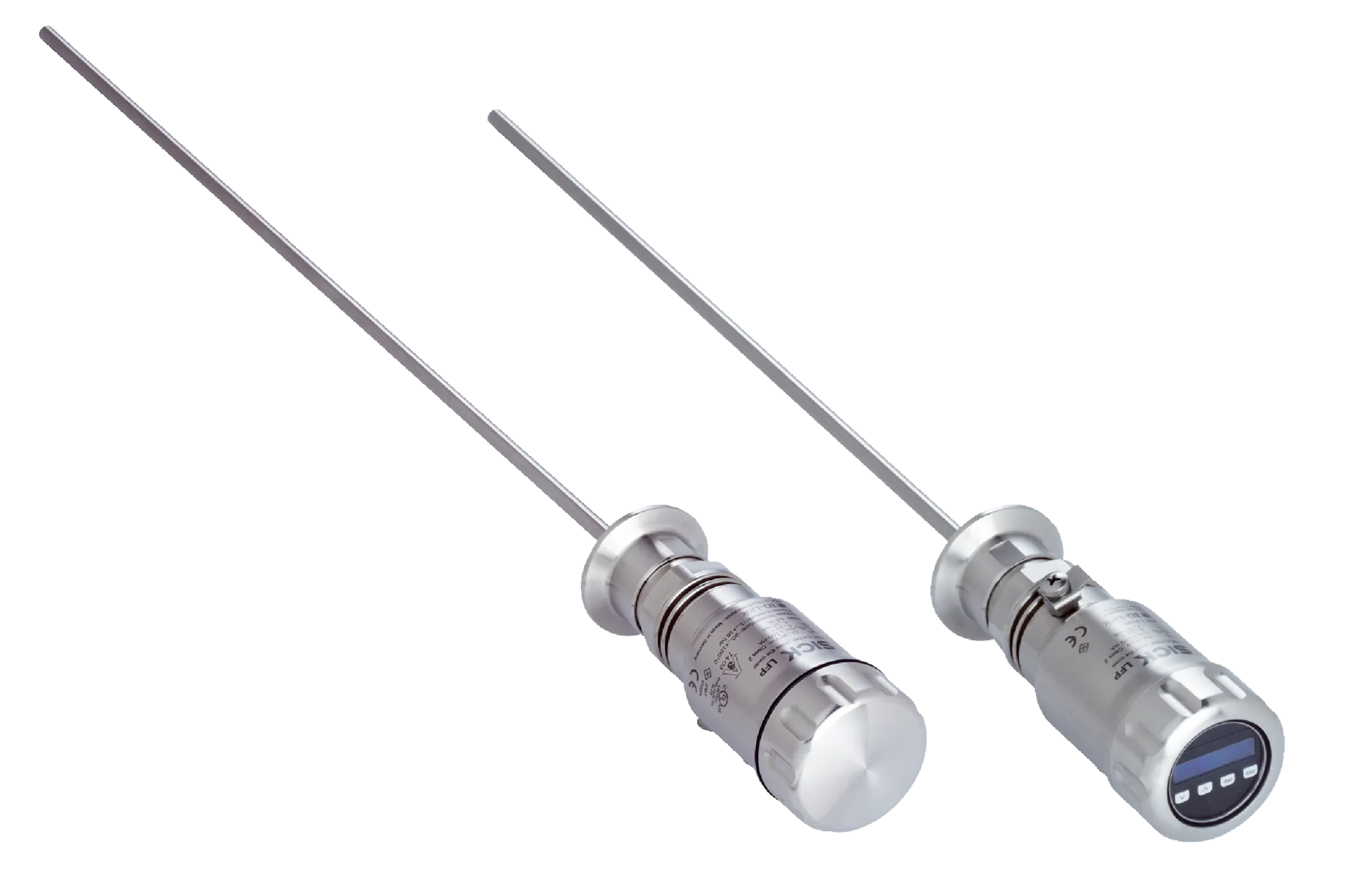

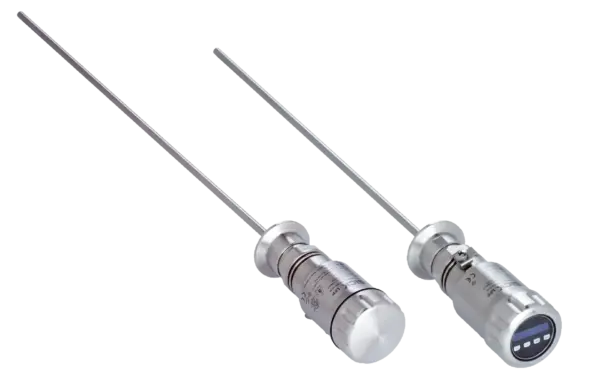

Sick LFP0500-GANMB

Level sensors | LFP Inox | LFP0500-GANMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 500 mm | Probe type: Rod probe in hygienic design | Remote amplifier: No | Outpu…

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Level sensors | LFP Inox | LFP0500-GANMB | Communication interface: IO-Link | Process connection: G ¾ A | Probe length: 500 mm | Probe type: Rod probe in hygienic design | Remote amplifier: No | Output signal: 1 x PNP + 1 x PNP/NPN + 4 mA … 20 mA / 0 V … 10 V | Connection type: Cable connector M12 x 1, 5-polig | Process temperature: –20 °C … +150 °C | Process pressure: –1 bar … 16 bar | Housing design: With viewing window made from PMMA (acrylic glass) | Wetted parts: Stainless steel 1.4404 / 316L, PEEK | Housing material: Stainless steel 1,4305 | Enclosure rating: IP67, IP69 | Display: yes | PWIS-cleaned: no | Bluetooth: no

Specification

Features

MediumFluids
MeasurementSwitch, Continuous
DesignStandard amplifier
Probe typeRod probe in hygienic design
Probe length500Â mm
Process pressure–1 bar ... 16 bar
Process temperature–20 °C ... +150 °C

Performance

Accuracy of sensor element± 5 mm
Reproducibility≤ 2 mm
Resolution1Â mm
Response time400 ms 1)
Dielectricity constant≥ 5 for rod probe≥ 1.8 with coaxial tube
ConductivityNo limitation
Deactivated area at process connection25 mm 2)
Deactivated area at end of probe≥ 10 mm 3)
MTTF194.3Â years (ENÂ ISOÂ 13849-1)
Display✔

Electronics

Communication interfaceIO-Link
Supply voltage12Â VÂ DCÂ ... 30Â VÂ DCÂ 1)
Power consumption≤ 75 mA at 24 V DC without output load
Initialization time≤ 2 s
Protection classIII
Connection typeCable connector M12Â x 1, 5-polig
Length of cable10Â m
Output signal1Â x PNP + 1Â x PNP/NPN + 4Â mAÂ ... 20Â mA / 0Â VÂ ... 10Â V
Output load4 mA ... 20 mA < 500 Ohm at Uv > 13,5 V, 4 mA ... 20 mA < 400 Ohm at Uv > 12 V, 0 V ... 10 V > 750 Ohm at Uv 14 ≥ V
Hysteresis≥ 2 mm 2)
Output current<Â 100Â mA
Inductive load<Â 1Â H
Capacitive load<Â 100Â nF
Enclosure ratingIP67 (ENÂ 60529)IP69 (ENÂ 60529)
Temperature drift<Â 0.1Â mm/K
Lower signal level3.8Â mAÂ ... 4Â mA, 0Â V
Upper signal level20Â mAÂ ... 20.5Â mA, 10.5Â V

Mechanics

Wetted partsStainless steel 1.4404Â / 316LPEEK
Surface roughnessRa ≤ 0,8 µm
Process connectionG ¾ A
Housing materialStainless steel 1,4305
Housing designWith viewing window made from PMMA (acrylic glass)
Max. probe load≤ 6 Nm

Ambient data

Ambient operating temperature–20 °C ... +60 °C
Ambient temperature, storage–40 °C ... +80 °C
Outdoor useOnly with weather hood

Certificates

EU declaration of conformity✔
UK declaration of conformity✔
ACMA declaration of conformity✔
Moroccan declaration of conformity✔
China RoHS✔
FDA certificate✔
EHEDG approval✔
cULus certificate✔
IO-Link certificate✔
Food contact material manufacturer declaration✔
Information according to Art. 3 of Data Act (Regulation EU 2023/2854)✔

Classifications

ECLASS 5.027200513
ECLASS 5.1.427200513
ECLASS 6.027200513
ECLASS 6.227200513
ECLASS 7.027200513
ECLASS 8.027200513
ECLASS 8.127200513
ECLASS 9.027200513
ECLASS 10.027200513
ECLASS 11.027200513
ECLASS 12.027200513
ETIM 5.0EC001447
ETIM 6.0EC001447
ETIM 7.0EC001447
ETIM 8.0EC001447
UNSPSC 16.090141113710
