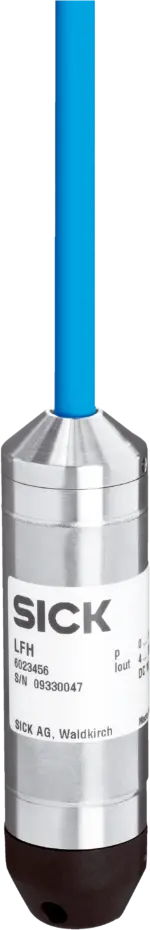

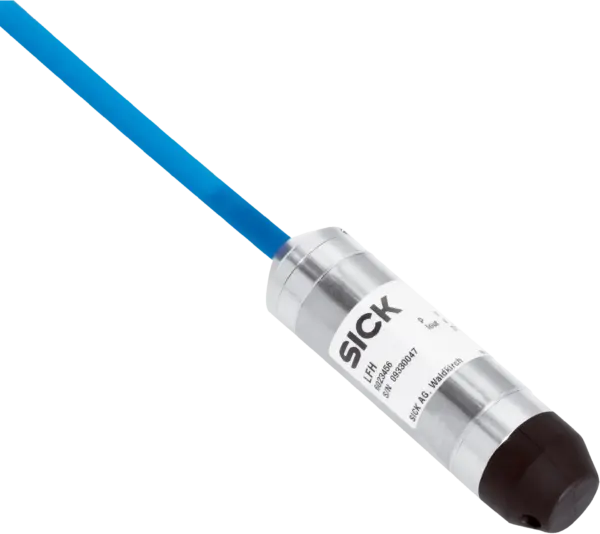

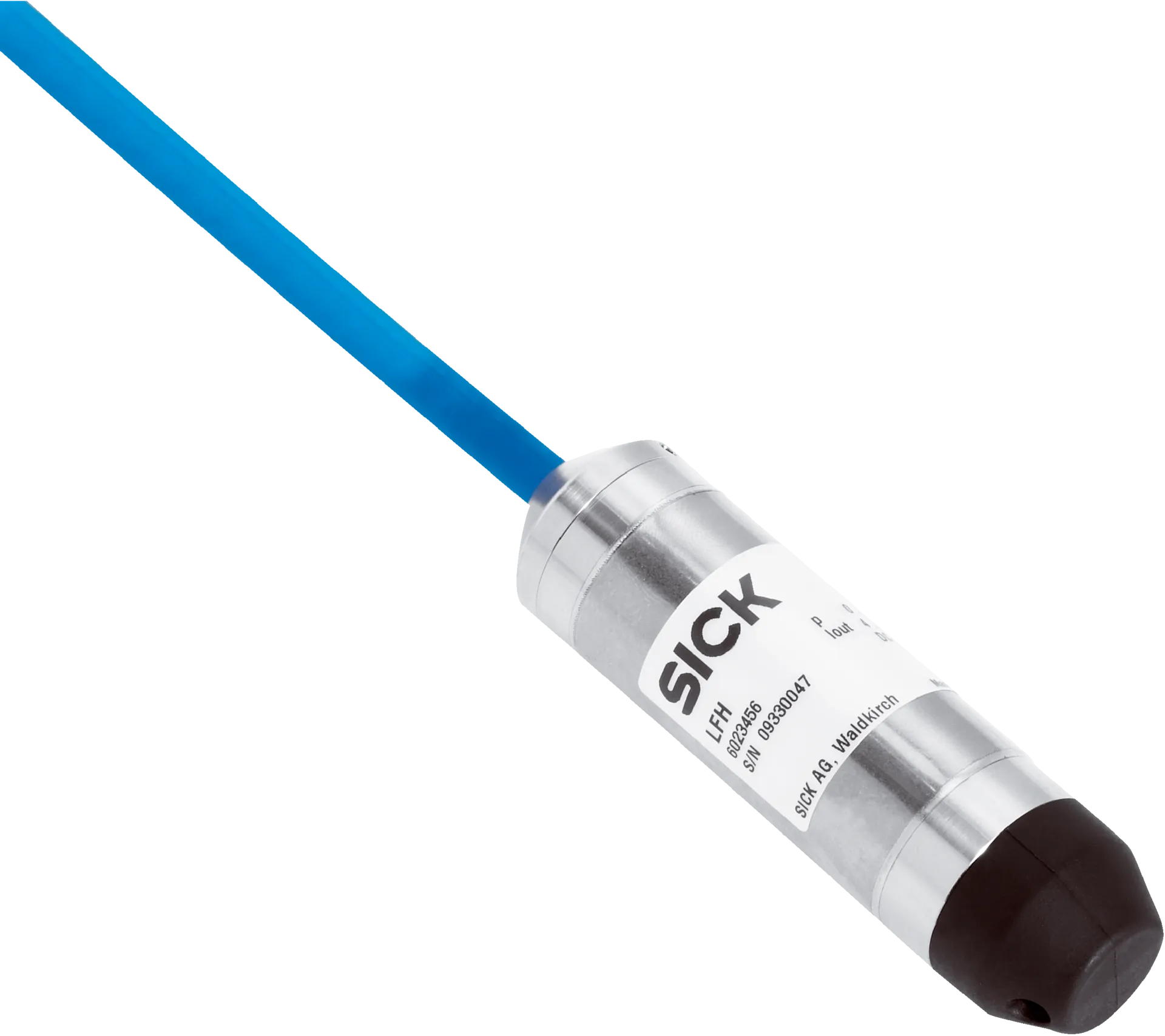

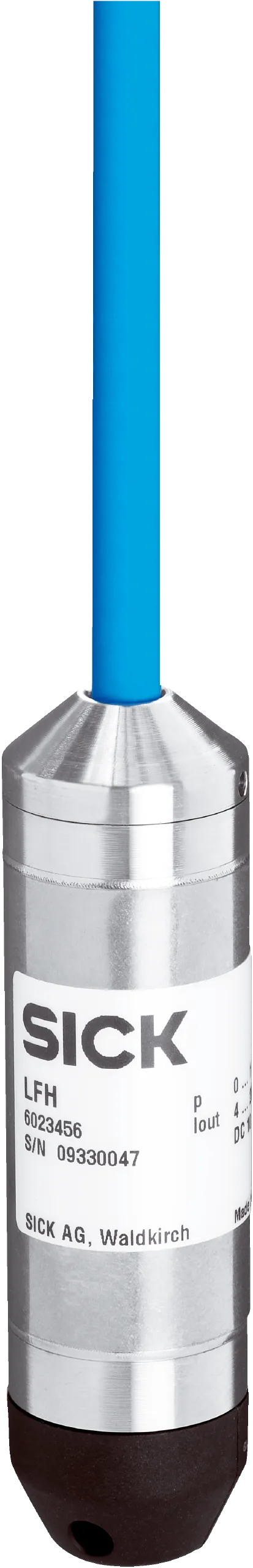

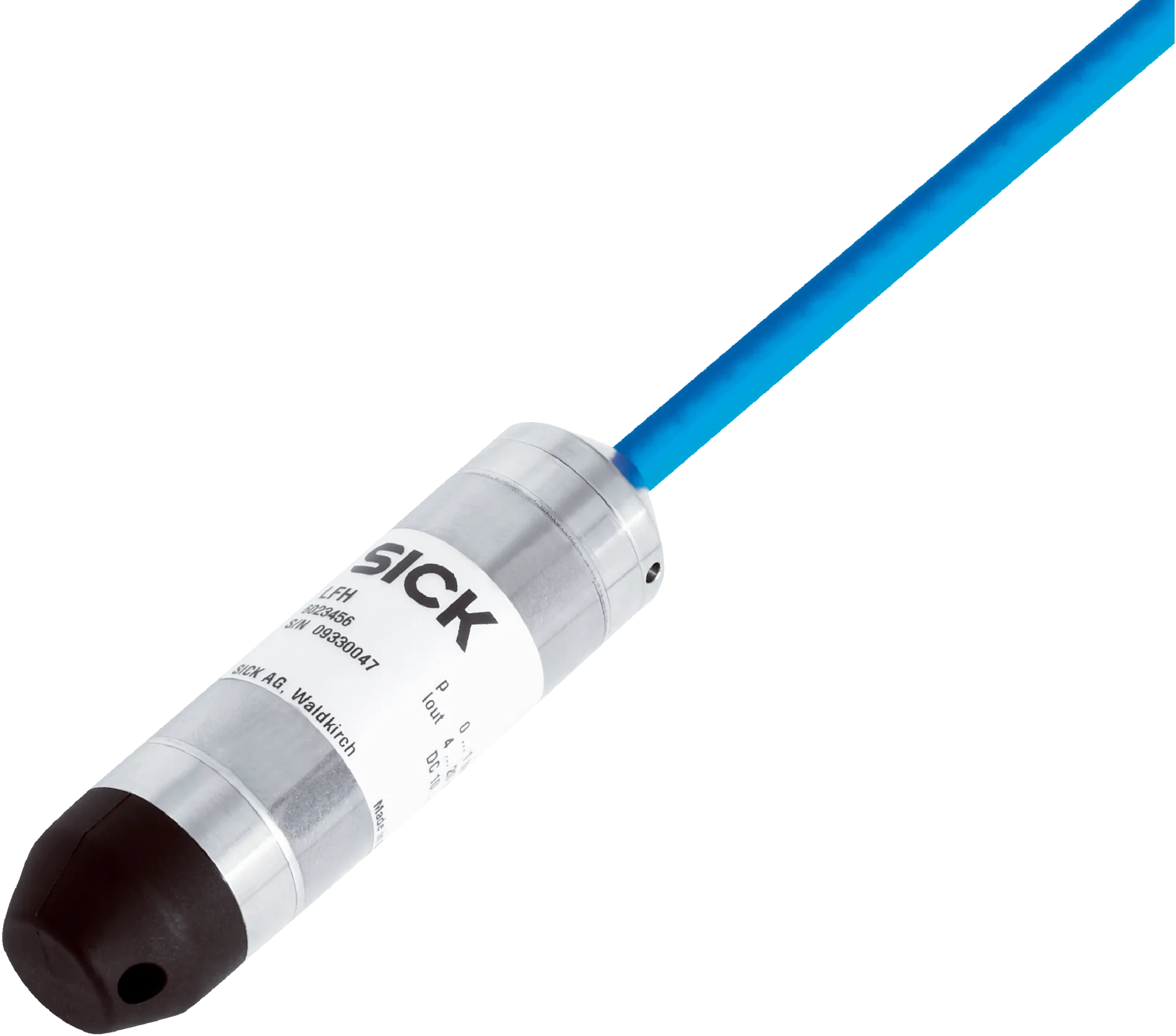

Sick LFH-EW010G1VS20ZZ0
Level sensors | LFH | LFH-EW010G1VS20ZZ0 | Communication interface: – | Process connection: Without process connection | Remote amplifier: No | Output signal: 0 V … 10 V, 3-wire | Connection type: P…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Level sensors | LFH | LFH-EW010G1VS20ZZ0 | Communication interface: – | Process connection: Without process connection | Remote amplifier: No | Output signal: 0 V … 10 V, 3-wire | Connection type: PUR cable connection | Process temperature: –10 °C … +50 °C | Process pressure: 0 mH2O … 10 mH2O | Wetted parts: Stainless steel 1.4404 / 316L, PA | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP68 | Display: no | PWIS-cleaned: no | Bluetooth: no | Specialty: Enhanced variant
Specification
Features
| Medium | Fluids |
|---|---|
| Measurement | Continuous |
| Process pressure | 0Â mH2OÂ ... 10Â mH2O |
| Process temperature | â10 °C ... +50 °C |
| Maximum ohmic load RA | 4 mA ... 20 mA, 2-wire, RA ⤠(L+ â 10 V) / 0.02 A - (0.14 x cable length in m) [Ohm], 0 V ... 10 V, 3-wire optional with enhanced variant, RA > 100 kOhm, 0 V ... 5 V, 3-wire optional with enhanced variant, RA > 100 kOhm |
Performance
| Non-linearity | ⤠± 0.2 %, of span (Best Fit Straight Line, BFSL) according to IEC 61298-2 |
|---|---|
| Accuracy of sensor element | ⤠± 0.25 % of the span for Enhanced variant p â¥Â 0.25 bar 1) 2) |
| Non-repeatability | ⤠± 0.1 % of the span |
| Long-term drift/one-year stability | ⤠± 0.2 % of span (at reference conditions) |
| Temperature coefficient in rated temperature range | Mean TC of zero: ⤠0.2 % of span / 10 K (< 0.4 % for pressure ranges ⤠0.25 bar)Mean TC of span ⤠0.2 % of span / 10 K |
| Rated temperature range | 0 °C ... +50 °C |
| MTTF | 452Â years |
Electronics
| Communication interface | - |
|---|---|
| Supply voltage | 14Â VÂ DCÂ ... 30Â VÂ DC |
| Protection class III | â |
| Connection type | PUR cable connection |
| Length of cable | 20Â m |
| Output signal | 0Â VÂ ... 10Â V, 3-wire |
| Enclosure rating | IP68 |
| Dielectric strength | 500Â VÂ DC, NEC Class 02Â power supply (low voltage and low current max. 100Â VA even in the event of a fault) |
| Electrical safety | Protection class: III, Short-circuit protection: QA towards M, Reverse polarity protection: L+ to M, Surge protection: According to ENÂ 61000-4-5 (1.5Â J) optional for enhanced variant |
Mechanics
| Wetted parts | Stainless steel 1.4404Â / 316LPA |
|---|---|
| Process connection | Without process connection |
| Housing material | Stainless steel 1.4404Â / 316L |
| Material coaxial cable | PUR |
| Weight | 0.2Â kg |
| Cable weight | 0.08Â kg/m |
| Model | Enhanced variant |
Ambient data
| Ambient temperature, storage | â30 °C ... +80 °C |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| China RoHS | â |
Classifications
| ECLASS 5.0 | 27200614 |
|---|---|
| ECLASS 5.1.4 | 27200614 |
| ECLASS 6.0 | 27200614 |
| ECLASS 6.2 | 27200614 |
| ECLASS 7.0 | 27200614 |
| ECLASS 8.0 | 27200614 |
| ECLASS 8.1 | 27200614 |
| ECLASS 9.0 | 27200614 |
| ECLASS 10.0 | 27200614 |
| ECLASS 11.0 | 27200614 |
| ECLASS 12.0 | 27200614 |
| ETIM 5.0 | EC011478 |
| ETIM 6.0 | EC011478 |
| ETIM 7.0 | EC011478 |
| ETIM 8.0 | EC011478 |
| UNSPSC 16.0901 | 41111950 |
