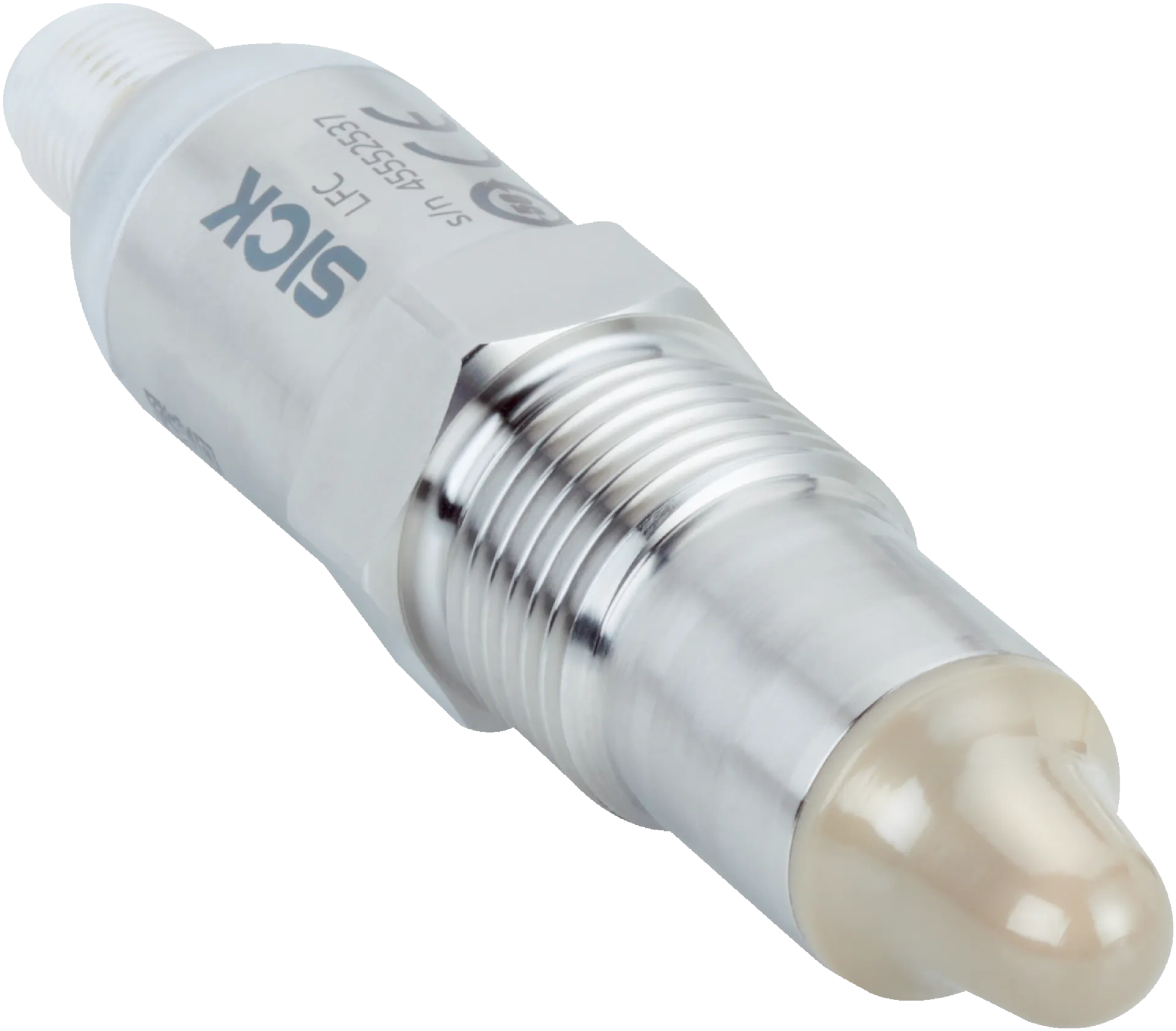

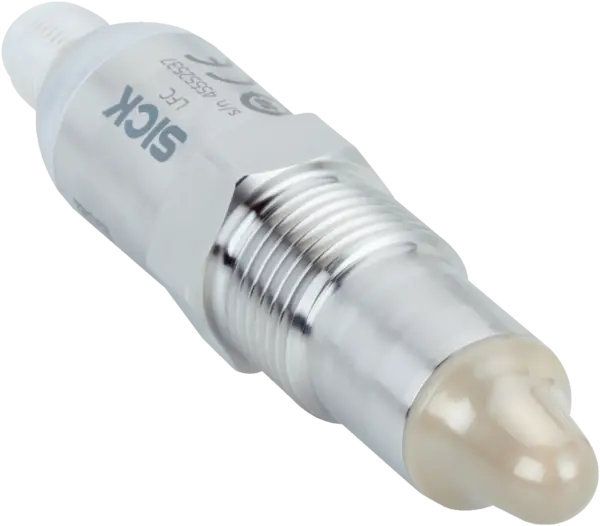

Sick LFC-XXSGTM
Level sensors | LFC | LFC-XXSGTM | Communication interface: IO-Link | Process connection: G ½ A, ISO0228-1, for hygienic thread adapter / 316L (RA
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Level sensors | LFC | LFC-XXSGTM | Communication interface: IO-Link | Process connection: G ½ A, ISO0228-1, for hygienic thread adapter / 316L (RA
Specification
Features
| Medium | Fluids |
|---|---|
| Measurement | Switch |
| Process pressure | â1 bar ... 25 bar |
| Process temperature | â20 °C ... +100 °C 1) |
Performance
| Reproducibility | ± 1 mm |
|---|---|
| Response time | 500Â ms |
| Dielectricity constant | â¥Â 2 |
| MTBF | 7,3*10^6 h |
Electronics
| Communication interface | IO-Link |
|---|---|
| Supply voltage | 12Â VÂ DCÂ ... 35Â VÂ DCÂ 1) |
| Residual ripple | â¤Â 5 Vpp |
| Power consumption | â¤Â 10 mA |
| Protection class | III |
| Connection type | M12 round connector x 1, 4-pin |
| Output signal | 2Â x PNP/NPN, IO-Link |
| Power consumption | â¤Â 0.1 W |
| Contamination rating | 4 |
| Inductive load | â¤Â 0.5 H |
| Capacitive load | 100Â nF |
| Enclosure rating | IP66IP67IP69Â 2) |
| Overvoltage category | I |
| Load current | â¤Â 250 mA (Output permanently short-circuit proof) |
| Voltage drop | <Â 3Â V |
| Switching voltage | <Â 34Â VÂ DC |
| Reverse current | < 10 µA |
Mechanics
| Wetted parts | PEEKÂ 1) |
|---|---|
| Process connection | G ½ A, ISO0228-1, for hygienic thread adapter / 316L (RA < 0.76 µm) |
| Housing material | Stainless steel 1.4404 / 316L, Plastic (Valox®) |
| Sealing material | NBR (male connector) |
Ambient data
| Ambient operating temperature | â40 °C ... +70 °C |
|---|---|
| Ambient temperature, storage | â40 °C ... +80 °C |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| FDA certificate | â |
| EHEDG approval | â |
| cULus certificate | â |
| cCSAus certificate | â |
| IO-Link certificate | â |
| Food contact material manufacturer declaration | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27273290 |
|---|---|
| ECLASS 5.1.4 | 27273290 |
| ECLASS 6.0 | 27273290 |
| ECLASS 6.2 | 27273290 |
| ECLASS 7.0 | 27273290 |
| ECLASS 8.0 | 27273290 |
| ECLASS 8.1 | 27273290 |
| ECLASS 9.0 | 27273290 |
| ECLASS 10.0 | 27273290 |
| ECLASS 11.0 | 27273290 |
| ECLASS 12.0 | 27200503 |
| ETIM 5.0 | EC002654 |
| ETIM 6.0 | EC002654 |
| ETIM 7.0 | EC002654 |
| ETIM 8.0 | EC002654 |
| UNSPSC 16.0901 | 41111950 |
