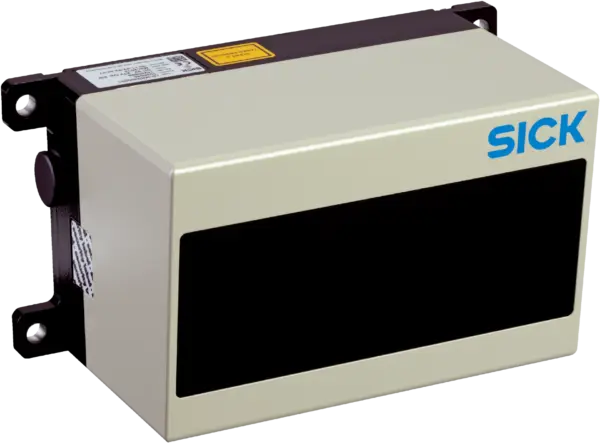

Sick LD-MRS400001S01
LiDAR sensors | LD-MRS | LD-MRS400001S01 | Application: Outdoor, Indoor | Integrated application: Object tracking | Working range: 0.5 m … 320 m | Aperture angle: Horizontal (85°), Working range wit…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
LiDAR sensors | LD-MRS | LD-MRS400001S01 | Application: Outdoor, Indoor | Integrated application: Object tracking | Working range: 0.5 m … 320 m | Aperture angle: Horizontal (85°), Working range with 4 scan layers, 25° extension of working range to a total of 110° with 2 scan layersVertical (3.2°) | Amount of evaluated echoes: 3 | Scanning frequency: 12.5 Hz … 50 Hz, object tracking at 12.5 Hz | Enclosure rating: IP69K | Weight: 1 kg
Specification
Features
| Application | Outdoor, Indoor |
|---|---|
| Light source | Infrared light (905 nm, ± 10 nm) |
| Laser class | 1Â (IECÂ 60825-1:2014, ENÂ 60825-1:2014+A11:2021) |
| Horizontal | 85°, Working range with 4 scan layers, 25° extension of working range to a total of 110° with 2 scan layers |
| Vertical | 3.2° |
| Scanning frequency | 12.5 Hz ... 50 Hz, object tracking at 12.5 Hz |
| Horizontal | 0.125° |
| Vertical | 0.8° |
| Working range | 0.5 m ... 320 m |
| At 10% remission factor | 50Â m |
| Amount of evaluated echoes | 3 |
Mechanics/electronics
| Connection type | 2, 1Â x Odu Mini-snap round connector, 4-pin (supply voltage, ETH), Odu Mini-snap round connector, 12-pin (Sync) |
|---|---|
| Supply voltage | 9Â VÂ ... 30Â V |
| Power consumption | 8Â W |
| Housing material | Al |
| Housing color | Gray (RAL 7032), black (RAL 9005) |
| Enclosure rating | IP69K |
| Protection class | III |
| Weight | 1Â kg |
| Dimensions (L x W x H) | 94 mm x 165 mm x 88 mm |
| MTBF | >Â 100Â years |
Safety-related parameters
| MTTFD | >Â 100Â years |
|---|
Performance
| Detectable object shape | Almost any |
|---|---|
| Systematic error | ± 300 mm 1) |
| Statistical error | 100 mm 1) |
| Integrated application | Object tracking |
Interfaces
| Ethernet | â , TCP/IP |
|---|---|
| Function | Raw data interface/parameterization |
| Data transmission rate | 100Â Mbit/s |
| Serial | â , RS-232 |
| Function | Auxiliary interface |
| Data transmission rate | 57,600Â Baud |
| CAN | â |
| Function | Output: Objects, Input: Vehicle ego motion data |
Ambient data
| Ambient operating temperature | â40 °C ... +70 °C |
|---|---|
| Ambient light immunity | 100Â klx |
General notes
| Note on use | The sensor does not constitute a safety component as defined by relevant legislation on machine safety. |
|---|
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| Information according to Art. 3 of Data Act (Regulation EU 2023/2854) | â |
Classifications
| ECLASS 5.0 | 27270990 |
|---|---|
| ECLASS 5.1.4 | 27270990 |
| ECLASS 6.0 | 27270913 |
| ECLASS 6.2 | 27270913 |
| ECLASS 7.0 | 27270913 |
| ECLASS 8.0 | 27270913 |
| ECLASS 8.1 | 27270913 |
| ECLASS 9.0 | 27270913 |
| ECLASS 10.0 | 27270913 |
| ECLASS 11.0 | 27270913 |
| ECLASS 12.0 | 27270913 |
| ETIM 5.0 | EC002550 |
| ETIM 6.0 | EC002550 |
| ETIM 7.0 | EC002550 |
| ETIM 8.0 | EC002550 |
| UNSPSC 16.0901 | 41111615 |
