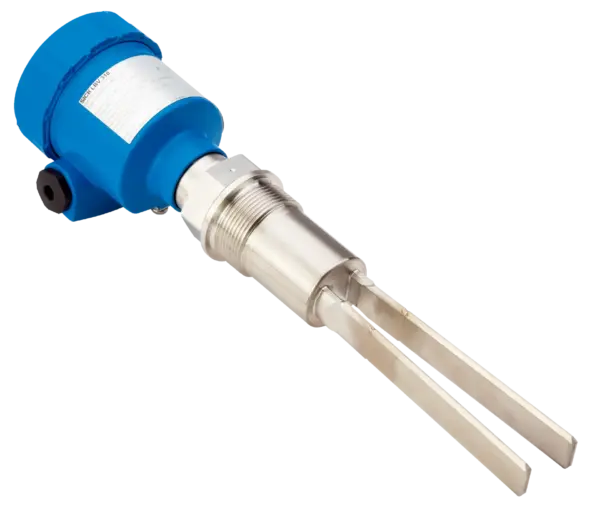

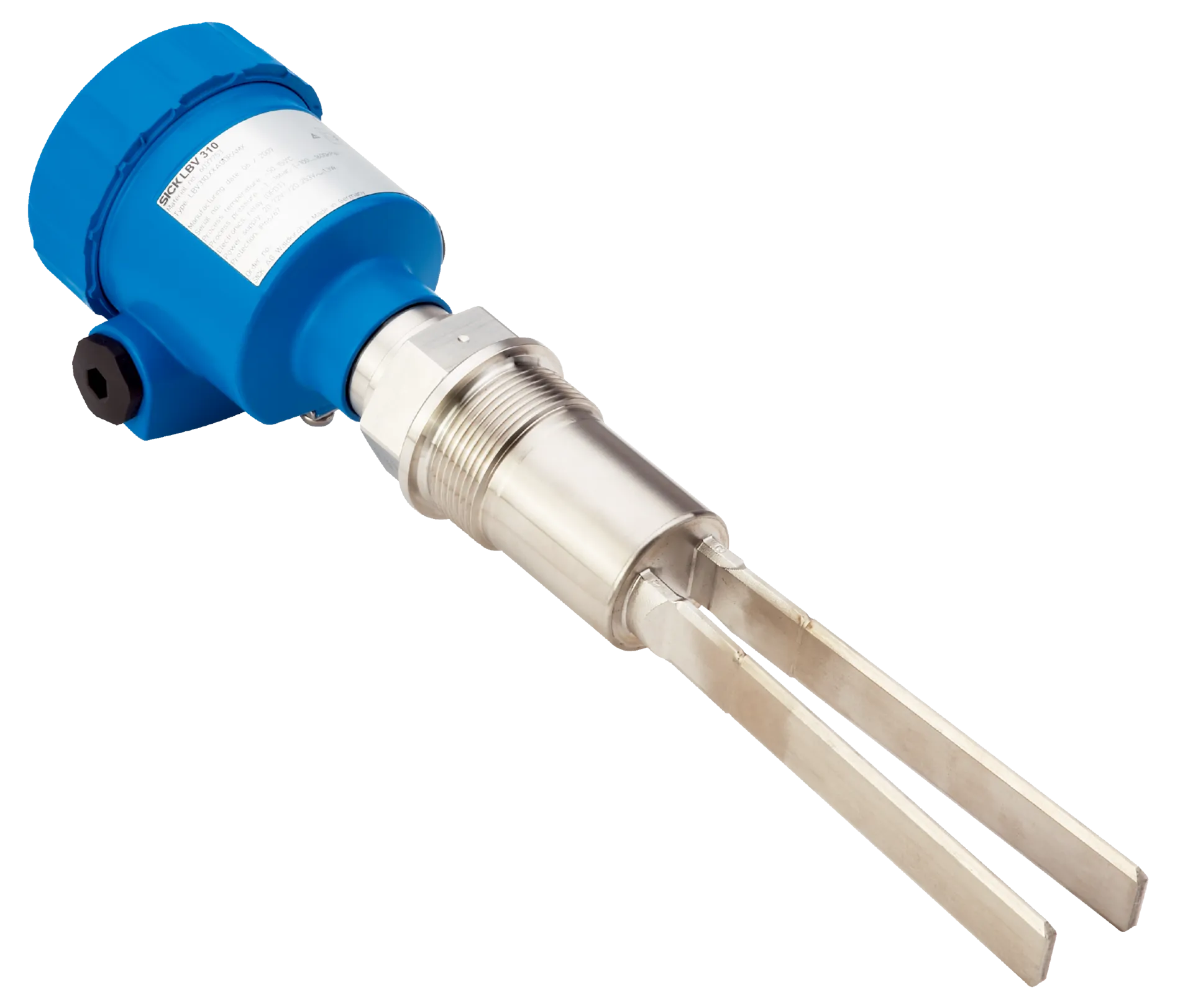

Sick LBV310-XXANDT8MX
Level sensors | LBV3xx | LBV310-XXANDT8MX | Communication interface: – | Process connection: 1 1/2″ NPT PN 25 | Probe length: 220 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal:…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Level sensors | LBV3xx | LBV310-XXANDT8MX | Communication interface: – | Process connection: 1 1/2″ NPT PN 25 | Probe length: 220 mm | Probe type: Tuning fork | Remote amplifier: No | Output signal: 1 x PNP/NPN | Connection type: M20 x 1.5 | Process temperature: –50 °C … +150 °C | Process pressure: –1 bar … 25 bar | Wetted parts: Stainless steel 1.4404 / 316L | Housing material: Stainless steel 1.4404 / 316L | Enclosure rating: IP66, IP67 | Display: no | PWIS-cleaned: no | Bluetooth: no
Specification
Features
| Medium | Bulk solids |
|---|---|
| Measurement | Switch |
| Probe type | Tuning fork |
| Probe length | 220Â mm |
| Process pressure | â1 bar ... 25 bar |
| Process temperature | â50 °C ... +150 °C |
| Fill material density | ⥠0.008 g/cm³ |
| Particle size | <Â 10Â mm |
Performance
| Accuracy of sensor element | ± 10 mm |
|---|---|
| Reproducibility | â¤Â 5 mm |
| Response time | 500 ms 1)1,000 ms 2) |
| MTBF | 4,61*10^6 h |
Electronics
| Communication interface | - |
|---|---|
| Supply voltage | 10Â VÂ DCÂ ... 55Â VÂ DC |
| Residual ripple | â¤Â 5 Vpp |
| Initialization time | <Â 2Â s |
| VDE protection class 2 | â |
| Connection type | M20Â x 1.5 |
| Output signal | 1Â x PNP/NPN |
| Electronics | Volt-free transistor output PNP/ NPN |
| Hysteresis | 10Â mm |
| Output current | <Â 300Â mA |
| Inductive load | â¤Â 1 H |
| Capacitive load | 100Â nF |
| Enclosure rating | IP66IP67 |
Mechanics
| Wetted parts | Stainless steel 1.4404Â / 316L |
|---|---|
| Process connection | 1Â 1/2" NPT PN 25 |
| Housing material | Stainless steel (electropolished) 316L |
| Sensor material | Stainless steel 1.4404 |
Ambient data
| Ambient operating temperature | â40 °C ... +80 °C |
|---|---|
| Ambient temperature, storage | â40 °C ... +80 °C |
Classifications
| ECLASS 5.0 | 27273202 |
|---|---|
| ECLASS 5.1.4 | 27273202 |
| ECLASS 6.0 | 27273202 |
| ECLASS 6.2 | 27273202 |
| ECLASS 7.0 | 27273202 |
| ECLASS 8.0 | 27273202 |
| ECLASS 8.1 | 27273202 |
| ECLASS 9.0 | 27273202 |
| ECLASS 10.0 | 27273202 |
| ECLASS 11.0 | 27273202 |
| ECLASS 12.0 | 27273106 |
| ETIM 5.0 | EC002654 |
| ETIM 6.0 | EC002654 |
| ETIM 7.0 | EC002654 |
| ETIM 8.0 | EC002654 |
| UNSPSC 16.0901 | 41111938 |
Certificates
| EU declaration of conformity | â |
|---|---|
| UK declaration of conformity | â |
| ACMA declaration of conformity | â |
| China RoHS | â |
| FDA certificate | â |
