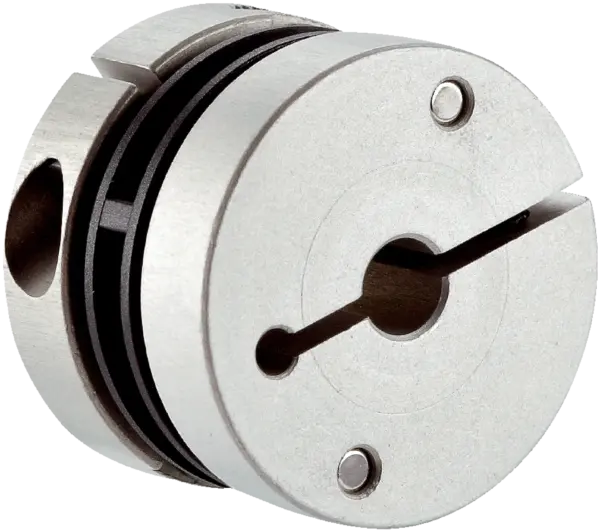

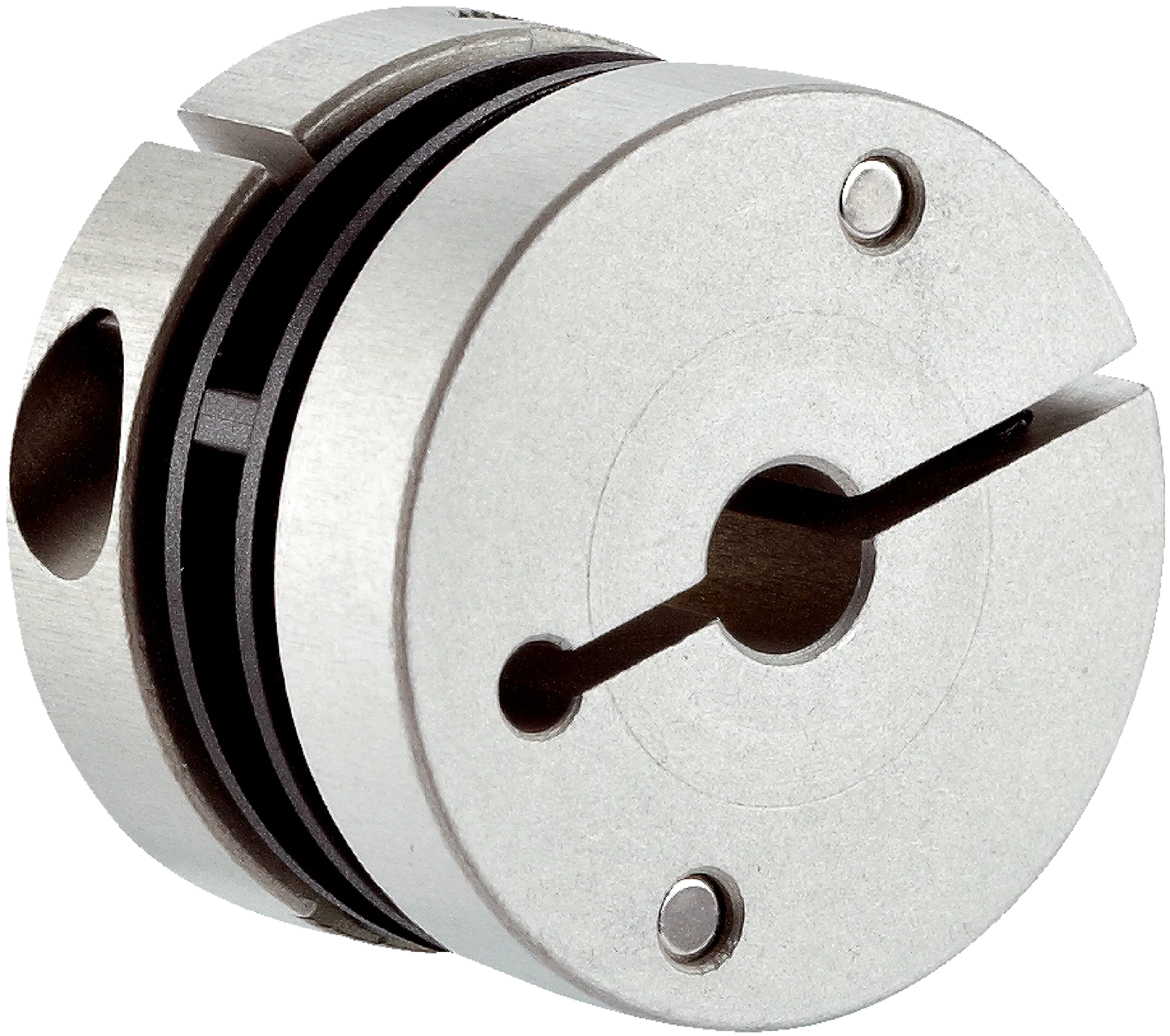

Sick KUP-1010-F
Shaft adaptation | Shaft couplings | KUP-1010-F | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Spring washer coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Shaft adaptation | Shaft couplings | KUP-1010-F | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Spring washer coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset, radial ± 0.3 mm, axial ± 0.4 mm, angle ± 2.5°, torsion spring stiffness 30 Nm/rad; material: aluminum flange, glass-fiber reinforced polyamide membrane and hardened steel coupling pin
Specification
Features
| Product segment | Shaft adaptation |
|---|---|
| Product | Shaft couplings |
| Shaft diameter D1 | 10Â mm |
| Shaft diameter D2 | 10Â mm |
| Length | 30Â mm |
| Maximumspeed | 12,000 minâ»Â¹ |
| Max. torque | 60Â Ncm |
| Description | Spring washer coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset, radial ± 0.3 mm, axial ± 0.4 mm, angle ± 2.5°, torsion spring stiffness 30 Nm/rad; material: aluminum flange, glass-fiber reinforced polyamide membrane and hardened steel coupling pin |
Classifications
| ECLASS 5.0 | 23031090 |
|---|---|
| ECLASS 5.1.4 | 23031090 |
| ECLASS 6.0 | 23031090 |
| ECLASS 6.2 | 23031090 |
| ECLASS 7.0 | 23031090 |
| ECLASS 8.0 | 23031090 |
| ECLASS 8.1 | 23031090 |
| ECLASS 9.0 | 23031090 |
| ECLASS 10.0 | 23031090 |
| ECLASS 11.0 | 23031090 |
| ECLASS 12.0 | 23031090 |
| UNSPSC 16.0901 | 31163014 |
