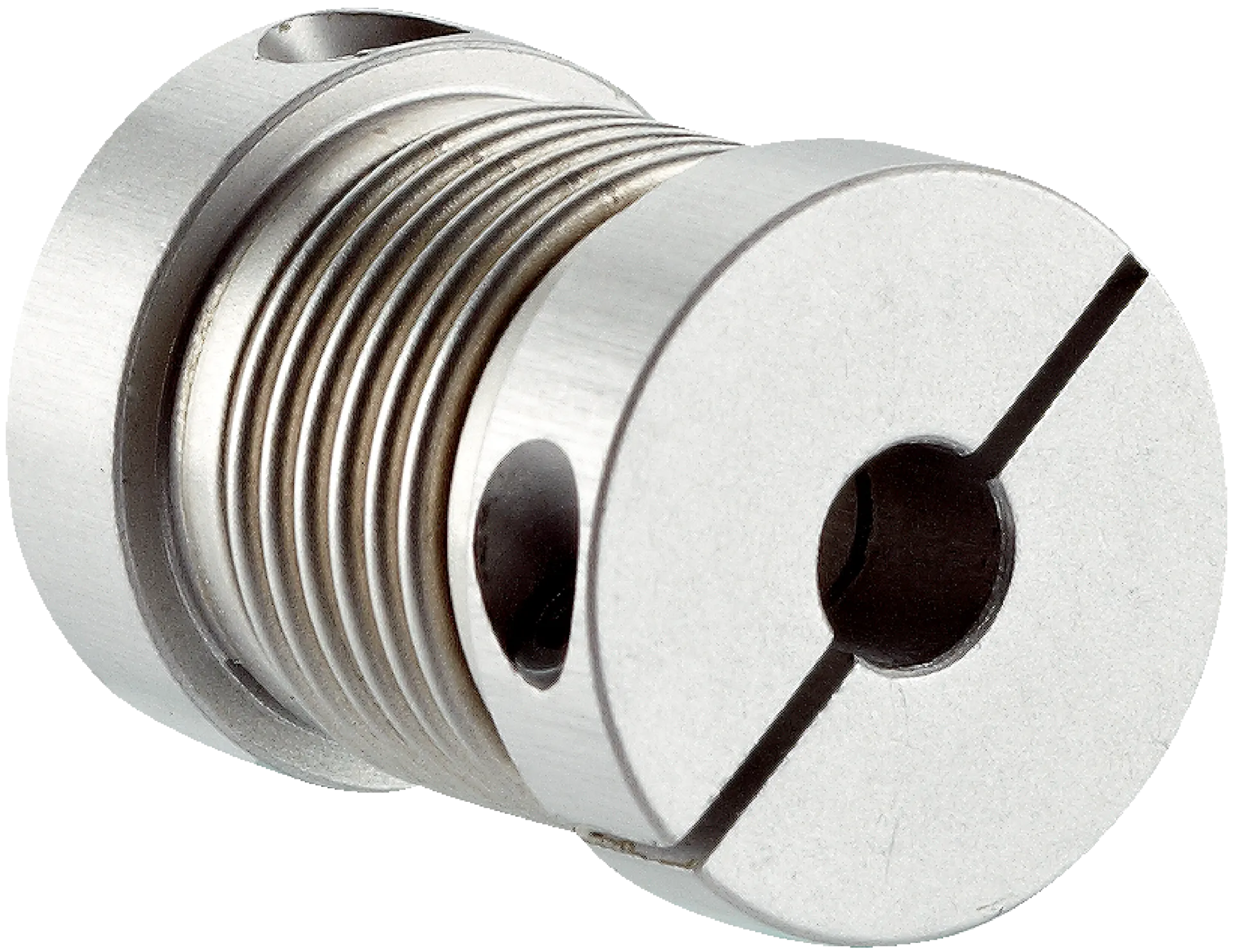

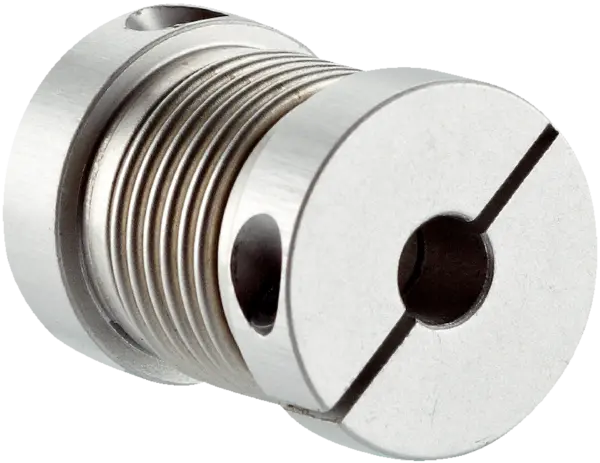

Sick KUP-1010-B
Shaft adaptation | Shaft couplings | KUP-1010-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 10 mm/10 mm; maximum shaft offset: radial…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Shaft adaptation | Shaft couplings | KUP-1010-B | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bellows coupling, shaft diameter 10 mm/10 mm; maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°; max. revolutions 10,000 rpm, –30° to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum clamping hubs
Specification
Features
| Product segment | Shaft adaptation |
|---|---|
| Product | Shaft couplings |
| Shaft diameter D1 | 10Â mm |
| Shaft diameter D2 | 10Â mm |
| Length | 29Â mm |
| Maximumspeed | 10,000 minâ»Â¹ |
| Maximum shaft offset - radial | ± 0.25 mm |
| Maximum shaft offset -axial | ± 0.4 mm |
| Maximum shaft offset - agular | ± 4° |
| Max. torque | 120Â Ncm |
| Description | Bellows coupling, shaft diameter 10 mm/10 mm; maximum shaft offset: radial +/- 0.25 mm, axial +/- 0.4 mm, angular +/- 4°; max. revolutions 10,000 rpm, â30° to +120 °C, max. torque 120 Ncm; material: stainless steel bellows, aluminum clamping hubs |
Classifications
| ECLASS 5.0 | 23031090 |
|---|---|
| ECLASS 5.1.4 | 23031090 |
| ECLASS 6.0 | 23031090 |
| ECLASS 6.2 | 23031090 |
| ECLASS 7.0 | 23031090 |
| ECLASS 8.0 | 23031090 |
| ECLASS 8.1 | 23031090 |
| ECLASS 9.0 | 23031090 |
| ECLASS 10.0 | 23031090 |
| ECLASS 11.0 | 23031090 |
| ECLASS 12.0 | 23031090 |
| UNSPSC 16.0901 | 31163014 |
