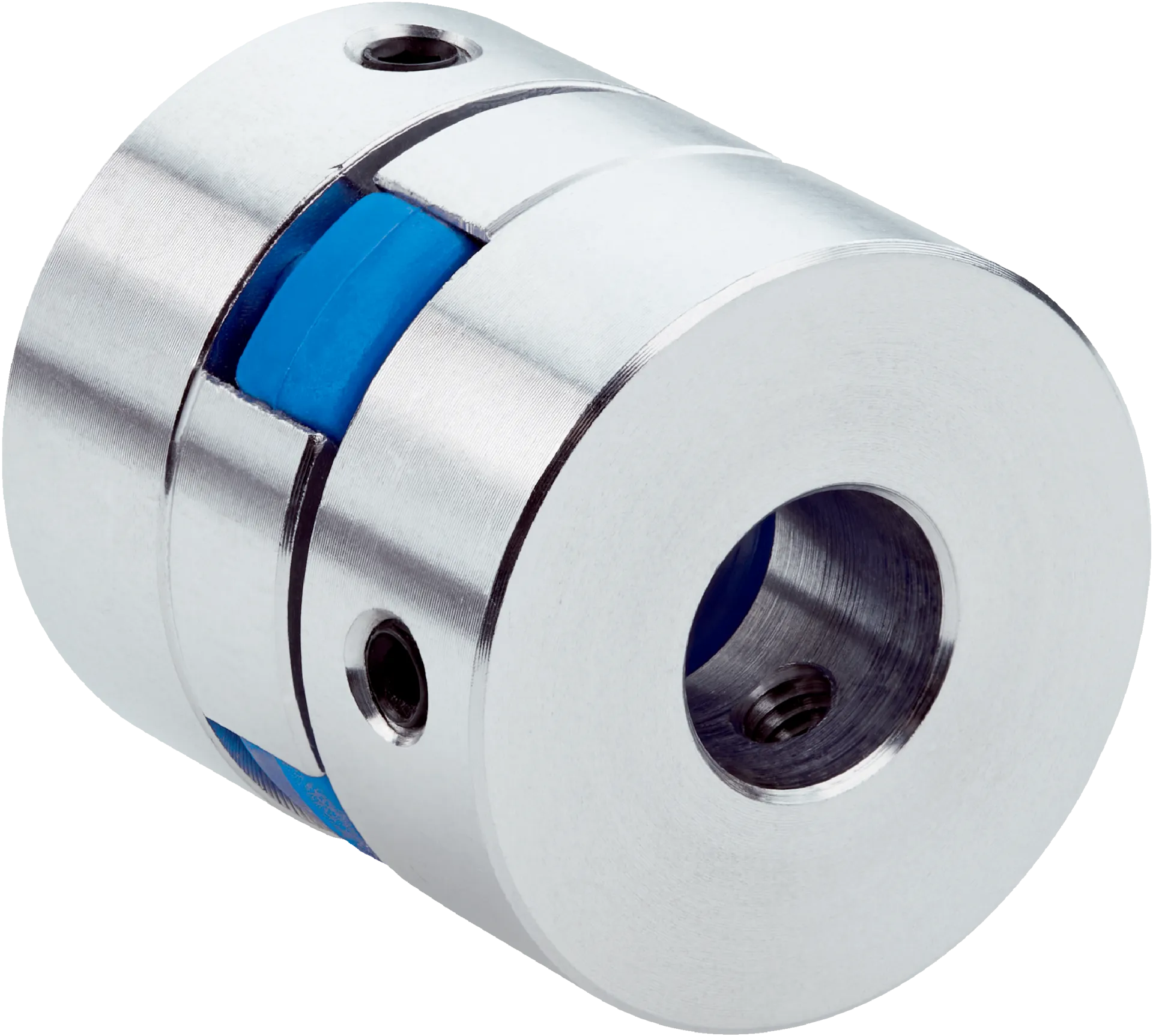

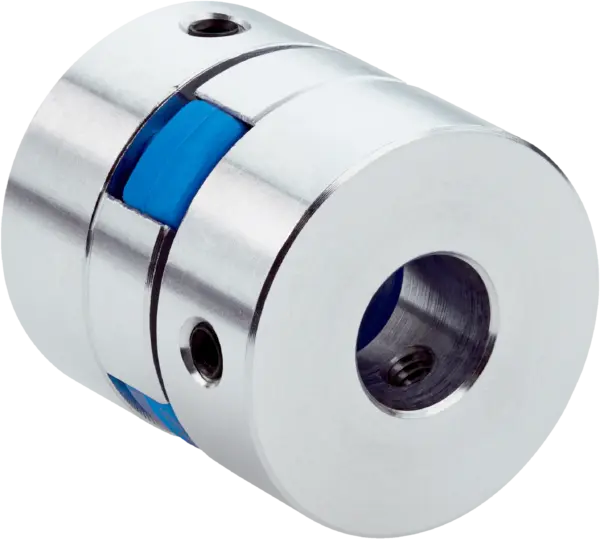

Sick KUP-0810-J
Shaft adaptation | Shaft couplings | KUP-0810-J | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Claw coupling, shaft diameter 8 mm / 10 mm, damping element 80 shore blue,…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Shaft adaptation | Shaft couplings | KUP-0810-J | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Claw coupling, shaft diameter 8 mm / 10 mm, damping element 80 shore blue, maximum shaft offset: radial ± 0.22 mm, axial ± 1 mm angular ± 1.3°, max. speed 19,000 rpm, angle of twist max. 10°, –30 °C to +80 °C, max. torque 800 Ncm, tightening torque of screws: ISO 4029 150 Ncm, material: aluminum flange, damping element: polyurethane
Specification
Features
| Product segment | Shaft adaptation |
|---|---|
| Product | Shaft couplings |
| Shaft diameter D1 | 8Â mm |
| Shaft diameter D2 | 10Â mm |
| Length | 28.5Â mm |
| Maximumspeed | 19,000 minâ»Â¹ |
| Max. torque | 150Â Ncm |
| Description | Claw coupling, shaft diameter 8 mm / 10 mm, damping element 80 shore blue, maximum shaft offset: radial ± 0.22 mm, axial ± 1 mm angular ± 1.3°, max. speed 19,000 rpm, angle of twist max. 10°, â30 °C to +80 °C, max. torque 800 Ncm, tightening torque of screws: ISO 4029 150 Ncm, material: aluminum flange, damping element: polyurethane |
Classifications
| ECLASS 5.0 | 23031090 |
|---|---|
| ECLASS 5.1.4 | 23031090 |
| ECLASS 6.0 | 23031090 |
| ECLASS 6.2 | 23031090 |
| ECLASS 7.0 | 23031090 |
| ECLASS 8.0 | 23031090 |
| ECLASS 8.1 | 23031090 |
| ECLASS 9.0 | 23031090 |
| ECLASS 10.0 | 23031090 |
| ECLASS 11.0 | 23031090 |
| UNSPSC 16.0901 | 31163014 |
Certificates
| China RoHS | â |
|---|
