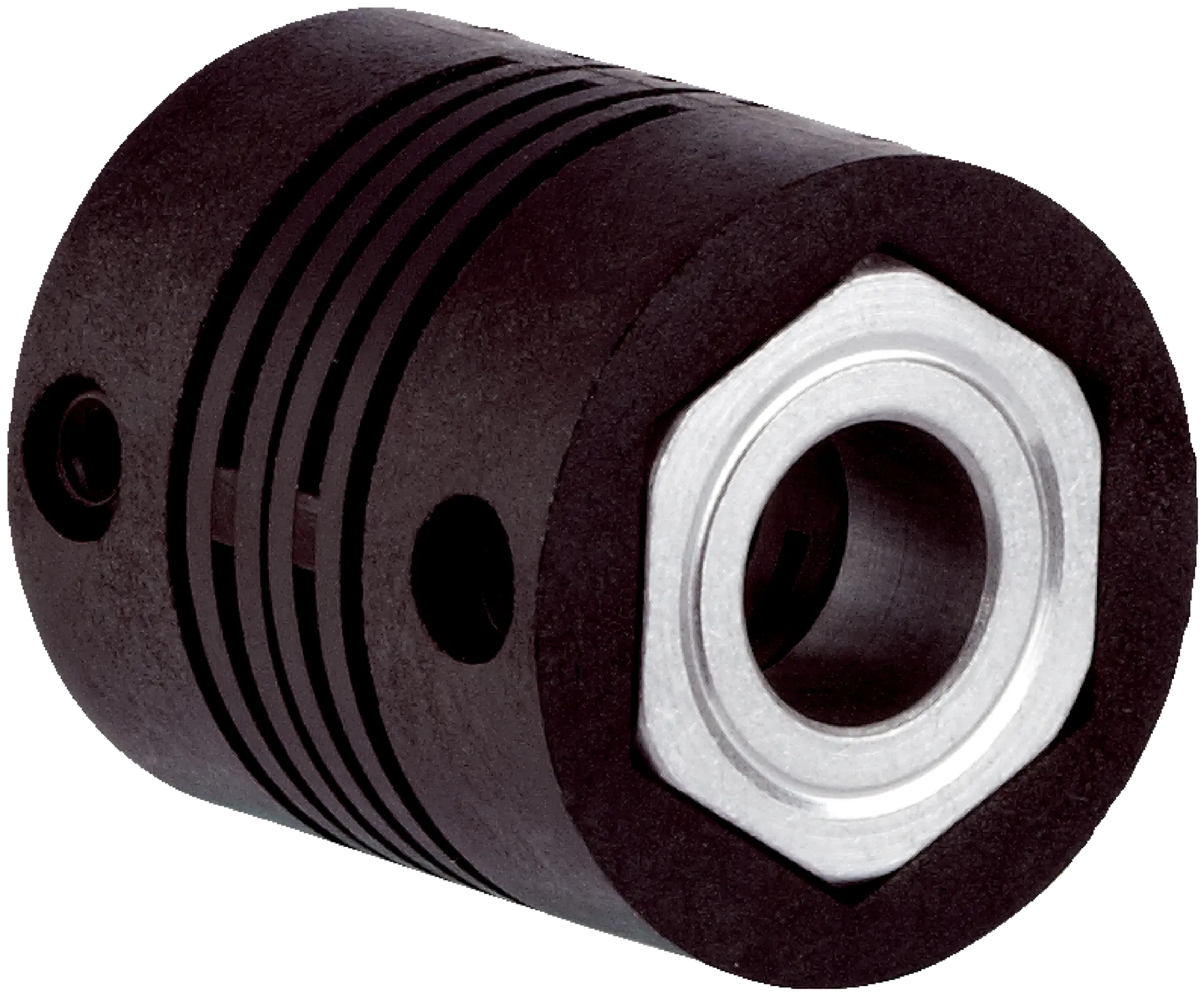

Sick KUP-0610-S
Shaft adaptation | Shaft couplings | KUP-0610-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bar coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radial ± 0,3…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Shaft adaptation | Shaft couplings | KUP-0610-S | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Bar coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radial ± 0,3 mm, axial ± 0,3 mm, angular ± 3°; max. speed 10.000 rpm, –10° to +80 °C, max. torque: 80 Ncm, material: fiber-glass reinforced polyamide, aluminum hub
Specification
Features
| Product segment | Shaft adaptation |
|---|---|
| Product | Shaft couplings |
| Shaft diameter D1 | 6Â mm |
| Shaft diameter D2 | 10Â mm |
| Length | 24Â mm |
| Maximumspeed | 10,000 minâ»Â¹ |
| Maximum shaft offset - radial | ± 0.3 mm |
| Maximum shaft offset -axial | ± 0.2 mm |
| Maximum shaft offset - agular | ± 3° |
| Max. torque | 80Â Ncm |
| Description | Bar coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radial ± 0,3 mm, axial ± 0,3 mm, angular ± 3°; max. speed 10.000 rpm, â10° to +80 °C, max. torque: 80 Ncm, material: fiber-glass reinforced polyamide, aluminum hub |
Classifications
| ECLASS 5.0 | 23031090 |
|---|---|
| ECLASS 5.1.4 | 23031090 |
| ECLASS 6.0 | 23031090 |
| ECLASS 6.2 | 23031090 |
| ECLASS 7.0 | 23031090 |
| ECLASS 8.0 | 23031090 |
| ECLASS 8.1 | 23031090 |
| ECLASS 9.0 | 23031090 |
| ECLASS 10.0 | 23031090 |
| ECLASS 11.0 | 23031090 |
| ECLASS 12.0 | 23031090 |
| UNSPSC 16.0901 | 31163014 |
