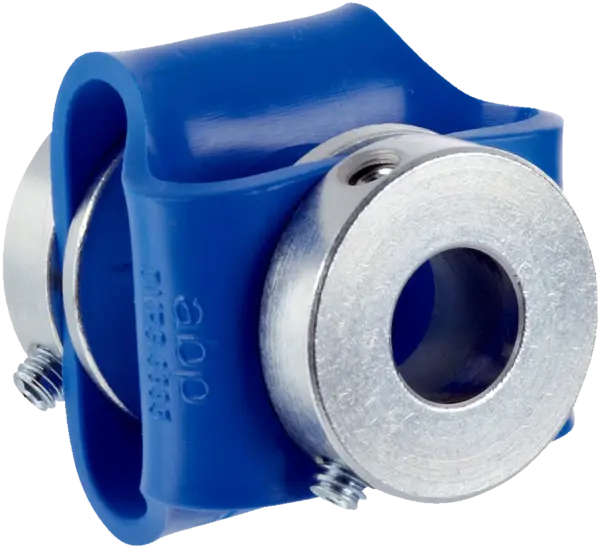

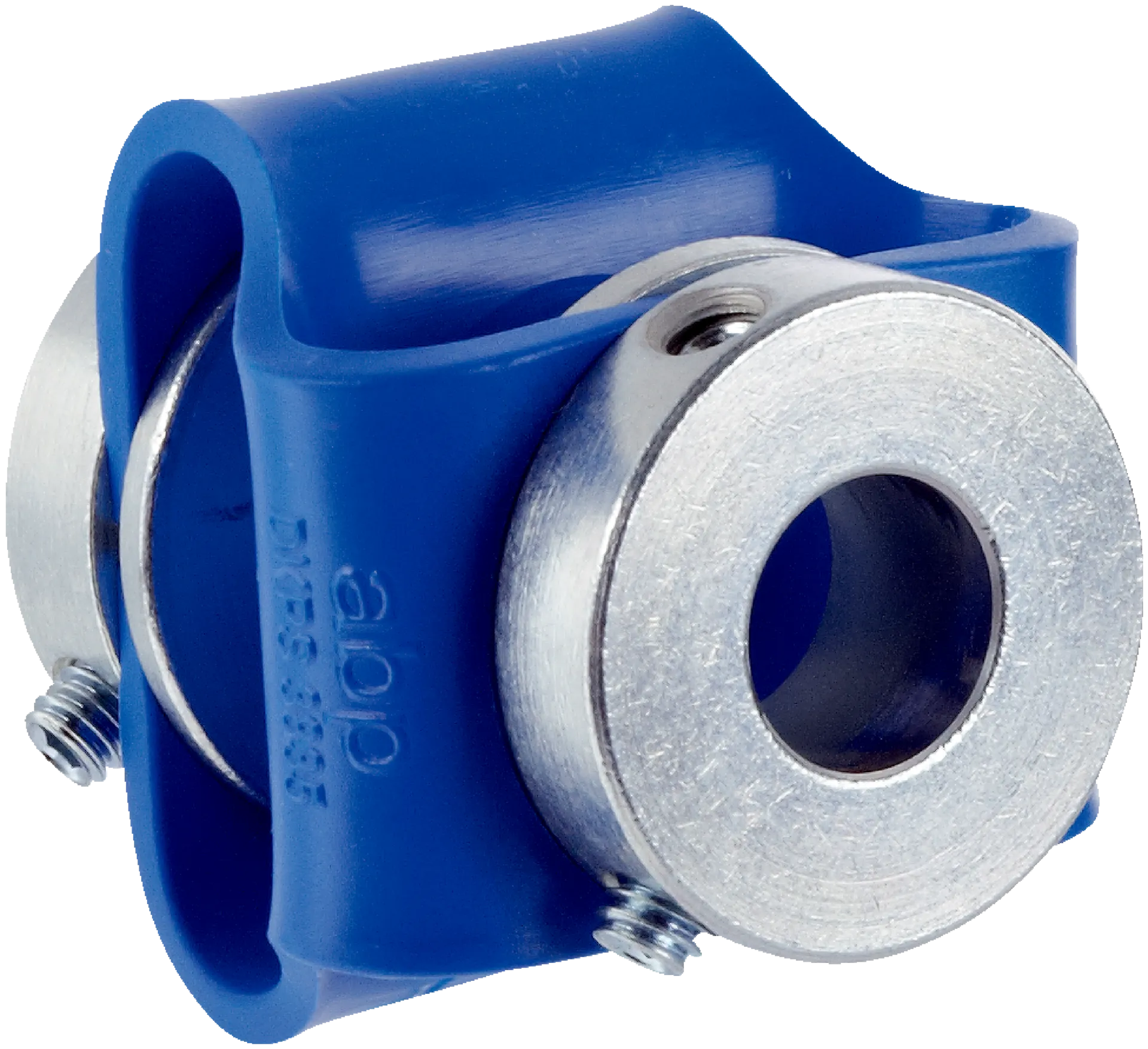

Sick KUP-0610-D
Shaft adaptation | Shaft couplings | KUP-0610-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double loop coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radi…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Shaft adaptation | Shaft couplings | KUP-0610-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double loop coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radially +/- 2,5 mm, axially +/-3 mm, angle +/- 10 degrees;max. speed 3.000 rpm, –30 to +80 degrees Celsius, torsional spring stiffness of 25 Nm/rad
Specification
Features
| Product segment | Shaft adaptation |
|---|---|
| Product | Shaft couplings |
| Shaft diameter D1 | 6Â mm |
| Shaft diameter D2 | 10Â mm |
| Length | 35Â mm |
| Maximumspeed | 3,000 minâ»Â¹ |
| Maximum shaft offset - radial | ± 2.5 mm |
| Maximum shaft offset -axial | ± 3 mm |
| Maximum shaft offset - agular | ± 10° |
| Max. torque | 250Â Ncm |
| Description | Double loop coupling, shaft diameter 6Â mm / 10Â mm, max. shaft offset: radially +/- 2,5Â mm, axially +/-3 mm, angle +/- 10Â degrees;max. speed 3.000Â rpm, â30 to +80 degrees Celsius, torsional spring stiffness of 25Â Nm/rad |
Classifications
| ECLASS 5.0 | 23031190 |
|---|---|
| ECLASS 5.1.4 | 23031190 |
| ECLASS 6.0 | 23031190 |
| ECLASS 6.2 | 23031190 |
| ECLASS 7.0 | 23031190 |
| ECLASS 8.0 | 23031190 |
| ECLASS 8.1 | 23031190 |
| ECLASS 9.0 | 23031190 |
| ECLASS 10.0 | 23031190 |
| ECLASS 11.0 | 23031190 |
| ECLASS 12.0 | 23031190 |
| UNSPSC 16.0901 | 31163014 |
