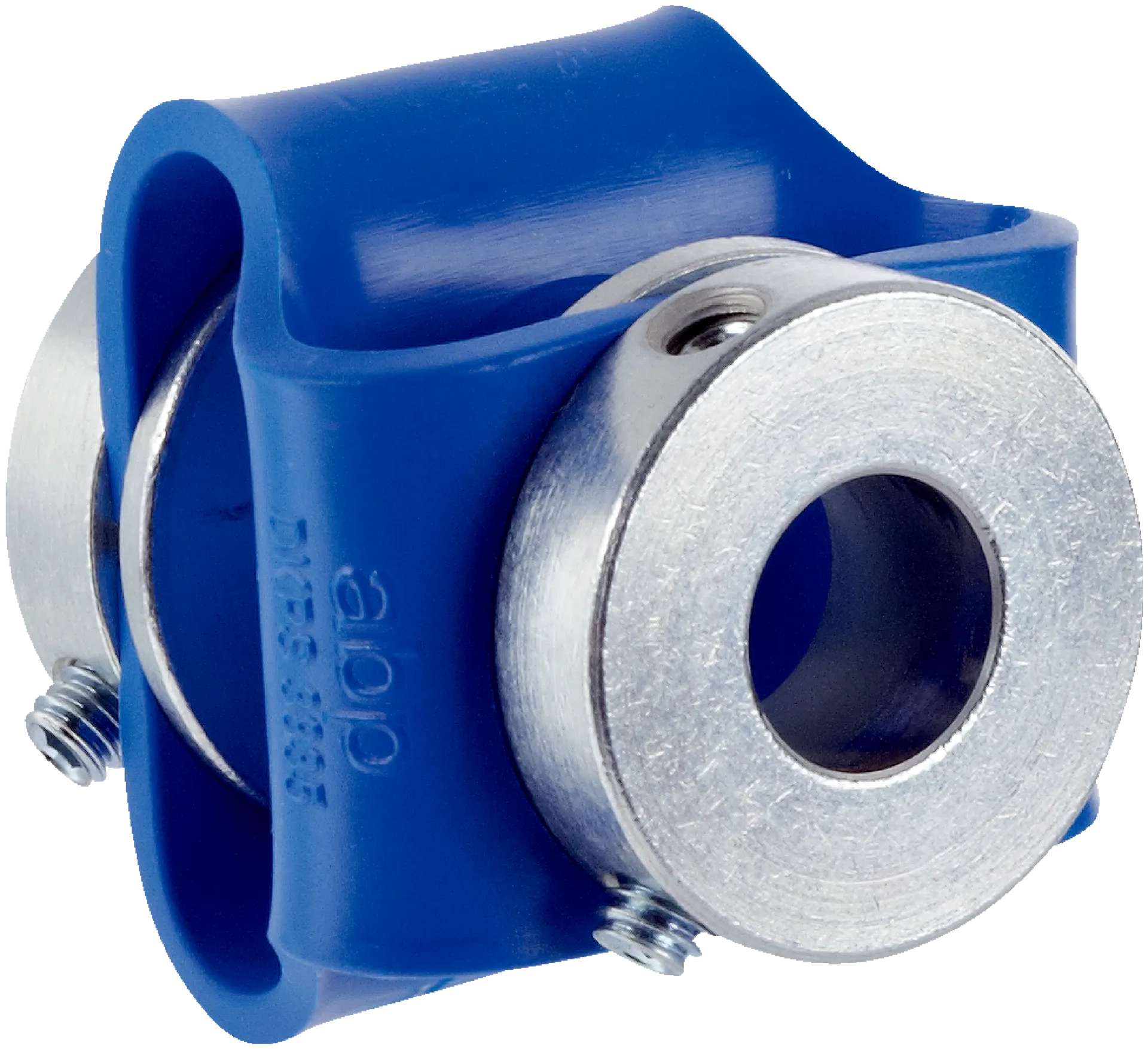

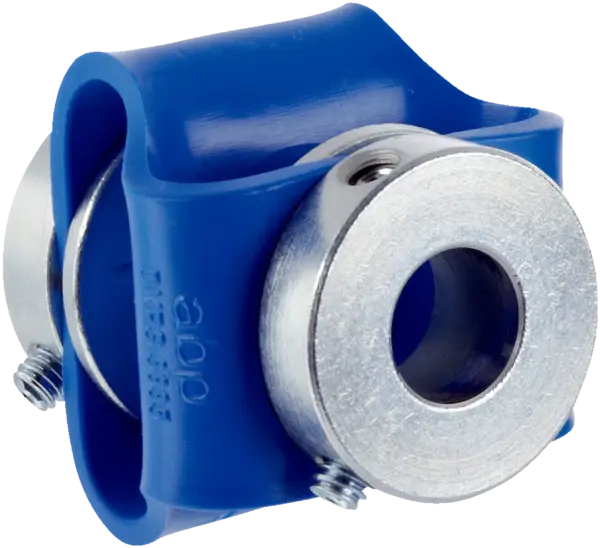

Sick KUP-0606-D
Shaft adaptation | Shaft couplings | KUP-0606-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double-loop coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: ra…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Shaft adaptation | Shaft couplings | KUP-0606-D | Product segment: Shaft adaptation | Product: Shaft couplings | Description: Double-loop coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 2.5 mm, axial ± 3 mm, angular ± 10°; max. speed 3,000 rpm, –30 °C to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange
Specification
Features
| Product segment | Shaft adaptation |
|---|---|
| Product | Shaft couplings |
| Shaft diameter D1 | 6Â mm |
| Shaft diameter D2 | 6Â mm |
| Length | 35Â mm |
| Maximumspeed | 3,000 minâ»Â¹ |
| Max. torque | 150Â Ncm |
| Description | Double-loop coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 2.5 mm, axial ± 3 mm, angular ± 10°; max. speed 3,000 rpm, â30 °C to +80 °C, max. torque 1.5 Nm; material: polyurethane, galvanized steel flange |
Classifications
| ECLASS 5.0 | 23031090 |
|---|---|
| ECLASS 5.1.4 | 23031090 |
| ECLASS 6.0 | 23031090 |
| ECLASS 6.2 | 23031090 |
| ECLASS 7.0 | 23031090 |
| ECLASS 8.0 | 23031090 |
| ECLASS 8.1 | 23031090 |
| ECLASS 9.0 | 23031090 |
| ECLASS 10.0 | 23031090 |
| ECLASS 11.0 | 23031090 |
| ECLASS 12.0 | 23031090 |
| UNSPSC 16.0901 | 31163014 |
