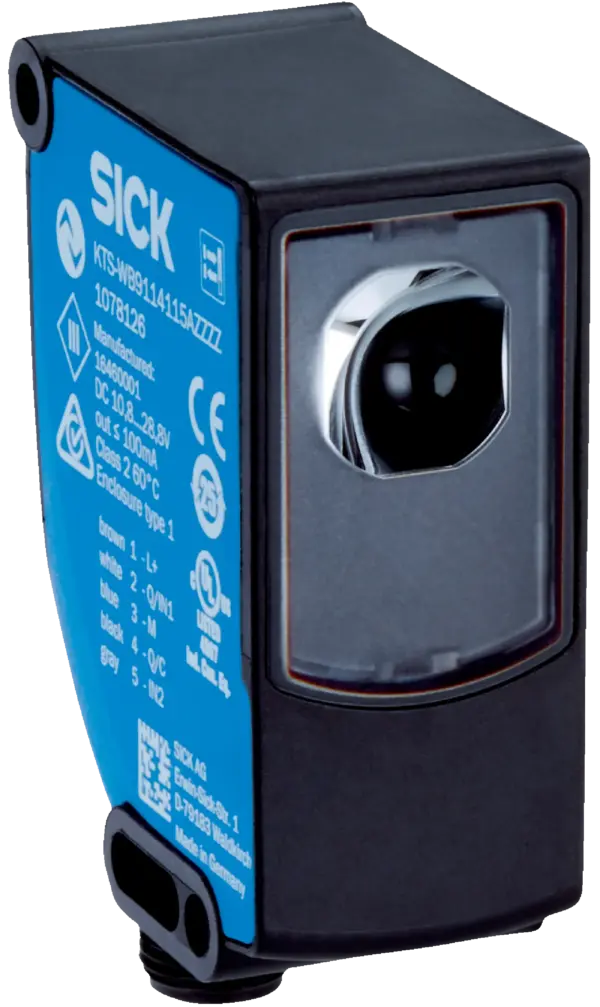

Sick KTS-WB51141142ZZZZ
Contrast sensors | KTS | KTS-WB51141142ZZZZ | Light source: LED | Communication interface: – | Device type: Easy Teach | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN | Light spot siz…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Contrast sensors | KTS | KTS-WB51141142ZZZZ | Light source: LED | Communication interface: – | Device type: Easy Teach | Sensing distance: 13 mm | Switching output: Push-pull: PNP/NPN | Light spot size: 1.2 mm x 3.9 mm | Light spot direction: Vertical | Light emission: Long side of housing | Connection type Detail: Male connector M12, 4-pin | Teach-in mode: Teach-in dynamic | Delivery status: Teach-in dynamic | Housing material: Plastic
Specification
Features
| Parameter presettings | None |
|---|---|
| Special applications | Standard |
| Device type | Easy Teach |
| Housing design | Middle |
| Dimensions (W x H x D) | 26 mm x 62 mm x 47.5 mm |
| Light source | LED, RGBÂ 1) |
| Light emission | Long side of housing |
| Light spot size | 1.2 mm x 3.9 mm |
| Light spot direction | Vertical 2) |
| Receiving filters | None |
| Wave length | 470Â nm, 525Â nm, 625Â nm |
| Sensing distance | ≤ 13 mm |
| Sensing distance tolerance | ± 3 mm |
| Teach-in mode | Teach-in dynamic |
| Output function | Light/dark switching |
| Delay time | - |
| Setting the key lock | Standard |
| Delivery status | Teach-in dynamic |
| MTTFD | 291Â years |
Electronics
| Supply voltage | 10.8Â VÂ DCÂ ... 28.8Â VÂ DCÂ 1) |
|---|---|
| Ripple | ≤ 5 Vpp 2) |
| Current consumption | <Â 100Â mAÂ 3) |
| Switching frequency | 25 kHz 4) |
| Jitter | 10 µs |
| Switching output | Push-pull: PNP/NPN |
| Switching output (voltage) | Push-pull: PNP/NPN HIGH = UV - 3 V/LOW ≤ 3 V |
| Output current Imax. | 100Â mAÂ 5) |
| Input, teach-in (ET) | Teach: UÂ = 10Â VÂ ... < VS |
| Retention time (ET) | 35Â ms, non-volatile memory |
| Time delay | None |
| Protection class | III |
| Circuit protection | UV connections, reverse polarity protectedOutput Q short-circuit protectedInterference pulse suppression |
Mechanics
| Housing material | VISTAL® |
|---|---|
| Optics material | COP |
| Weight | 68Â g |
Ambient data
| Ambient operating temperature | –20 °C ... +60 °C |
|---|---|
| Ambient temperature, storage | –25 °C ... +75 °C |
| Shock load | According to IECÂ 60068-2-27 (30Â g/11 ms) |
| Enclosure rating | IP67 |
| UL File No. | E181493 |
Classifications
| ECLASS 5.0 | 27270906 |
|---|---|
| ECLASS 5.1.4 | 27270906 |
| ECLASS 6.0 | 27270906 |
| ECLASS 6.2 | 27270906 |
| ECLASS 7.0 | 27270906 |
| ECLASS 8.0 | 27270906 |
| ECLASS 8.1 | 27270906 |
| ECLASS 9.0 | 27270906 |
| ECLASS 10.0 | 27270906 |
| ECLASS 11.0 | 27270906 |
| ECLASS 12.0 | 27270906 |
| ETIM 5.0 | EC001820 |
| ETIM 6.0 | EC001820 |
| ETIM 7.0 | EC001820 |
| ETIM 8.0 | EC001820 |
| UNSPSC 16.0901 | 39121528 |
Certificates
| EU declaration of conformity | ✔ |
|---|---|
| UK declaration of conformity | ✔ |
| ACMA declaration of conformity | ✔ |
| Moroccan declaration of conformity | ✔ |
| China RoHS | ✔ |
| cULus certificate | ✔ |
| Photobiological safety (IEC EN 62471) | ✔ |
